Isuzu WW
▶
TRUCKS
▶
FTR
▶
11540 - FTR CNG(THAILAND)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶

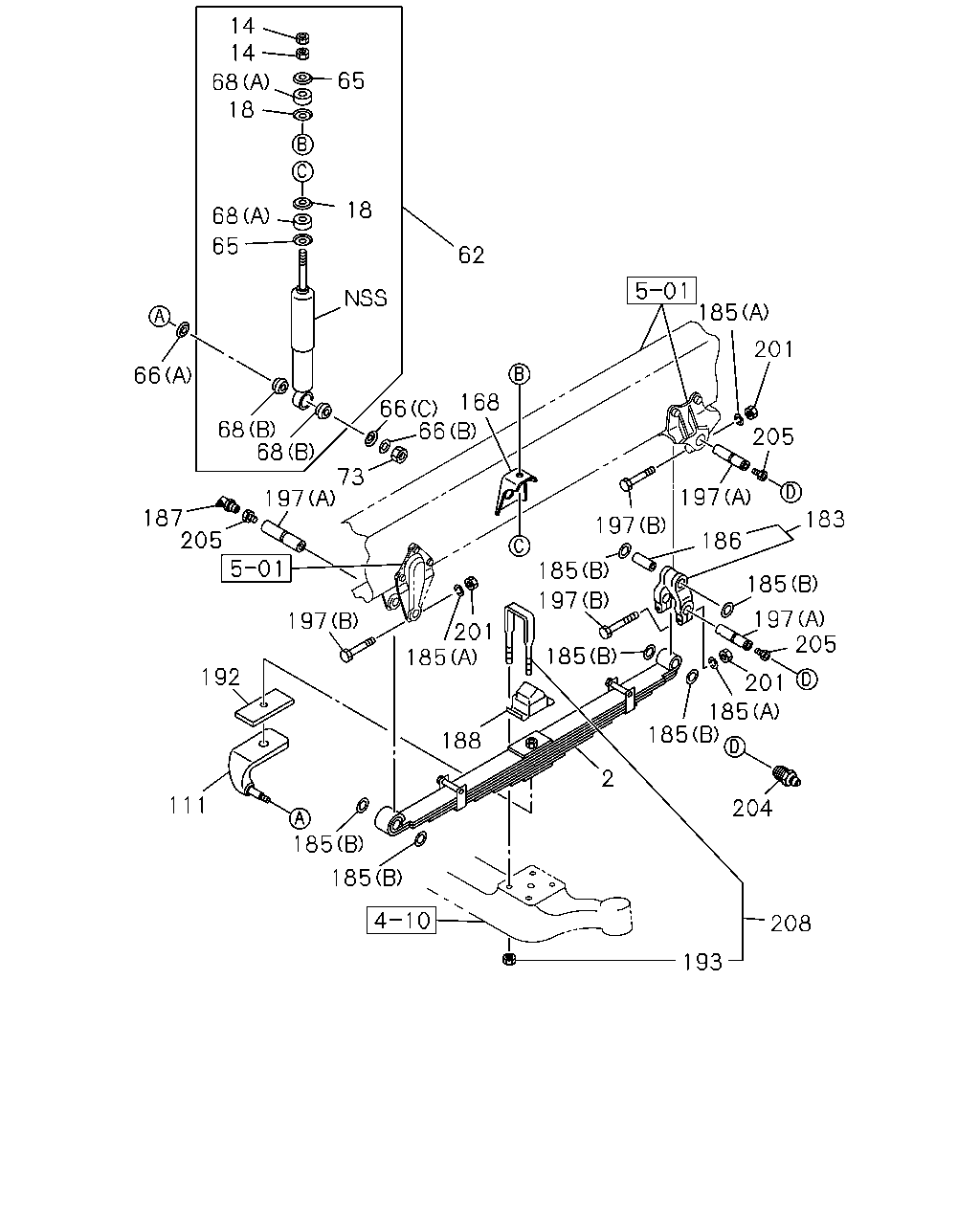

4-50 — FRONT SUSPENSION
(#121463) — 33 parça
14
14
68
18
65
68
65
18
62
66
68
68
66
168
66
73
197
205
187
185
201
205
183
197
186
185
197
185
197
185
185
201
197
192
111
185
185
188
2
185
185
201
205
204
193
208
197
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
8-98029-096-0
02
1
1304-1307
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF THA
8-97948-186-0
02
1
1308-
14
NUT; S/ABS,UPR
M12 THA
8-98010-412-0
04
1
1304-
18
WASHER; CENTERING,S/ABS
ID=16.8
1-51631-022-0
04
1
1304-
62
ABSORBER ASM; SHOCK,FRT
THA
8-97924-225-0
02
1
1304-
65
WASHER; S/ABS
ID=14.5
9-51631-051-0
04
1
1304-
66
WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30
0-91610-516-0
02
1
1304-
66
WASHER; LK,S/ABS SETTING
(A) ID=23
1-51631-019-0
02
1
1304-
66
WASHER; LK,S/ABS SETTING
(C) ID=17
1-51631-020-0
02
1
1304-
68
BUSHING; S/ABS
(B) THA
1-51631-009-1
04
1
1304-
68
BUSHING; S/ABS
(A)
9-51631-050-0
04
1
1304-
73
NUT; BRKT,SHOCK
M16 THA
0-91110-516-0
02
1
1304-
111
SUPPORTER; S/ABS,FRT SUSP
8-98123-348-0
01
1
1304-
111
SUPPORTER; S/ABS,FRT SUSP
8-98123-347-0
01
1
1304-
168
BRACKET; S/ABS,FRT SUSP
1-51681-306-0
02
1
1304-
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
1304-1307
183
SHACKLE; FRT SUSP
1-51162-029-5
04
1
1308-
185
WASHER; LK,PIN
(A) ID=12.2
0-91510-612-0
12
1
1304-
185
WASHER; LK,PIN
(B) ID=32.4
1-51169-018-0
12
1
1304-
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
02
1
1304-1307
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
04
1
1308-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
1304-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
THA
1-51172-096-2
02
1
1304-1307
188
RUBBER; CLAMP,U-BOLT,FRT SPR
THA
8-97948-187-0
02
1
1308-
192
PIECE; DIST
80X144 ID=17.5
1-51177-284-1
AR
1
1304-
193
NUT; U BOLT
M22
8-98179-318-0
08
1
1304-
197
PIN; FRT SPR,FRT
(B) M12X80
0-10856-280-0
12
1
1304-
197
PIN; FRT SPR,FRT
(A)
1-51161-031-0
06
1
1304-1306
197
PIN; FRT SPR,FRT
(A) THA
8-97948-141-0
06
1
1307-
201
NUT; PIN LK
M12
0-91110-512-0
12
1
1304-
204
NIPPLE; GREASE,RR
PT1/8 STRAIGHT
0-90301-410-0
04
1
1304-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
1304-
208
U-BOLT SET; FRT SPRING
L=230
1-87870-493-0
04
1
1304-
