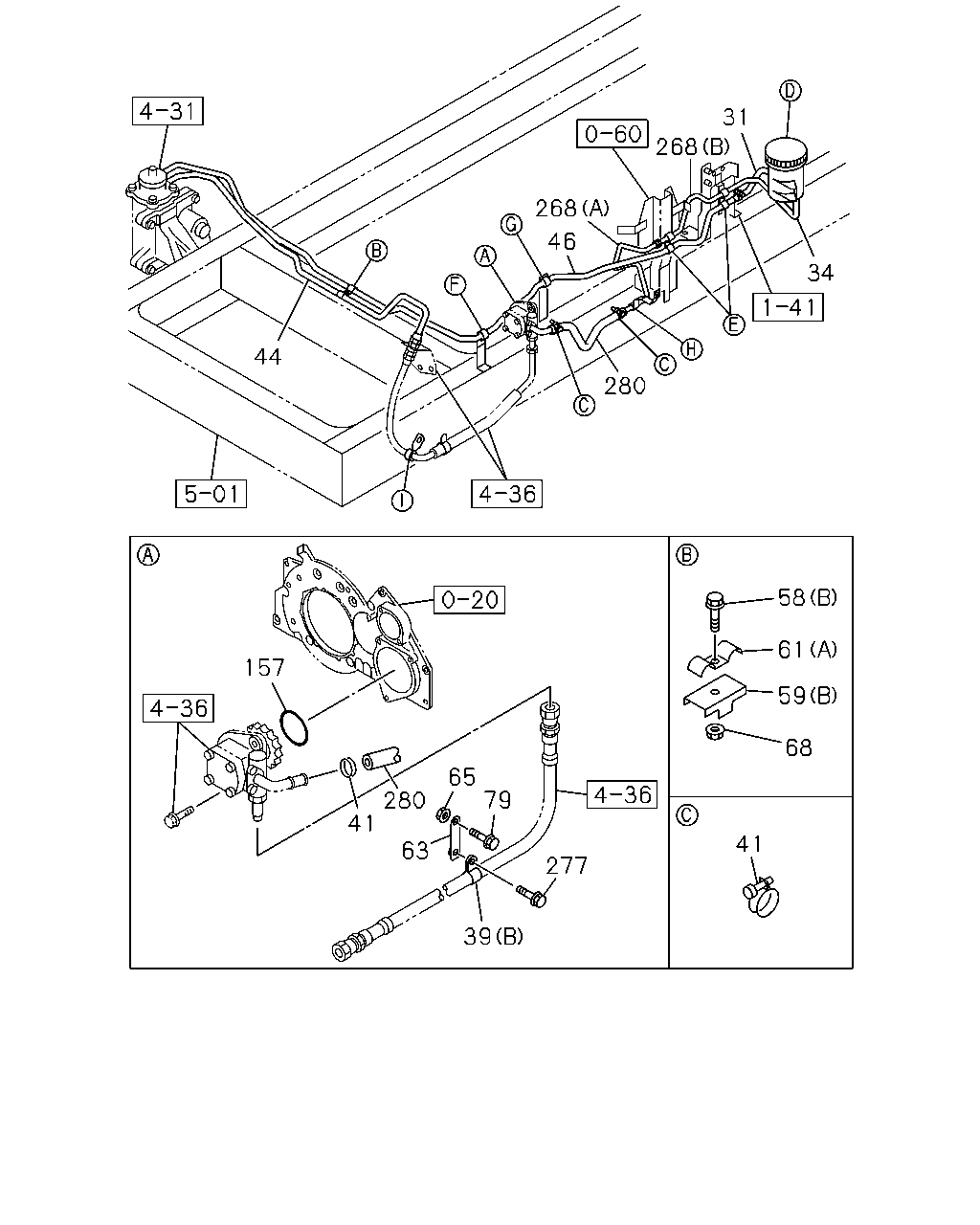

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#121459) — 66 parça

31 268 34 280 46 268 44 157 41 280 63 65 79 277 39 41 68 59 61 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	1304-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1304-
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	1304-
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	1304-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1304-
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98075-632-1	01	1	1304-1306
44	PIPE; OIL,P/S UNIT TO NIPPLE THA	8-97948-229-0	01	1	1307-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2762 THA	8-97630-435-0	01	1	1304-
58	BOLT; CLIP (A) M8X16 FLANGE THA	0-28050-816-0	02	1	1304-
58	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1304-
58	BOLT; CLIP (B) M8X40 FLANGE THA	0-28650-840-0	01	1	1304-
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1304-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1304-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1304-
61	CLIP; OIL PIPE (C) ID=16 L=20 THA	0-95235-536-0	02	1	1304-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1304-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1304-
63	BRACKET; CLIP,P/S	1-47476-396-1	01	1	1304-
65	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	1304-
65	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	1304-
68	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	01	1	1304-
79	BOLT; BRKT M8X20 FLANGE THA	0-28650-820-0	01	1	1304-
79	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	01	1	1304-
79	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	1304-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	1304-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A) THA	8-98090-330-0	01	1	1304-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98092-722-0	01	1	1304-
277	BOLT; HOSE CLIP M8X16 FLANGE THA	0-28050-816-0	02	1	1304-
280	HOSE; P/S OIL PUMP,INL	8-98081-190-0	01	1	1304-

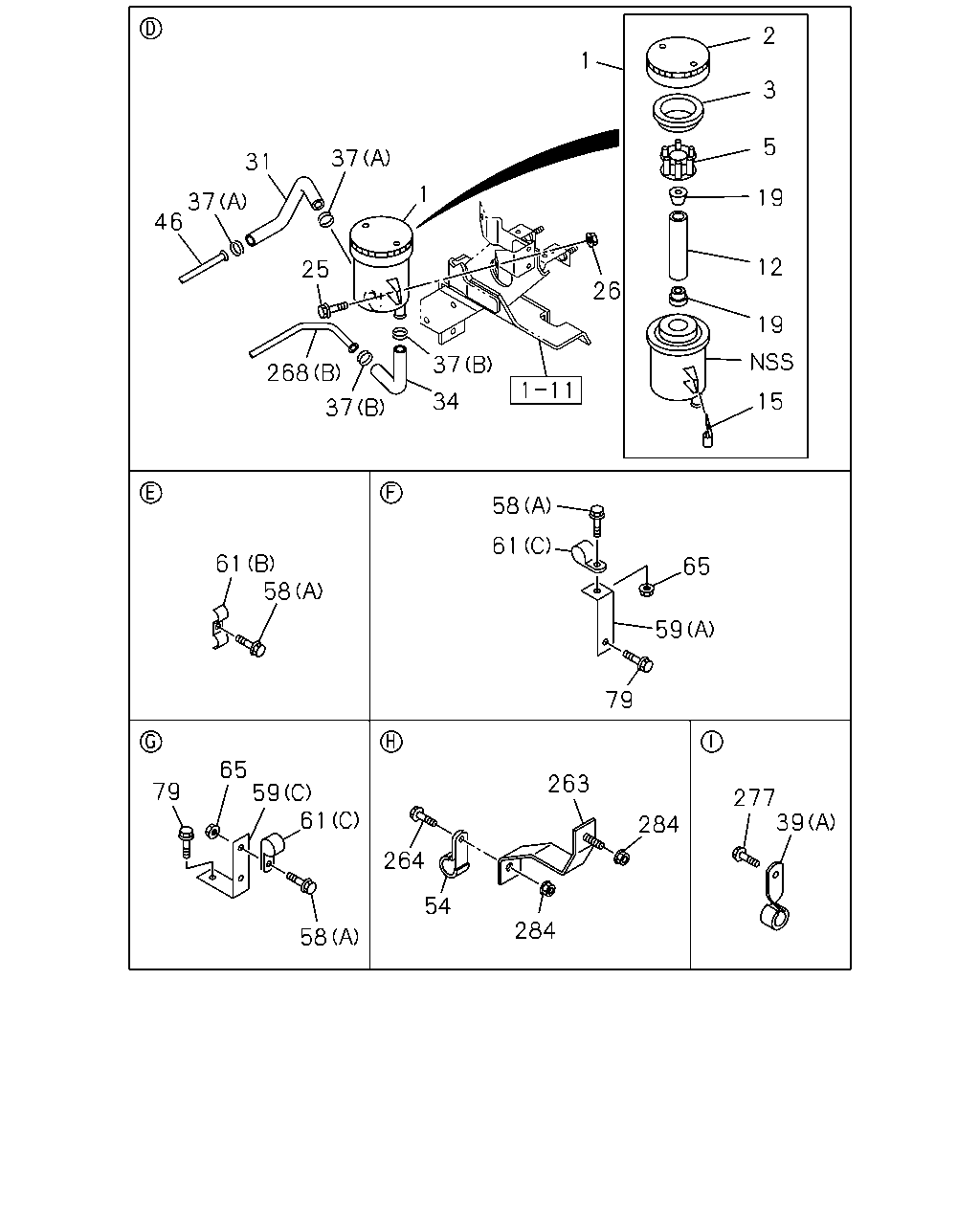

79 65 59 61 58 58 61 58 61 65 59 79 263 284 284 54 264 277 39 268 37 34 37 26 1 37 31 37 25 46 1 2 3 5 19 12 19 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1304-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1304-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1304-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1304-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1304-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1304-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1304-
25	BOLT; OIL TANK BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	1304-
26	NUT; OIL TANK TO BRKT M8 FLANGE THA	0-91180-108-0	02	1	1304-
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	1304-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1304-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1304-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1304-
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	1304-
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	1304-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2762 THA	8-97630-435-0	01	1	1304-
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	1304-
58	BOLT; CLIP (A) M8X16 FLANGE THA	0-28050-816-0	02	1	1304-
58	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1304-
58	BOLT; CLIP (B) M8X40 FLANGE THA	0-28650-840-0	01	1	1304-
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1304-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1304-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1304-
61	CLIP; OIL PIPE (C) ID=16 L=20 THA	0-95235-536-0	02	1	1304-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1304-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1304-
65	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	1304-
65	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	1304-
79	BOLT; BRKT M8X20 FLANGE THA	0-28650-820-0	01	1	1304-
79	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	01	1	1304-
79	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	1304-
263	BRACKET; P/S PIPE	8-98081-189-0	01	1	1304-
264	BOLT; PIPE BRKT M8X20 FLANGE THA	0-28650-820-0	01	1	1304-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A) THA	8-98090-330-0	01	1	1304-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98092-722-0	01	1	1304-
277	BOLT; HOSE CLIP M8X16 FLANGE THA	0-28050-816-0	02	1	1304-
284	NUT; PIPE M8 FLANGE THA	0-91180-108-0	02	1	1304-
