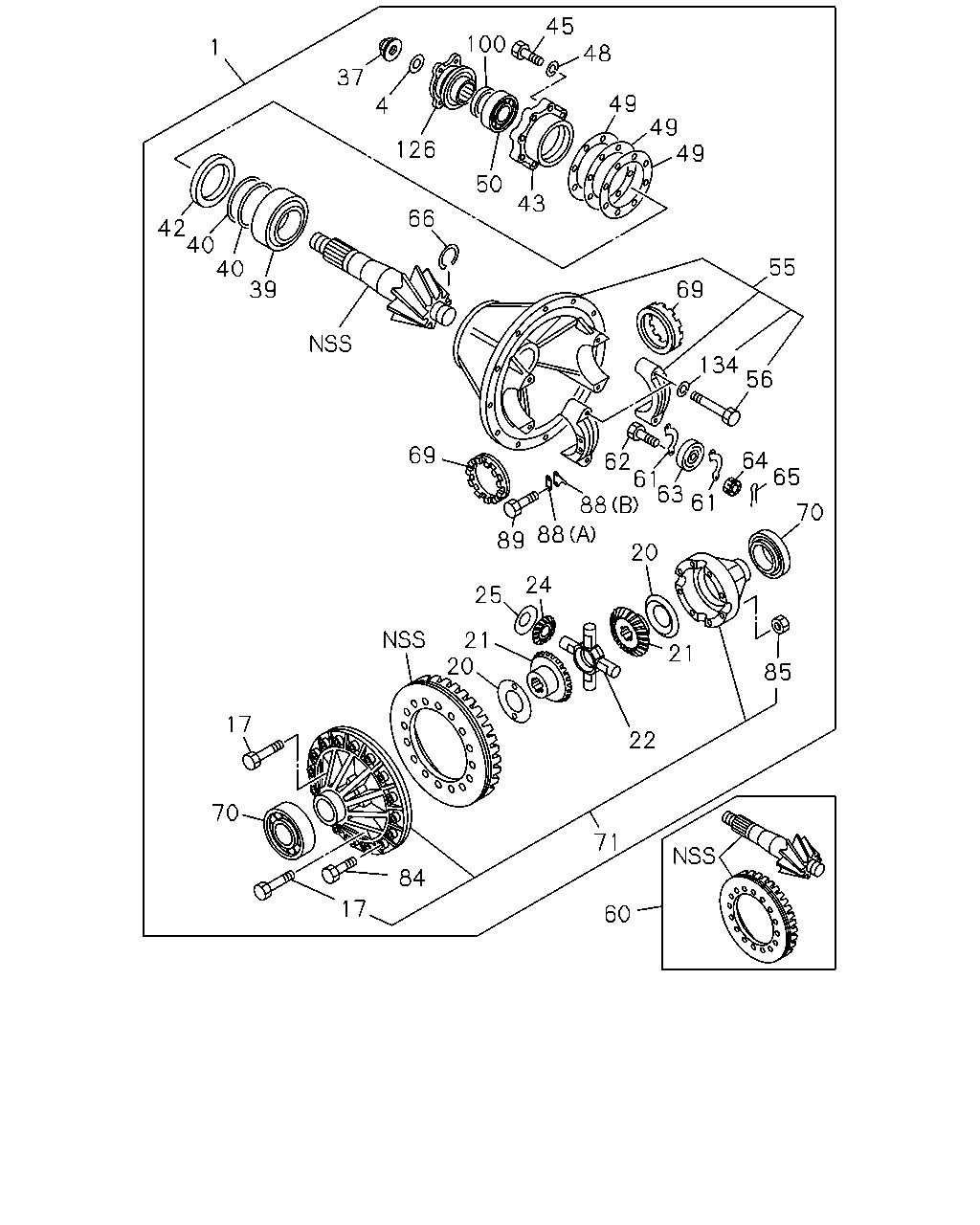

4-25 — REAR FINAL DRIVE (#121455) — 74 parça

45 48 49 49 49 100 43 50 126 66 4 37 1 42 40 40 39 69 89 88 88 62 61 63 61 69 55 134 56 64 65 70 20 24 25 21 20 17 70 17 84 22 21 85 71 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR 43/7	1-41001-256-0	01	1	1304-	●
1	DRIVE ASM; FINAL,RR 39/7	1-41001-257-0	01	1	1304-		●
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	1304-	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.75	1-41562-139-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-140-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.85	1-41562-141-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-142-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.95	1-41562-143-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-144-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.05	1-41562-145-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-146-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.15	1-41562-147-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-148-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.25	1-41562-149-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-150-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.35	1-41562-151-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-152-0	AR	1	1304-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.45	1-41562-153-0	AR	1	1304-	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-159-1	02	1	1304-	●	●
22	SPIDER; DIFF PINION	1-41521-061-0	01	1	1304-	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-051-0	04	1	1304-	●	●
25	WASHER; THRUST,PINION	1-41552-012-0	04	1	1304-	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	1304-	●	●
39	BEARING; FINAL PINION KOYO	1-09812-218-0	01	1	1304-	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	1304-	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	1304-	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	1304-	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	1304-	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	1304-	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	1304-	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	1304-	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	1304-	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	1304-	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	1304-	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	1304-	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	1304-	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	1304-	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	1304-	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	1304-	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	1304-	●	●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	1304-	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	1304-	●	●
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	1304-	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	1304-	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	1304-	●	●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	1304-	●	●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	1304-	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1304-	●	●
50	BEARING; FINAL PINION KOYO	1-09812-042-1	01	1	1304-	●	●
55	CARRIER; DIFF	1-41110-052-0	01	1	1304-	●	●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	1304-	●	●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-277-3	01	1	1304-	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	1304-		●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1304-	●	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	1304-	●	●
63	BEARING; PINION PILOT KOYO	1-09810-229-2	01	1	1304-	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	1304-	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1304-	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1304-	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	1304-	●	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	1304-	●	●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	1304-	●	●
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1304-	●	●
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	1304-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	1304-	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	1304-	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1304-	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1304-	●	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1304-	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1304-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	1304-	●	●
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	1304-	●	●
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	1304-	●	●
