4-01 — PROPELLER SHAFT (#121450) — 92 parça

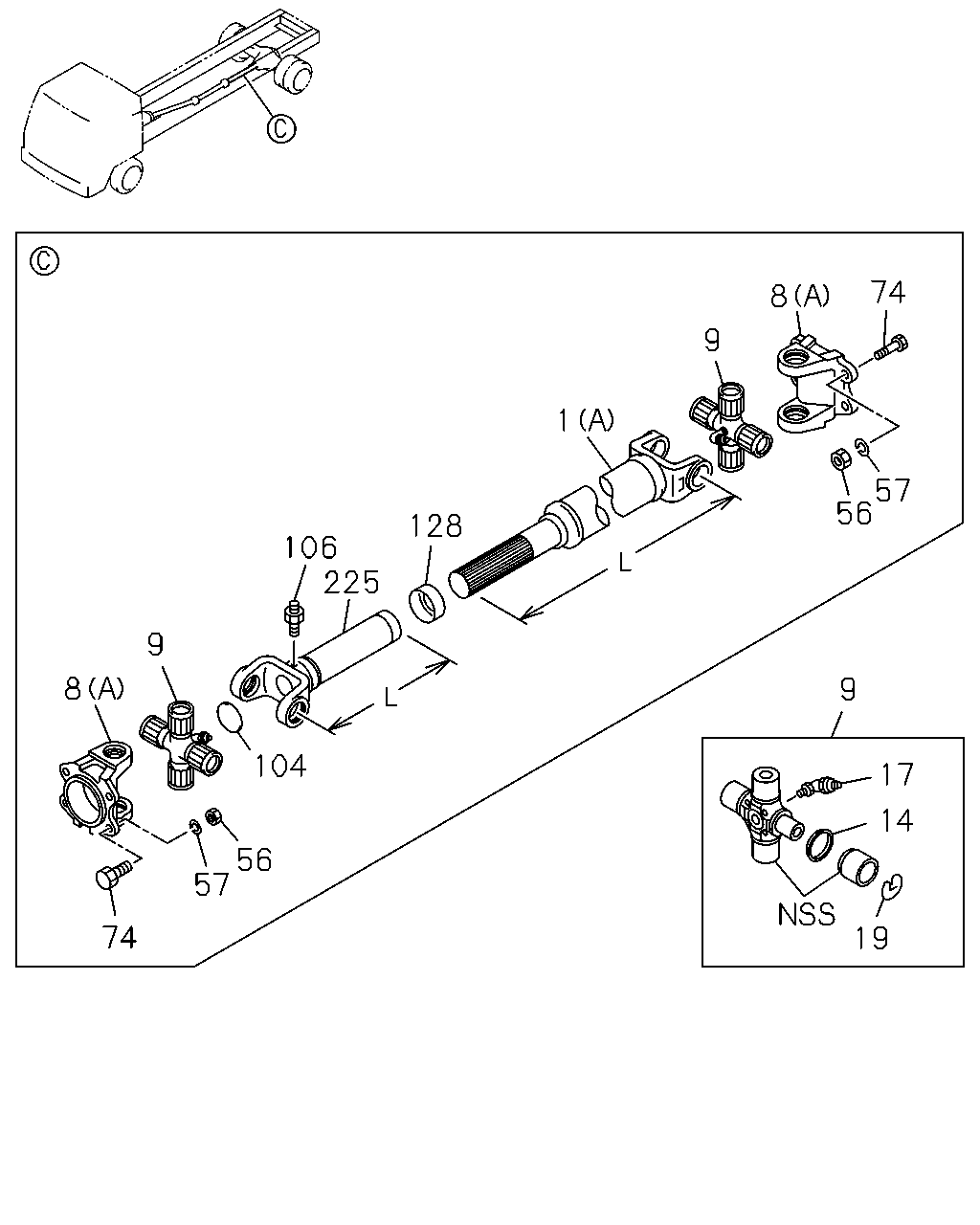

19 14 17 9 56 57 74 8 9 1 128 225 106 9 8 104 56 57 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP (C) L=1234 THA	8-98069-590-0	01	1	1304-
1	SHAFT; PROP (B) L=719 THA	8-98069-957-0	01	1	1304-
1	SHAFT; PROP (A) L=1351 THA	8-98090-992-0	01	1	1304-
8	YOKE; FLANGE,PROP SHAFT (A) THA	1-37211-056-3	01	1	1304-
8	YOKE; FLANGE,PROP SHAFT (A) THA	1-37211-056-3	02	1	1304-
8	YOKE; FLANGE,PROP SHAFT (B) THA	8-98178-052-0	01	1	1304-
9	JOURNAL ASM; PROP SHAFT	8-98048-925-0	AR	1	1304-
9	JOURNAL ASM; PROP SHAFT	8-98048-925-0	01	1	1304-
9	JOURNAL ASM; PROP SHAFT	8-98048-925-0	02	1	1304-
14	COVER; DUST,SPIDER THA	8-98020-800-0	08	1	1304-
14	COVER; DUST,SPIDER THA	8-98020-800-0	04	1	1304-
14	COVER; DUST,SPIDER THA	8-98020-800-0	04	1	1304-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1304-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1304-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1304-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE THA	1-09587-086-0	08	1	1304-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE THA	1-09587-086-0	04	1	1304-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE THA	1-09587-086-0	04	1	1304-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE THA	1-09587-087-2	08	1	1304-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE THA	1-09587-087-2	04	1	1304-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE THA	1-09587-087-2	04	1	1304-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	08	1	1304-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	04	1	1304-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	04	1	1304-
56	NUT; YOKE M14 THA	0-91110-514-0	04	1	1304-
56	NUT; YOKE M14 THA	0-91110-514-0	04	1	1304-
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1304-
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1304-
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1304-
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1304-
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1304-
104	PLUG; SLEEVE YOKE THA	1-09600-064-0	01	1	1304-
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT THA	0-90301-406-0	01	1	1304-
128	SEAL; SLEEVE THA	1-37247-024-0	01	1	1304-
225	YOKE; SLEEVE,PROP SHAFT L=254 THA	8-98020-885-0	01	1	1304-

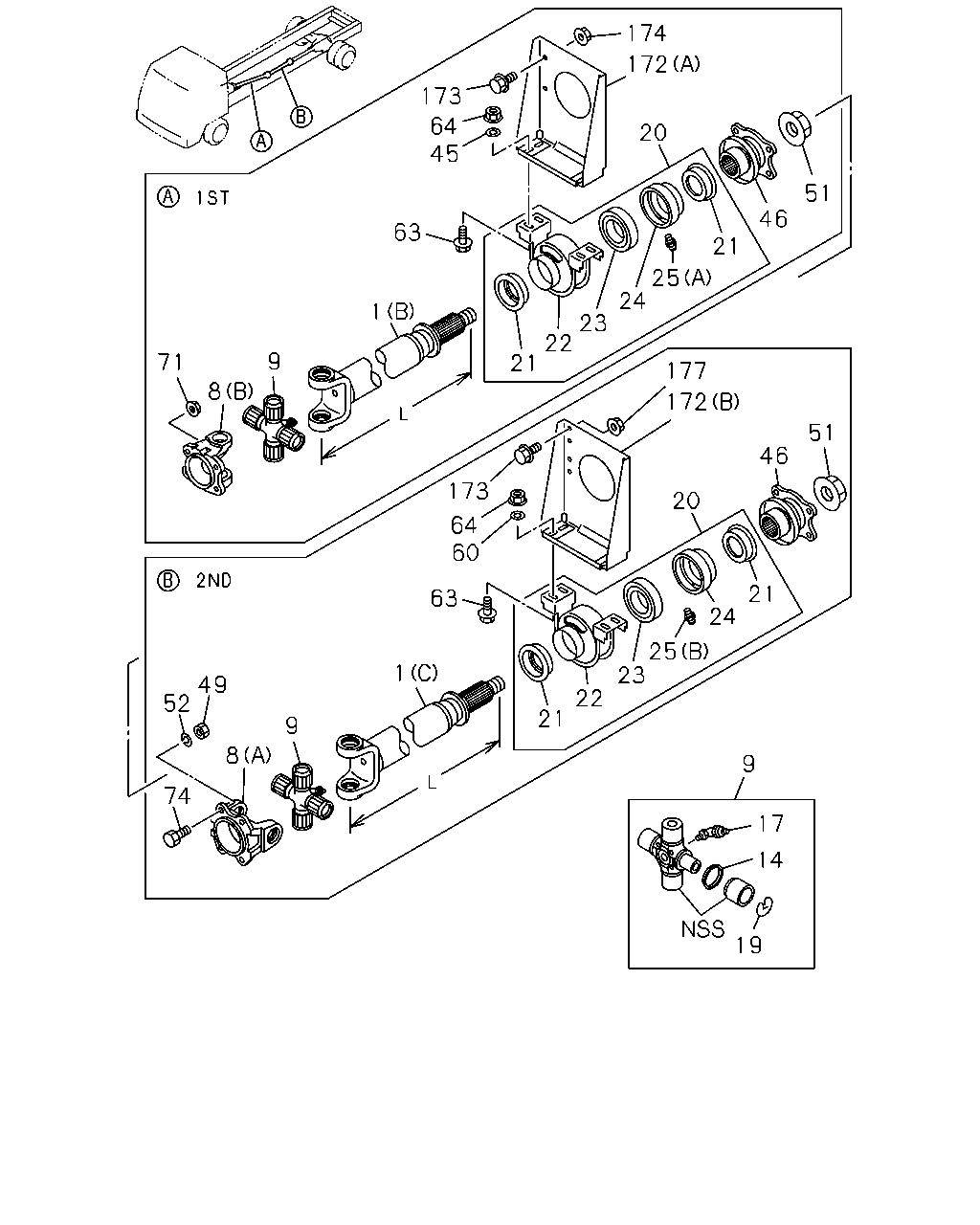

174 172 20 46 51 21 25 24 23 22 21 177 172 173 64 60 63 1 9 8 74 49 52 71 9 8 1 63 45 64 173 20 24 21 46 51 25 23 22 21 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP (C) L=1234 THA	8-98069-590-0	01	1	1304-
1	SHAFT; PROP (B) L=719 THA	8-98069-957-0	01	1	1304-
1	SHAFT; PROP (A) L=1351 THA	8-98090-992-0	01	1	1304-
8	YOKE; FLANGE,PROP SHAFT (A) THA	1-37211-056-3	01	1	1304-
8	YOKE; FLANGE,PROP SHAFT (A) THA	1-37211-056-3	02	1	1304-
8	YOKE; FLANGE,PROP SHAFT (B) THA	8-98178-052-0	01	1	1304-
9	JOURNAL ASM; PROP SHAFT	8-98048-925-0	AR	1	1304-
9	JOURNAL ASM; PROP SHAFT	8-98048-925-0	01	1	1304-
9	JOURNAL ASM; PROP SHAFT	8-98048-925-0	02	1	1304-
14	COVER; DUST,SPIDER THA	8-98020-800-0	08	1	1304-
14	COVER; DUST,SPIDER THA	8-98020-800-0	04	1	1304-
14	COVER; DUST,SPIDER THA	8-98020-800-0	04	1	1304-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1304-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1304-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1304-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE THA	1-09587-086-0	08	1	1304-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE THA	1-09587-086-0	04	1	1304-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE THA	1-09587-086-0	04	1	1304-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE THA	1-09587-087-2	08	1	1304-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE THA	1-09587-087-2	04	1	1304-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE THA	1-09587-087-2	04	1	1304-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	08	1	1304-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	04	1	1304-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW THA	1-09587-088-1	04	1	1304-
20	BEARING ASM; CTR,PROP SHAFT THA	8-98020-881-0	01	1	1304-
20	BEARING ASM; CTR,PROP SHAFT THA	8-98020-881-0	01	1	1304-
21	SEAL; OIL,CENTER BRG ID=54 THA	1-09625-161-0	02	1	1304-
21	SEAL; OIL,CENTER BRG ID=54 THA	1-09625-161-0	02	1	1304-
22	RUBBER; CUSHION,CENTER BRG,1ST THA	1-37516-059-0	01	1	1304-
22	RUBBER; CUSHION,CENTER BRG,1ST THA	1-37516-059-0	01	1	1304-
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1304-
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1304-
24	RETAINER; CENTER BRG,1ST THA	8-98020-882-0	01	1	1304-
24	RETAINER; CENTER BRG,1ST THA	8-98020-882-0	01	1	1304-
25	NIPPLE; GREASE,CENTER BRG (A) MT6 STRAIGHT THA	1-09380-006-0	01	1	1304-
25	NIPPLE; GREASE,CENTER BRG (B) THA	8-98020-889-0	01	1	1304-
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1304-
46	FLANGE; SPLINED,PROP SHAFT,1ST THA	8-98020-815-0	01	1	1304-
46	FLANGE; SPLINED,PROP SHAFT,1ST THA	8-98020-815-0	01	1	1304-
49	NUT; YOKE M14 THA	0-91110-514-0	04	1	1304-
51	NUT; FLANGE,SPLINED M30 THA	8-97160-857-0	01	1	1304-
51	NUT; FLANGE,SPLINED M30 THA	8-97160-857-0	01	1	1304-
52	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1304-
60	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1304-
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE THA	0-28651-035-0	04	1	1304-
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE THA	0-28651-035-0	04	1	1304-
64	NUT; RET TO BRKT M10 FLANGE THA	0-91180-210-0	04	1	1304-
64	NUT; RET TO BRKT M10 FLANGE THA	0-91180-210-0	04	1	1304-
71	NUT; YOKE M16 FLANGE	1-09449-065-0	04	1	1304-
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1304-
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1304-
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1304-
172	BRACKET; CENTER BRG (B)	1-37515-101-0	01	1	1304-
172	BRACKET; CENTER BRG (A)	1-37515-102-0	01	1	1304-
173	BOLT; BRKT M10X25 FLANGE THA	0-28651-025-0	08	1	1304-
174	NUT; BRKT M10 FLANGE THA	0-91180-210-0	04	1	1304-
177	NUT M10 FLANGE THA	0-91180-210-0	04	1	1304-
