Sayfa 2-37 - Isuzu EPC

2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#12145) — 109 parça

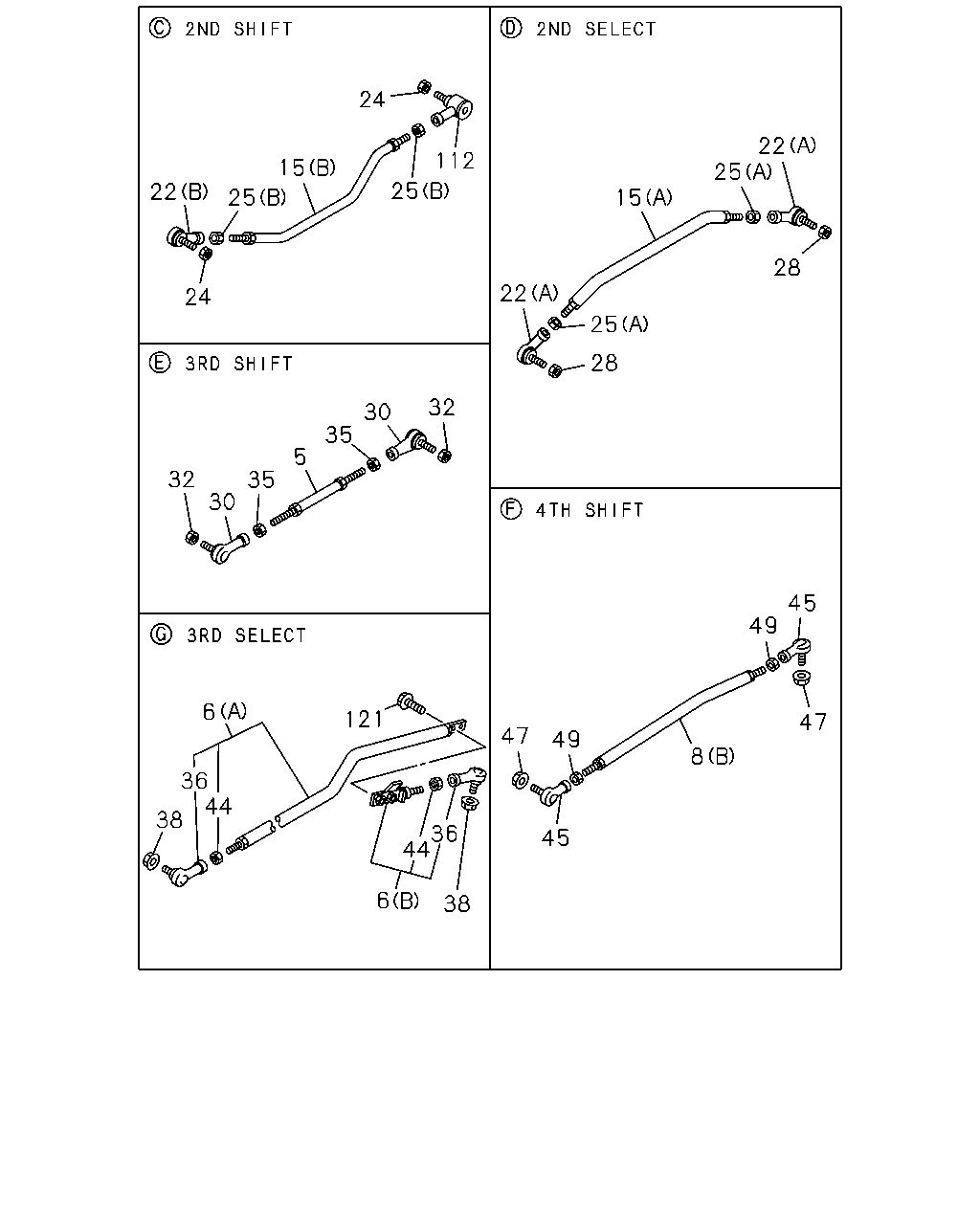

24 22 25 112 15 25 22 25 15 28 22 24 25 28 32 30 35 5 32 35 30 45 49 121 47 47 49 8 36 44 38 36 44 45 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	ROD; LINK,3RD SHIFT L=1120	1-33652-603-0	01	1	0105-
8	ROD; LINK,4TH SHIFT MJD7S M/T(Y2Y) (A) L=370	1-33652-654-1	01	1	0312-
8	ROD; LINK,4TH SHIFT (B) L=485	1-33652-859-1	01	1	0105-0106
8	ROD; LINK,4TH SHIFT ZF M/T<X9E> (B) L=485	1-33652-859-1	01	1	0107-
8	ROD; LINK,4TH SHIFT MJX16P M/T(Y3Z) (A) L=410	1-33652-947-0	01	1	0107-
15	ROD; LINK 1ST SHIFT (C) L=556	1-33652-744-0	01	1	0105-
15	ROD; LINK 1ST SHIFT (B) L=474	1-33652-803-2	01	1	0105-
15	ROD; LINK 1ST SHIFT (A) L=423	1-33652-804-2	01	1	0105-
22	JOINT; BALL,SCREW,LINK ROD (A)	1-09760-109-0	02	1	0105-
22	JOINT; BALL,SCREW,LINK ROD (B)	1-09760-125-0	01	1	0105-
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M10	9-09111-410-0	02	1	0105-0512
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M10	0-91111-510-0	02	1	0601-
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M12	9-99111-412-0	02	1	0105-0512
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M12	0-91111-512-0	02	1	0601-
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0105-
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	0105-0512
35	NUT; LK,RIGHT SCREW,LINK ROD M10	0-91111-510-0	02	1	0601-
36	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	01	1	0105-0106
36	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	01	1	0105-0106
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E>	1-09760-124-0	01	1	0107-
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E>	1-09760-124-0	01	1	0107-
36	JOINT; BALL,RIGHT SCREW,LINK ROD MJX16P M/T(Y3Z)	1-09760-124-0	02	1	0107-0311
36	JOINT; BALL,RIGHT SCREW,LINK ROD MJD7S M/T(Y2Y),MJX16P M/T(Y3Z)	1-09760-124-0	02	1	0312-
38	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
44	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	01	1	0105-0106
44	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	01	1	0105-0106
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	9-09111-410-0	01	1	0107-0512
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	9-09111-410-0	01	1	0107-0512
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	0-91111-510-0	01	1	0601-
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	0-91111-510-0	01	1	0601-
44	NUT; LK,RIGHT SCREW,LINK ROD MJX16P M/T(Y3Z) M10	9-09111-410-0	02	1	0107-0311
44	NUT; LK,RIGHT SCREW,LINK ROD MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M10	9-09111-410-0	02	1	0312-0512
44	NUT; LK,RIGHT SCREW,LINK ROD MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M10	0-91111-510-0	02	1	0601-
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	0105-
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0105-0512
49	NUT; LK,RIGHT SCREW,LINK ROD M12	0-91111-512-0	02	1	0601-
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-
121	BOLT; LINK ROD	1-09044-103-0	02	1	0105-0106
121	BOLT; LINK ROD ZF M/T<X9E>	1-09044-103-0	02	1	0107-

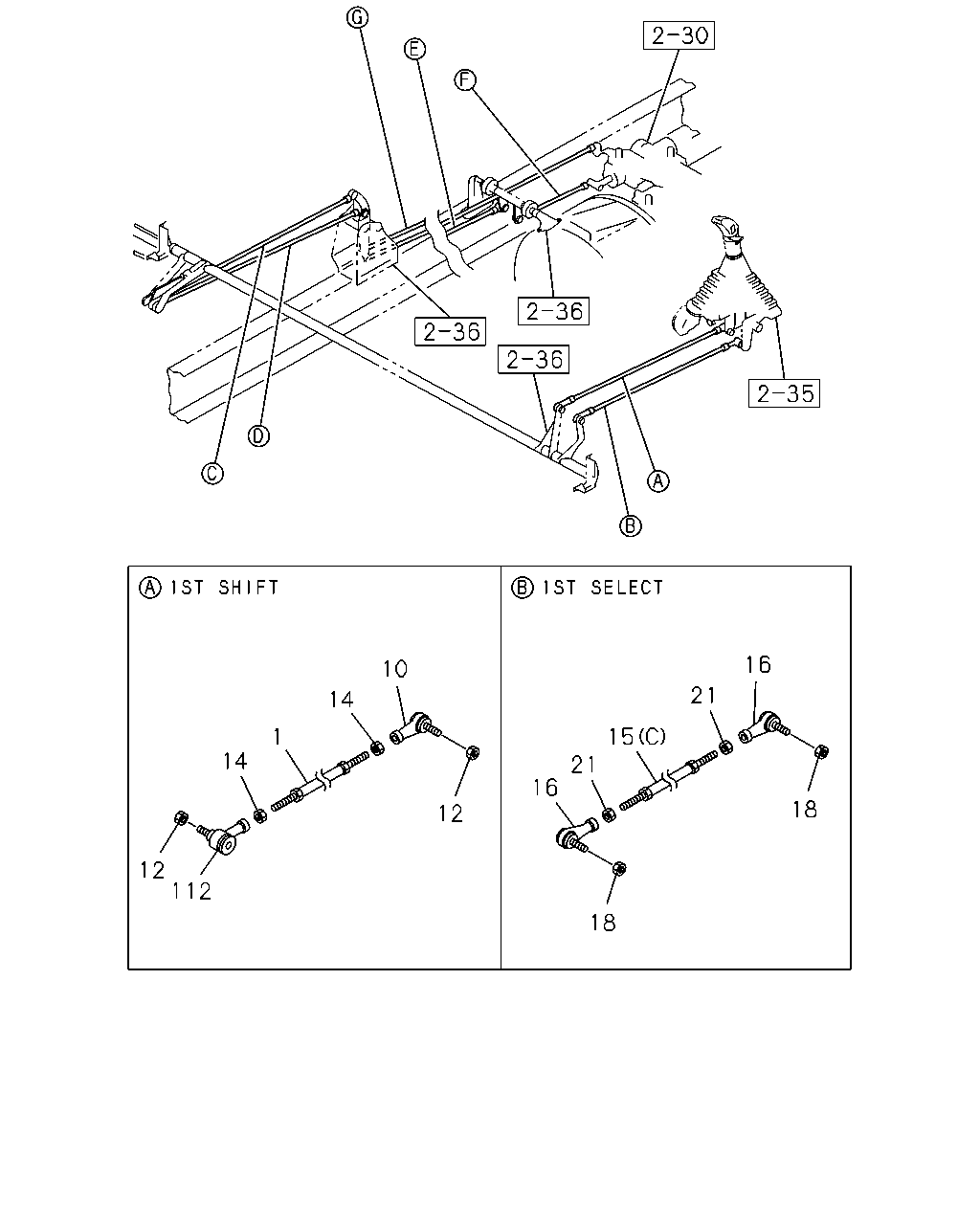

16 10 21 14 15 1 14 21 16 18 12 12 112 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ROD; LINK,1ST SHIFT L=480	9-08401-248-0	01	1	0105-
10	JOINT ASM; BALL,SELECT ROD	1-09760-125-0	01	1	0105-
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-
14	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0105-0512
14	NUT; LK,RIGHT SCREW,LINK ROD M12	0-91111-512-0	02	1	0601-
15	ROD; LINK 1ST SHIFT (C) L=556	1-33652-744-0	01	1	0105-
15	ROD; LINK 1ST SHIFT (B) L=474	1-33652-803-2	01	1	0105-
15	ROD; LINK 1ST SHIFT (A) L=423	1-33652-804-2	01	1	0105-
16	JOINT ASM; BALL,CONT ROD	1-09760-108-0	02	1	0105-
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-
21	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	0105-0512
21	NUT; LK,RIGHT SCREW,LINK ROD M8	0-91111-508-0	02	1	0601-
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-

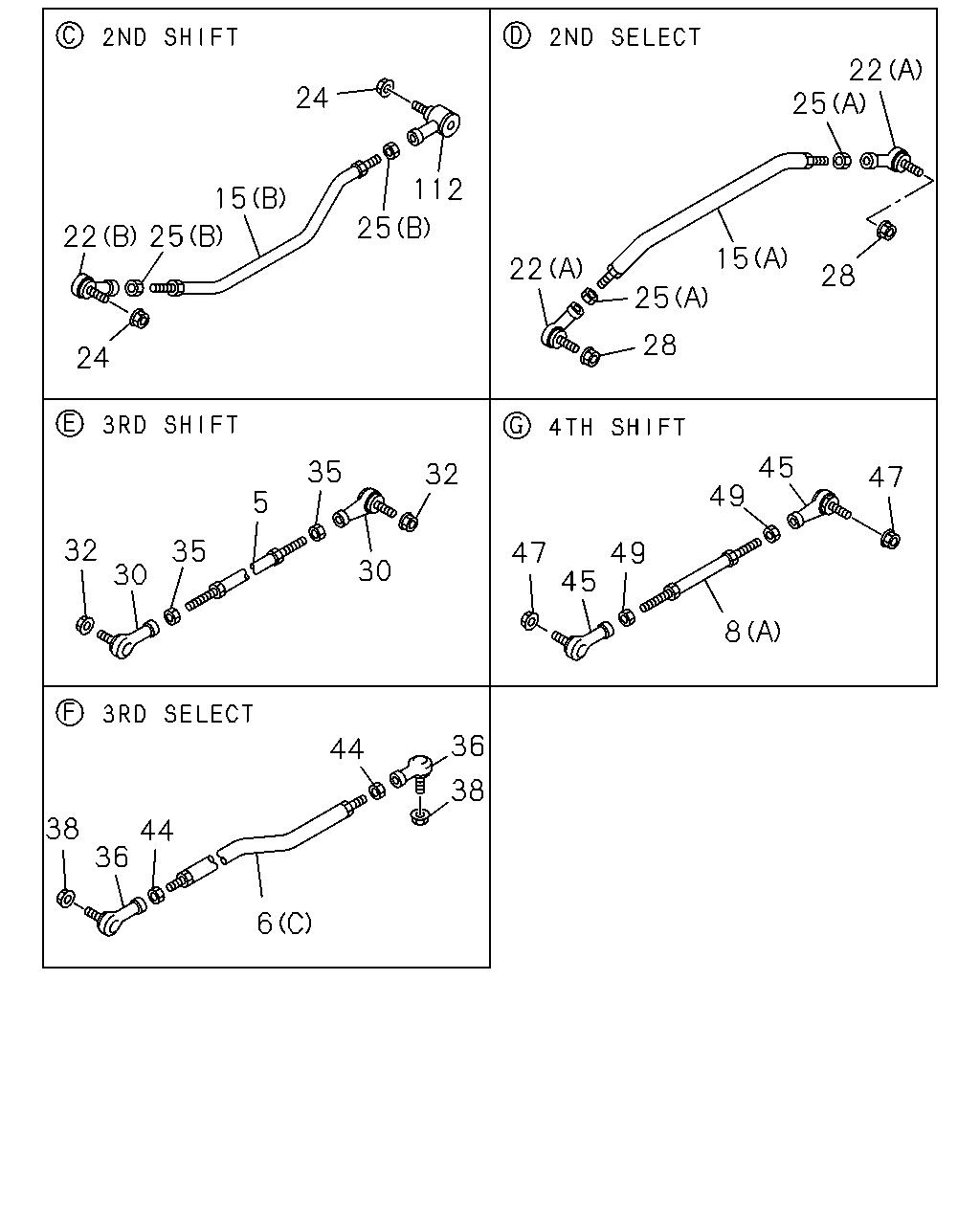

22 25 24 112 15 25 15 22 28 25 28 24 45 35 32 47 49 5 32 35 47 49 30 30 45 8 36 44 38 38 44 36 6 22 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	ROD; LINK,3RD SHIFT L=1120	1-33652-603-0	01	1	0105-
6	ROD; LINK,3RD SELECT MJD7S M/T(Y2Y) (C) L=1649	1-33652-925-1	01	1	0312-
6	ROD; LINK,3RD SELECT (B) L=125	1-33671-570-0	01	1	0105-0106
6	ROD; LINK,3RD SELECT ZF M/T<X9E> (B) L=125	1-33671-570-0	01	1	0107-
6	ROD; LINK,3RD SELECT (A) L=1454	1-33671-700-1	01	1	0105-0106
6	ROD; LINK,3RD SELECT ZF M/T<X9E> (A) L=1454	1-33671-700-1	01	1	0107-
6	ROD; LINK,3RD SELECT MJX16P M/T(Y3Z) (C) L=1691	1-33652-944-1	01	1	0107-
8	ROD; LINK,4TH SHIFT MJD7S M/T(Y2Y) (A) L=370	1-33652-654-1	01	1	0312-
8	ROD; LINK,4TH SHIFT (B) L=485	1-33652-859-1	01	1	0105-0106
8	ROD; LINK,4TH SHIFT ZF M/T<X9E> (B) L=485	1-33652-859-1	01	1	0107-
8	ROD; LINK,4TH SHIFT MJX16P M/T(Y3Z) (A) L=410	1-33652-947-0	01	1	0107-
15	ROD; LINK 1ST SHIFT (C) L=556	1-33652-744-0	01	1	0105-
15	ROD; LINK 1ST SHIFT (B) L=474	1-33652-803-2	01	1	0105-
15	ROD; LINK 1ST SHIFT (A) L=423	1-33652-804-2	01	1	0105-
22	JOINT; BALL,SCREW,LINK ROD (A)	1-09760-109-0	02	1	0105-
22	JOINT; BALL,SCREW,LINK ROD (B)	1-09760-125-0	01	1	0105-
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M10	9-09111-410-0	02	1	0105-0512
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M10	0-91111-510-0	02	1	0601-
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M12	9-99111-412-0	02	1	0105-0512
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M12	0-91111-512-0	02	1	0601-
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0105-
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	0105-0512
35	NUT; LK,RIGHT SCREW,LINK ROD M10	0-91111-510-0	02	1	0601-
36	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	01	1	0105-0106
36	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	01	1	0105-0106
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E>	1-09760-124-0	01	1	0107-
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E>	1-09760-124-0	01	1	0107-
36	JOINT; BALL,RIGHT SCREW,LINK ROD MJX16P M/T(Y3Z)	1-09760-124-0	02	1	0107-0311
36	JOINT; BALL,RIGHT SCREW,LINK ROD MJD7S M/T(Y2Y),MJX16P M/T(Y3Z)	1-09760-124-0	02	1	0312-
38	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
44	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	01	1	0105-0106
44	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	01	1	0105-0106
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	9-09111-410-0	01	1	0107-0512
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	9-09111-410-0	01	1	0107-0512
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	0-91111-510-0	01	1	0601-
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	0-91111-510-0	01	1	0601-
44	NUT; LK,RIGHT SCREW,LINK ROD MJX16P M/T(Y3Z) M10	9-09111-410-0	02	1	0107-0311
44	NUT; LK,RIGHT SCREW,LINK ROD MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M10	9-09111-410-0	02	1	0312-0512
44	NUT; LK,RIGHT SCREW,LINK ROD MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M10	0-91111-510-0	02	1	0601-
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	0105-
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0105-0512
49	NUT; LK,RIGHT SCREW,LINK ROD M12	0-91111-512-0	02	1	0601-
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-

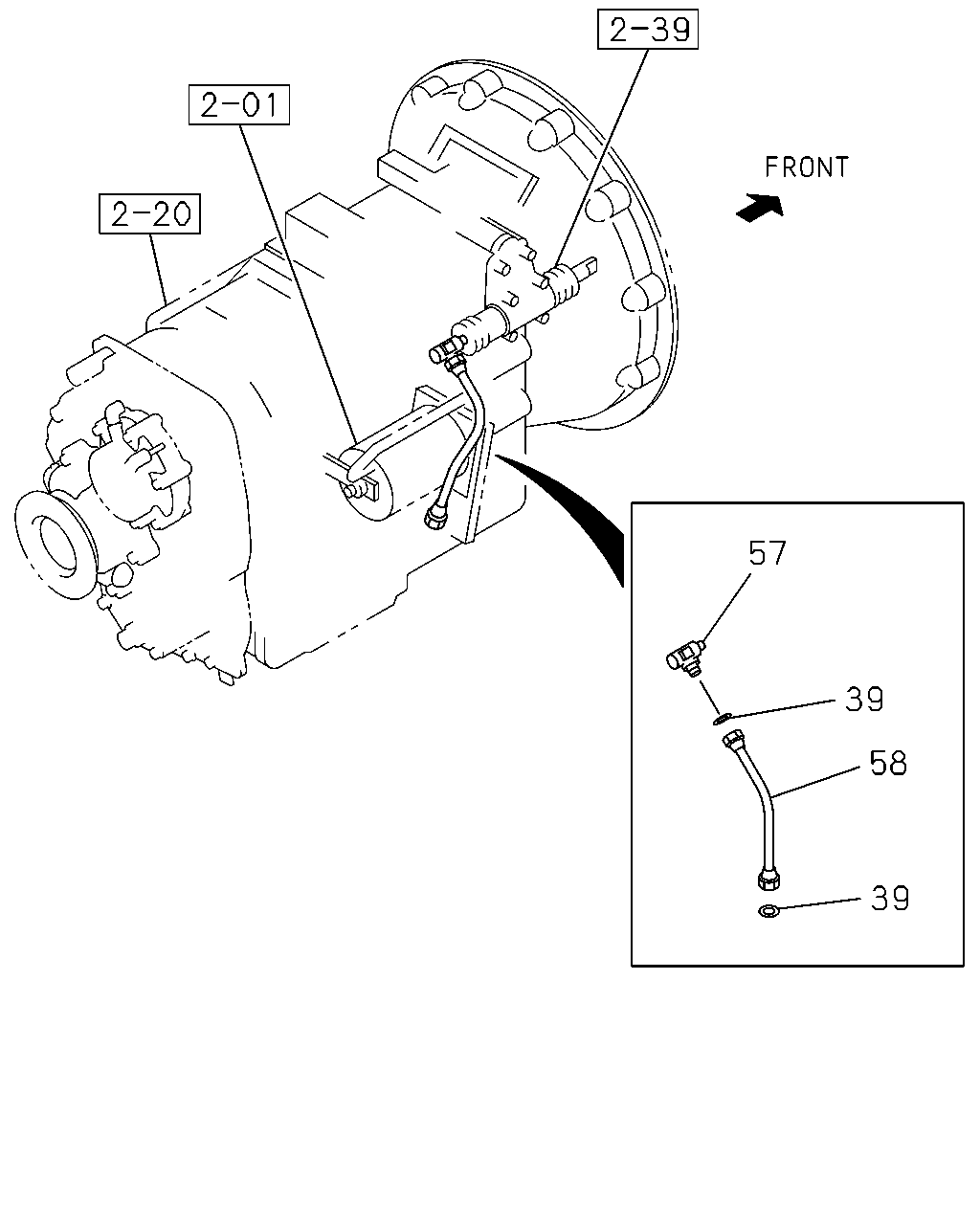

57 39 58 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	GASKET; FLEX HOSE ISUZU M/T<X9A> ID=11 OD=18	9-09572-510-0	02	1	0107-0112
57	NIPPLE; POWER ASSISTOR ISUZU M/T<X9A> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0107-0112
58	HOSE; FLEX,POWER ASSISTOR ISUZU M/T<X9A> L=360	0-07150-360-0	01	1	0107-0112

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
