Isuzu WW
▶
TRUCKS
▶
FTR
▶
11540 - FTR CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-78 - FIXING PARTS; AIR PIPING
▶
3-78 — FIXING PARTS; AIR PIPING
(#121449) — 31 parça
◀

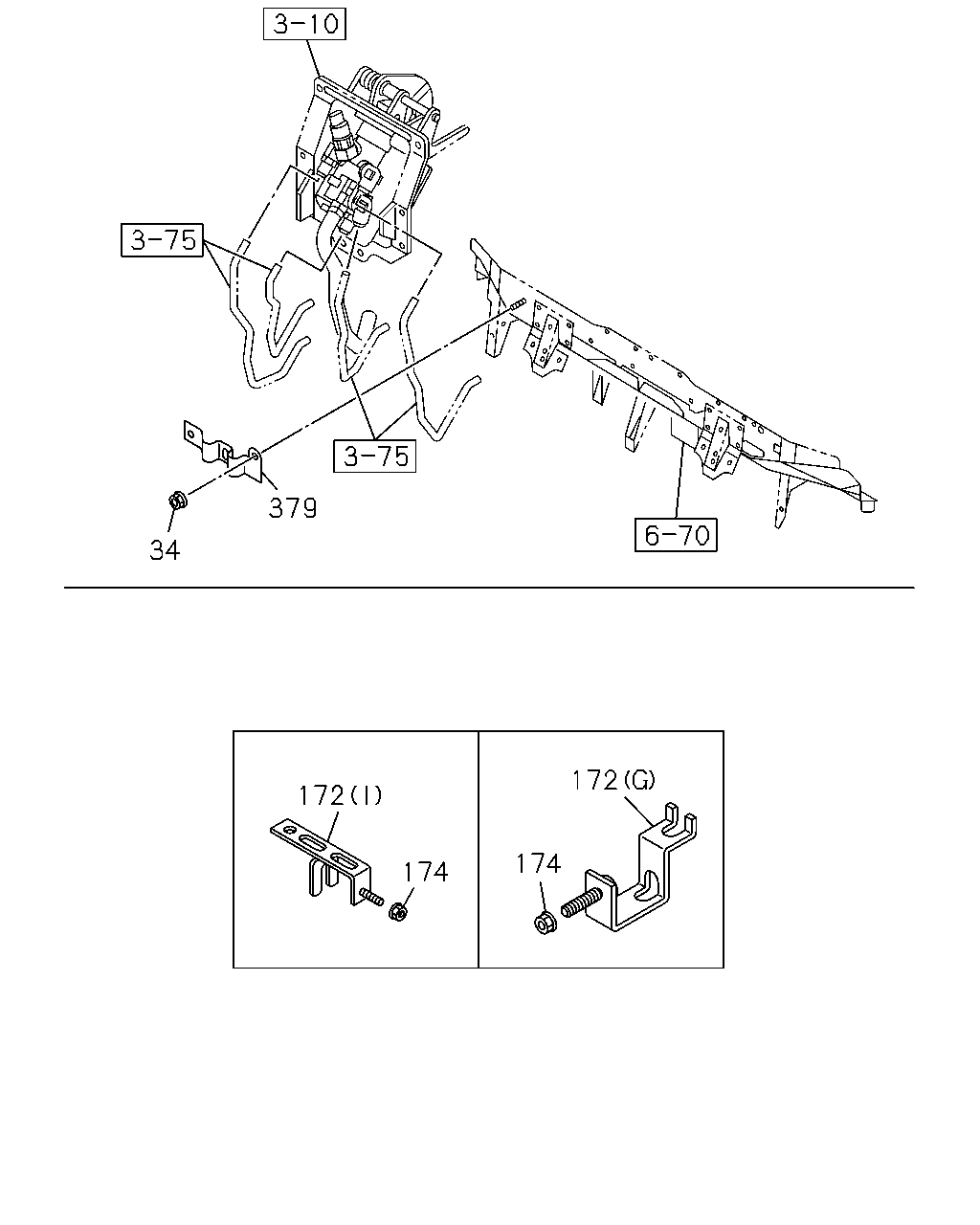

[378A] NO.1 (14 parça)

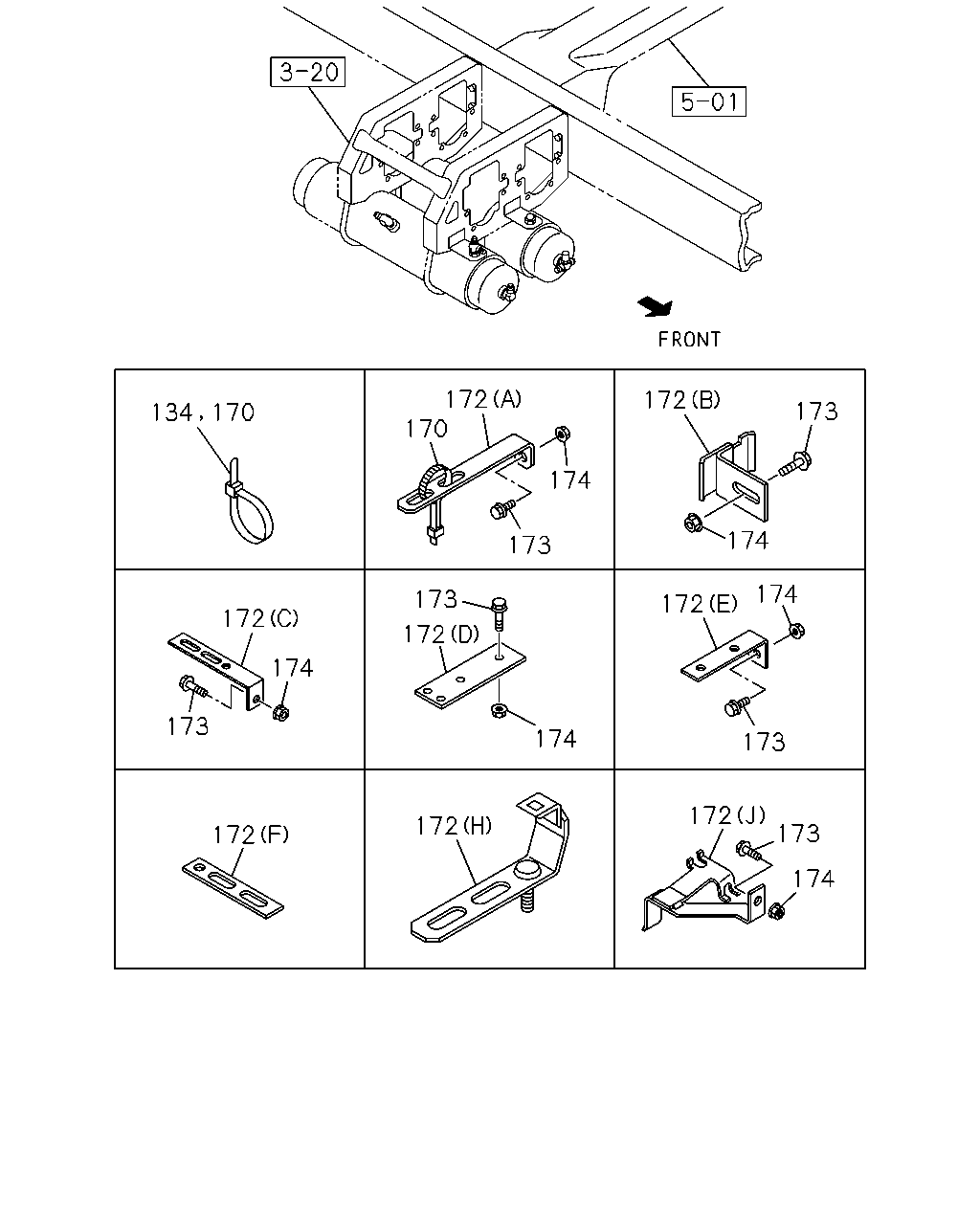

[378A] NO.2 (17 parça)
▶
172
174
174
172
379
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
34
NUT; BRKT
M6 FLANGE THA
0-91180-106-0
02
1
1304-
172
BRACKET; TUBE CLIP
(F)
1-47477-514-3
01
1
1304-
172
BRACKET; TUBE CLIP
(A) L=150 H=30
1-47477-629-2
01
1
1304-
172
BRACKET; TUBE CLIP
(A) L=100 H=30
1-47477-645-2
02
1
1304-
172
BRACKET; TUBE CLIP
(C) L=225
1-47477-646-3
01
1
1304-
172
BRACKET; TUBE CLIP
(E) L=60 H=30
1-47477-716-1
03
1
1304-
172
BRACKET; TUBE CLIP
(B)
1-47479-693-0
02
1
1304-
172
BRACKET; TUBE CLIP
(D)
8-98031-420-2
01
1
1304-
172
BRACKET; TUBE CLIP
(H)
8-98047-730-0
02
1
1304-
172
BRACKET; TUBE CLIP
(I) THA
8-98139-765-0
01
1
1304-
172
BRACKET; TUBE CLIP
(G)
8-98169-222-0
01
1
1304-
172
BRACKET; TUBE CLIP
(J)
8-98222-355-0
01
1
1304-
174
NUT; CLIP BRKT
M8 FLANGE THA
0-91180-108-0
14
1
1304-
379
BRACKET; NYLON TUBE
8-98044-013-0
01
1
1304-
173
174
172
174
173
172
170
170
134
172
174
173
173
172
174
172
174
173
172
173
174
172
172
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
134
CLIP; AIR PIPE
L=350
1-09707-183-0
01
1
1304-
170
CLIP; NYLON TUBE
L=350
1-09707-183-0
26
1
1304-
172
BRACKET; TUBE CLIP
(F)
1-47477-514-3
01
1
1304-
172
BRACKET; TUBE CLIP
(A) L=150 H=30
1-47477-629-2
01
1
1304-
172
BRACKET; TUBE CLIP
(A) L=100 H=30
1-47477-645-2
02
1
1304-
172
BRACKET; TUBE CLIP
(C) L=225
1-47477-646-3
01
1
1304-
172
BRACKET; TUBE CLIP
(E) L=60 H=30
1-47477-716-1
03
1
1304-
172
BRACKET; TUBE CLIP
(B)
1-47479-693-0
02
1
1304-
172
BRACKET; TUBE CLIP
(D)
8-98031-420-2
01
1
1304-
172
BRACKET; TUBE CLIP
(H)
8-98047-730-0
02
1
1304-
172
BRACKET; TUBE CLIP
(I) THA
8-98139-765-0
01
1
1304-
172
BRACKET; TUBE CLIP
(G)
8-98169-222-0
01
1
1304-
172
BRACKET; TUBE CLIP
(J)
8-98222-355-0
01
1
1304-
173
BOLT; CLIP BRKT
M8X20 FLANGE THA
0-28650-820-0
05
1
1304-
173
BOLT; CLIP BRKT
M8X25 FLANGE THA
0-28650-825-0
02
1
1304-
173
BOLT; CLIP BRKT
M8X30 FLANGE THA
0-28650-830-0
06
1
1304-
174
NUT; CLIP BRKT
M8 FLANGE THA
0-91180-108-0
14
1
1304-
