Isuzu WW
▶
TRUCKS
▶
FTR
▶
11540 - FTR CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-70 - BRAKE PIPING; AIR,AIR MASTER
▶

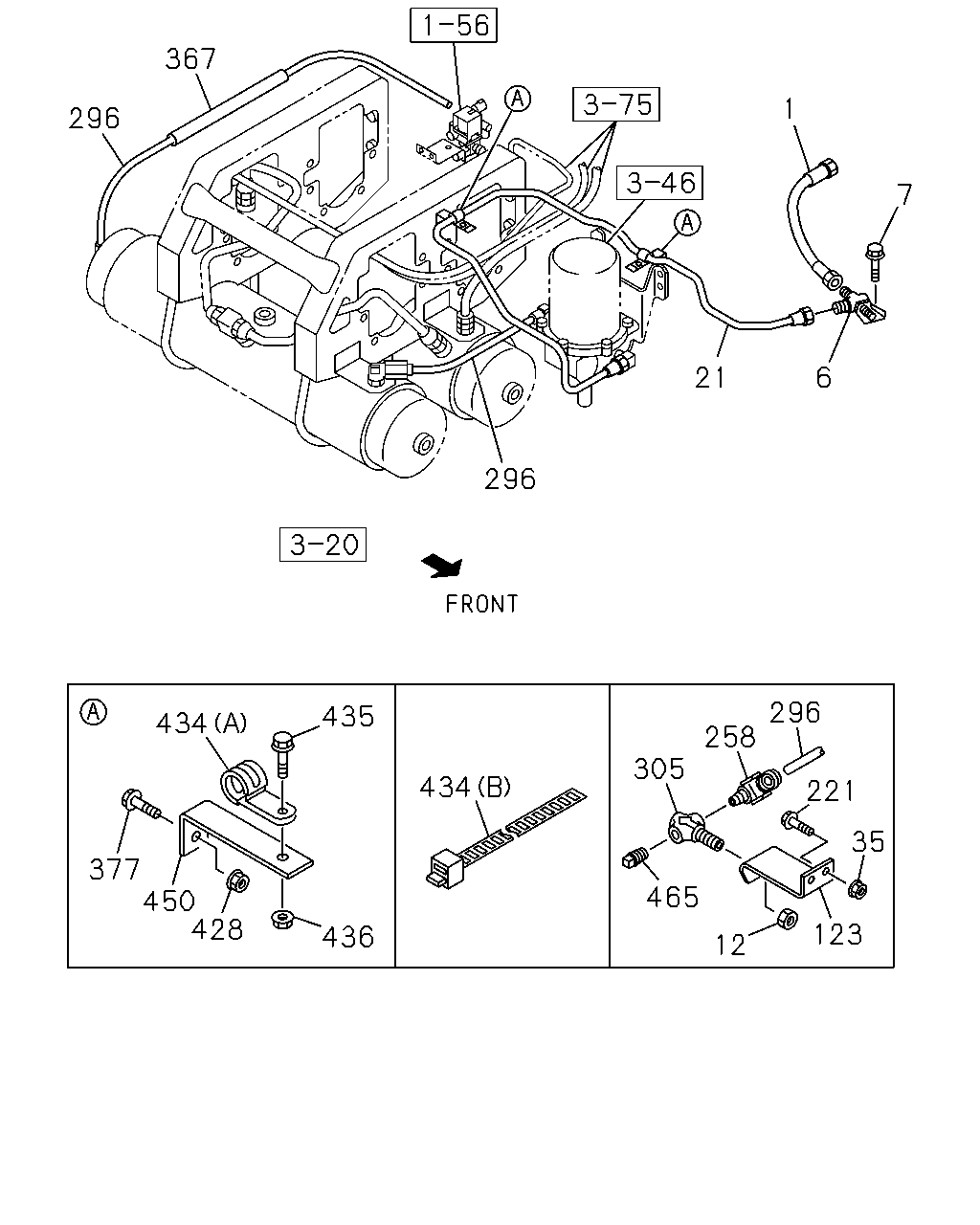

3-70 — BRAKE PIPING; AIR,AIR MASTER
(#121446) — 21 parça
296
367
1
7
6
21
296
434
435
377
450
428
436
434
305
258
296
221
35
123
12
465
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,AIR TANK
L=320
8-98067-411-0
01
1
1304-
6
BRACKET; FLEX HOSE,AIR TANK
8-98076-344-0
01
1
1304-
7
BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE THA
0-28650-830-0
02
1
1304-
12
NUT; UNION
EXC. PTO CONTROL<SV6> M12
0-91111-512-0
01
1
1304-
21
PIPE; AIR,UNION TO AIR DRYER
L=1705
8-98101-992-1
01
1
1304-
35
NUT; BRKT
EXC. PTO CONTROL<SV6> M8 FLANGE THA
0-91180-108-0
02
1
1304-
123
BRACKET; UNION
EXC. PTO CONTROL<SV6>
8-98118-545-0
01
1
1304-
221
BOLT; BRKT
EXC. PTO CONTROL<SV6> M8X35 FLANGE THA
0-28650-835-0
02
1
1304-
258
CONNECTOR; NYLON TUBE
EXC. PTO CONTROL<SV6> DIN8X2 & R1/4 3WAY
1-09661-006-0
01
1
1304-
296
TUBE; NYLON
SERVICED BY L=2000 OD=8 THA
1-87411-006-0
AR
1
1304-
296
TUBE; NYLON
SERVICED BY L=2000 OD=12 THA
1-87411-011-0
AR
1
1304-
305
UNION ASM; NYLON TUBE
EXC. PTO CONTROL<SV6>
8-98120-049-0
01
1
1304-
367
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA
1-87411-019-0
01
1
1304-
377
BOLT; BRKT FIX
M8X30 FLANGE THA
0-28650-830-0
02
1
1304-
428
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
02
1
1304-
434
CLIP
(A) ID=16 L=20 THA
0-95235-536-0
02
1
1304-
434
CLIP
(B) L=350
1-09707-183-0
02
1
1304-
435
BOLT; CLIP
M8X20 FLANGE THA
0-28650-820-0
02
1
1304-
436
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
02
1
1304-
450
BRACKET; CLIP
L=90 B=25
1-47475-530-0
02
1
1304-
465
PLUG
EXC. PTO CONTROL<SV6> PT1/4
9-99204-513-0
01
1
1304-
