Isuzu WW
▶
TRUCKS
▶
FTR
▶
11540 - FTR CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶
3-55 — BRAKE PIPING; OIL,REAR
(#121444) — 15 parça
◀

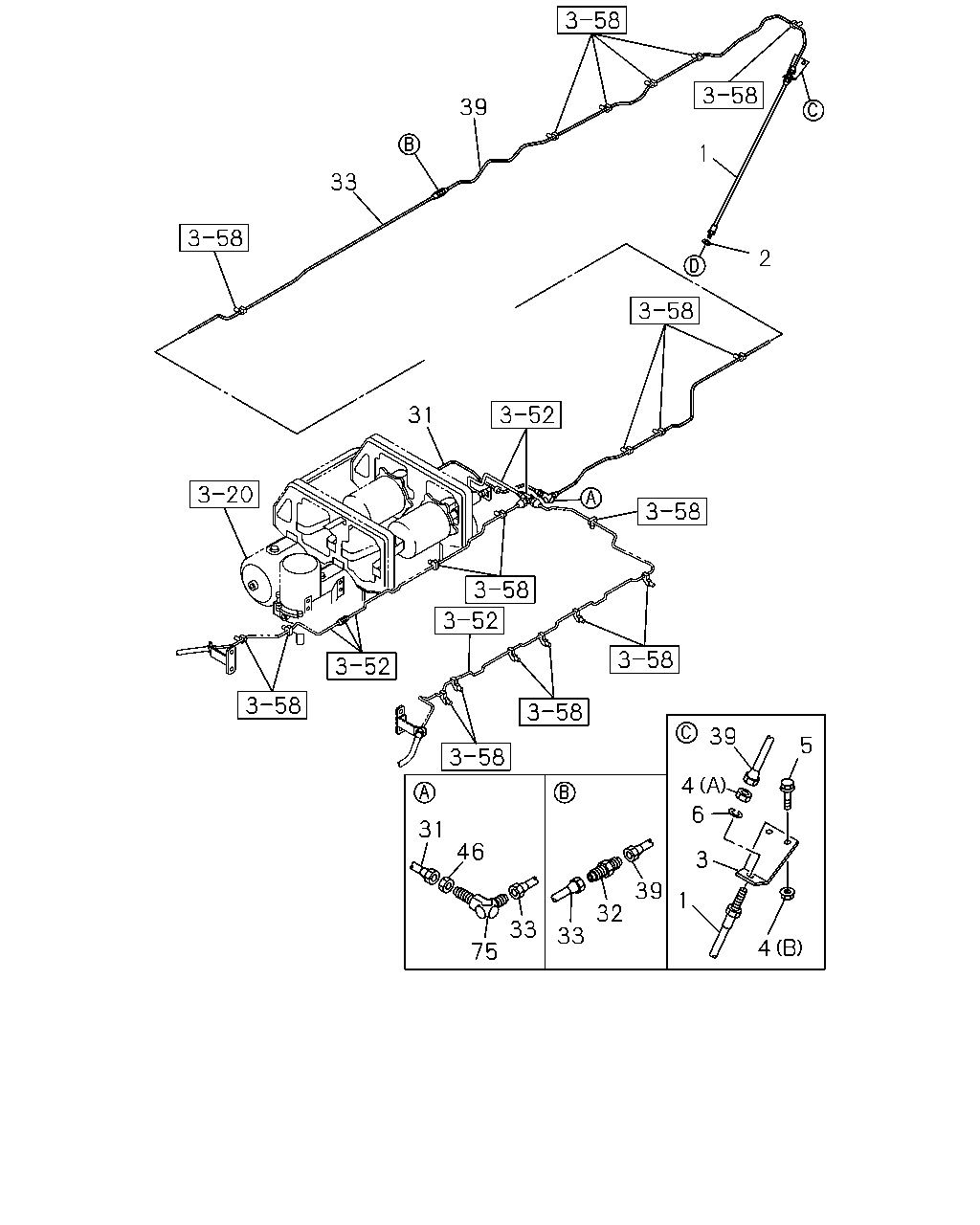

[355A] NO.1 (13 parça)

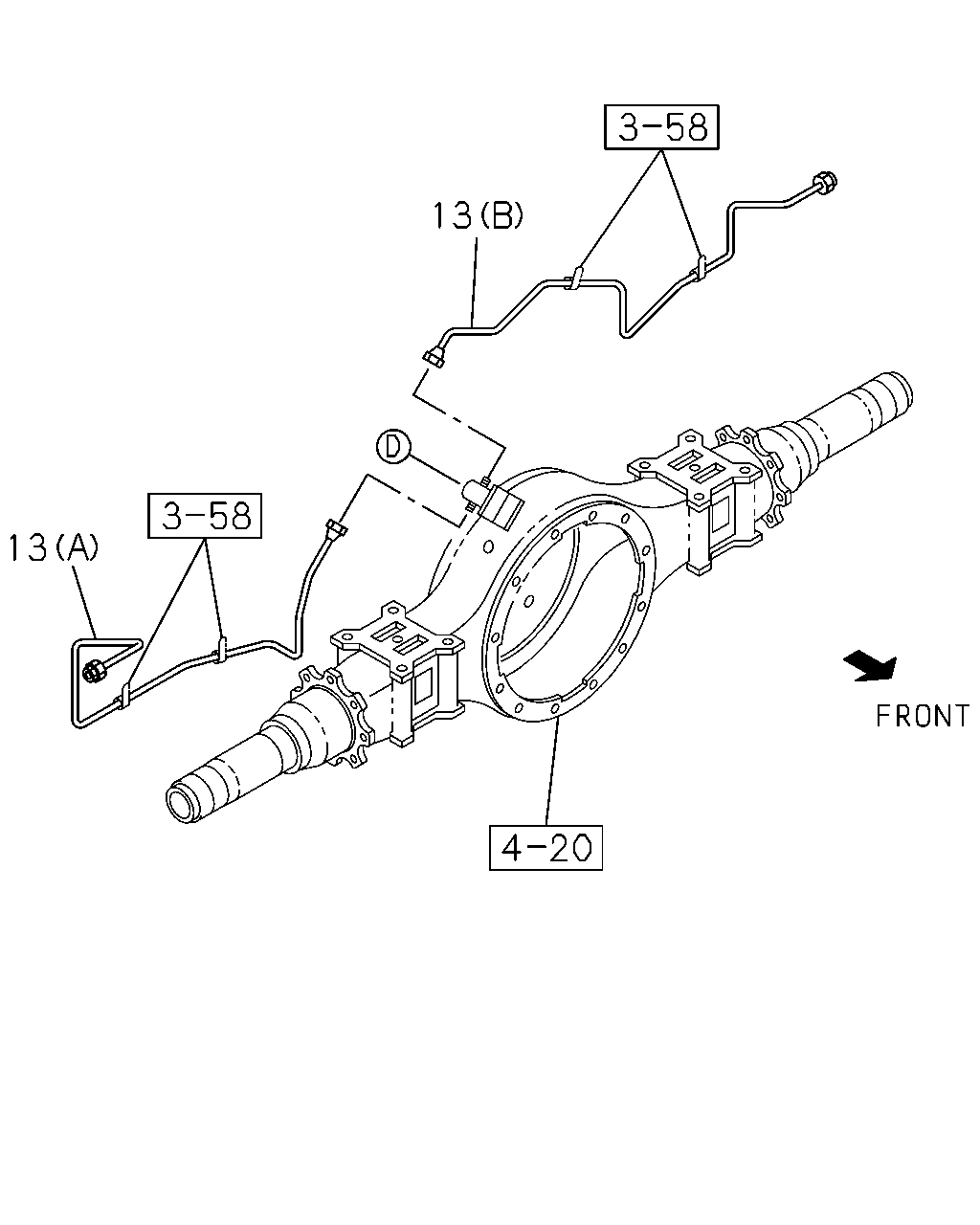

[355A] NO.2 (2 parça)
▶
33
39
1
2
31
31
46
75
33
33
32
39
1
4
3
6
4
39
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=700
0-05212-700-0
01
1
1304-
2
GASKET; FLEX HOSE,RR BRK
ID=9 OD=17
9-09920-472-0
01
1
1304-
3
BRACKET; FLEX HOSE,RR BRK
1-47465-251-0
01
1
1304-
4
NUT; BRKT,FLEX HOSE,RR BRK
(B) M8 FLANGE THA
0-91180-108-0
02
1
1304-
4
NUT; BRKT,FLEX HOSE,RR BRK
(A) M12
9-09840-280-0
01
1
1304-
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE THA
0-28650-825-0
02
1
1304-
6
WASHER; LK,FLEX HOSE
ID=12.2
0-91510-512-0
01
1
1304-
31
PIPE; OIL,AIR MASTER TO UNION
L=561 SERVICED BY L=600
1-47428-725-0
01
1
1304-
32
UNION; OIL PIPE
M12 L=40
0-92113-006-0
01
1
1304-
33
PIPE; OIL,UNION TO UNION
L=2545 SERVICED BY L=2650
1-47428-743-0
01
1
1304-
39
PIPE; OIL,UNION TO RR FLEX HOSE
L=2062 SERVICED BY L=2200
1-47428-740-0
01
1
1304-
46
NUT; UNION,OIL PIPE
M12
9-09840-280-0
01
1
1304-
75
UNION; OIL PIPE
M12 ELBOW
0-92125-206-0
01
1
1304-
13
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
PIPE; BRK,RR AXLE
(A) THA
8-98134-989-0
01
1
1304-
13
PIPE; BRK,RR AXLE
(B) THA
8-98134-990-0
01
1
1304-
