Isuzu WW
▶
TRUCKS
▶
FTR
▶
11540 - FTR CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#121442) — 40 parça
◀

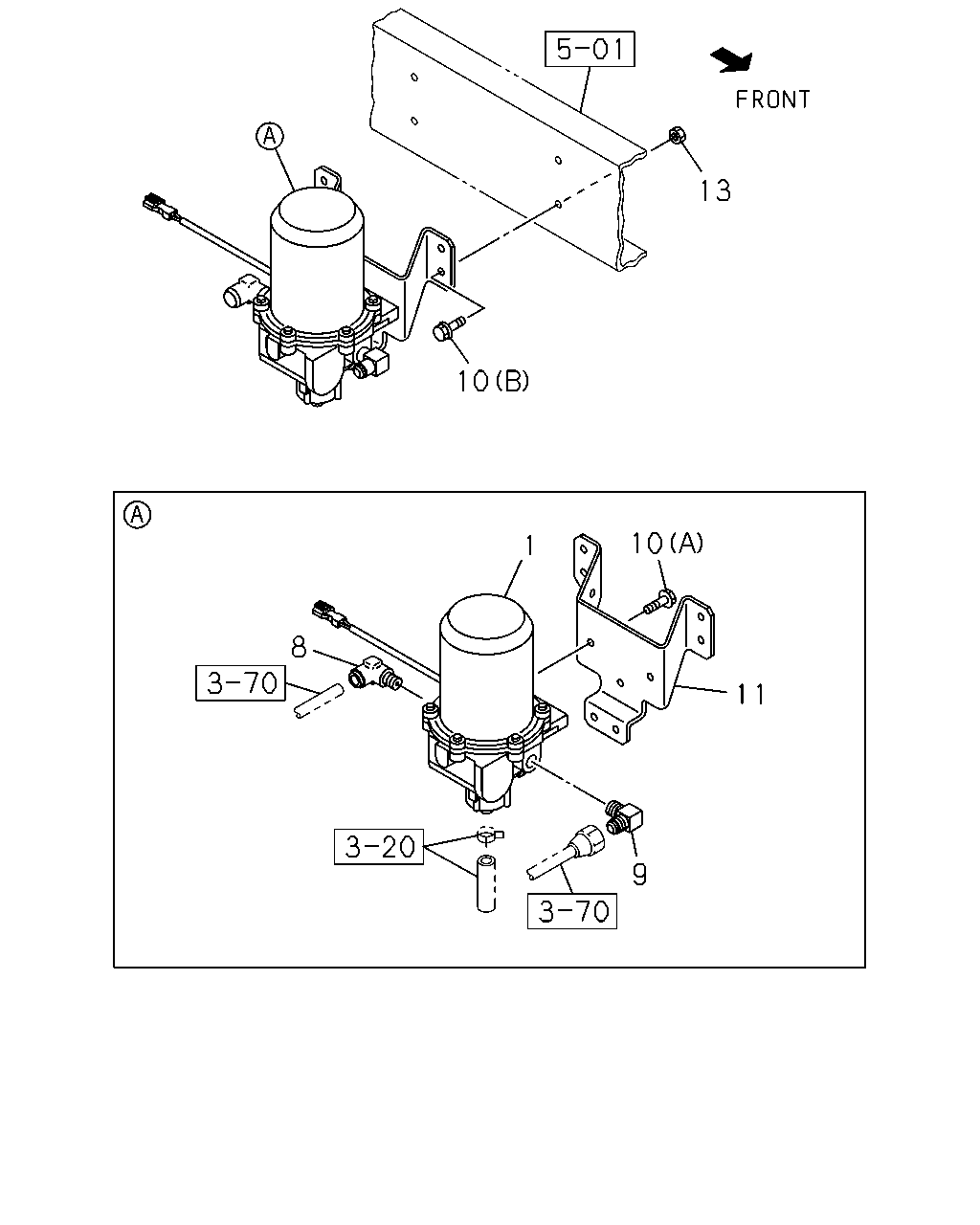

[346A] FIXING (8 parça)
[346A] COMPONENT (25 parça)
[346A] REPAIR AND PISTON KIT (7 parça)
▶
11
10
1
8
9
10
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
THA
8-98225-287-0
01
1
1304-1307
1
DRYER; AIR
THA
8-97948-209-1
01
1
1308-
8
CONNECTOR; OUT,AIR DRYER
DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
1304-
9
CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 ELBOW
0-92134-315-0
01
1
1304-
10
BOLT; AIR DRYER
(A) M10X25 FLANGE THA
0-28051-025-0
03
1
1304-
10
BOLT; AIR DRYER
(B) M10X35 FLANGE THA
0-28651-035-0
04
1
1304-
11
BRACKET; AIR DRYER
8-97614-691-1
01
1
1304-
13
NUT; AIR DRYER
M10 FLANGE THA
0-91180-210-0
04
1
1304-

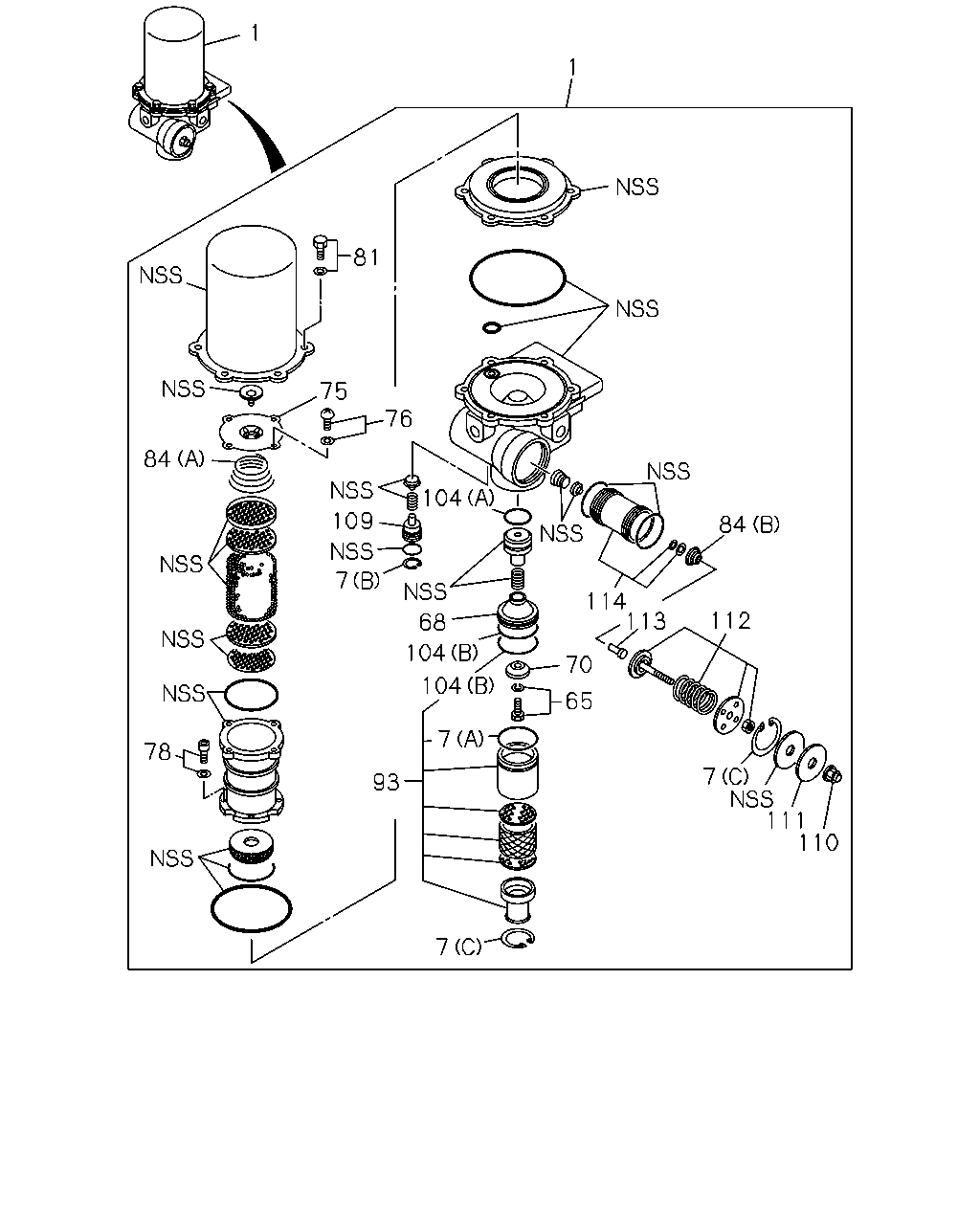

1
1
81
84
75
76
104
109
7
78
68
104
104
65
70
114
113
84
112
7
111
110
7
7
93
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
THA
8-98225-287-0
01
1
1304-1307
1
DRYER; AIR
THA
8-97948-209-1
01
1
1308-
7
RING; SNAP,AIR DRYER
(C) THA
1-48199-520-0
02
1
1304-
7
RING; SNAP,AIR DRYER
(B) THA
1-48199-529-0
01
1
1304-
7
RING; SNAP,AIR DRYER
(A) THA
1-48199-579-0
01
1
1304-
65
BOLT; PURGE VLV
THA
1-48199-517-0
01
1
1304-
68
BODY; VALVE
THA
1-48199-515-0
01
1
1304-
70
VALVE; AIR DRYER
THA
1-48199-504-0
01
1
1304-
75
COVER; CASE,AIR DRYER
THA
1-48199-427-0
01
1
1304-
76
BOLT; COVER,AIR DRYER
THA
1-48199-412-0
04
1
1304-
78
BOLT; OIL FILTER,AIR DRYER
THA
1-48199-417-0
04
1
1304-
81
BOLT; CASE,AIR DRYER
THA
1-48199-436-0
06
1
1304-
84
SPRING; AIR DRYER
(A) THA
1-48199-425-0
01
1
1304-
84
SPRING; AIR DRYER
(B) THA
1-48199-523-0
01
1
1304-
93
SILENCER; AIR DRYER
THA
1-48199-619-0
01
1
1304-
104
GASKET
(B) THA
1-48199-496-0
02
1
1304-
104
GASKET
(A) THA
8-98226-321-0
01
1
1304-
109
STOPPER; CHECK VALVE
THA
1-48199-539-0
01
1
1304-
110
NUT; CAP
THA
1-48199-527-0
01
1
1304-
111
PLATE; GOVERNOR
THA
1-48199-526-0
01
1
1304-
112
SCREW & SPRING ASM; AIR DRYER
THA
1-48199-524-0
01
1
1304-1408
112
SCREW & SPRING ASM; AIR DRYER
THA
8-98292-687-0
01
1
1409-
113
STEM; EXHAUST
THA
1-48199-522-0
01
1
1304-
114
PISTON ASM; GOVERNOR
THA
1-48199-521-0
01
1
1304-1408
114
PISTON ASM; GOVERNOR
THA
8-98292-688-0
01
1
1409-
2
104
104
104
70
68
70
65
104
104
104

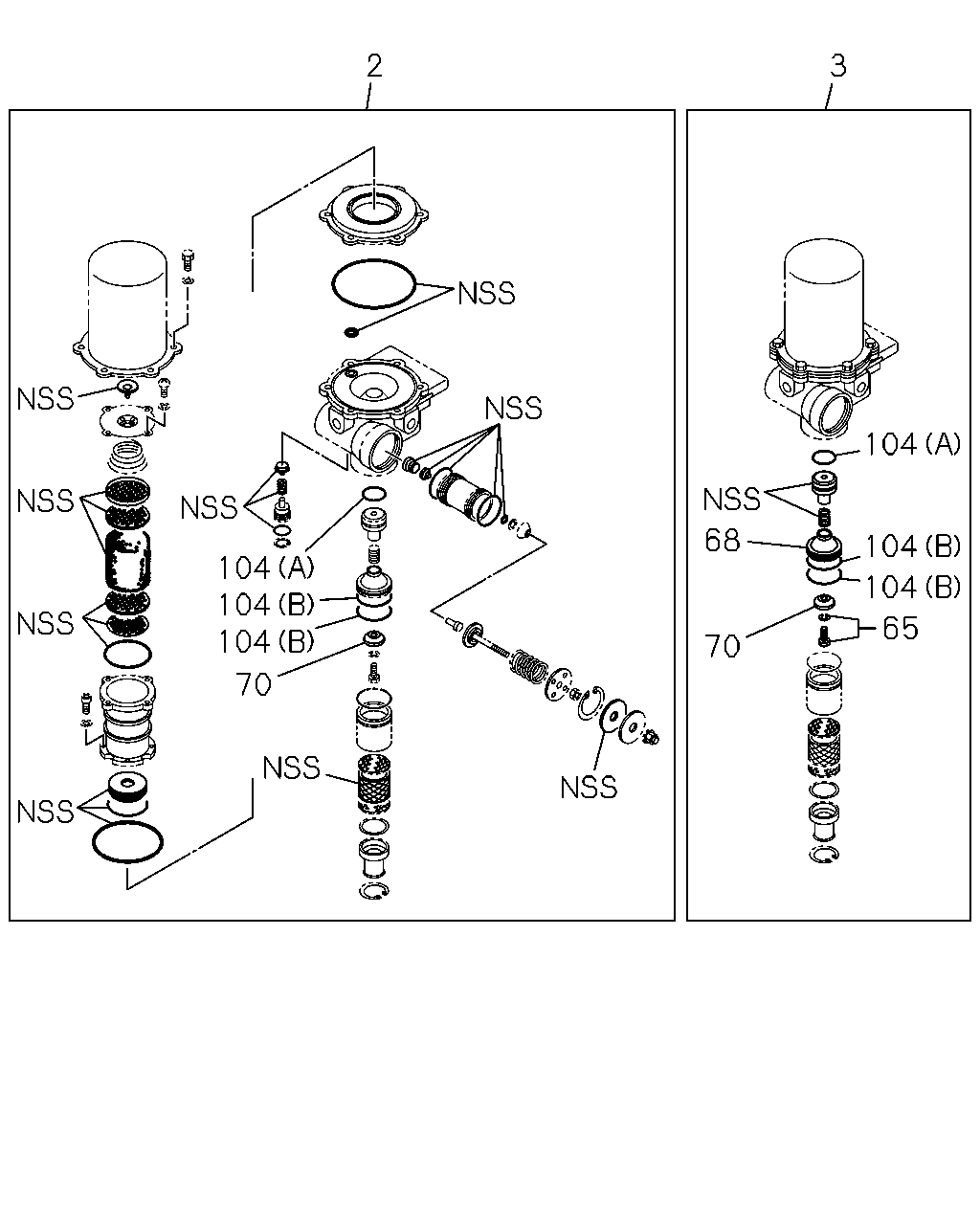

3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
THA
8-98226-323-0
01
1
1304-
3
PISTON KIT; AIR DRYER
THA
8-98226-322-0
01
1
1304-
65
BOLT; PURGE VLV
THA
1-48199-517-0
01
1
1304-
68
BODY; VALVE
THA
1-48199-515-0
01
1
1304-
70
VALVE; AIR DRYER
THA
1-48199-504-0
01
1
1304-
104
GASKET
(B) THA
1-48199-496-0
02
1
1304-
104
GASKET
(A) THA
8-98226-321-0
01
1
1304-
