Sayfa 2-36 - Isuzu EPC

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#12144) — 182 parça

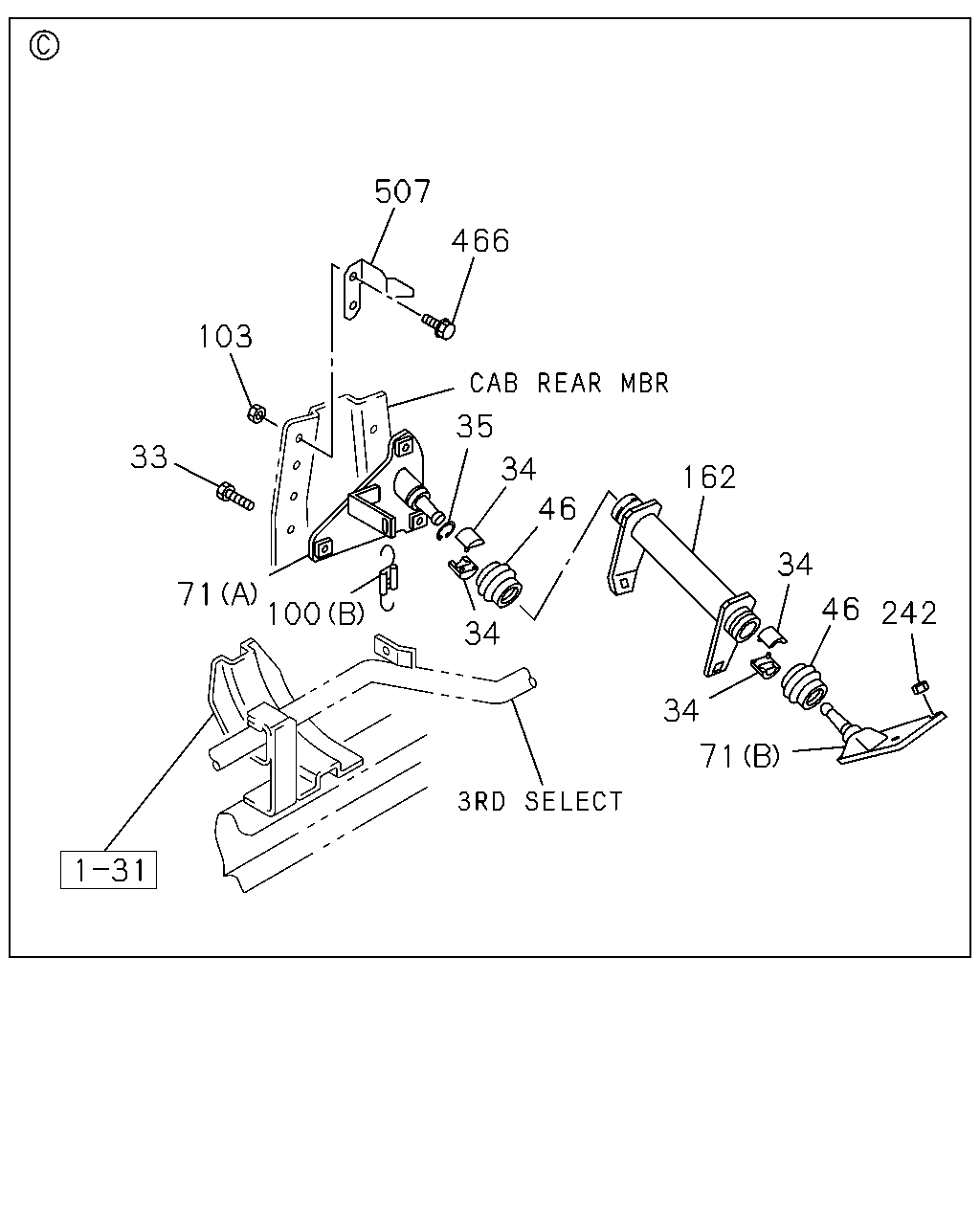

507 466 103 35 33 34 162 46 34 71 100 46 242 34 34 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	BOLT; BRKT,3RD RELAY LEVER M10X30 FLANGE	0-28681-030-0	03	1	0105-0512
33	BOLT; BRKT,3RD RELAY LEVER M10X30 FLANGE	0-28651-030-0	03	1	0601-
34	SEAT; BALL,RELAY LEVER	1-33659-165-0	04	1	0105-
35	RING; SNAP,RELAY LEVER OD=34.4	9-09180-132-0	01	1	0105-
46	SEAL; DUST,RELAY LEVER	1-33659-166-0	02	1	0105-0503
46	SEAL; DUST,RELAY LEVER	1-33659-248-0	02	1	0504-
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-481-0	01	1	0105-
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-657-1	01	1	0105-
100	SPRING (B)	1-09583-319-0	01	1	0105-
100	SPRING (A)	1-09583-351-0	01	1	0105-
103	NUT M8 FLANGE	0-91150-108-0	01	1	0105-0602
103	NUT M8 FLANGE	0-91180-108-0	01	1	0603-
162	LEVER; RELAY	1-33651-679-1	01	1	0105-0106
162	LEVER; RELAY ZF M/T<X9E>	1-33651-679-1	01	1	0107-
162	LEVER; RELAY ISUZU M/T<X9A>	1-33651-625-1	01	1	0107-
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91150-212-0	03	1	0105-0602
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91180-212-0	03	1	0603-
466	BOLT; FIX M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
466	BOLT; FIX M8X20 FLANGE	0-28650-820-0	02	1	0601-
507	PROTECTOR; HEAT	1-14181-315-0	01	1	0105-

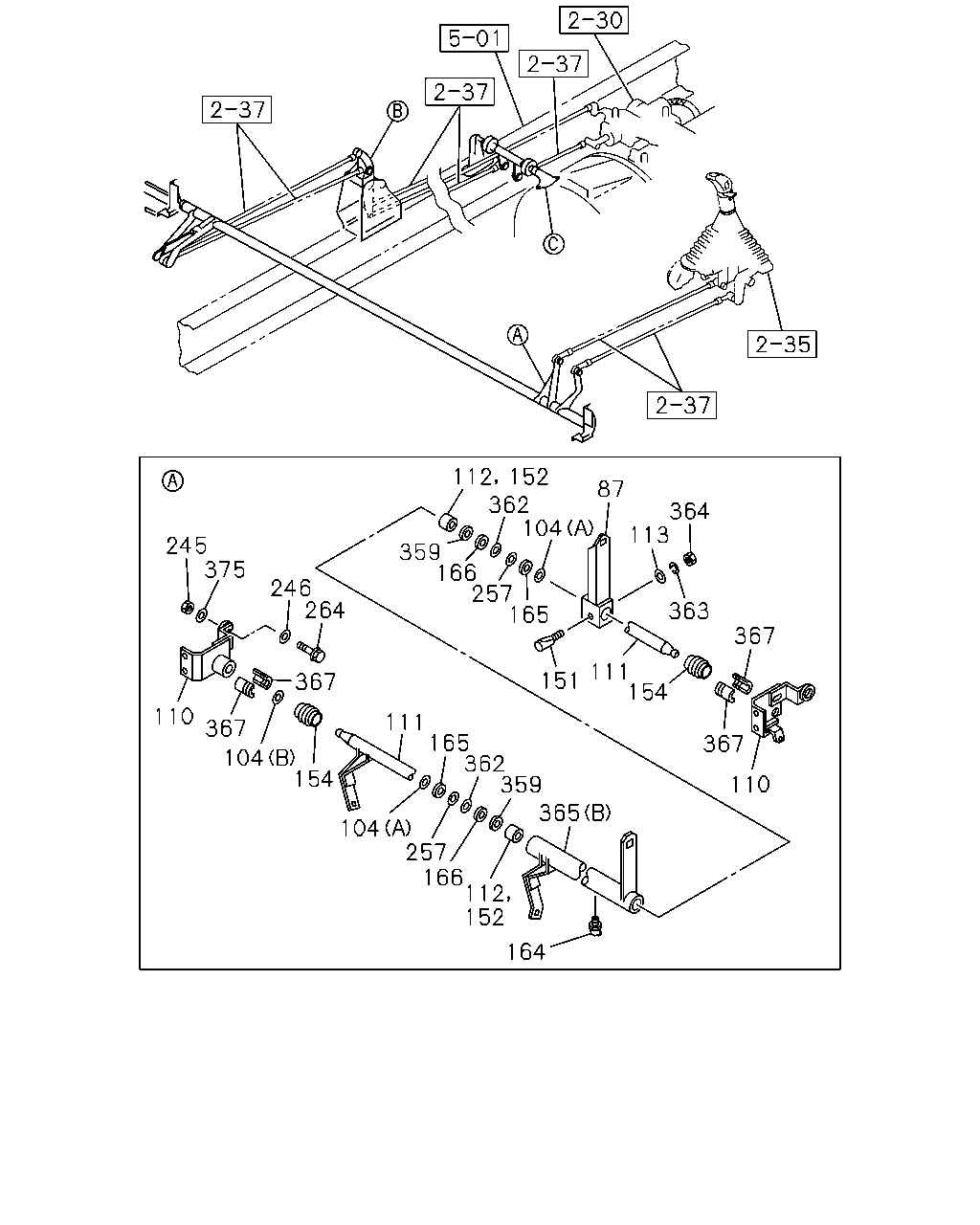

362 104 87 364 113 245 375 359 166 257 165 246 264 363 367 111 154 151 367 110 367 111 367 165 362 359 365 104 154 110 104 257 166 112 152 164 112 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
87	LEVER; RELAY,SELECT	1-33651-666-0	01	1	0105-
104	RING; SNAP (A) ID=32.2	9-09180-035-0	02	1	0105-
104	RING; SNAP (B) OD=23.5	9-09180-122-0	01	1	0105-
110	BRACKET; RELAY LEVER,1ST	1-33657-617-0	01	1	0105-
110	BRACKET; RELAY LEVER,1ST	1-33657-618-0	01	1	0105-
111	SHAFT; RELAY LEVER,1ST	1-33659-200-0	01	1	0105-0307
111	SHAFT; RELAY LEVER,1ST	1-33659-239-0	01	1	0308-
112	BUSHING; RELAY LEVER	1-09330-143-0	02	1	0308-
113	WASHER; RELAY LEVER ID=10.5 OD=26	9-09160-710-0	01	1	0105-1407
113	WASHER; RELAY LEVER ID=10.5	0-91610-710-0	01	1	1408-
151	BOLT; KEY,RELAY LEVER	1-33659-063-0	01	1	0105-
152	BEARING; NEEDLE,RELAY LEVER	1-09811-328-0	02	1	0105-0307
154	COVER; DUST,RELAY LEVER	1-33659-068-0	02	1	0105-
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0105-0512
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-1407
165	WASHER; RELAY LEVER	1-09503-148-0	AR	1	0105-
166	WASHER; NYLON,RELAY LEVER	1-09509-040-0	02	1	0105-
245	NUT; BRKT,RELAY LEVER M10	1-09984-142-0	02	1	0105-
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	02	1	0105-
257	PIECE; DIST,RELAY LEVER	1-09503-198-0	AR	1	0105-
264	BOLT; BRKT,RELAY LEVER M10X30 FLANGE	0-28681-030-0	02	1	0105-0512
264	BOLT; BRKT,RELAY LEVER M10X30 FLANGE	0-28651-030-0	02	1	0601-
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	02	1	0105-0301
264	BOLT; BRKT,RELAY LEVER M10X105	1-79198-008-1	02	1	0302-
359	SEAL; RUBBER,RELAY LEVER	1-09625-005-1	02	1	0105-
362	SHIM	1-09503-172-0	AR	1	0105-
363	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	01	1	0105-0603
363	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	01	1	0604-
364	NUT; KEY BOLT M10	9-09111-410-0	01	1	0105-0512
364	NUT; KEY BOLT M10	0-91111-510-0	01	1	0601-
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	0105-0307
365	LEVER; RELAY,SELECT (B)	1-33651-819-2	01	1	0308-
365	LEVER; RELAY,SELECT (A)	1-33651-771-1	01	1	0105-
367	SEAT; BALL,CONT SHAFT	1-33659-053-0	04	1	0105-
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-

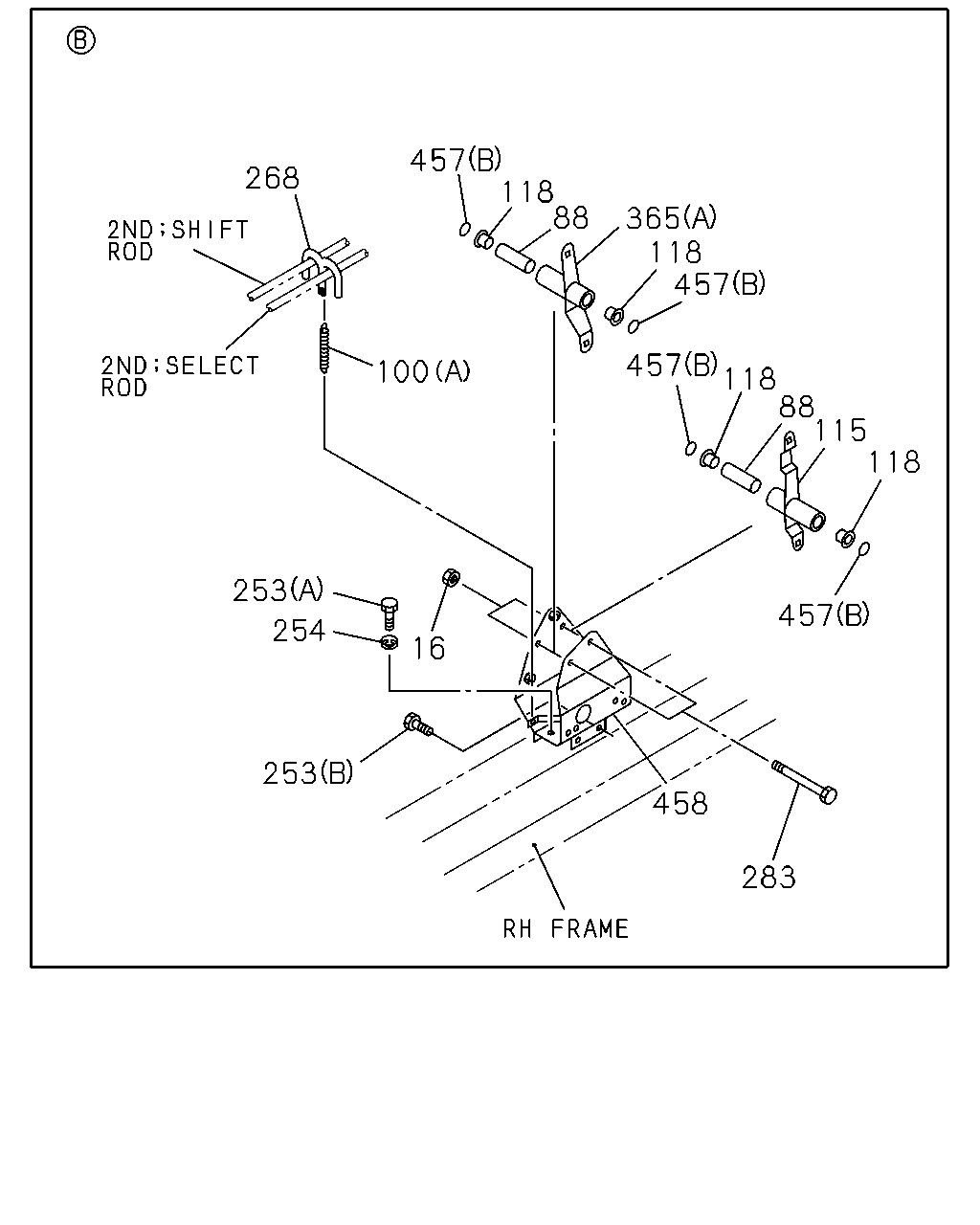

457 118 88 268 365 118 457 457 100 118 88 115 118 253 457 254 16 253 458 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	0105-0602
16	NUT; RELAY LEVER M10 FLANGE	0-91180-110-0	02	1	0603-
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	0105-
100	SPRING (B)	1-09583-319-0	01	1	0105-
100	SPRING (A)	1-09583-351-0	01	1	0105-
115	LEVER; RELAY,2ND SHIFT	1-33651-769-1	01	1	0105-
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	0105-
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	0105-
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	0105-0512
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	0105-0603
254	WASHER; LK,RELAY LEVER ID=14.2	0-91510-614-0	02	1	0604-
268	BRACKET; LINK ROD	1-33657-216-0	01	1	0105-
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	0105-
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	0105-0307
365	LEVER; RELAY,SELECT (B)	1-33651-819-2	01	1	0308-
365	LEVER; RELAY,SELECT (A)	1-33651-771-1	01	1	0105-
457	GASKET (B)	1-09623-594-0	04	1	0105-
457	GASKET TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0105-0106
457	GASKET TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0107-
458	BRACKET; 2ND RELAY LEVER	1-33657-664-1	01	1	0105-

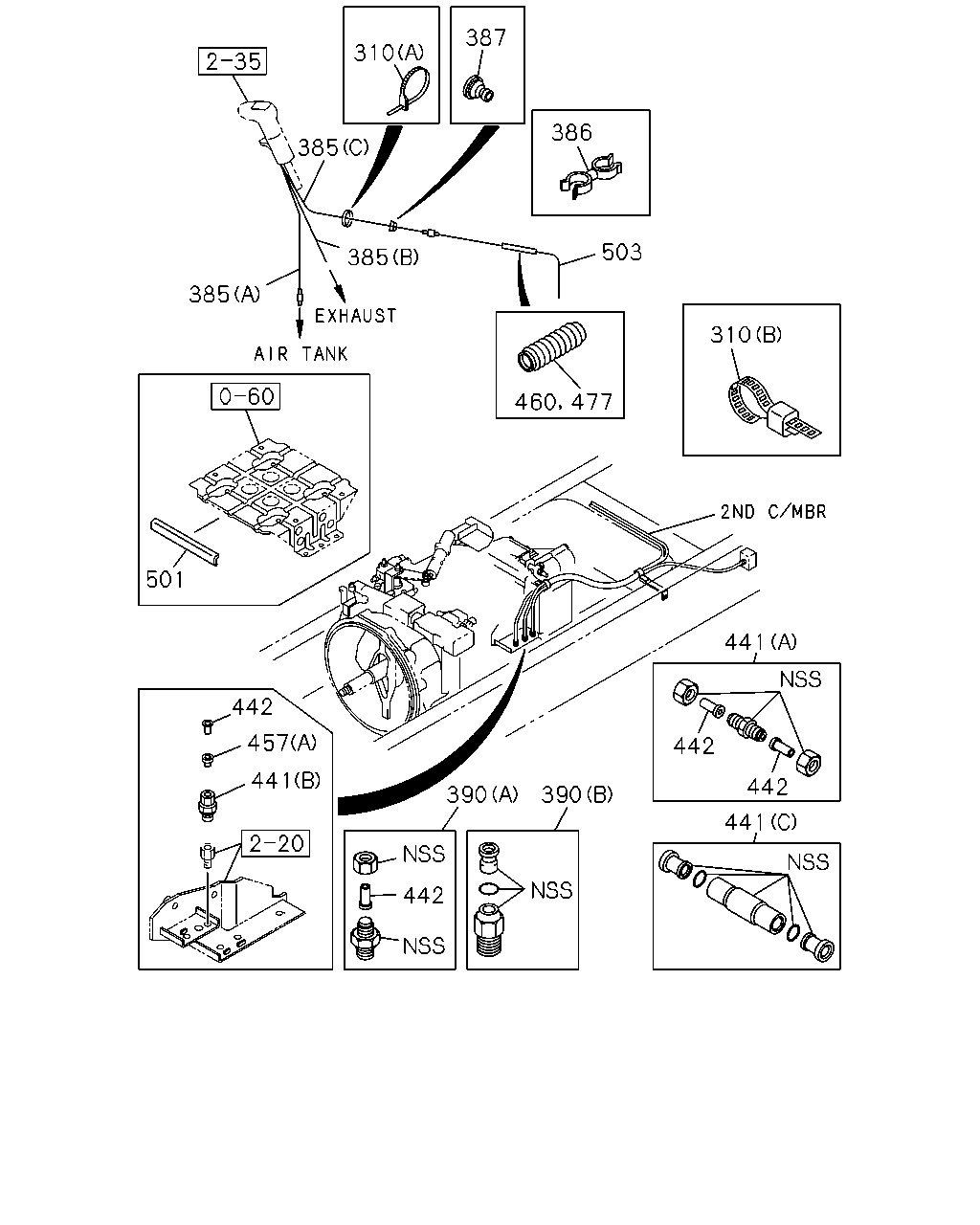

387 310 386 385 503 385 385 310 501 441 442 457 442 441 442 390 390 441 442 460 477

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
310	CLIP; TUBE (B) L=250	1-09707-126-0	17	1	0105-
310	CLIP; TUBE (A) L=140	5-09707-031-1	04	1	0105-0105
310	CLIP; TUBE (A) L=140	5-09707-031-1	05	1	0106-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0105-0106
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0107-
385	TUBE; NYLON AIR BAG(TFQ) (C) L=1440 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0105-0106
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) AIR BAG(TFQ) (C) L=1440 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0107-
385	TUBE; NYLON EXC. AIR BAG(TFQ) (C) L=1340 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0105-0106
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. AIR BAG(TFQ) (C) L=1340 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0107-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0105-0212
385	TUBE; NYLON (A) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0301-
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) ID=8.3 & 8.3	8-94426-175-0	01	1	0309-
387	GROMMET; CONT TUBE,FULLER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-09332-102-0	01	1	0105-0106
387	GROMMET; CONT TUBE,FULLER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z)	1-09332-102-0	01	1	0107-
390	CONNECTOR; STRAIGHT,TRANS SIDE AIR BAG(TFQ) (B)	1-09661-174-0	01	1	0105-0106
390	CONNECTOR; STRAIGHT,TRANS SIDE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) AIR BAG(TFQ) (B)	1-09661-174-0	01	1	0107-1002
390	CONNECTOR; STRAIGHT,TRANS SIDE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B)	1-09661-174-0	01	1	1003-
390	CONNECTOR; STRAIGHT,TRANS SIDE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) AIR BAG(TFQ) (B)	1-09661-174-0	01	1	1003-
390	CONNECTOR; STRAIGHT,TRANS SIDE EXC. AIR BAG(TFQ) (A) DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	0105-0106
390	CONNECTOR; STRAIGHT,TRANS SIDE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. AIR BAG(TFQ) (A) DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	0107-1002
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09660-466-0	01	1	0105-0106
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B)	1-09660-466-0	01	1	0107-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0105-0106
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0107-0904
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (C)	8-98134-660-0	02	1	0905-
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) ID=1.4 OD=2.0 L=18	1-09669-100-0	06	1	0105-0106
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) ID=1.4 OD=2.0 L=18	1-09669-100-0	06	1	0107-0904
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) ID=1.4 OD=2.0 L=18	1-09669-100-0	02	1	0905-1002
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1003-
457	GASKET (B)	1-09623-594-0	04	1	0105-
457	GASKET TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0105-0106
457	GASKET TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0107-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) L=250 ID=7 SERVICED BY L=800	1-83129-031-1	01	1	0105-0106
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) L=250 ID=7 SERVICED BY L=800	1-83129-031-1	01	1	0107-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0105-0106
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0107-0204
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) AIR BAG(TFQ) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0205-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0205-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0105-0106
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0107-0204
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. AIR BAG(TFQ) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0205-
477	TUBE; CORRUGATE MJX16P M/T(Y3Z) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0107-
477	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	0105-
477	TUBE; CORRUGATE SERVICED BY L=6000 ID=7	1-87410-087-0	01	1	0105-0106
477	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) SERVICED BY L=6000 ID=7	1-87410-087-0	01	1	0107-
501	SEAL; HARNESS PROTECTOR 100X40	1-72498-022-1	04	1	0105-
503	TUBE; NYLON SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0105-0106
503	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0107-
503	TUBE; NYLON SERVICED BY L=6000 OD=4	1-87410-079-0	01	1	0105-0106
503	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) SERVICED BY L=6000 OD=4	1-87410-079-0	01	1	0107-

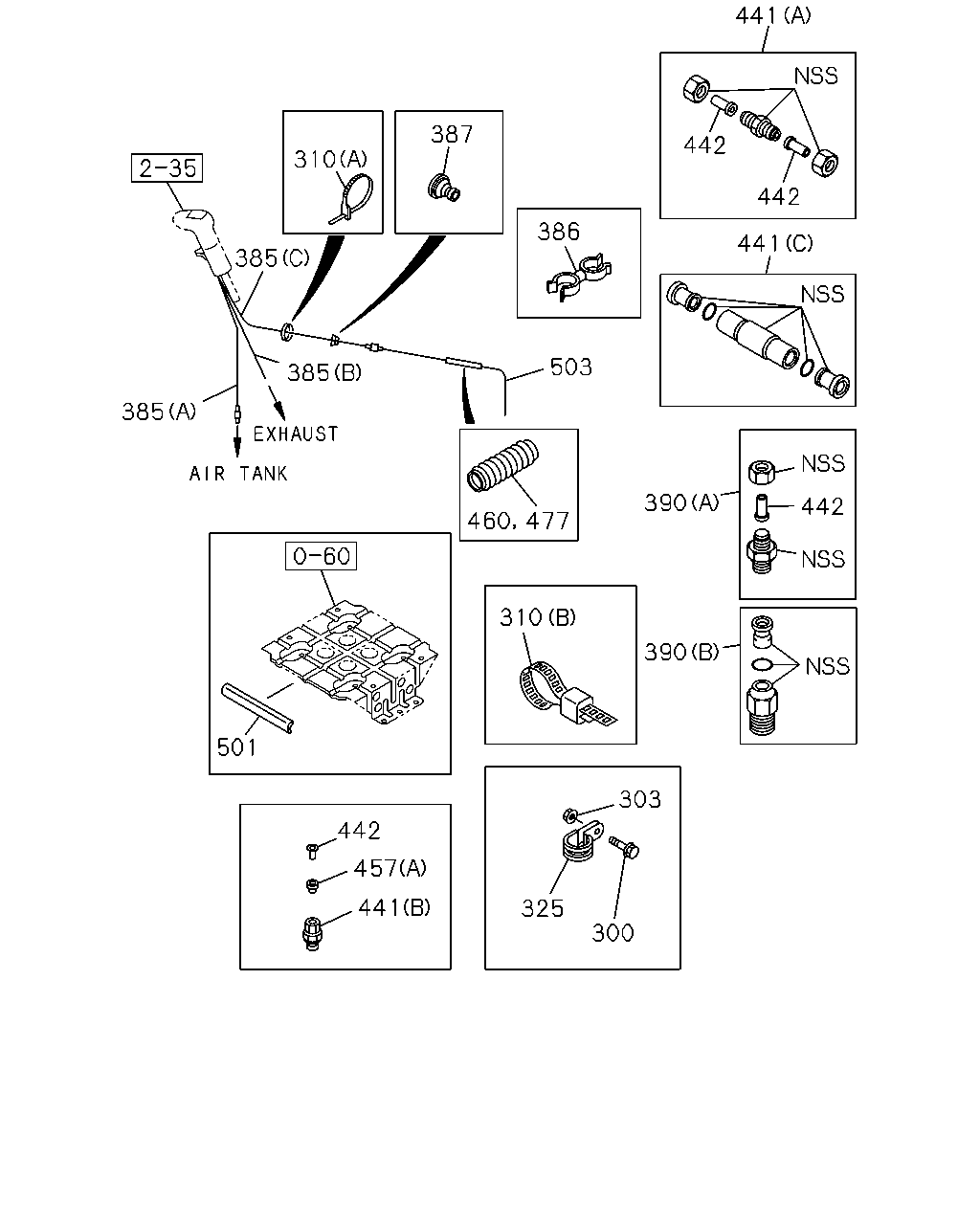

441 387 442 310 442 386 441 385 503 385 385 390 442 390 501 303 442 457 441 325 300 310 460 477

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
300	BOLT; CLIP MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
300	BOLT; CLIP MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X20 FLANGE	0-28650-820-0	01	1	0601-
303	NUT; CLIP MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE	0-91150-108-0	01	1	0107-0602
303	NUT; CLIP MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE	0-91180-108-0	01	1	0603-
310	CLIP; TUBE (B) L=250	1-09707-126-0	17	1	0105-
310	CLIP; TUBE (A) L=140	5-09707-031-1	04	1	0105-0105
310	CLIP; TUBE (A) L=140	5-09707-031-1	05	1	0106-
325	CLIP; NYLON TUBE MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) L=250	1-09707-126-0	07	1	0107-
325	CLIP; NYLON TUBE MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) ID=18 L=28	1-09701-067-0	01	1	0107-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0105-0106
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0107-
385	TUBE; NYLON AIR BAG(TFQ) (C) L=1440 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0105-0106
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) AIR BAG(TFQ) (C) L=1440 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0107-
385	TUBE; NYLON EXC. AIR BAG(TFQ) (C) L=1340 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0105-0106
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. AIR BAG(TFQ) (C) L=1340 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0107-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0105-0212
385	TUBE; NYLON (A) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0301-
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) ID=8.3 & 8.3	8-94426-175-0	01	1	0309-
387	GROMMET; CONT TUBE,FULLER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-09332-102-0	01	1	0105-0106
387	GROMMET; CONT TUBE,FULLER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z)	1-09332-102-0	01	1	0107-
390	CONNECTOR; STRAIGHT,TRANS SIDE AIR BAG(TFQ) (B)	1-09661-174-0	01	1	0105-0106
390	CONNECTOR; STRAIGHT,TRANS SIDE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) AIR BAG(TFQ) (B)	1-09661-174-0	01	1	0107-1002
390	CONNECTOR; STRAIGHT,TRANS SIDE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B)	1-09661-174-0	01	1	1003-
390	CONNECTOR; STRAIGHT,TRANS SIDE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) AIR BAG(TFQ) (B)	1-09661-174-0	01	1	1003-
390	CONNECTOR; STRAIGHT,TRANS SIDE EXC. AIR BAG(TFQ) (A) DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	0105-0106
390	CONNECTOR; STRAIGHT,TRANS SIDE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. AIR BAG(TFQ) (A) DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	0107-1002
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09660-466-0	01	1	0105-0106
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B)	1-09660-466-0	01	1	0107-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0105-0106
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0107-0904
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (C)	8-98134-660-0	02	1	0905-
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) ID=1.4 OD=2.0 L=18	1-09669-100-0	06	1	0105-0106
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) ID=1.4 OD=2.0 L=18	1-09669-100-0	06	1	0107-0904
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) ID=1.4 OD=2.0 L=18	1-09669-100-0	02	1	0905-1002
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1003-
457	GASKET (B)	1-09623-594-0	04	1	0105-
457	GASKET TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0105-0106
457	GASKET TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0107-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) L=250 ID=7 SERVICED BY L=800	1-83129-031-1	01	1	0105-0106
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) L=250 ID=7 SERVICED BY L=800	1-83129-031-1	01	1	0107-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0105-0106
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0107-0204
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) AIR BAG(TFQ) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0205-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0205-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0105-0106
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0107-0204
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. AIR BAG(TFQ) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0205-
477	TUBE; CORRUGATE MJX16P M/T(Y3Z) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0107-
477	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	0105-
477	TUBE; CORRUGATE SERVICED BY L=6000 ID=7	1-87410-087-0	01	1	0105-0106
477	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) SERVICED BY L=6000 ID=7	1-87410-087-0	01	1	0107-
501	SEAL; HARNESS PROTECTOR 100X40	1-72498-022-1	04	1	0105-
503	TUBE; NYLON SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0105-0106
503	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0107-
503	TUBE; NYLON SERVICED BY L=6000 OD=4	1-87410-079-0	01	1	0105-0106
503	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) SERVICED BY L=6000 OD=4	1-87410-079-0	01	1	0107-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
