3-08 — PARKING BRAKE
(#121434) — 27 parça
◀

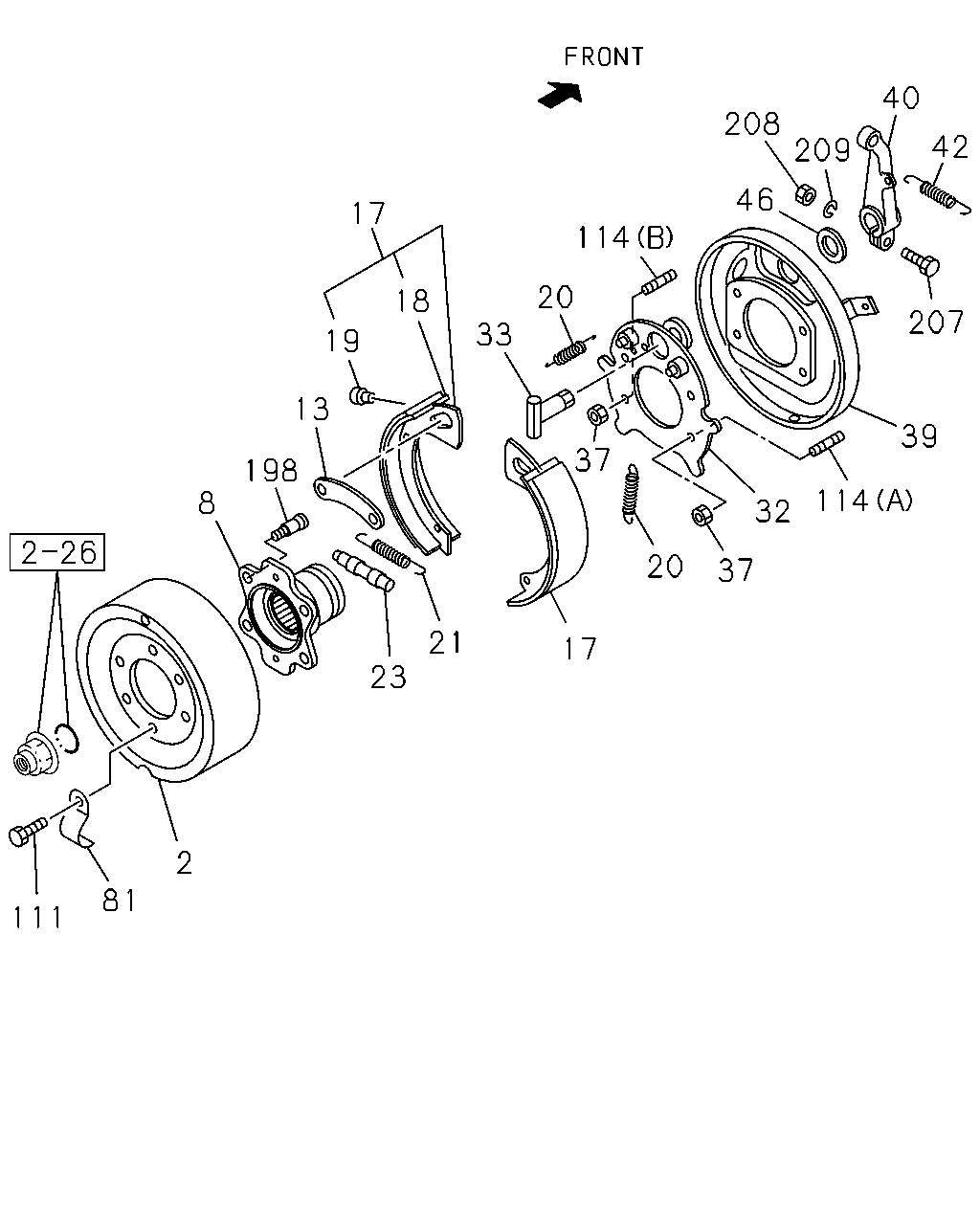

[308A] PARKING BRAKE (25 parça)
[308A] BRACKET (2 parça)
▶
42
40
209
208
46
114
20
33
37
20
37
32
114
39
207
17
21
23
18
17
19
13
198
8
2
81
111
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
DRUM; PARKING BRK
THA
1-46211-019-0
01
1
1304-
8
FLANGE; PARKING BRK
8-98153-193-0
01
1
1304-
13
BRACE; PARKING BRK
9-46239-002-0
01
1
1304-
17
SHOE; PARKING BRK
1-46220-022-1
02
1
1304-
18
LINING; BRK,PARKING
1-46225-023-0
02
1
1304-
19
RIVET; LINING,PARKING BRK
1-09732-058-0
32
1
1304-
19
RIVET; LINING,PARKING BRK
1-09732-058-0
32
1
1304-
20
SPRING; RETURN,SECONDARY,PARKING BRK
9-09942-434-0
02
1
1304-
21
SPRING; RETURN,PARKING BRK SHOE
9-09942-516-0
01
1
1304-
23
SCREW; ADJ,PARKING BRK SHOE
1-46240-003-0
01
1
1304-
32
PLATE; SUPPORT,PARKING BRK
1-46213-039-0
01
1
1304-
33
SHAFT; CAM,PARKING BRK
1-46251-010-0
01
1
1304-
37
NUT; SUPPORT PLATE
M14 FLANGE
8-97365-444-0
04
1
1304-
39
COVER; DUST,PARKING BRK
1-46213-038-0
01
1
1304-
40
LEVER; CM/SHF,PARKING BRK
1-46252-046-0
01
1
1304-
42
SPRING; RETURN,LEVER
1-09583-104-0
01
1
1304-
46
WASHER; LEVER
9-09855-362-0
01
1
1304-
81
COVER; CHECK HOLE,PARKING BRK
1-46219-030-0
02
1
1304-
111
BOLT; COVER,CHECK HOLE
M8X20 W/LK WASHER
0-50740-820-0
02
1
1304-
114
STUD; SUPPORT PLATE
(B) M14X22 WO/DRY-ROCK
8-98014-137-0
03
1
1304-
114
STUD; SUPPORT PLATE
(A) M14X22 W/DRY-ROCK
8-98014-138-0
01
1
1304-
198
BOLT; KNURL
M16X55
8-98023-172-0
04
1
1304-
207
BOLT; LEVER
8-98061-595-0
01
1
1304-
208
NUT; LEVER
M10
0-91111-510-0
01
1
1304-
209
WASHER; SP,LEVER
ID=10.2
0-91510-510-0
01
1
1304-
197
130
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
130
BOLT; BRKT
M10X25 FLANGE THA
0-28751-025-0
03
1
1304-
197
BRACKET; CENTER BRAKE CABLE
8-98009-002-1
01
1
1304-
