3-01 - FRONT WHEEL BRAKE
▶

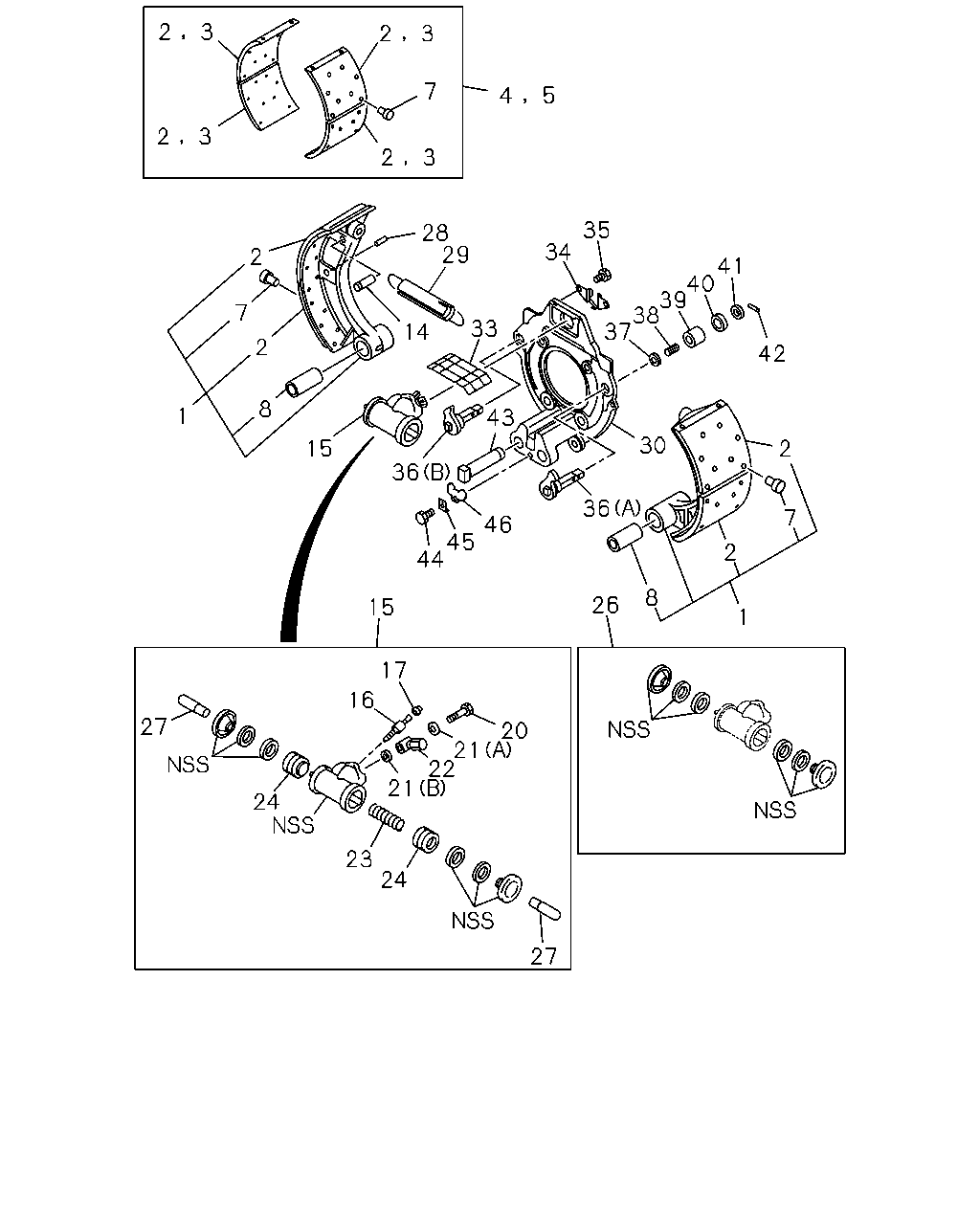

3-01 — FRONT WHEEL BRAKE
(#121432) — 38 parça
1
2
7
2
26
8
36
30
42
41
40
39
38
37
35
34
33
29
28
14
43
36
46
45
44
15
17
20
21
22
21
16
27
24
23
24
27
1
8
15
2
7
2
2
3
4
5
7
3
2
3
2
2
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,FRT
THA
1-47170-441-0
04
1
1304-
2
LINING; FRT BRK SHOE,STANDARD
THA
1-47126-758-0
08
1
1304-
3
LINING; FRT BRK SHOE,OVER SIZE
THA
1-47126-759-0
08
1
1304-
4
LINING SET; FRT BRK,STANDARD
1-88311-353-1
02
1
1304-
5
LINING SET; FRT BRK,OVER SIZE
1-88311-354-1
02
1
1304-
7
RIVET; LINING,FRT BRK
L=18.5 THA
1-09732-034-0
80
1
1304-
8
BUSHING; BRK SHOE
THA
1-47112-011-0
04
1
1304-
14
PIN; SHOE RETURN SPR
L=73.5 THA
1-47119-017-1
04
1
1304-
15
CYLINDER; WHEEL,FRT BRK
THA
1-47600-689-0
01
1
1304-
15
CYLINDER; WHEEL,FRT BRK
THA
1-47600-690-0
01
1
1304-
16
SCREW; BLEEDER,FRT BRK
L=66.5 THA
1-47615-005-0
02
1
1304-
17
CAP; BLEEDER,FRT WHEEL CYL
OD=12 THA
1-47619-011-0
02
1
1304-
20
BOLT; JOINT
M12X40.5 EYE BOLT THA
1-47634-006-0
02
1
1304-
21
GASKET; UNION BOLT
(A) ID=15.2 THA
1-09630-019-0
02
1
1304-
21
GASKET; UNION BOLT
(B) ID=12.2 THA
1-09630-020-0
02
1
1304-
22
JOINT; PIPE
THA
1-47631-057-1
02
1
1304-
23
SPRING; COIL
THA
9-09940-435-0
02
1
1304-
24
PISTON; FRT WHEEL CYL
THA
9-47624-211-0
04
1
1304-
26
CUP SET; FRT WHEEL CYL
ID=33.3
1-87830-525-0
02
1
1304-
27
ROD; PUSH
THA
1-47621-009-0
04
1
1304-
28
PIN; SHOE ADJ CAM GUIDE
THA
1-47116-002-0
04
1
1304-
29
SPRING; RETURN,FRT BRK SHOE
THA
1-09583-269-1
02
1
1304-
30
BRACKET; ANCHOR,FRT
THA
1-47137-435-0
02
1
1304-
33
COVER; WHEEL CYL
THA
1-47159-080-0
02
1
1304-
34
PLATE; DIRECTION,FRT
THA
1-47159-094-0
02
1
1304-
35
BOLT; FRT WHEEL CYL
M12X35 W/LK WASHER
0-50551-235-0
04
1
1304-
36
CAM ASM; ADJ
(A) THA
1-47165-058-1
02
1
1304-
36
CAM ASM; ADJ
(B) THA
1-47165-059-1
02
1
1304-
37
WASHER; ADJ CAM
THA
1-47169-033-0
04
1
1304-
38
SPRING; ADJ CAM
THA
1-47169-046-0
04
1
1304-
39
BOOT; ADJ CAM
THA
1-47169-034-0
04
1
1304-
40
COVER; BOOT,ADJ CAM
THA
1-47169-031-0
04
1
1304-
41
INDICATOR
THA
1-47169-032-1
04
1
1304-
42
PIN; SPINDLE
THA
1-47169-030-0
04
1
1304-
43
PIN; ANCHOR
L=106.5 THA
1-47131-038-0
04
1
1304-
44
BOLT; LOCK,ANCHOR PIN
M10X16
0-20851-016-0
02
1
1304-
45
WASHER; LK
THA
1-47133-011-0
02
1
1304-
46
PLATE; LOCK
THA
1-47133-005-0
02
1
1304-
