Isuzu WW
▶
TRUCKS
▶
FTR
▶
11540 - FTR CNG(THAILAND)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶

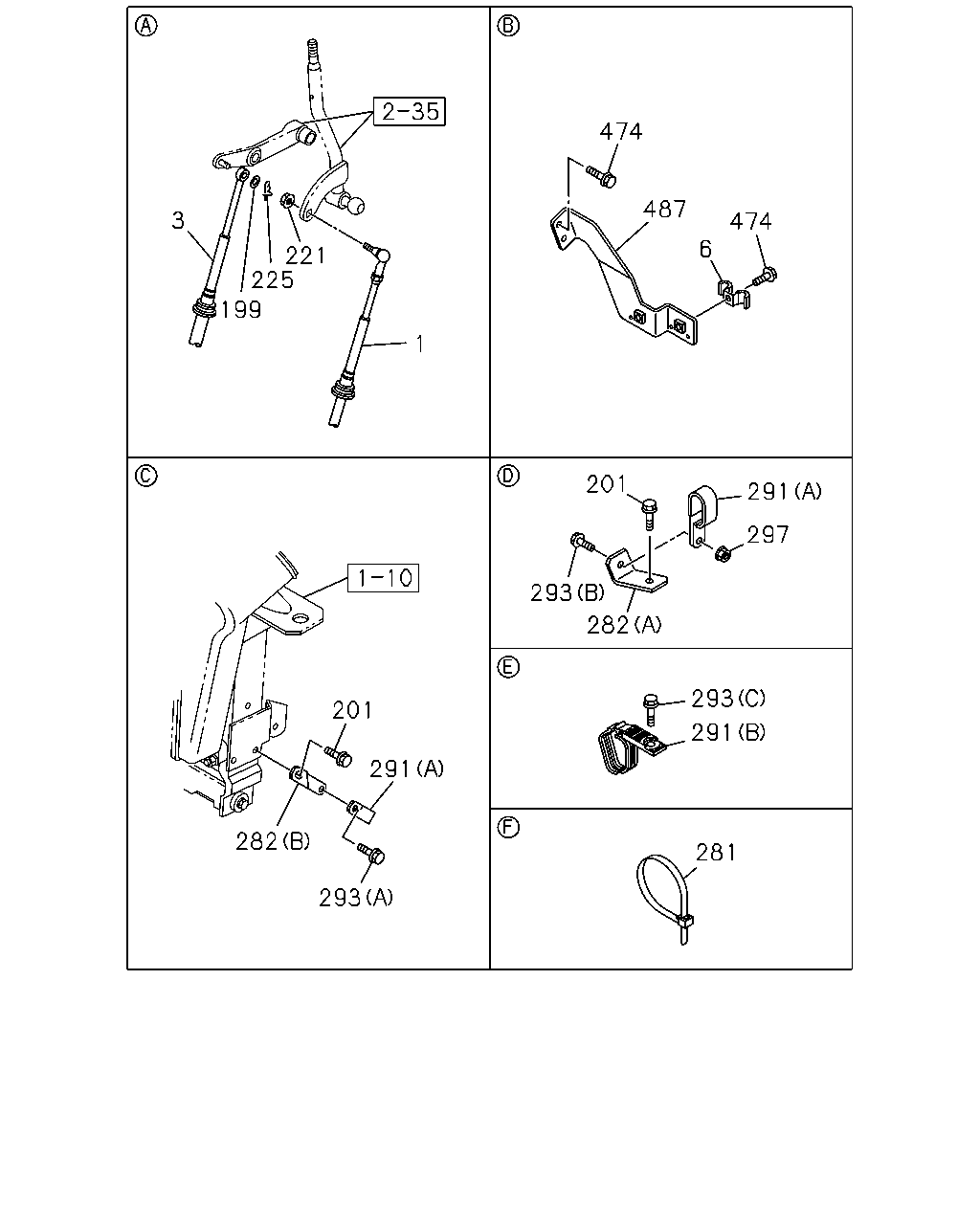

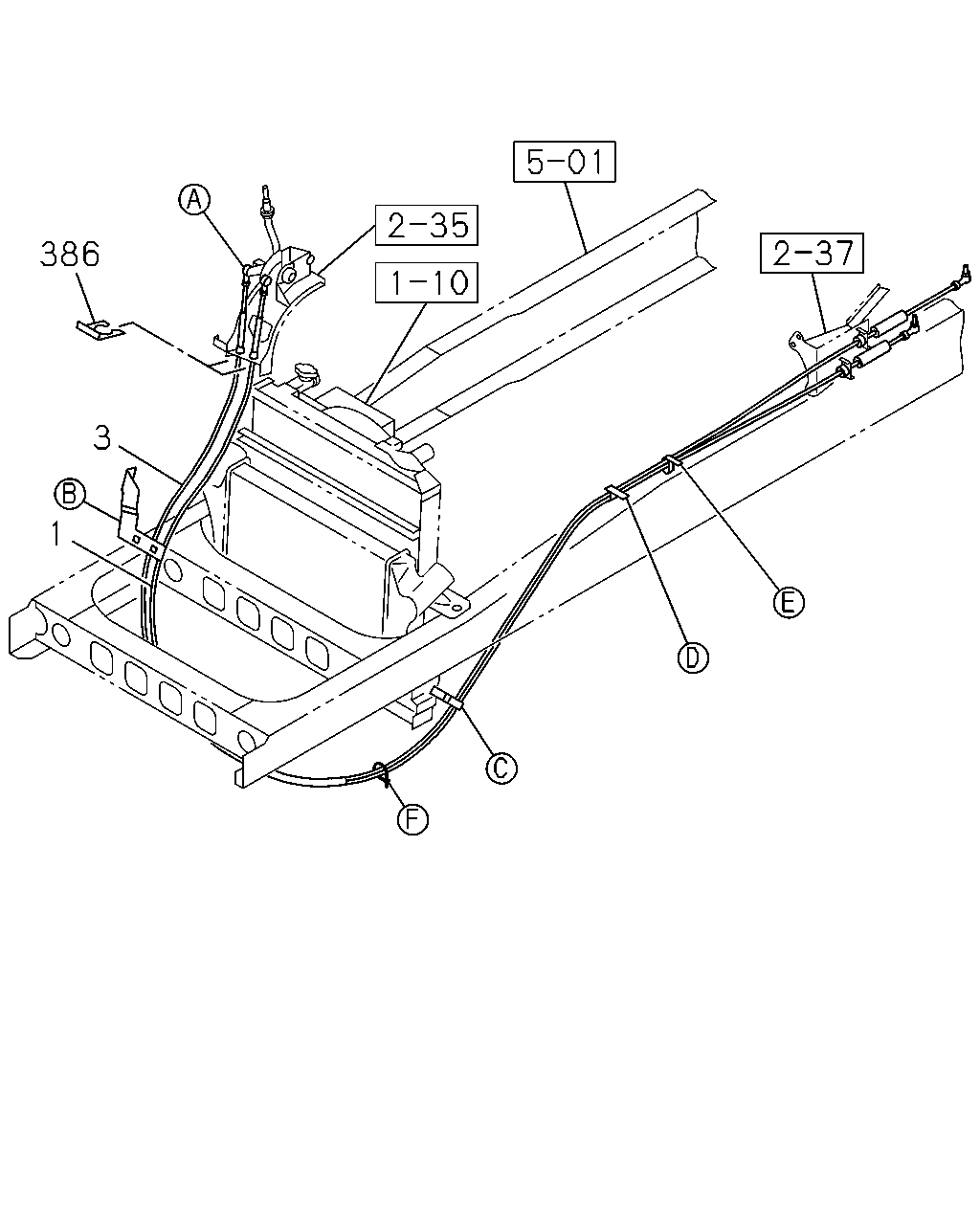

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#121428) — 26 parça
◀
[236A] NO.2 (21 parça)
[236A] NO.1 (5 parça)
▶
3
221
225
199
1
201
291
282
293
474
487
474
6
201
291
297
293
282
293
291
281
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
L=3510
8-98017-469-3
01
1
1304-1308
1
CABLE; SHIFT,TRANS CONT
L=3510 THA
8-97948-242-0
01
1
1309-
3
CABLE; SELECT,TRANS CONT
L=3690
8-98010-474-2
01
1
1304-1306
3
CABLE; SELECT,TRANS CONT
L=3690 THA
8-97948-243-0
01
1
1307-
6
CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5
1-09700-739-0
01
1
1304-
199
WASHER; PL,SELECT
ID=8.4 OD=16
0-91614-508-0
01
1
1304-
201
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
01
1
1304-
201
BOLT; BRKT
M8X20 FLANGE THA
0-28050-820-0
01
1
1304-
221
NUT; SHIFT WIRE TO LEVER
M8 FLANGE
1-09440-062-1
01
1
1304-
225
PIN; SELECT CABLE
L=27.7
8-94111-137-0
01
1
1304-
281
CLIP; BAND
L=300
1-09707-001-1
01
1
1304-
282
BRACKET; TRANS SIDE
(A)
1-82699-199-0
01
1
1304-
282
BRACKET; TRANS SIDE
(B)
8-98010-418-0
01
1
1304-
291
CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16
0-95325-026-0
02
1
1304-
291
CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5
8-98023-991-0
01
1
1304-
293
BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE THA
0-28050-816-0
01
1
1304-
293
BOLT; CLIP,SHIFT TO SELECT
(B) M8X25 FLANGE THA
0-28050-825-0
01
1
1304-
293
BOLT; CLIP,SHIFT TO SELECT
(C) M8X20 FLANGE THA
0-28650-820-0
01
1
1304-
297
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
01
1
1304-
474
BOLT; BRKT
M8X25 W/WASHER
0-51640-825-0
03
1
1304-
487
BRACKET; CONT CABLE
8-98183-009-0
01
1
1304-
386
3
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
L=3510
8-98017-469-3
01
1
1304-1308
1
CABLE; SHIFT,TRANS CONT
L=3510 THA
8-97948-242-0
01
1
1309-
3
CABLE; SELECT,TRANS CONT
L=3690
8-98010-474-2
01
1
1304-1306
3
CABLE; SELECT,TRANS CONT
L=3690 THA
8-97948-243-0
01
1
1307-
386
CLIP; CONT CABLE & TUBE
1-09700-966-1
02
1
1304-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
