2-30 — GEAR SHIFTER AND QUADRANT BOX
(#121426) — 72 parça
◀

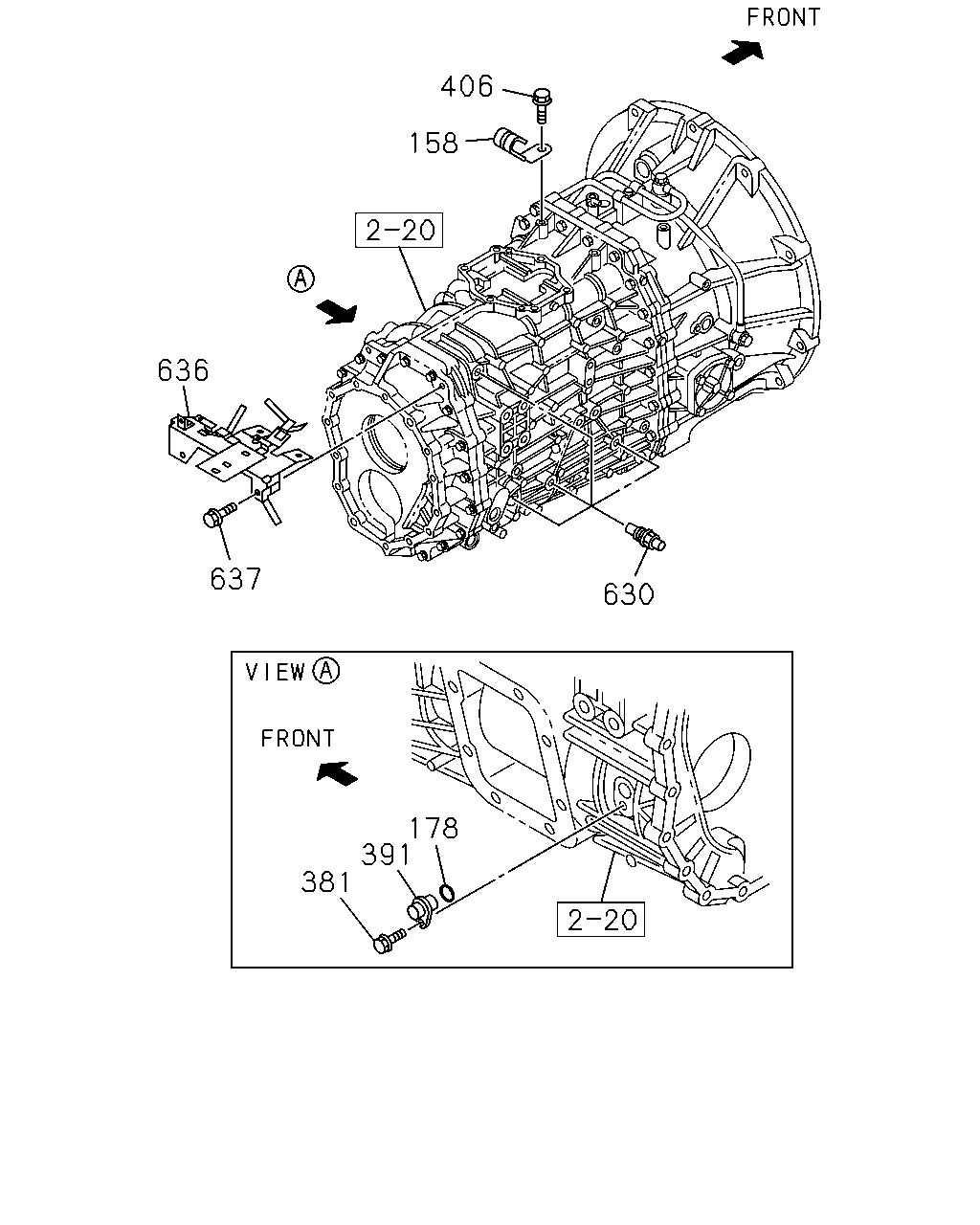

[230A] BRACKET AND OTHER PARTS (8 parça)

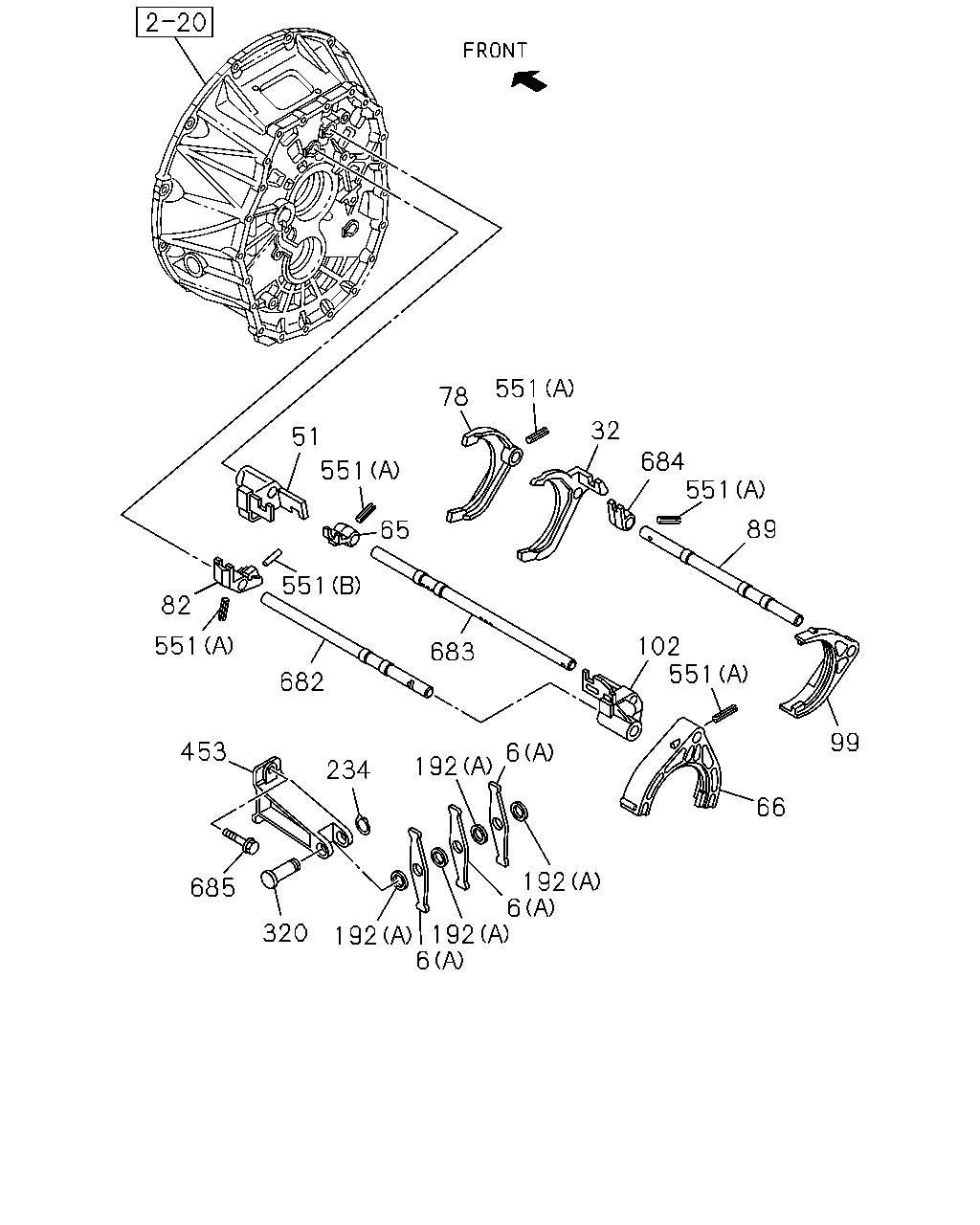

[230A] ARM AND ROD (24 parça)

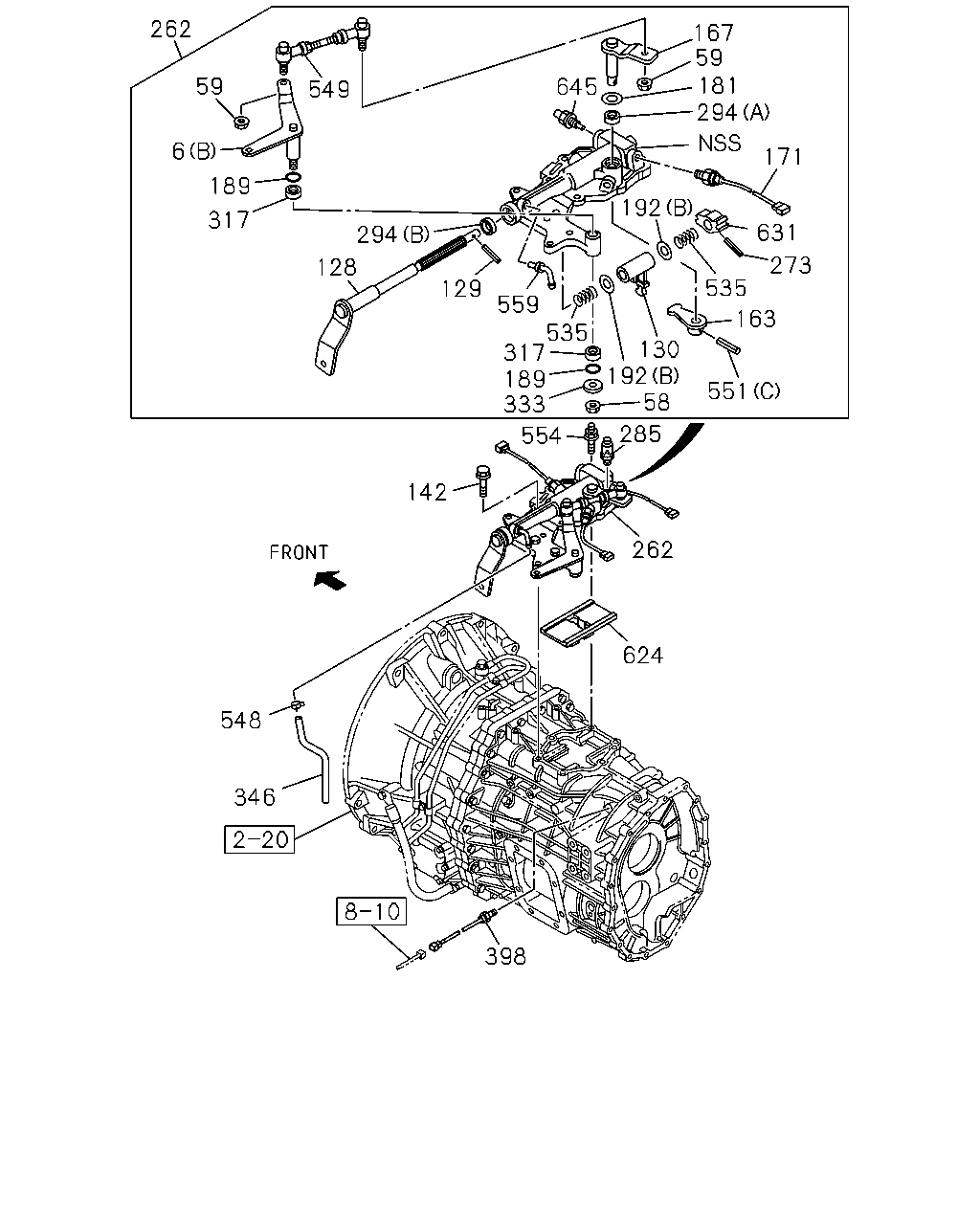

[230A] SHIFT CONTROL BOX (40 parça)
▶
630
178
391
381
637
636
158
406
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
158
CLIP; HARNESS
ID=12 VINYL CHLORIDE
8-97367-984-1
02
1
1304-
178
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T).
9-09567-113-0
01
1
1304-
381
BOLT
M6X16 FLANGE THA
0-28650-616-0
01
1
1304-
391
PLUG; SW HOLE
8-97300-273-1
01
1
1304-
406
BOLT; HARNESS CLIP
M8X16 FLANGE THA
0-28050-816-0
02
1
1304-
630
DETENT ASM
8-98019-536-0
04
1
1304-
636
BRACKET; CLIP
8-97610-096-2
01
1
1304-
637
BOLT; BRACKET
M8X16 FLANGE THA
0-28050-816-0
02
1
1304-
99
66
551
102
89
551
684
32
551
78
551
65
551
51
82
551
682
683
6
192
234
453
685
320
192
192
6
6
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
LEVER; RELAY
(A)
8-97241-342-0
03
1
1304-
6
LEVER; RELAY
(B)
8-98022-855-0
01
1
1304-
32
ARM; SHIFT,1ST & 2ND
8-98062-167-0
01
1
1304-1307
32
ARM; SHIFT,1ST & 2ND
8-98236-424-1
01
1
1308-
51
BLOCK; SHIFT,1ST & 2ND
8-98074-457-1
01
1
1304-
65
BLOCK ASM; SHIFT,5TH & 6TH
8-97388-980-1
01
1
1304-
66
ARM; SHIFT,5TH & 6TH
8-97388-981-0
01
1
1304-
78
ARM; SHIFT,REV
8-97388-975-1
01
1
1304-
82
BLOCK; SHIFT,REV
8-97388-969-0
01
1
1304-
89
ROD; SHIFT,REV
8-98062-172-0
01
1
1304-
99
ARM; SHIFT,4TH & 3RD
8-98062-170-0
01
1
1304-
102
BLOCK; SHIFT,3RD & 4TH
8-97388-978-2
01
1
1304-
192
WASHER; PL
(A) ID=18.2 OD=29
1-09503-032-0
04
1
1304-
192
WASHER; PL
(B)
8-97305-661-0
02
1
1304-
234
RING; SNAP
ID=16.5
0-91800-618-0
01
1
1304-
320
SHAFT; LEVER
8-97377-928-0
01
1
1304-
453
BLOCK; RELAY LEVER
8-97377-927-1
01
1
1304-
551
PIN; SPRING
(C) L=25 OD=5
1-09748-032-0
01
1
1304-
551
PIN; SPRING
(A) L=32
8-97011-596-2
05
1
1304-
551
PIN; SPRING
(B) L=20
8-97241-340-0
01
1
1304-
682
ROD; SHIFT,REV,SUB
8-97388-974-0
01
1
1304-
683
ROD; SHIFT,5TH & 6TH
8-98062-173-1
01
1
1304-
684
BLOCK; SHIFT,REV,SUB
8-97388-970-0
01
1
1304-
685
BOLT; BLOCK
M8X30 FLANGE
8-98034-764-0
02
1
1304-
262
59
6
317
189
549
128
294
129
559
317
189
333
535
192
645
167
59
181
294
171
631
273
535
163
130
192
551
58
285
262
624
554
142
548
346
398
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
LEVER; RELAY
(A)
8-97241-342-0
03
1
1304-
6
LEVER; RELAY
(B)
8-98022-855-0
01
1
1304-
58
NUT
M10 FLANGE THA
0-91180-110-0
01
1
1304-
59
NUT
M8 FLANGE THA
0-91180-108-0
02
1
1304-
128
LEVER; SHIFT,EXTERNAL
8-97306-927-0
01
1
1304-
129
PIN; SPR,SHIFT
L=30 OD=4
1-09748-031-0
01
1
1304-
130
LEVER; SHIFT,INTERNAL
8-97306-647-0
01
1
1304-
142
BOLT; QUAD BOX
M8X22 FLANGE
8-97365-376-0
04
1
1304-
163
LEVER; SELECT,INTERNAL
8-97305-663-0
01
1
1304-
167
LEVER; SELECT,EXTERNAL
8-98022-857-0
01
1
1304-
171
SWITCH; NEUTRAL
8-98023-050-0
01
1
1304-1312
171
SWITCH; NEUTRAL
8-98242-172-1
01
1
1401-
181
WASHER; PL,SELECT LEVER
8-97367-327-0
01
1
1304-
189
GASKET; SELECT LEVER,CONT BOX
1-09623-594-0
02
1
1304-
192
WASHER; PL
(A) ID=18.2 OD=29
1-09503-032-0
04
1
1304-
192
WASHER; PL
(B)
8-97305-661-0
02
1
1304-
262
BOX ASM; SHIFT CONT
8-98207-566-0
01
1
1304-1306
262
BOX ASM; SHIFT CONT
8-98249-041-0
01
1
1307-1312
262
BOX ASM; SHIFT CONT
8-98241-010-0
01
1
1401-1404
262
BOX ASM; SHIFT CONT
8-98276-161-1
01
1
1405-
273
PIN; SPR,STOPPER
D=4.2 L=25
8-97103-142-0
01
1
1304-
285
BREATHER; AIR,QUAD BOX
1-33149-003-0
01
1
1304-1404
294
SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A)
8-97305-662-0
01
1
1304-
294
SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B)
8-97363-225-0
01
1
1304-
317
BUSHING; LEVER
1-09330-119-0
02
1
1304-
333
WASHER; PL,LEVER
ID=10.5
0-91610-710-0
01
1
1304-
346
HOSE; AIR
8-97309-855-0
01
1
1405-
398
SWITCH; REV LAMP
8-98023-050-0
01
1
1304-1312
398
SWITCH; REV LAMP
8-98242-173-1
01
1
1401-
535
SPRING; LEVER
8-97385-713-0
02
1
1304-
548
CLIP; HOSE
8-97031-674-0
01
1
1405-
549
ROD; LINK
8-98022-841-0
01
1
1304-
551
PIN; SPRING
(C) L=25 OD=5
1-09748-032-0
01
1
1304-
551
PIN; SPRING
(A) L=32
8-97011-596-2
05
1
1304-
551
PIN; SPRING
(B) L=20
8-97241-340-0
01
1
1304-
554
STUD; CONT BOX
M8X15,M8X25 L=49
8-97365-378-0
02
1
1304-
559
PIPE; BREATHER
8-97358-318-0
01
1
1405-
624
PLATE; INTER LOCK
8-97241-317-3
01
1
1304-
631
STOPPER; SPRING
8-97305-666-0
01
1
1304-
645
DETENT ASM
8-98019-536-0
01
1
1304-
