1-01 — ACCELERATOR PEDAL AND CONTROL (#1214) — 124 parça

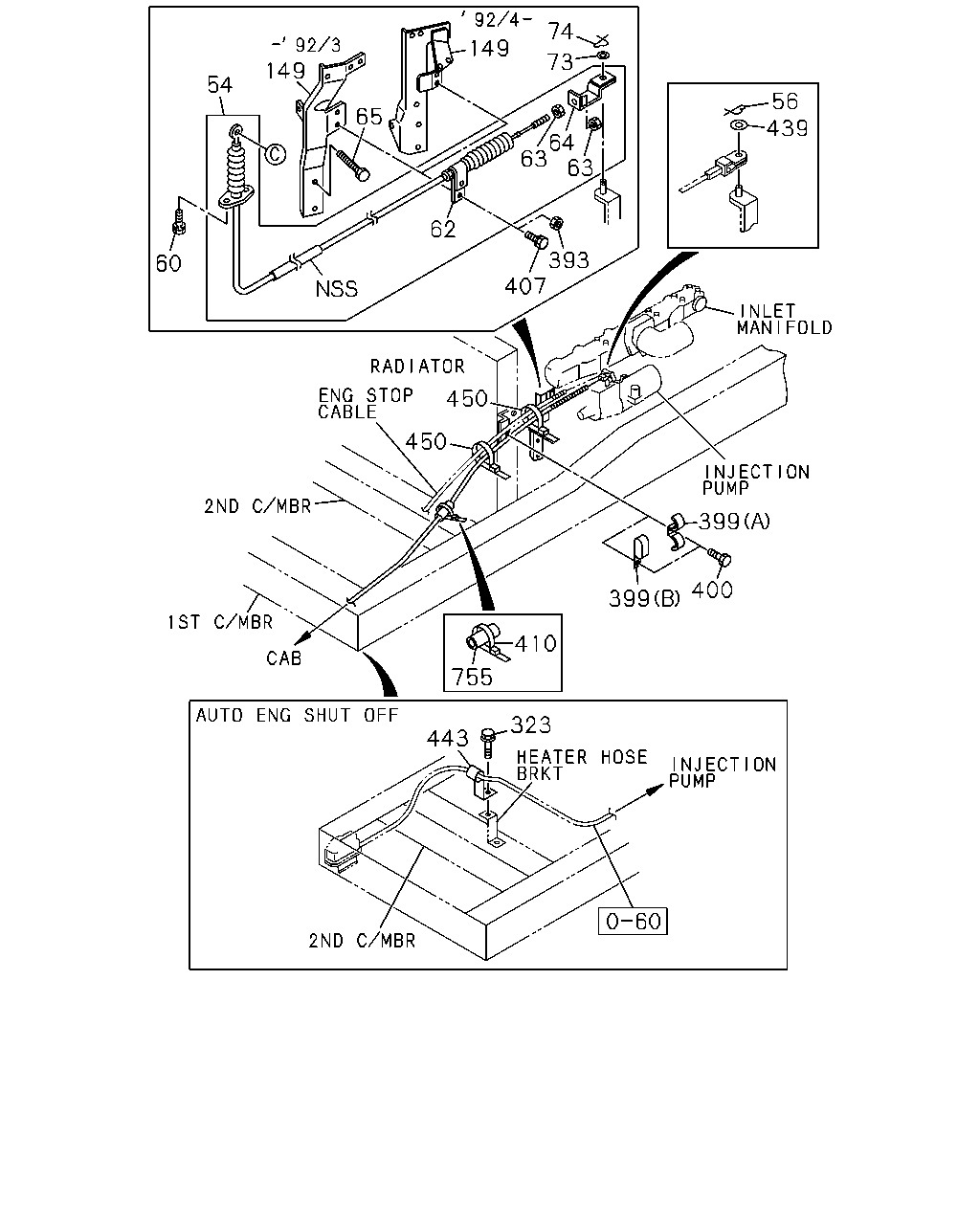

çizim 92208
74 149 149 73 54 56 439 65 64 63 63 62 393 407 60 450 450 399 400 399 410 755 323 443
BalonParca AdiParca NoAdetTipApplied Date A B C
54 CABLE; ENG CONT
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) L=2130 		1-23230-002-0 01 1 9202-9211 ●
54 CABLE; ENG CONT
L=2130 		1-23230-002-0 01 1 9212- ● ●
54 CABLE; ENG CONT
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) L=2130 		1-23210-784-6 01 1 9202-9211 ●
54 CABLE; ENG CONT
L=1540 		1-23210-979-1 01 1 9202-9203 ●
54 CABLE; ENG CONT
L=1570 		1-23230-032-0 01 1 9204- ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9202-9205 ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9206- ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-002-0 01 1 9206- ● ●
60 BOLT; CABLE
M6X16 W/LK&PL WASHER 		1-09980-586-0 02 1 9202- ● ● ●
62 CLIP; ENG CONT CABLE 1-23219-097-0 01 1 9202- ● ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9202- ● ● ●
64 BRACKET; ENG CONT CABLE 1-09768-018-1 01 1 9202- ● ● ●
65 BOLT
M10X60 		0-16811-060-0 01 1 9202- ●
65 BOLT
M10X20 FLANGE 		0-28181-020-0 01 1 9202- ●
73 WASHER; PL,ACCEL CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9202- ● ● ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09747-005-0 01 1 9202- ● ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 9202- ●
149 BRACKET; ENG CONT 8-94393-339-0 01 1 9202-9203 ●
149 BRACKET; ENG CONT 8-94394-516-5 01 1 9204- ●
323 BOLT; CLIP
AUTO ENG SHUTOFF(KB6) M8X14 FLANGE 		0-28010-814-0 01 1 9202-9204 ●
323 BOLT; CLIP
AUTO ENG SHUTOFF(KB6) M8X14 FLANGE 		0-28080-814-0 01 1 9205- ●
393 NUT; CLIP TO FRAME
M6 FLANGE 		0-91150-106-0 02 1 9411- ●
399 CLIP; CABLE,RAD SIDE
(A) ID=9 & 7 L=15 & 15 		1-09700-653-0 01 1 9202-9205 ● ●
399 CLIP; CABLE,RAD SIDE
(B) ID=9X2 L=16 		9-09534-825-0 01 1 9206- ● ● ●
400 BOLT; CLIP,RAD SIDE
M8X12 		0-28010-812-0 01 1 9202-9204 ● ●
400 BOLT; CLIP,RAD SIDE
M8X12 FLANGE 		0-28080-812-0 01 1 9205- ● ● ●
407 BOLT; CLIP TO ENG
M6X18 		0-28010-618-0 02 1 9202-9204 ● ●
407 BOLT; CLIP TO ENG
M6X18 FLANGE 		0-28080-618-0 02 1 9205-9207 ● ●
407 BOLT; CLIP TO ENG
M6X20 FLANGE 		0-28080-620-0 02 1 9208-9404 ● ● ●
407 BOLT; CLIP TO ENG
M6X20 FLANGE 		0-28080-620-0 02 1 9405- ● ●
407 BOLT; CLIP TO ENG
M6X14 FLANGE 		0-28080-614-0 02 1 9405-9410 ●
410 CLIP; BAND
L=140 		5-09707-031-0 01 1 9202- ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 9202- ● ● ●
443 CLIP; CABLE
AUTO ENG SHUTOFF(KB6) ID=9 L=25 H=45 		1-09700-867-0 01 1 9202- ●
450 CLIP; BAND
L=140 		5-09707-031-0 03 1 9202-9205 ●
450 CLIP; BAND
L=140 		5-09707-031-0 02 1 9206-9211 ●
450 CLIP; BAND
L=250 		5-09707-030-0 02 1 9212- ● ●
450 CLIP; BAND
EXC. AUTO ENG SHUTOFF(KB6) L=140 		5-09707-031-0 01 1 9202-9205 ●
450 CLIP; BAND
L=140 		5-09707-031-0 01 1 9202-9205 ●
450 CLIP; BAND
L=140 		5-09707-031-0 01 1 9206-9211 ● ●
450 CLIP; BAND
EXC. AUTO ENG SHUTOFF(KB6) L=140 		5-09707-031-0 01 1 9206-9211 ●
450 CLIP; BAND
L=250 		5-09707-030-0 01 1 9212- ● ● ●
450 CLIP; BAND
EXC. AUTO ENG SHUTOFF(KB6) L=250 		5-09707-030-0 01 1 9212- ●
755 SLEEVE; RUBBER,CABLE
ID=15 OD=19 L=50 		1-09337-014-0 01 1 9202- ●

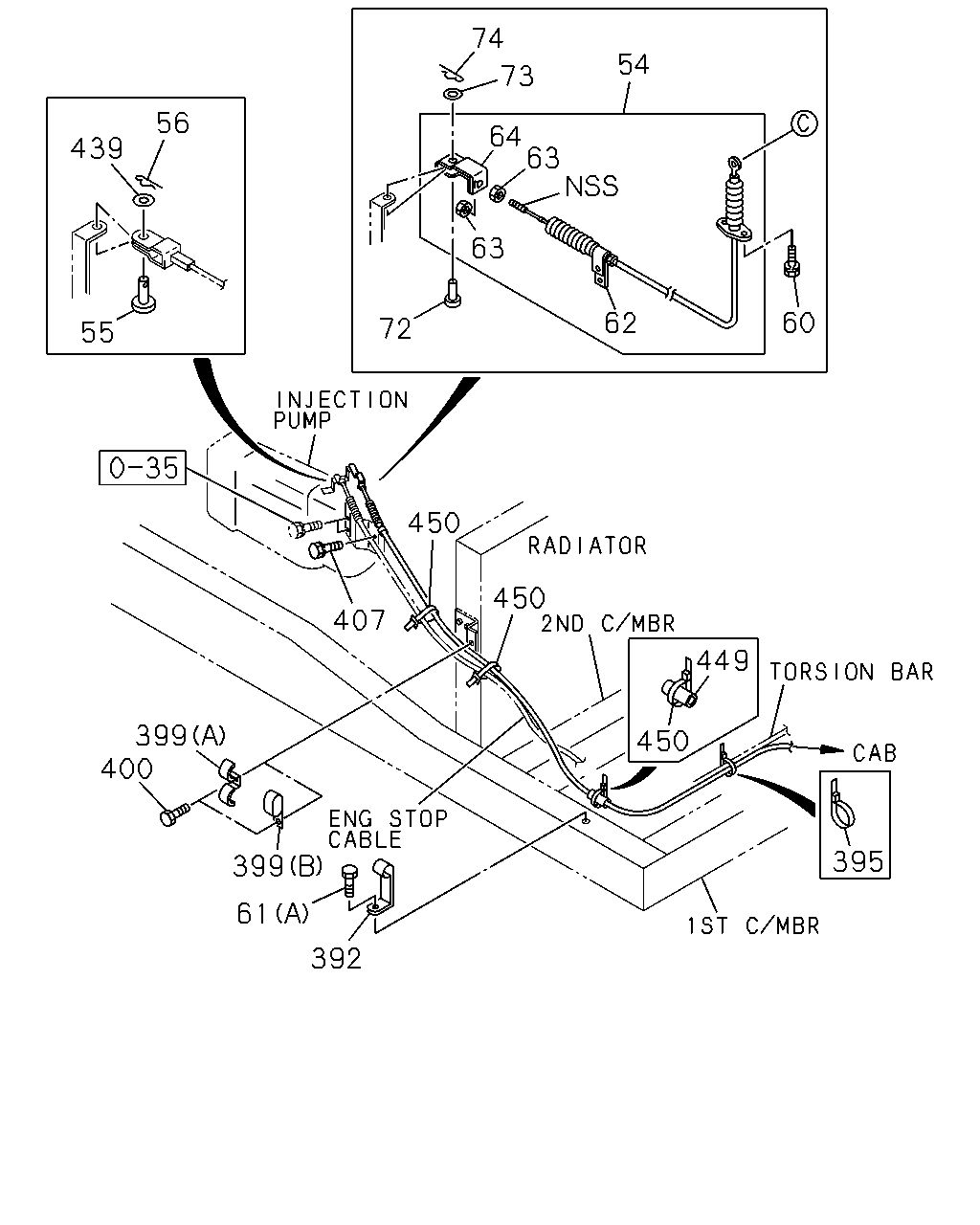

çizim 92230
74 54 73 56 64 63 439 63 60 62 72 55 450 450 407 449 399 400 450 399 395 61 392
BalonParca AdiParca NoAdetTipApplied Date A B C
54 CABLE; ENG CONT
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) L=2130 		1-23230-002-0 01 1 9202-9211 ●
54 CABLE; ENG CONT
L=2130 		1-23230-002-0 01 1 9212- ● ●
54 CABLE; ENG CONT
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) L=2130 		1-23210-784-6 01 1 9202-9211 ●
54 CABLE; ENG CONT
L=1540 		1-23210-979-1 01 1 9202-9203 ●
54 CABLE; ENG CONT
L=1570 		1-23230-032-0 01 1 9204- ●
55 PIN; JAW JOINT 1-09744-096-1 01 1 9202-9207 ●
55 PIN; JAW JOINT
L=11 		1-09744-102-0 01 1 9208- ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9202-9205 ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9206- ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-002-0 01 1 9206- ● ●
60 BOLT; CABLE
M6X16 W/LK&PL WASHER 		1-09980-586-0 02 1 9202- ● ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
(A) M8X20 FLANGE 		0-28010-820-0 01 1 9202-9204 ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9205- ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
(B) M5X14 W/LK WASHER 		1-09980-023-0 01 1 9202- ● ● ●
62 CLIP; ENG CONT CABLE 1-23219-097-0 01 1 9202- ● ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9202- ● ● ●
64 BRACKET; ENG CONT CABLE 1-09768-018-1 01 1 9202- ● ● ●
72 PIN; JAW JOINT,CABLE END 1-09744-049-1 01 1 9202-9202 ●
72 PIN; JAW JOINT,CABLE END 1-09744-083-0 01 1 9203- ● ●
73 WASHER; PL,ACCEL CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9202- ● ● ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09747-005-0 01 1 9202- ● ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 9202- ●
392 CLIP; ACCEL CONT CABLE
ID=9 H=60 		1-09700-956-0 01 1 9202- ● ●
395 CLIP; BAND,ACCEL CONT CABLE
L=250 		5-09707-030-0 01 1 9202- ● ●
399 CLIP; CABLE,RAD SIDE
(A) ID=9 & 7 L=15 & 15 		1-09700-653-0 01 1 9202-9205 ● ●
399 CLIP; CABLE,RAD SIDE
(B) ID=9X2 L=16 		9-09534-825-0 01 1 9206- ● ● ●
400 BOLT; CLIP,RAD SIDE
M8X12 		0-28010-812-0 01 1 9202-9204 ● ●
400 BOLT; CLIP,RAD SIDE
M8X12 FLANGE 		0-28080-812-0 01 1 9205- ● ● ●
407 BOLT; CLIP TO ENG
M6X18 		0-28010-618-0 02 1 9202-9204 ● ●
407 BOLT; CLIP TO ENG
M6X18 FLANGE 		0-28080-618-0 02 1 9205-9207 ● ●
407 BOLT; CLIP TO ENG
M6X20 FLANGE 		0-28080-620-0 02 1 9208-9404 ● ● ●
407 BOLT; CLIP TO ENG
M6X20 FLANGE 		0-28080-620-0 02 1 9405- ● ●
407 BOLT; CLIP TO ENG
M6X14 FLANGE 		0-28080-614-0 02 1 9405-9410 ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 9202- ● ● ●
449 SLEEVE; RUBBER,CABLE
ID=15 OD=19 L=50 		1-09337-014-0 01 1 9202- ● ●
450 CLIP; BAND
L=140 		5-09707-031-0 03 1 9202-9205 ●
450 CLIP; BAND
L=140 		5-09707-031-0 02 1 9206-9211 ●
450 CLIP; BAND
L=250 		5-09707-030-0 02 1 9212- ● ●
450 CLIP; BAND
EXC. AUTO ENG SHUTOFF(KB6) L=140 		5-09707-031-0 01 1 9202-9205 ●
450 CLIP; BAND
L=140 		5-09707-031-0 01 1 9202-9205 ●
450 CLIP; BAND
L=140 		5-09707-031-0 01 1 9206-9211 ● ●
450 CLIP; BAND
EXC. AUTO ENG SHUTOFF(KB6) L=140 		5-09707-031-0 01 1 9206-9211 ●
450 CLIP; BAND
L=250 		5-09707-030-0 01 1 9212- ● ● ●
450 CLIP; BAND
EXC. AUTO ENG SHUTOFF(KB6) L=250 		5-09707-030-0 01 1 9212- ●

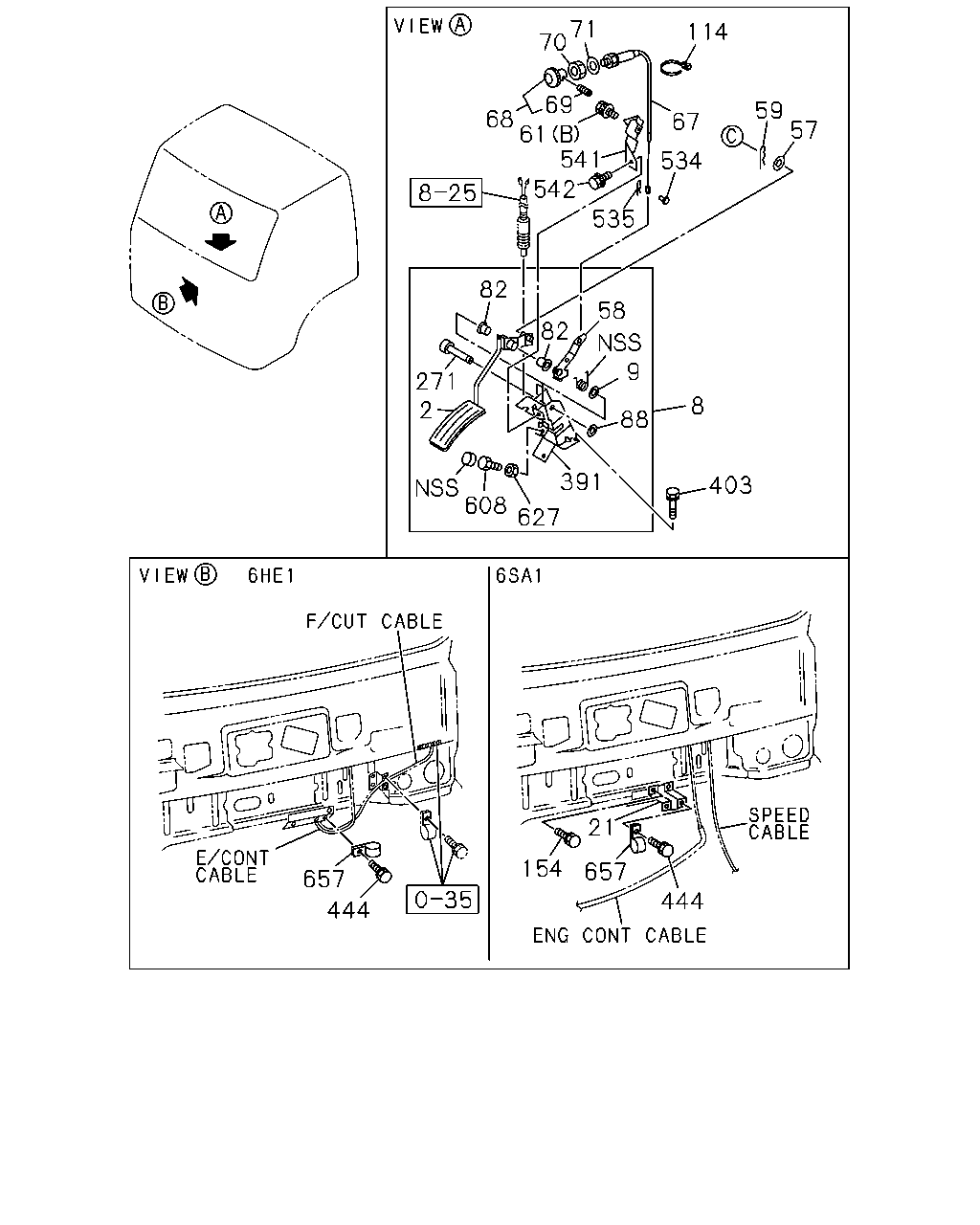

çizim 92323
71 70 114 69 59 57 68 61 541 67 534 542 535 82 58 82 9 271 2 8 88 391 403 608 627 21 154 657 657 444 444
BalonParca AdiParca NoAdetTipApplied Date A B C
2 LEVER; ENG CONT 1-73998-716-1 01 1 9202- ● ● ●
8 LINK ASM; ENG CONT 1-23240-075-1 01 1 9202- ● ● ●
9 WASHER; PL,CONT LINK
ID=10.5 OD=16 		9-09855-178-0 01 1 9202- ● ● ●
21 BRACKET ASM; ENG CONT CABLE 1-79738-102-1 01 1 9202- ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9202- ● ● ●
58 LEVER; IDLING CONT 1-73997-781-2 01 1 9202- ● ● ●
59 PIN; SNAP,ENG CONT CABLE
L=27.7 		1-09747-005-0 01 1 9202- ● ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
(A) M8X20 FLANGE 		0-28010-820-0 01 1 9202-9204 ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9205- ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
(B) M5X14 W/LK WASHER 		1-09980-023-0 01 1 9202- ● ● ●
67 CABLE ASM; IDLE CONT
L=252 		1-73998-543-1 01 1 9202- ● ● ●
68 KNOB; IDLE CONT
W/SCREW 		8-94134-716-0 01 1 9202- ● ● ●
69 SCREW; KNOB,IDLE CONT 5-09120-004-0 01 1 9202- ● ● ●
70 NUT; CONT CABLE
M18 RING NUT 		5-09409-004-1 01 1 9202- ● ● ●
71 WASHER; WAVE,CONT CABLE
ID=18.5 		5-09550-005-0 01 1 9202- ● ● ●
82 BUSHING; ENG CONT LVR 8-94206-569-0 02 1 9202- ● ● ●
88 PIN; SNAP,ENG CONT LEVER
L=27.7 		8-94202-777-0 01 1 9202- ● ● ●
114 CLIP; HARNESS CONNECTOR
L=100 		5-09707-036-0 01 1 9202- ● ● ●
154 BOLT; CABLE BRKT
M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9202- ● ●
271 SHAFT; ENG CONT 1-09987-081-0 01 1 9202- ● ● ●
391 BRACKET; ENG CONT 1-73998-647-1 01 1 9202- ● ● ●
403 BOLT; BRKT,ACCEL PEDAL
M6X16 W/LK&PL WASHER 		1-09980-586-0 03 1 9202- ● ● ●
444 BOLT; CABLE CLIP
M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9202- ● ● ●
534 PIN; JAW JOINT,IDLING CONT CABLE 1-09987-034-1 01 1 9202- ● ● ●
535 PIN; SNAP,IDLING CONT CABLE
L=17.9 		1-09747-002-0 01 1 9202- ● ● ●
541 BRACKET; IDLING CONT CABLE 1-73998-527-1 01 1 9202- ● ● ●
542 BOLT; BRKT,IDLING CONT CABLE
M6X16 W/LK&PL WASHER 		9-01960-616-0 01 1 9202-9204 ● ●
542 BOLT; BRKT,IDLING CONT CABLE
M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9205- ● ● ●
608 BOLT; LEVER TO SHAFT
M6X25 		9-02040-625-0 01 1 9202-9204 ● ●
608 BOLT; LEVER TO SHAFT
M6X25 		0-20800-625-0 01 1 9205- ● ● ●
627 NUT; ACCEL SHAFT
M6 		9-09111-406-0 01 1 9202- ● ● ●
657 CLIP; ENG CONT CABLE
AUTO ENG SHUTOFF(KB6) ID=7 L=20 		9-09524-632-0 01 1 9205-9205 ● ●
657 CLIP; ENG CONT CABLE
ID=7 L=16 		9-09524-622-0 01 1 9206- ● ●
657 CLIP; ENG CONT CABLE
AUTO ENG SHUTOFF(KB6) ID=7 L=16 		9-09524-622-0 01 1 9206- ●
657 CLIP; ENG CONT CABLE
EXC. AUTO ENG SHUTOFF(KB6) ID=11X2 L=16 		9-09535-022-0 01 1 9205-9205 ● ●
657 CLIP; ENG CONT CABLE
EXC. AUTO ENG SHUTOFF(KB6) ID=7X2 L=16 		9-09534-622-0 01 1 9206- ●
