Isuzu WW
▶
TRUCKS
▶
FTR
▶
11540 - FTR CNG(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-50 - OIL COOLER AND OIL FILTER
▶

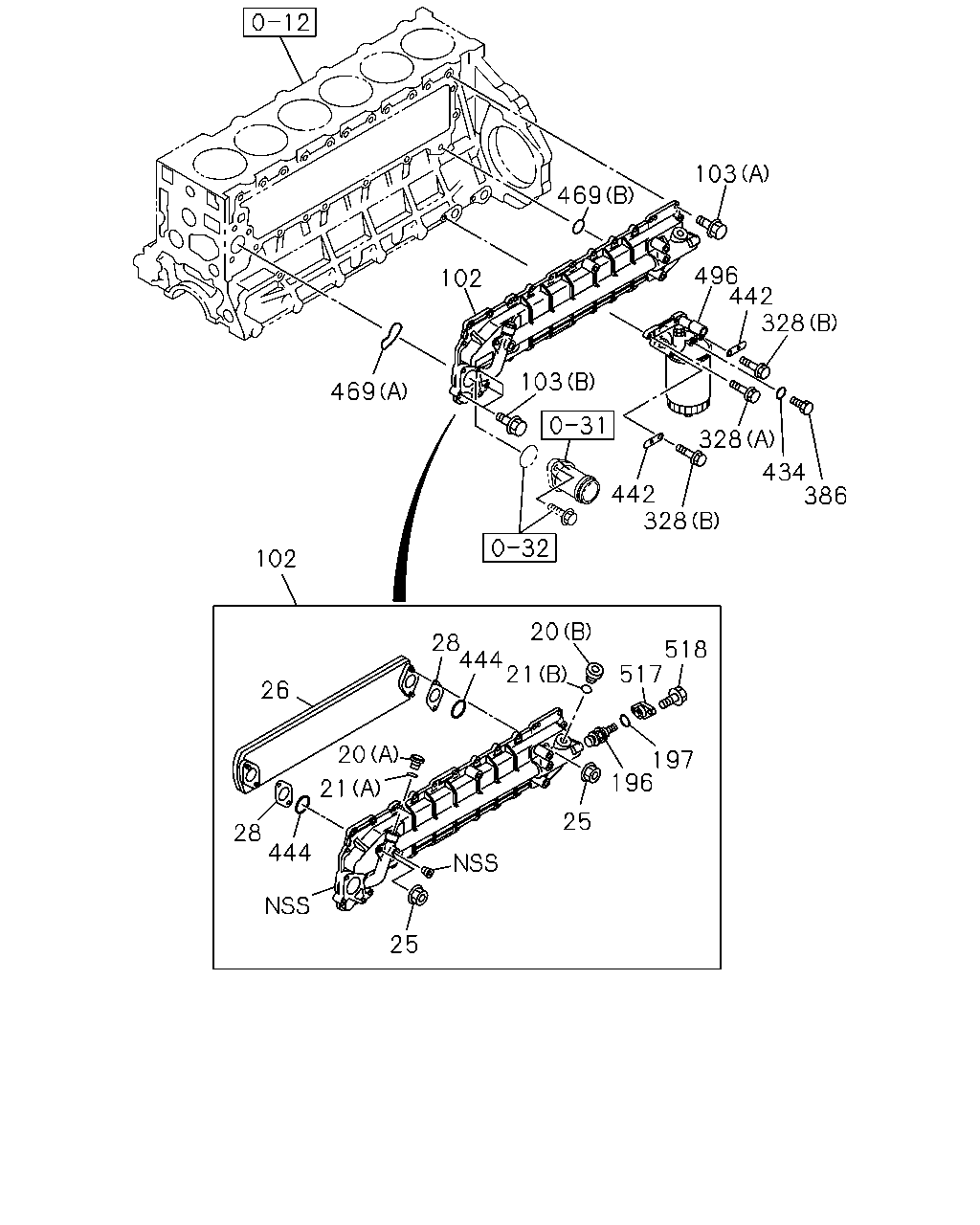

0-50 — OIL COOLER AND OIL FILTER
(#121398) — 31 parça
◀
[050A] OIL COOLER (23 parça)
[050A] OIL FILTER (8 parça)
▶
103
469
102
469
102
103
496
442
328
328
442
328
434
386
20
518
517
197
196
25
25
444
28
21
20
26
28
444
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
20
PLUG; COOLER BODY
(A)
8-94393-604-0
01
1
1304-
20
PLUG; COOLER BODY
(B)
8-94396-753-0
01
1
1304-
21
GASKET; PLUG
(A)
1-13219-253-0
01
1
1304-
21
GASKET; PLUG
(B) M24
8-94396-755-0
01
1
1304-
25
NUT; CORE TO BODY
M10 FLANGE
1-13219-324-0
04
1
1304-
26
CORE ASM; OIL COOLER
8-94391-738-1
01
1
1304-
28
GASKET; CORE TO BODY
8-94394-930-0
02
1
1304-
102
COOLER ASM; OIL
8-94392-619-1
01
1
1304-
103
BOLT; OIL COOLER
(B) M8X35 FLANGE THA
0-28050-835-0
03
1
1304-
103
BOLT; OIL COOLER
(A) M8X20 FLANGE THA
0-28650-820-0
24
1
1304-
196
THERMOSTAT; OIL COOLER
90 CELSIUS
8-97600-936-0
01
1
1304-
197
GASKET; THERMOSTAT
ID=25.7
8-94399-279-0
01
1
1304-
328
BOLT; OIL FILTER
(A) M10X30 FLANGE
0-28151-030-0
02
1
1304-
328
BOLT; OIL FILTER
(B) M10X90 FLANGE
0-28151-090-0
02
1
1304-
386
PLUG; OIL FILTER
M10X10
1-09604-074-0
01
1
1304-
434
GASKET; PLUG,OIL FILTER
ID=10.2 OD=15.2
1-09630-083-0
01
1
1304-
442
BRACKET; HARNESS,OIL FILTER
8-97601-310-0
02
1
1304-
444
GASKET; ELEMENT TO BODY
8-94396-810-0
02
1
1304-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-94399-002-0
01
1
1304-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-98045-449-0
01
1
1304-
496
FILTER ASM; OIL
8-94391-015-8
01
1
1304-
517
PLUG; THERMOSTAT,OIL COOLER
8-94391-740-0
01
1
1304-
518
BOLT; PLUG,THERMOSTAT
M8X16 FLANGE THA
0-28050-816-0
02
1
1304-
496
307
308
2
265
265
321
321
321
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
ELEMENT; OIL FILTER
8-94391-049-4
01
1
1304-
2
ELEMENT; OIL FILTER
BEST VALUE PARTS
1-87610-064-0
01
1
1304-
265
BODY; OIL FILTER
8-94391-016-4
01
1
1304-
307
VALVE; OVERFLOW
8-94395-700-0
01
1
1304-
308
GASKET; VLV,OVERFLOW
ID=15.8
1-09623-163-0
01
1
1304-
321
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8
8-94399-339-0
01
1
1304-
321
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1
8-94399-399-0
02
1
1304-
496
FILTER ASM; OIL
8-94391-015-8
01
1
1304-
