Sayfa 2-26A - Isuzu EPC

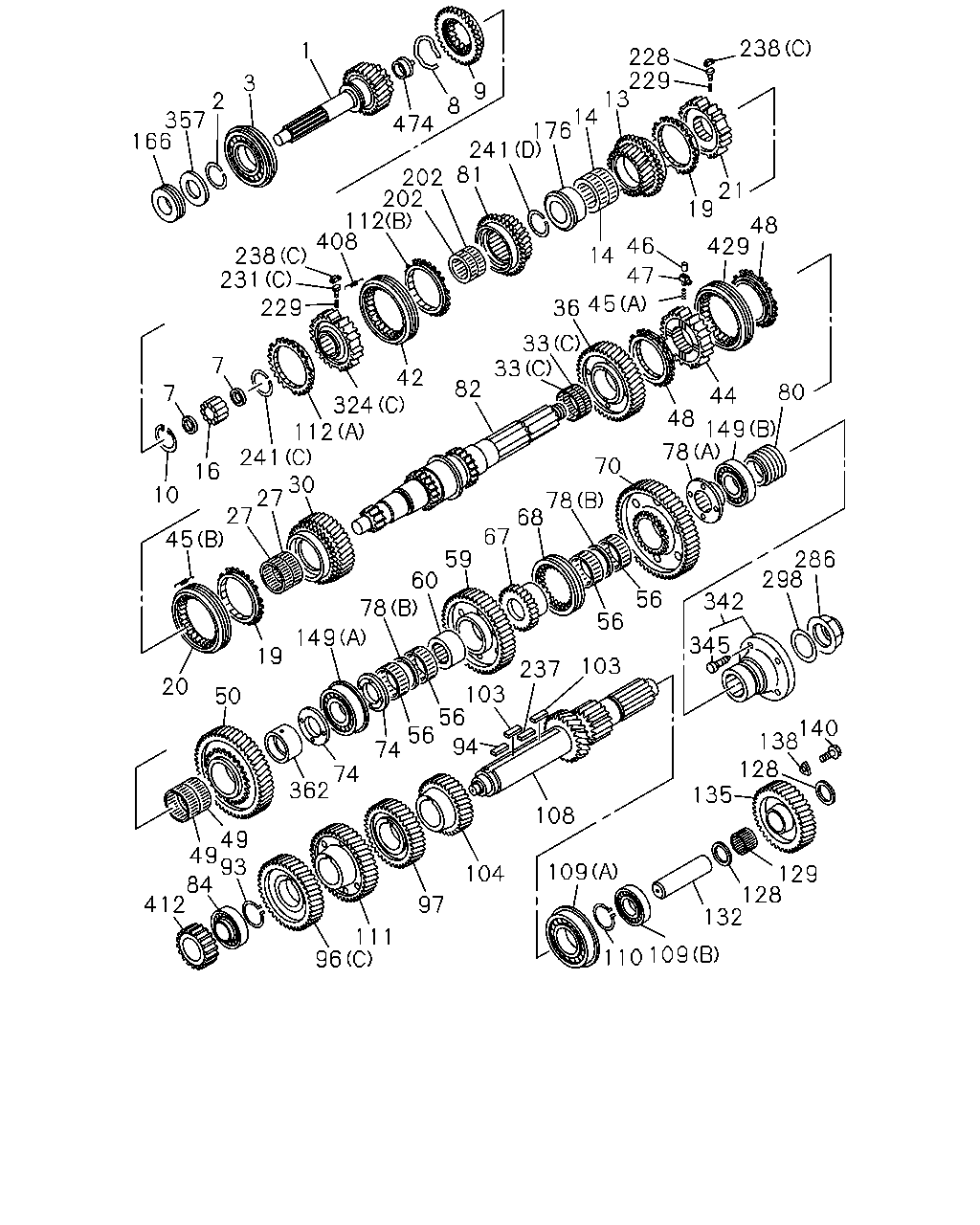

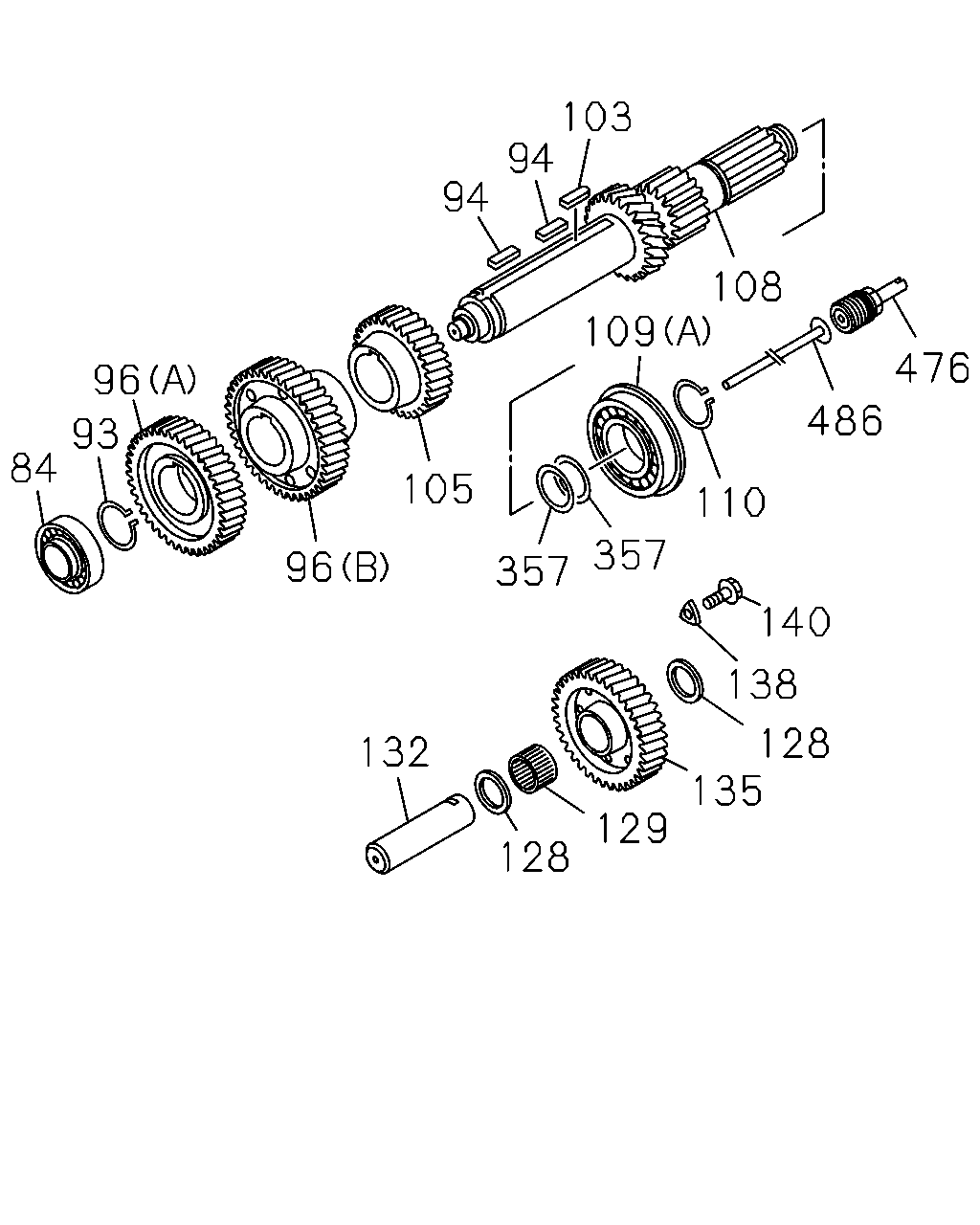

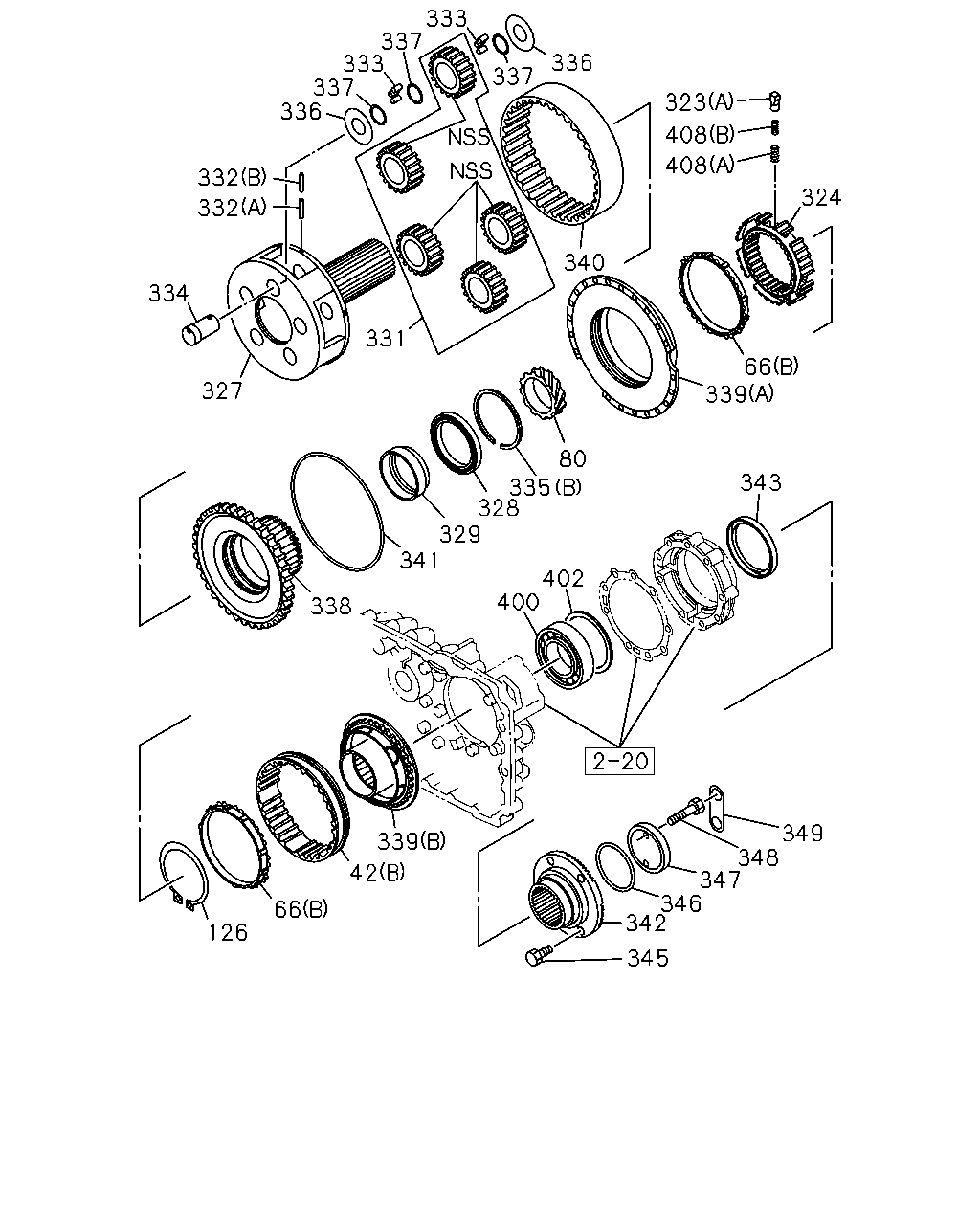

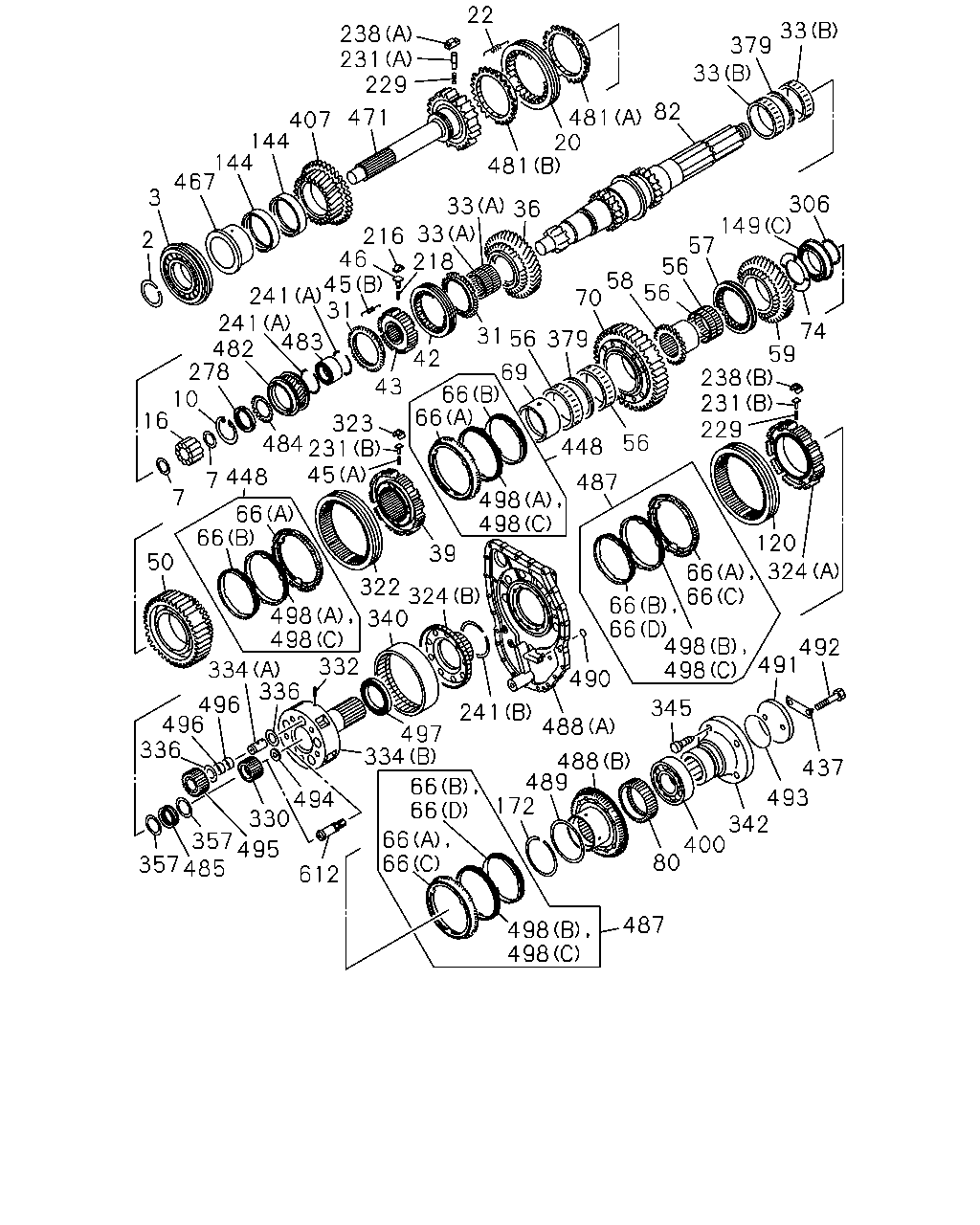

2-26A — MANUAL TRANSMISSION GEAR (#12139) — 453 parça

238 231 229 22 471 407 144 144 467 3 2 16 10 278 482 241 241 45 46 216 33 33 36 481 20 481 82 33 379 33 306 149 57 56 56 58 70 379 56 31 42 43 323 231 484 448 7 7 50 66 66 498 498 332 336 334 496 496 336 357 357 485 612 495 330 494 334 66 66 66 66 172 498 498 487 80 400 342 493 437 489 488 488 241 497 340 322 324 39 490 345 498 498 491 492 66 66 66 66 324 120 229 231 238 59 74 56 487 448 498 498 218 69 66 66 45 483 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0107-0311	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0312-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0107-0311	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0312-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0107-0311	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0312-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0107-0311	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0312-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	0312-		●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	0312-		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-278-0	01	1	0107-	●
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	0107-0311	●
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	0312-	●	●
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	0107-0311	●
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	0312-	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	0312-		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	0312-		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-260-0	16	1	0107-	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-261-0	16	1	0107-	●
20	SLEEVE	1-33262-222-0	01	1	0312-		●
20	SLEEVE	1-33262-216-1	01	1	0107-	●
22	SPRING; BLOCK,INSERT	1-09583-363-0	03	1	0107-	●
31	RING; BLOCK,3RD & 4TH	1-33265-552-1	02	1	0107-1202	●
31	RING; BLOCK,3RD & 4TH	8-98212-814-0	02	1	1203-	●
33	BEARING; NEEDLE,3RD GEAR (C) NSK	1-09811-380-0	02	1	0312-1311		●
33	BEARING; NEEDLE,3RD GEAR (C) NTN	1-09811-381-0	02	1	0312-		●
33	BEARING; NEEDLE,3RD GEAR (A) NSK	1-09811-378-0	02	1	0107-1308	●
33	BEARING; NEEDLE,3RD GEAR (A) NTN	1-09811-379-0	02	1	0107-	●
33	BEARING; NEEDLE,3RD GEAR (B) NSK	1-09811-422-0	02	1	0107-1311	●
33	BEARING; NEEDLE,3RD GEAR (B) NTN	1-09811-423-0	02	1	0107-	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	0312-		●
36	GEAR; 3RD,MAINSHAFT Z=41	1-33253-704-1	01	1	0107-	●
39	HUB; CLU,LOW & 2ND	1-33261-269-0	01	1	0107-0109	●
39	HUB; CLU,LOW & 2ND	1-33261-277-0	01	1	0110-	●
42	SLEEVE	1-33262-222-0	01	1	0107-0311	●
42	SLEEVE	1-33262-222-0	01	1	0312-	●	●
43	HUB; CLU,3RD & 4TH,MAIN	1-33261-256-0	01	1	0107-0109	●
43	HUB; CLU,3RD & 4TH,MAIN	1-33261-278-1	01	1	0110-	●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	0312-		●
45	SPRING; BLOCK INSERT (A)	1-09580-578-0	03	1	0107-	●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	0107-0311	●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	0312-	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0312-		●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0107-	●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	0312-		●
50	GEAR; 2ND,MAINSHAFT Z=43	1-33251-411-1	01	1	0107-	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-376-0	04	1	0312-1311		●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-401-0	04	1	0312-		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-422-0	04	1	0107-1311	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-423-0	04	1	0107-	●
57	SLEEVE; REV	1-33262-209-1	01	1	0107-	●
58	HUB; CLU,REV	1-33261-255-0	01	1	0107-0204	●
58	HUB; CLU,REV	1-33261-286-1	01	1	0205-	●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	0312-		●
59	GEAR; REV MAINSHAFT Z=44	1-33257-081-2	01	1	0107-	●
66	RING; BLOCK,SYN (C)	1-33265-588-0	02	1	0306-0502	●
66	RING; BLOCK,SYN (A)	1-33265-588-0	04	1	0503-1312	●
66	RING; BLOCK,SYN (A)	8-98239-909-1	04	1	1401-	●
66	RING; BLOCK,SYN (D)	1-33265-590-0	02	1	0306-0502	●
66	RING; BLOCK,SYN (B)	1-33265-590-0	04	1	0503-1307	●
66	RING; BLOCK,SYN (B)	8-98239-294-0	04	1	1308-1312	●
66	RING; BLOCK,SYN (B)	8-98239-911-1	04	1	1401-	●
66	RING; BLOCK,SYN (A)	1-33265-536-0	04	1	0107-0305	●
66	RING; BLOCK,SYN (A)	1-33265-536-0	02	1	0306-0502	●
66	RING; BLOCK,SYN (B)	1-33265-538-0	04	1	0107-0305	●
66	RING; BLOCK,SYN (B)	1-33265-538-0	02	1	0306-0502	●
69	COLLAR; 1ST GEAR MAIN	1-33234-092-0	01	1	0107-0204	●
69	COLLAR; 1ST GEAR MAIN	1-33234-099-0	01	1	0205-	●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	0312-		●
70	GEAR; 1ST,MAINSHAFT Z=49	1-33255-074-1	01	1	0107-	●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	02	1	0312-1506		●
74	WASHER; THRUST,REV GEAR	8-98304-662-0	02	1	1507-		●
74	WASHER; THRUST,REV GEAR	1-33239-308-0	01	1	0107-	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0312-		●
80	GEAR; SPD DRIVE Z=11	1-33371-069-0	01	1	0107-	●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	1-33231-298-0	01	1	0312-1506		●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	8-98304-660-0	01	1	1507-		●
82	SHAFT; MAIN,TRANS Z=37-40-28-19	1-33231-315-0	01	1	0107-0109	●
82	SHAFT; MAIN,TRANS Z=37-40-28-19	1-33231-327-2	01	1	0110-	●
120	SLEEVE	1-33262-231-0	01	1	0107-0206	●
120	SLEEVE	1-33262-229-0	01	1	0207-	●
144	BEARING; NEEDLE,INPUT GEAR NSK	1-09811-422-0	02	1	0107-1311	●
144	BEARING; NEEDLE,INPUT GEAR NTN	1-09811-423-0	02	1	0107-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0312-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0312-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-203-0	01	1	0312-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-204-0	01	1	0312-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NSK	1-09810-256-0	01	1	0107-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NTN	1-09810-257-0	01	1	0107-	●
172	RING; SNAP,CLU HUB OD=121.2	1-09587-031-0	01	1	0107-	●
216	INSERT; CLU HUB,2ND TO 3RD	1-33263-025-2	03	1	0107-	●
218	SPRING; INSERT,CLU HUB,2ND TO 3RD D=6.2	1-09580-091-1	03	1	0107-	●
229	SPRING; PLUNGER D=3.8	1-09580-395-0	06	1	1404-	●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	06	1	0312-		●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	15	1	0107-1403	●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	09	1	1404-	●
231	PLUNGER (C)	1-33263-020-0	03	1	0312-		●
231	PLUNGER (A)	1-33263-033-0	06	1	0107-1403	●
231	PLUNGER (A)	8-98273-831-0	06	1	1404-	●
231	PLUNGER (B)	1-33263-038-1	12	1	0107-	●
238	INSERT (C)	1-33263-025-2	06	1	0312-		●
238	INSERT (A)	1-33263-036-0	06	1	0107-	●
238	INSERT (B)	1-33263-039-0	09	1	0107-	●
241	RING; SNAP (C)	1-09588-185-0	01	1	0312-		●
241	RING; SNAP (D)	1-09588-189-0	01	1	0312-		●
241	RING; SNAP (A)	1-09587-023-0	02	1	0107-	●
241	RING; SNAP (B)	1-09587-104-0	01	1	0107-	●
278	NUT; BRG	1-09449-080-0	01	1	0107-	●
306	RING; SNAP,MAINSHAFT	1-09588-149-0	01	1	0107-	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-217-0	01	1	0107-0109	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-225-0	01	1	0110-0707	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-228-0	01	1	0708-	●
323	INSERT	1-33263-041-0	03	1	0107-	●
324	HUB; CLU (C)	1-33261-238-0	01	1	0312-		●
324	HUB; CLU (A)	1-34231-015-0	01	1	0107-	●
324	HUB; CLU (B)	1-34371-013-0	01	1	0107-0403	●
324	HUB; CLU (B)	1-34371-017-0	01	1	0404-1307	●
324	HUB; CLU (B)	8-98239-089-0	01	1	1308-	●
330	GEAR; SUN Z=24	1-34311-007-0	01	1	0107-0403	●
330	GEAR; SUN Z=24	1-34311-010-0	01	1	0404-	●
332	PIN; LOCK,SHAFT	1-09748-025-0	05	1	0107-	●
334	SHAFT; PLANETARY GEAR (B)	1-34372-026-0	01	1	0107-0403	●
334	SHAFT; PLANETARY GEAR (B)	1-34372-034-0	01	1	0404-1307	●
334	SHAFT; PLANETARY GEAR (B)	8-98238-294-0	01	1	1308-	●
334	SHAFT; PLANETARY GEAR (A)	1-34353-010-1	05	1	0107-	●
336	WASHER; THRUST,PLANETARY GEAR	1-09503-230-0	10	1	0107-	●
340	GEAR; RING Z=86 ISUZU	1-34371-019-0	01	1	0510-	●
340	GEAR; RING Z=86 OKUBO GEAR	1-34371-014-0	01	1	0410-	●
340	GEAR; RING Z=86 OKUBO GEAR	1-34371-014-0	01	1	0107-0403	●
340	GEAR; RING Z=86 NIPPON GEAR	1-34371-018-0	01	1	0404-	●
342	FLANGE; OUTPUT	1-37243-314-1	01	1	0312-		●
342	FLANGE; OUTPUT	1-37243-370-0	01	1	0107-	●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0107-0311	●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0312-	●	●
357	RING	1-31349-015-0	01	1	0312-		●
357	RING	1-31349-044-0	04	1	0107-	●
379	PIECE; DIST,MAINSHAFT	1-33363-034-0	02	1	0107-	●
400	BEARING; OUTPUT SHAFT RR NSK W/SNAP RING	1-09810-254-0	01	1	0107-0910	●
400	BEARING; OUTPUT SHAFT RR NSK W/SNAP RING	8-98153-252-0	01	1	0911-	●
400	BEARING; OUTPUT SHAFT RR NTN W/SNAP RING	1-09810-255-0	01	1	0107-0910	●
407	GEAR; PRIMARY MAIN	1-33253-713-1	01	1	0107-0301	●
407	GEAR; PRIMARY MAIN Z=33	1-33253-717-0	01	1	0302-	●
437	PLATE; LOCK	1-34252-032-0	01	1	0107-	●
448	SYNCHRONIZER ASM; 1ST & 2ND	1-33265-539-0	02	1	0107-0502	●
448	SYNCHRONIZER ASM; 1ST & 2ND	1-33265-616-0	02	1	0503-1307	●
448	SYNCHRONIZER ASM; 1ST & 2ND	8-98239-293-0	02	1	1308-1312	●
448	SYNCHRONIZER ASM; 1ST & 2ND	8-98239-908-1	02	1	1401-	●
467	COLLAR; SHAFT	1-33234-091-1	01	1	0107-	●
471	SHAFT; INPUT	1-33211-994-0	01	1	0107-0403	●
471	SHAFT; INPUT	1-33215-020-0	01	1	0404-1102	●
471	SHAFT; INPUT	8-98174-781-0	01	1	1103-	●
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	0107-1407	●
481	RING; BLOCK (A) HIGH	8-98239-518-1	01	1	1408-1410	●
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	1411-	●
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	0107-1407	●
481	RING; BLOCK (B) LOW	8-98239-519-1	01	1	1408-1410	●
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	1411-	●
482	GEAR; PRIMARY Z=29	1-33253-714-1	01	1	0107-0301	●
482	GEAR; PRIMARY Z=29	1-33253-718-0	01	1	0302-	●
483	BEARING; TAPER NSK	1-09810-258-0	01	1	0107-0403	●
483	BEARING; TAPER NTN	1-09810-259-0	01	1	0107-0203	●
483	BEARING; TAPER NTN	1-09810-281-0	01	1	0204-1007	●
483	BEARING; TAPER NTN	8-98174-410-0	01	1	1008-1504	●
483	BEARING; TAPER NTN	8-98316-126-0	01	1	1505-	●
484	PLATE; SETTING	1-33313-022-0	01	1	0107-0310	●
484	PLATE; SETTING	1-33313-023-0	01	1	0311-	●
485	PIECE; GUIDE	1-33363-038-0	01	1	0107-0204	●
485	PIECE; GUIDE	1-33363-040-1	01	1	0205-	●
487	SYNCHRONIZER; RANGE CHANGE	1-33265-539-0	02	1	0107-0209	●
487	SYNCHRONIZER; RANGE CHANGE	1-33265-592-0	02	1	0210-0305	●
487	SYNCHRONIZER; RANGE CHANGE	1-33265-587-1	02	1	0306-0307	●
487	SYNCHRONIZER; RANGE CHANGE	1-33265-616-0	02	1	0308-1307	●
487	SYNCHRONIZER; RANGE CHANGE	8-98239-293-0	02	1	1308-1312	●
487	SYNCHRONIZER; RANGE CHANGE	8-98239-908-1	02	1	1401-	●
488	CLUTCH; DOG,RANGE (A)	1-34252-033-0	01	1	0107-0202	●
488	CLUTCH; DOG,RANGE (A)	1-34252-037-1	01	1	0203-0703	●
488	CLUTCH; DOG,RANGE (A)	8-98060-771-1	01	1	0704-1307	●
488	CLUTCH; DOG,RANGE (A)	8-98239-163-0	01	1	1308-	●
488	CLUTCH; DOG,RANGE (B)	1-34254-006-1	01	1	0107-1211	●
488	CLUTCH; DOG,RANGE (B)	8-98218-291-0	01	1	1212-1307	●
488	CLUTCH; DOG,RANGE (B)	8-98238-509-0	01	1	1308-	●
489	WASHER; THRUST	1-09503-308-0	01	1	0107-	●
490	GASKET; SEAL,CASE ID=10	1-09623-369-0	01	1	0107-	●
491	PLATE; OUTPUT SHAFT	1-34252-026-0	01	1	0107-	●
492	BOLT; PLATE	1-09000-740-0	02	1	0107-	●
493	GASKET; OUTPUT SHAFT	9-09561-385-0	01	1	0107-	●
494	PLATE; OUTPUT SHAFT	1-34379-020-0	01	1	0107-1307	●
495	PINION; PLANETARY	1-34361-018-0	05	1	0107-0403	●
495	PINION; PLANETARY Z=30	1-34361-023-0	05	1	0404-	●
496	BEARING; PLANETARY NSK	1-09811-424-0	10	1	0107-	●
496	BEARING; PLANETARY NTN	1-09811-425-0	10	1	0107-	●
497	BEARING; RING GEAR NSK	1-09810-276-0	01	1	0107-1307	●
497	BEARING; RING GEAR NTN	1-09810-277-0	01	1	0107-1307	●
497	BEARING; RING GEAR NTN	8-98239-433-0	01	1	1308-	●
498	CONE; SYN (B)	1-33265-591-0	02	1	0210-0305	●
498	CONE; SYN (B)	1-33265-589-1	02	1	0306-0307	●
498	CONE; SYN (B)	1-33265-617-0	02	1	0308-0502	●
498	CONE; SYN (C)	1-33265-617-0	04	1	0503-1312	●
498	CONE; SYN (C)	8-98239-910-0	04	1	1401-	●
498	CONE; SYN (C)	1-33265-537-0	04	1	0107-0209	●
498	CONE; SYN (A)	1-33265-537-0	02	1	0210-0502	●
612	GALLERY; OIL	8-98239-463-0	01	1	1308-	●

333 337 333 337 336 336 337 323 408 408 332 324 332 340 334 331 66 339 327 80 335 328 329 341 343 402 400 338 349 348 347 346 342 339 42 66 126 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	SLEEVE	1-33262-222-0	01	1	0107-0311	●
42	SLEEVE	1-33262-222-0	01	1	0312-	●	●
66	RING; BLOCK,SYN (C)	1-33265-588-0	02	1	0306-0502	●
66	RING; BLOCK,SYN (A)	1-33265-588-0	04	1	0503-1312	●
66	RING; BLOCK,SYN (A)	8-98239-909-1	04	1	1401-	●
66	RING; BLOCK,SYN (D)	1-33265-590-0	02	1	0306-0502	●
66	RING; BLOCK,SYN (B)	1-33265-590-0	04	1	0503-1307	●
66	RING; BLOCK,SYN (B)	8-98239-294-0	04	1	1308-1312	●
66	RING; BLOCK,SYN (B)	8-98239-911-1	04	1	1401-	●
66	RING; BLOCK,SYN (A)	1-33265-536-0	04	1	0107-0305	●
66	RING; BLOCK,SYN (A)	1-33265-536-0	02	1	0306-0502	●
66	RING; BLOCK,SYN (B)	1-33265-538-0	04	1	0107-0305	●
66	RING; BLOCK,SYN (B)	1-33265-538-0	02	1	0306-0502	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0312-		●
80	GEAR; SPD DRIVE Z=11	1-33371-069-0	01	1	0107-	●
323	INSERT	1-33263-041-0	03	1	0107-	●
324	HUB; CLU (C)	1-33261-238-0	01	1	0312-		●
324	HUB; CLU (A)	1-34231-015-0	01	1	0107-	●
324	HUB; CLU (B)	1-34371-013-0	01	1	0107-0403	●
324	HUB; CLU (B)	1-34371-017-0	01	1	0404-1307	●
324	HUB; CLU (B)	8-98239-089-0	01	1	1308-	●
332	PIN; LOCK,SHAFT	1-09748-025-0	05	1	0107-	●
334	SHAFT; PLANETARY GEAR (B)	1-34372-026-0	01	1	0107-0403	●
334	SHAFT; PLANETARY GEAR (B)	1-34372-034-0	01	1	0404-1307	●
334	SHAFT; PLANETARY GEAR (B)	8-98238-294-0	01	1	1308-	●
334	SHAFT; PLANETARY GEAR (A)	1-34353-010-1	05	1	0107-	●
336	WASHER; THRUST,PLANETARY GEAR	1-09503-230-0	10	1	0107-	●
340	GEAR; RING Z=86 ISUZU	1-34371-019-0	01	1	0510-	●
340	GEAR; RING Z=86 OKUBO GEAR	1-34371-014-0	01	1	0410-	●
340	GEAR; RING Z=86 OKUBO GEAR	1-34371-014-0	01	1	0107-0403	●
340	GEAR; RING Z=86 NIPPON GEAR	1-34371-018-0	01	1	0404-	●
342	FLANGE; OUTPUT	1-37243-314-1	01	1	0312-		●
342	FLANGE; OUTPUT	1-37243-370-0	01	1	0107-	●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0107-0311	●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0312-	●	●
400	BEARING; OUTPUT SHAFT RR NSK W/SNAP RING	1-09810-254-0	01	1	0107-0910	●
400	BEARING; OUTPUT SHAFT RR NSK W/SNAP RING	8-98153-252-0	01	1	0911-	●
400	BEARING; OUTPUT SHAFT RR NTN W/SNAP RING	1-09810-255-0	01	1	0107-0910	●
408	SPRING	1-09583-171-0	03	1	0312-		●

103 94 94 108 109 476 96 486 93 84 105 110 357 96 357 140 138 128 135 132 129 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0312-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0312-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0107-	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0107-	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0107-0311	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0312-	●	●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	0312-		●
94	KEY; FEATHER,COUNTER SHAFT L=70	1-09735-046-0	02	1	0107-	●
96	GEAR; COUNTER DRIVE (C) Z=41	1-33331-272-0	01	1	0312-		●
96	GEAR; COUNTER DRIVE (A) Z=35	1-33331-258-2	01	1	0107-	●
96	GEAR; COUNTER DRIVE (B) Z=38	1-33338-374-3	01	1	0107-	●
103	KEY; COUNTER GEAR L=63	1-09735-027-0	01	1	0312-		●
103	KEY; COUNTER GEAR L=67	1-09735-049-0	01	1	0312-		●
103	KEY; COUNTER GEAR L=75.3	1-09735-042-0	01	1	0107-	●
105	GEAR; 3RD,COUNTER Z=36	1-33338-373-1	01	1	0107-	●
108	SHAFT; COUNTER Z=24-17-12	1-33311-331-0	01	1	0312-		●
108	SHAFT; COUNTER Z=26-21	1-33311-325-1	01	1	0107-	●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0312-		●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0312-		●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0107-0311	●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0312-	●	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0107-0311	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0312-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0107-0311	●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0312-	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0107-0311	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0312-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0107-0311	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0312-	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0107-0311	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0312-	●	●
132	SHAFT; REV	1-33351-025-4	01	1	0312-		●
132	SHAFT; REV	1-33351-035-1	01	1	0107-	●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	0312-		●
135	GEAR; REV IDLER Z=30	1-33361-081-1	01	1	0107-	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0107-0311	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0312-	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	0312-		●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	0107-0310	●
140	BOLT; LK PIECE M10X25	1-09049-006-1	01	1	0311-	●
357	RING	1-31349-015-0	01	1	0312-		●
357	RING	1-31349-044-0	04	1	0107-	●
476	ADAPTER; PUMP DRIVE	1-33339-091-1	01	1	0107-	●
486	NOZZLE; CONT SHAFT	1-33219-254-1	01	1	0107-	●

238 1 228 229 13 14 176 241 81 3 9 2 357 166 8 474 202 202 408 238 231 229 21 19 48 429 46 14 47 36 45 33 33 7 42 324 112 241 30 27 27 45 82 80 7 44 48 149 78 70 16 10 78 68 67 59 60 78 286 298 56 342 56 149 345 19 103 237 20 103 56 56 74 50 140 138 128 135 94 74 362 108 49 49 93 84 412 109 104 129 128 132 97 111 96 110 109 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=27	1-33211-992-0	01	1	0312-		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0107-0311	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0312-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0107-0311	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0312-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0107-0311	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0312-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0107-0311	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0312-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	0312-		●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	0312-		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-278-0	01	1	0107-	●
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	0107-0311	●
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	0312-	●	●
8	CLIP; DOG CLU	1-33219-024-0	01	1	0312-		●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	0312-		●
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	0107-0311	●
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	0312-	●	●
13	GEAR; 5TH,MAINSHAFT Z=31	1-33253-673-0	01	1	0312-		●
14	BEARING; NEEDLE,5TH NSK	1-09811-376-0	02	1	0312-1311		●
14	BEARING; NEEDLE,5TH NTN	1-09811-401-0	02	1	0312-		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	0312-		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	0312-		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-260-0	16	1	0107-	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-261-0	16	1	0107-	●
19	RING; BLOCK,4TH & 5TH Z=66	1-33265-545-1	02	1	0312-		●
20	SLEEVE	1-33262-222-0	01	1	0312-		●
20	SLEEVE	1-33262-216-1	01	1	0107-	●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	0312-		●
27	BEARING; 4TH GEAR NSK	1-09811-376-0	02	1	0312-1311		●
27	BEARING; 4TH GEAR NTN	1-09811-401-0	02	1	0312-		●
30	GEAR; 4TH,MAINSHAFT Z=42	1-33253-695-0	01	1	0312-		●
33	BEARING; NEEDLE,3RD GEAR (C) NSK	1-09811-380-0	02	1	0312-1311		●
33	BEARING; NEEDLE,3RD GEAR (C) NTN	1-09811-381-0	02	1	0312-		●
33	BEARING; NEEDLE,3RD GEAR (A) NSK	1-09811-378-0	02	1	0107-1308	●
33	BEARING; NEEDLE,3RD GEAR (A) NTN	1-09811-379-0	02	1	0107-	●
33	BEARING; NEEDLE,3RD GEAR (B) NSK	1-09811-422-0	02	1	0107-1311	●
33	BEARING; NEEDLE,3RD GEAR (B) NTN	1-09811-423-0	02	1	0107-	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	0312-		●
36	GEAR; 3RD,MAINSHAFT Z=41	1-33253-704-1	01	1	0107-	●
42	SLEEVE	1-33262-222-0	01	1	0107-0311	●
42	SLEEVE	1-33262-222-0	01	1	0312-	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	0312-		●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	0312-		●
45	SPRING; BLOCK INSERT (A)	1-09580-578-0	03	1	0107-	●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	0107-0311	●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	0312-	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0312-		●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0107-	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0312-		●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-543-0	02	1	0312-0404		●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-612-1	02	1	0405-		●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-378-0	02	1	0312-1308		●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-379-0	02	1	0312-		●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	0312-		●
50	GEAR; 2ND,MAINSHAFT Z=43	1-33251-411-1	01	1	0107-	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-376-0	04	1	0312-1311		●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-401-0	04	1	0312-		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-422-0	04	1	0107-1311	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-423-0	04	1	0107-	●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	0312-		●
59	GEAR; REV MAINSHAFT Z=44	1-33257-081-2	01	1	0107-	●
60	COLLAR; REV MAIN	1-33234-087-0	01	1	0312-		●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	0312-		●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0312-		●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	0312-		●
70	GEAR; 1ST,MAINSHAFT Z=49	1-33255-074-1	01	1	0107-	●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	02	1	0312-1506		●
74	WASHER; THRUST,REV GEAR	8-98304-662-0	02	1	1507-		●
74	WASHER; THRUST,REV GEAR	1-33239-308-0	01	1	0107-	●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-098-0	01	1	0312-		●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	0312-		●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0312-		●
80	GEAR; SPD DRIVE Z=11	1-33371-069-0	01	1	0107-	●
81	GEAR; 7TH,MAIN Z=24	1-33253-654-0	01	1	0312-		●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	1-33231-298-0	01	1	0312-1506		●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	8-98304-660-0	01	1	1507-		●
82	SHAFT; MAIN,TRANS Z=37-40-28-19	1-33231-315-0	01	1	0107-0109	●
82	SHAFT; MAIN,TRANS Z=37-40-28-19	1-33231-327-2	01	1	0110-	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0312-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0312-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0107-	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0107-	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0107-0311	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0312-	●	●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	0312-		●
94	KEY; FEATHER,COUNTER SHAFT L=70	1-09735-046-0	02	1	0107-	●
96	GEAR; COUNTER DRIVE (C) Z=41	1-33331-272-0	01	1	0312-		●
96	GEAR; COUNTER DRIVE (A) Z=35	1-33331-258-2	01	1	0107-	●
96	GEAR; COUNTER DRIVE (B) Z=38	1-33338-374-3	01	1	0107-	●
97	GEAR; 5TH,COUNTER Z=36	1-33338-386-0	01	1	0312-		●
103	KEY; COUNTER GEAR L=63	1-09735-027-0	01	1	0312-		●
103	KEY; COUNTER GEAR L=67	1-09735-049-0	01	1	0312-		●
103	KEY; COUNTER GEAR L=75.3	1-09735-042-0	01	1	0107-	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-380-0	01	1	0312-		●
108	SHAFT; COUNTER Z=24-17-12	1-33311-331-0	01	1	0312-		●
108	SHAFT; COUNTER Z=26-21	1-33311-325-1	01	1	0107-	●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0312-		●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0312-		●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0107-0311	●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0312-	●	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0107-0311	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0312-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0107-0311	●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0312-	●	●
111	GEAR; 7TH COUNTER SHAFT Z=50	1-33338-388-0	01	1	0312-		●
112	RING; BLOCK,7TH SYN (A) Z=66	1-33265-376-7	01	1	0312-		●
112	RING; BLOCK,7TH SYN (B) Z=66	1-33265-545-1	01	1	0312-		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0107-0311	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0312-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0107-0311	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0312-	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0107-0311	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0312-	●	●
132	SHAFT; REV	1-33351-025-4	01	1	0312-		●
132	SHAFT; REV	1-33351-035-1	01	1	0107-	●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	0312-		●
135	GEAR; REV IDLER Z=30	1-33361-081-1	01	1	0107-	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0107-0311	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0312-	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	0312-		●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	0107-0310	●
140	BOLT; LK PIECE M10X25	1-09049-006-1	01	1	0311-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0312-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0312-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-203-0	01	1	0312-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-204-0	01	1	0312-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NSK	1-09810-256-0	01	1	0107-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NTN	1-09810-257-0	01	1	0107-	●
166	PIECE; DIST	1-33363-032-1	01	1	0312-		●
176	COLLAR; 5TH GEAR	1-33234-069-1	01	1	0312-		●
202	BEARING; COUNTER GEAR NSK	1-09811-382-0	02	1	0312-1311		●
202	BEARING; COUNTER GEAR NTN	1-09811-383-0	02	1	0312-		●
228	PLUNGER; SYN	1-33263-020-0	03	1	0312-		●
229	SPRING; PLUNGER D=3.8	1-09580-395-0	06	1	1404-	●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	06	1	0312-		●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	15	1	0107-1403	●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	09	1	1404-	●
231	PLUNGER (C)	1-33263-020-0	03	1	0312-		●
231	PLUNGER (A)	1-33263-033-0	06	1	0107-1403	●
231	PLUNGER (A)	8-98273-831-0	06	1	1404-	●
231	PLUNGER (B)	1-33263-038-1	12	1	0107-	●
237	KEY; 5TH GEAR L=67	1-09735-049-0	01	1	0312-		●
238	INSERT (C)	1-33263-025-2	06	1	0312-		●
238	INSERT (A)	1-33263-036-0	06	1	0107-	●
238	INSERT (B)	1-33263-039-0	09	1	0107-	●
241	RING; SNAP (C)	1-09588-185-0	01	1	0312-		●
241	RING; SNAP (D)	1-09588-189-0	01	1	0312-		●
241	RING; SNAP (A)	1-09587-023-0	02	1	0107-	●
241	RING; SNAP (B)	1-09587-104-0	01	1	0107-	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	0312-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	0312-		●
324	HUB; CLU (C)	1-33261-238-0	01	1	0312-		●
324	HUB; CLU (A)	1-34231-015-0	01	1	0107-	●
324	HUB; CLU (B)	1-34371-013-0	01	1	0107-0403	●
324	HUB; CLU (B)	1-34371-017-0	01	1	0404-1307	●
324	HUB; CLU (B)	8-98239-089-0	01	1	1308-	●
342	FLANGE; OUTPUT	1-37243-314-1	01	1	0312-		●
342	FLANGE; OUTPUT	1-37243-370-0	01	1	0107-	●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0107-0311	●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0312-	●	●
357	RING	1-31349-015-0	01	1	0312-		●
357	RING	1-31349-044-0	04	1	0107-	●
362	COLLAR; 2ND GEAR	1-33234-072-0	01	1	0312-		●
408	SPRING	1-09583-171-0	03	1	0312-		●
412	GEAR; DRIVE Z=36	1-33339-029-1	01	1	0312-		●
429	SLEEVE; 2ND & 3RD	1-33262-219-0	01	1	0312-		●
474	NOZZLE; OIL	1-33219-257-0	01	1	0312-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
