Isuzu WW
▶
TRUCKS
▶
FTR
▶
11540 - FTR CNG(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

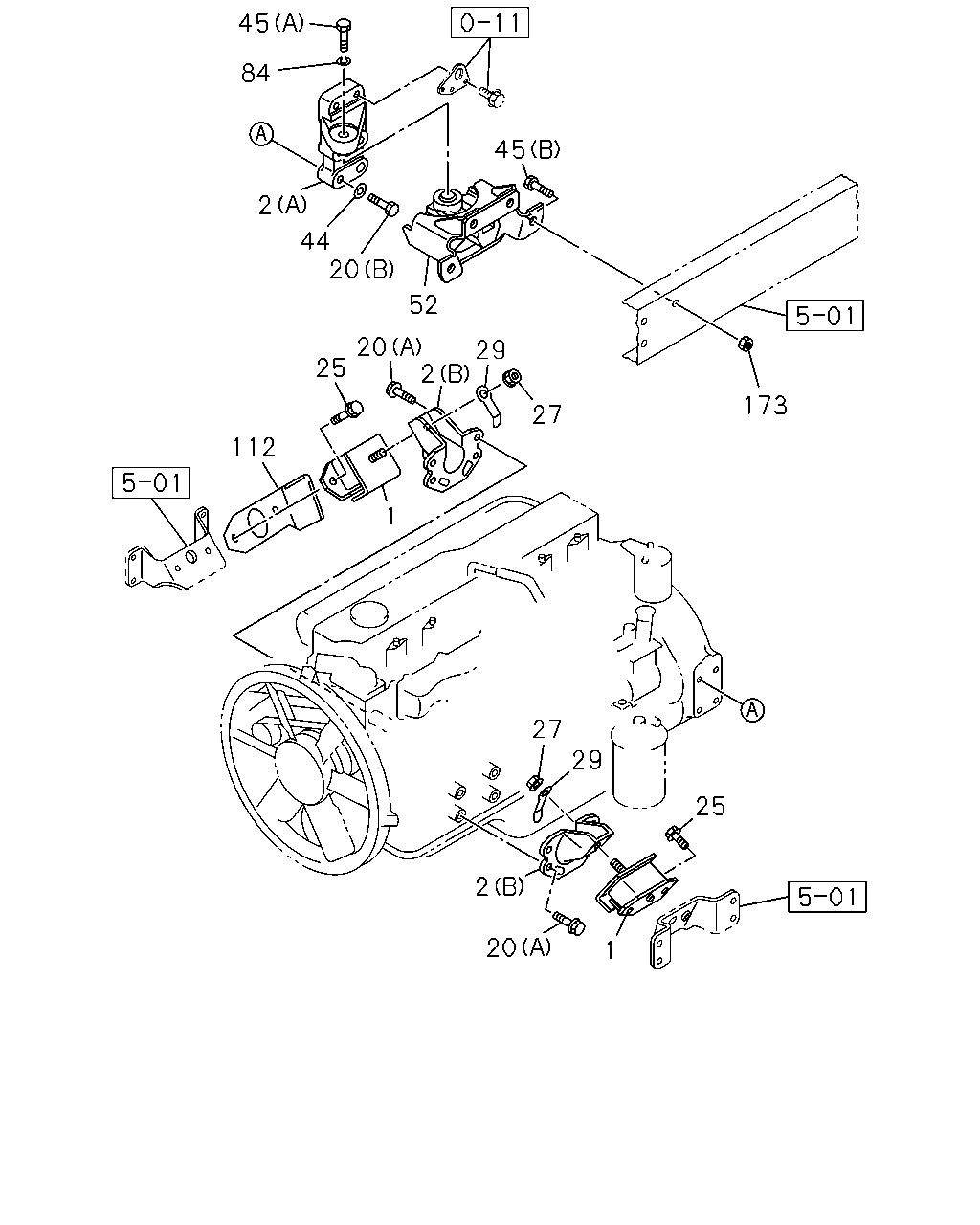

0-22 — ENGINE MOUNTING
(#121382) — 16 parça
173
25
29
27
1
20
2
1
112
27
29
2
20
25
52
45
20
44
2
84
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
1-53215-172-0
02
1
1304-
2
FOOT; ENG
(B)
8-94392-141-3
02
1
1304-
2
FOOT; ENG
(A)
8-97611-988-0
01
1
1304-
2
FOOT; ENG
(A)
8-97611-989-0
01
1
1304-
20
BOLT; ENG FOOT
(B) M12X50
0-16956-250-0
08
1
1304-
20
BOLT; ENG FOOT
(A) M10X30
8-97011-732-0
08
1
1304-
25
BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE THA
0-28651-235-0
04
1
1304-
27
NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE THA
0-91180-212-0
02
1
1304-
29
PLATE; LK,CUSHION RUBBER,FRT
8-98010-312-0
02
1
1304-
44
WASHER; LK,ENG FOOT
ID=12.5
0-91614-512-0
08
1
1304-
45
BOLT; CUSHION RUBBER TO FRAME
(B) M14X50
0-29261-450-0
08
1
1304-
45
BOLT; CUSHION RUBBER TO FRAME
(A) M18X65
8-94393-260-1
02
1
1304-
52
RUBBER; CUSHION,ENG MTG,RR
8-98013-021-1
02
1
1304-
84
WASHER; PL,ENG MTG RR TO FRAME
ID=19 OD=36
0-91614-618-0
02
1
1304-
112
PROTECTOR; HEAT
THA
1-53219-629-4
01
1
1304-
173
NUT; ENG MTG RR TO FRAME
M14 FLANGE THA
0-91180-214-0
08
1
1304-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
