Isuzu WW
▶
TRUCKS
▶
FTR
▶
11540 - FTR CNG(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-11 - CYLINDER HEAD
▶
0-11 — CYLINDER HEAD
(#121376) — 31 parça
◀

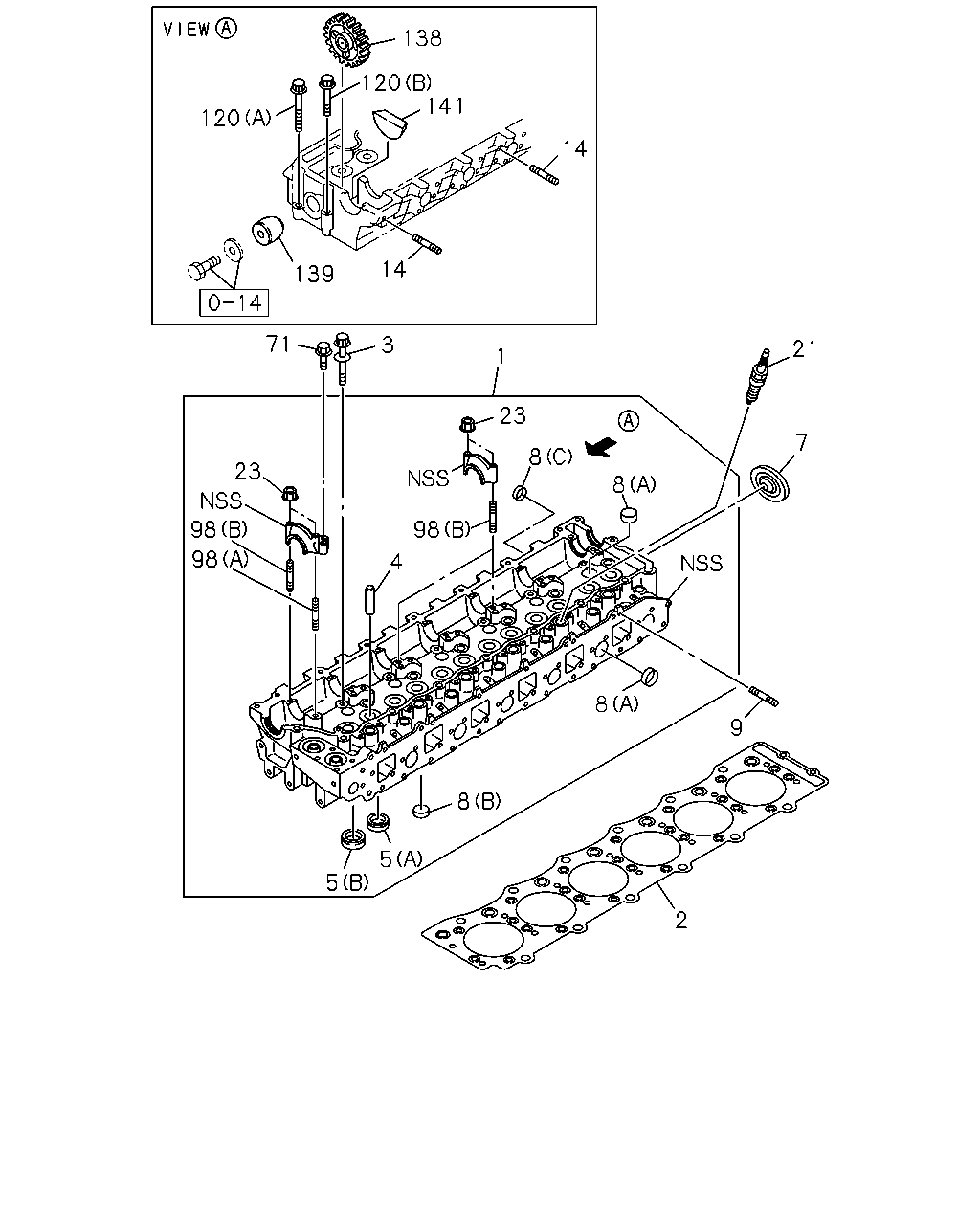

[011A] CYL HEAD COMPONENT (23 parça)

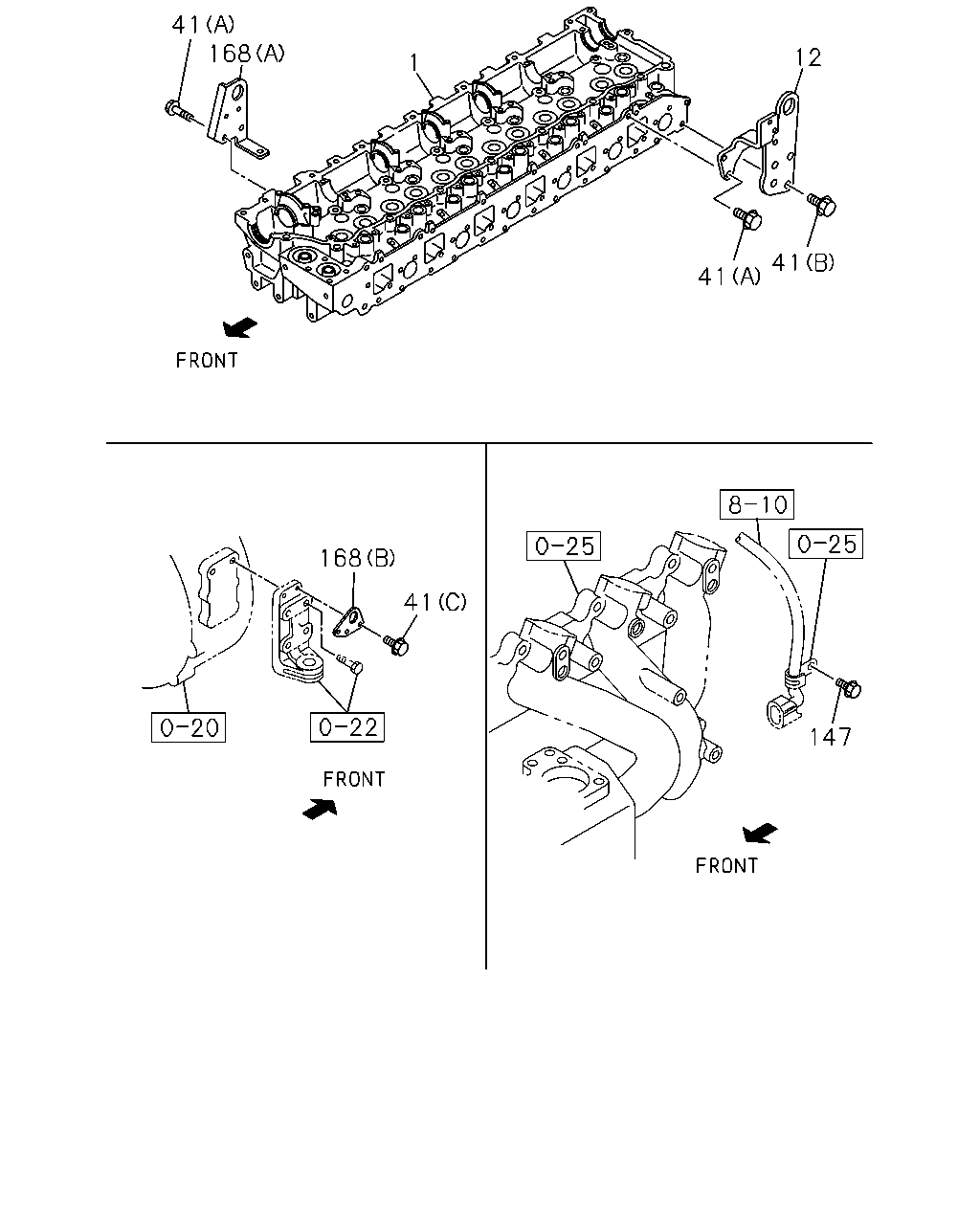

[011A] ENG HANGER FIXING (8 parça)
▶
120
139
14
14
141
120
138
71
3
1
23
21
7
8
9
2
8
5
5
98
98
23
4
8
8
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
8-98180-876-0
01
1
1304-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97601-819-5
01
1
1304-
3
BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE
8-97077-638-0
26
1
1304-1407
3
BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE
8-98260-005-0
26
1
1408-
4
GUIDE; VLV
8-94396-598-0
12
1
1304-
5
SEAT; VLV INSERT
(A) INLET
8-97230-003-0
06
1
1304-
5
SEAT; VLV INSERT
(B) EXHAUST
8-98039-509-0
06
1
1304-
7
CUP; SEALING,CYL HEAD
OD=51
8-97096-826-0
01
1
1304-
8
CUP; SEALING,WATER JACKET
(A) OD=32
1-09600-012-2
18
1
1304-
8
CUP; SEALING,WATER JACKET
(B) OD=25
1-09600-016-0
03
1
1304-
8
CUP; SEALING,WATER JACKET
(C) OD=12.3
5-09600-013-0
06
1
1304-
9
STUD; INL MANIF
M8X30 L=41
0-41010-830-0
04
1
1304-
14
STUD; EXH MANIF
M10X60 L=75
8-94397-286-0
12
1
1304-
21
PLUG; SPARK
8-98119-290-0
06
1
1304-
23
NUT; CAM BRKT
M8 FLANGE THA
0-91180-208-0
08
1
1304-
71
BOLT; CAM BRKT
M8X35 FLANGE THA
0-28050-835-0
02
1
1304-
98
STUD; CAM BRKT
(A) M8X54 L=79
8-94322-512-2
02
1
1304-
98
STUD; CAM BRKT
(B) M8X41 L=66
8-94322-513-2
06
1
1304-
120
BOLT; CYL HD TO HSG
(B) M10X73
8-94399-554-0
01
1
1304-
120
BOLT; CYL HD TO HSG
(A) M10X43
8-94399-555-0
01
1
1304-
138
GEAR; IDLE
Z=41
8-97112-607-1
01
1
1304-
139
SHAFT; IDLE GEAR
8-97186-398-1
01
1
1304-
141
PLUG; RUBBER,CYL HD
8-98163-813-0
02
1
1304-
41
168
12
41
41
168
41
147
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
8-98180-876-0
01
1
1304-
12
HANGER; ENG,RR
8-98158-203-0
01
1
1304-
41
BOLT; ENG HANGER
(A) M10X20 FLANGE THA
0-28151-020-0
03
1
1304-
41
BOLT; ENG HANGER
(B) M12X25 FLANGE
0-28151-225-0
03
1
1304-
41
BOLT; ENG HANGER
(C) M10X25 FLANGE THA
0-28751-025-0
02
1
1304-
147
BOLT; CLIP
M8X16 FLANGE THA
0-28050-816-0
01
1
1304-
168
HANGER; ENG,FRT
(B)
8-94394-398-1
01
1
1304-
168
HANGER; ENG,FRT
(A)
8-98182-498-0
01
1
1304-
