Isuzu WW
▶
TRUCKS
▶
GVR
▶
11498 - GVR(THAI)EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#121360) — 17 parça
◀

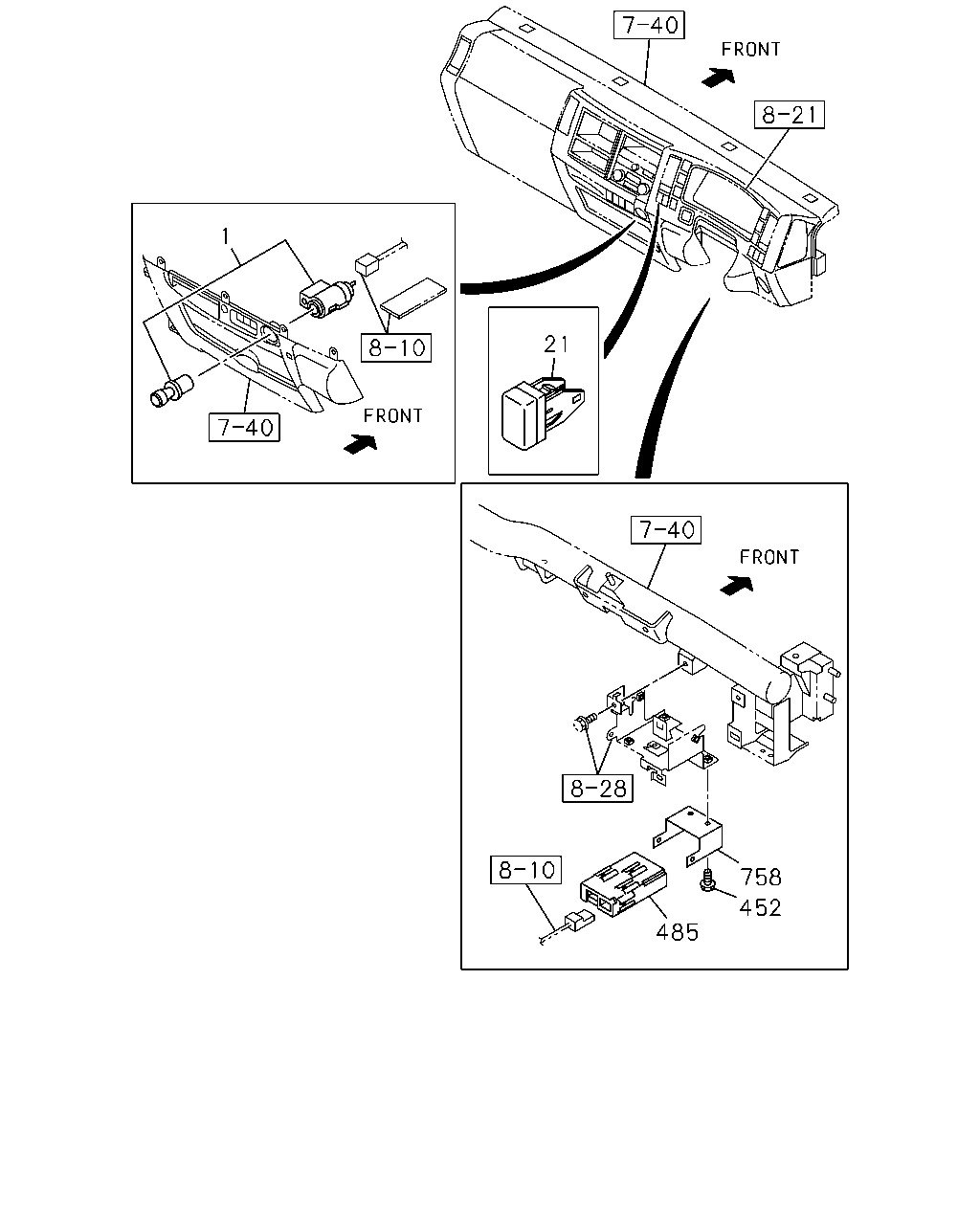

[826A] INST PANEL SIDE NO.1 (5 parça)

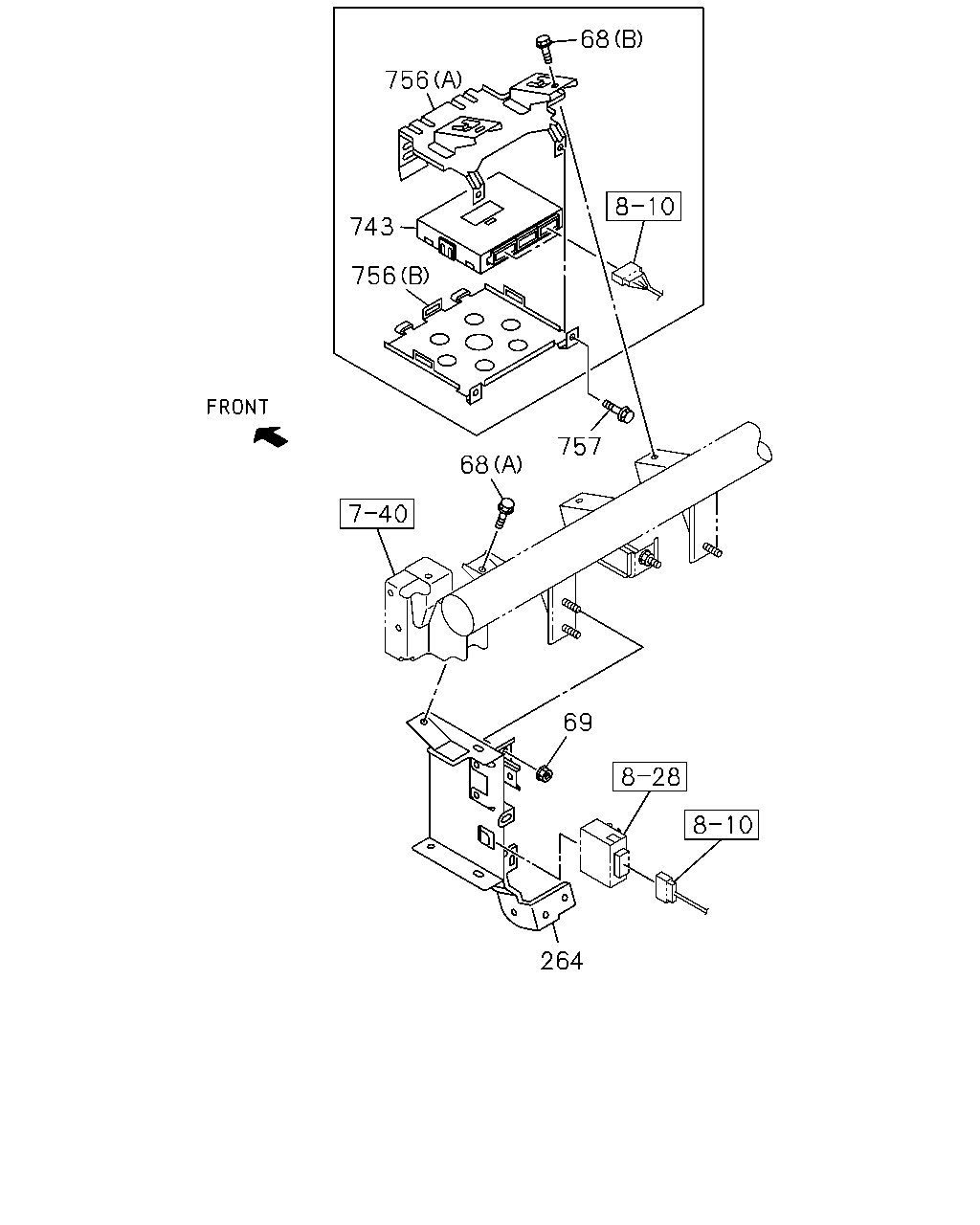

[826A] INST PANEL SIDE NO.2 (8 parça)

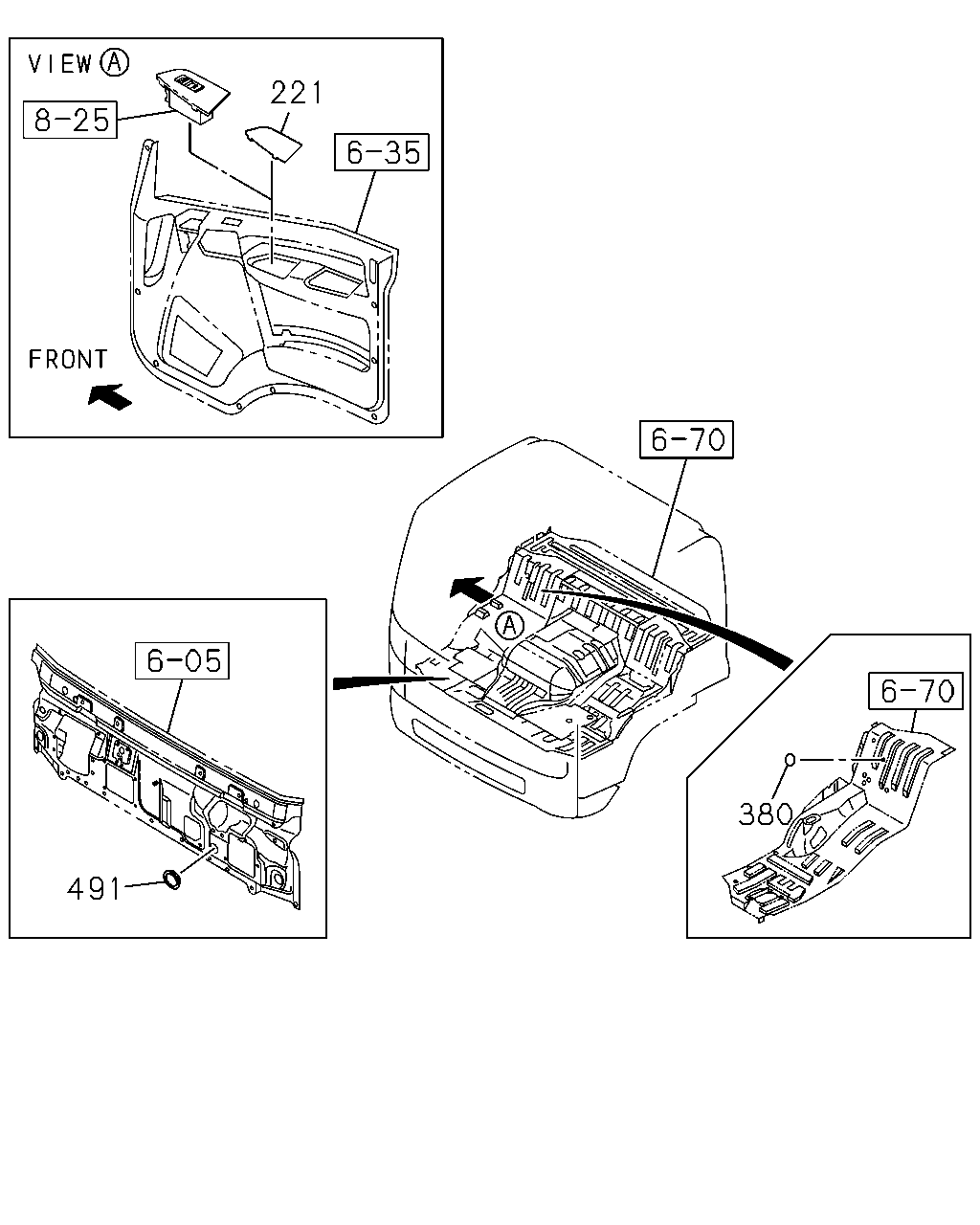

[826A] CAB SIDE (4 parça)
▶
1
21
485
758
452
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LIGHTER; CIGAR
8-98142-962-0
01
1
1304-
21
COVER; HOLE
8-98025-954-1
01
1
1304-
452
BOLT; BRKT
M6X16 FLANGE THA
0-28650-616-0
02
1
1304-
485
CONTROL UNIT; SPEED SENSOR
1-80190-063-0
01
1
1304-
758
BRACKET; ELEC CONT UNIT,SPEED SENSOR
8-98048-743-1
01
1
1304-
68
757
69
264
68
756
743
756
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
68
BOLT; BRKT
(A) M6X16 FLANGE THA
0-28650-616-0
01
1
1304-
68
BOLT; BRKT
MEMORY SYSTEM RUNNING CONDITION<NCR> (B) M6X16 W/LK&PL WASHER
1-09980-492-0
02
1
1304-
69
NUT; BRKT
M6 FLANGE THA
0-91180-106-0
01
1
1304-
264
BRACKET; CONT UNIT
8-97609-985-9
01
1
1304-
743
CONTROL UNIT; BCM
MEMORY SYSTEM RUNNING CONDITION<NCR>
8-98182-026-2
01
1
1304-
756
BRACKET; ECU,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> (A)
8-98056-411-3
01
1
1304-
756
BRACKET; ECU,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> (B)
8-98111-836-1
01
1
1304-
757
BOLT; BRKT,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> M6X16 FLANGE THA
0-28650-616-0
02
1
1304-
221
491
380
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
221
COVER; HOLE,DOOR LOCK SW
8-98029-915-2
01
1
1304-
221
COVER; HOLE,DOOR LOCK SW
8-98029-916-2
01
1
1304-
380
SEAL
OD=25 BLACK THA
1-76798-019-0
01
1
1304-
491
PLUG; HOLE,CONT UNIT
8-98054-651-0
01
1
1304-
