8-15 — FIXING PARTS; WIRING HARNESS (#121357) — 194 parça

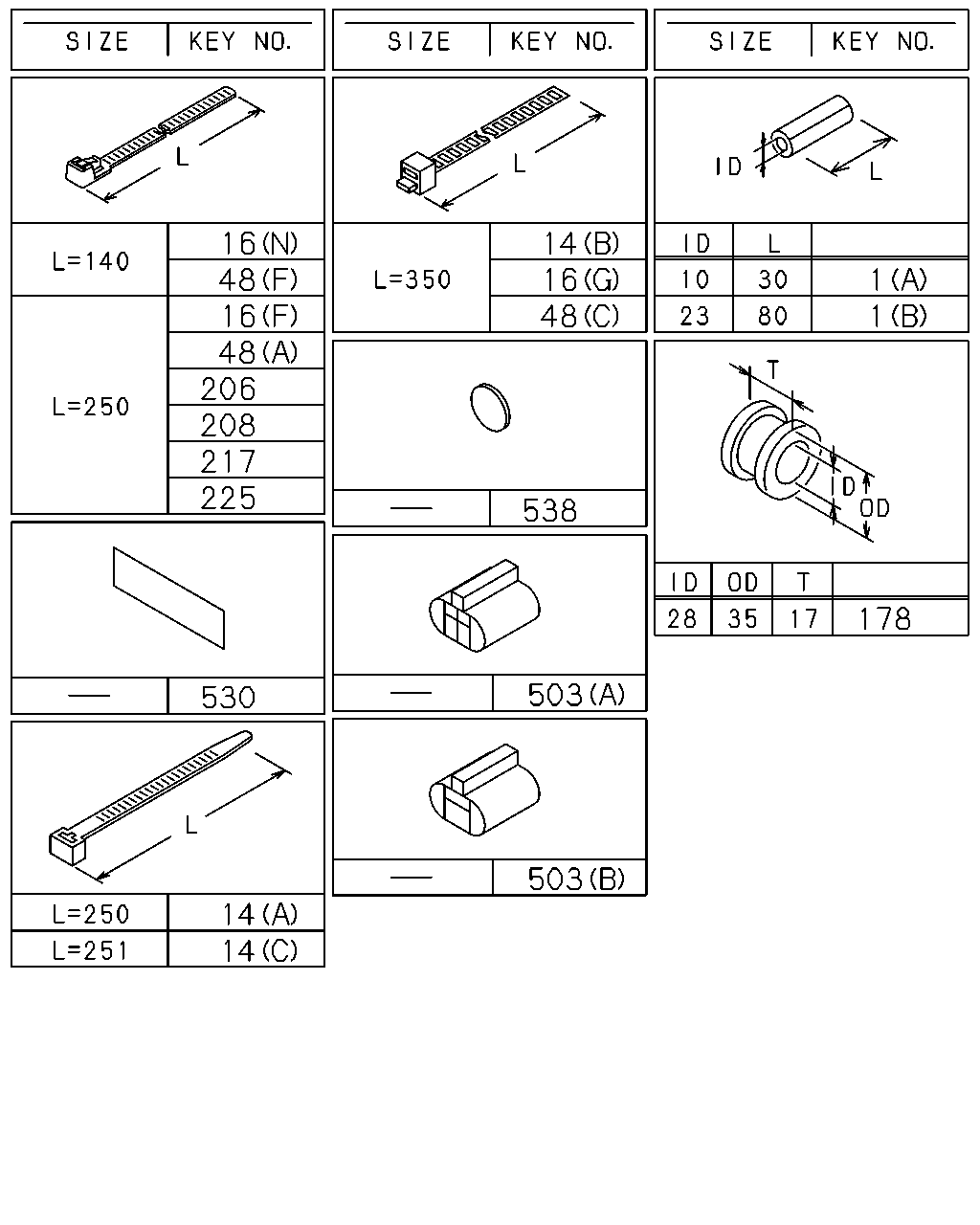

çizim 357200
16 16 48 217 206 48 208 225 530 14 14 503 503 538 48 16 14 178 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 1304-1402
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 05 1 1403-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1304-1406
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 04 1 1407-
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 1304-
14 CLIP; BAND,HARNESS
(C) L=251 		8-97619-917-0 01 1 1304-
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 14 1 1304-
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (O) ID=21 L=47.5 		8-94178-108-0 01 1 1403-
16 CLIP; HARNESS
(M) ID=16 L=28 		0-95235-556-0 02 1 1304-
16 CLIP; HARNESS
(E) ID=14 H=50 L=20 		1-09700-843-0 02 1 1304-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1304-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1304-
16 CLIP; HARNESS
(G) L=350 		1-09707-183-0 02 1 1304-
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 1304-1304
16 CLIP; HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1304-
16 CLIP; HARNESS
(L) ID=10 & 15 		1-09709-279-1 01 1 1304-1304
16 CLIP; HARNESS
(N) L=140 THA 		8-97920-656-0 01 1 1305-
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 1304-1304
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 03 1 1304-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1304-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1304-
16 CLIP; HARNESS
(D) L=40.6 THA 		8-97229-357-0 02 1 1304-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1304-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (J) ID=11 L=41 		1-09700-403-0 01 1 1304-
48 CLIP; FRAME HARNESS
(E) ID=16X2 L=50 		0-95325-586-0 01 1 1304-
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 06 1 1304-1304
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 04 1 1305-
48 CLIP; FRAME HARNESS
(J) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1304-
48 CLIP; FRAME HARNESS
(B) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1304-1304
48 CLIP; FRAME HARNESS
(H) ID=35 L=50 		1-09701-214-0 01 1 1304-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 01 1 1304-
48 CLIP; FRAME HARNESS
(G) ID=13-18 L=14.5 		1-09709-290-0 03 1 1304-
48 CLIP; FRAME HARNESS
(I) ID=13-18 L=22 		1-09709-292-0 01 1 1304-
48 CLIP; FRAME HARNESS
(D) ID=13-18 L=26 		1-09709-293-0 01 1 1304-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 1304-1304
48 CLIP; FRAME HARNESS
(F) L=140 THA 		8-97920-656-0 02 1 1304-
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1304-
178 GROMMET; HARNESS
POOR QUALITY DIESEL FUEL<KF0> ID=28 OD=35 T=17 		9-09956-256-2 01 1 1304-
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1304-
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1304-
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 1304-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL<SV6> L=250 		5-09707-030-1 01 1 1304-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1304-
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 08 1 1304-
503 CONNECTOR
(A) 		1-82690-666-0 01 1 1304-
503 CONNECTOR
(B) 		1-82690-668-0 01 1 1304-
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1306-1309
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 1310-
530 SEAL; HARNESS
180X40 		1-72498-019-1 19 1 1304-1305
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1306-1309
538 SEAL; HOLE
OD=25 BLACK THA 		1-76798-019-0 01 1 1304-

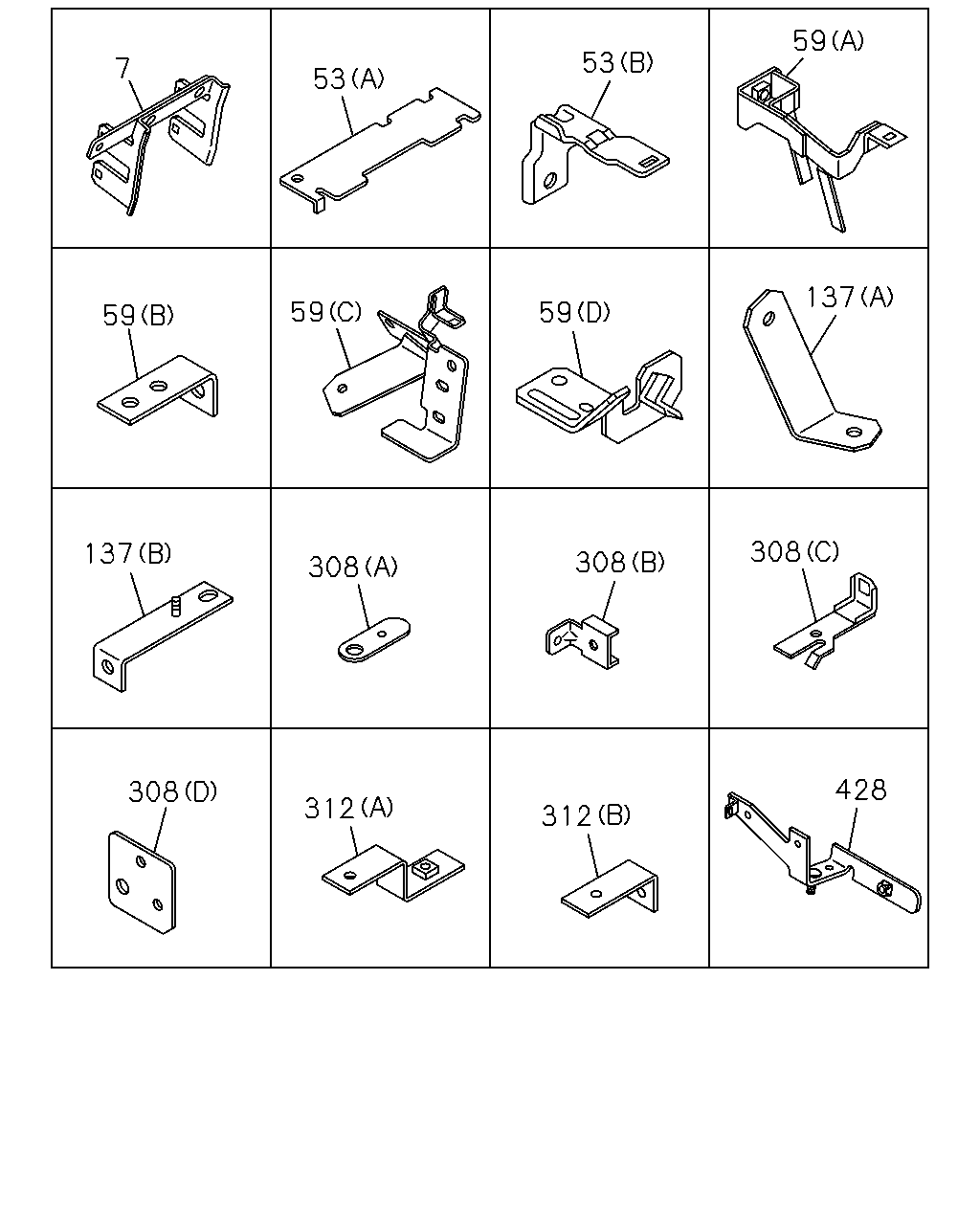

çizim 357315
59 137 308 428 312 308 59 53 53 7 59 59 308 137 308 312
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR
THA 		8-97925-591-0 01 1 1304-
53 BRACKET; HARNESS
(B) 		8-98052-458-0 01 1 1304-
53 BRACKET; HARNESS
(A) 		8-98127-093-0 01 1 1304-
59 BRACKET; FRAME HARNESS
(B) 		1-21464-170-2 01 1 1304-
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 1304-
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 1304-
59 BRACKET; FRAME HARNESS
(C) 		8-98107-611-0 01 1 1304-
137 BRACKET; HARNESS CLAMP
(A) 		8-97614-728-1 01 1 1304-
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-013-0 01 1 1304-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 1304-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 1304-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 1304-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 1304-
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 1304-
312 BRACKET; CLIP HARNESS
(A) 		8-97609-110-1 01 1 1304-
428 BRACKET 8-98212-082-1 01 1 1304-

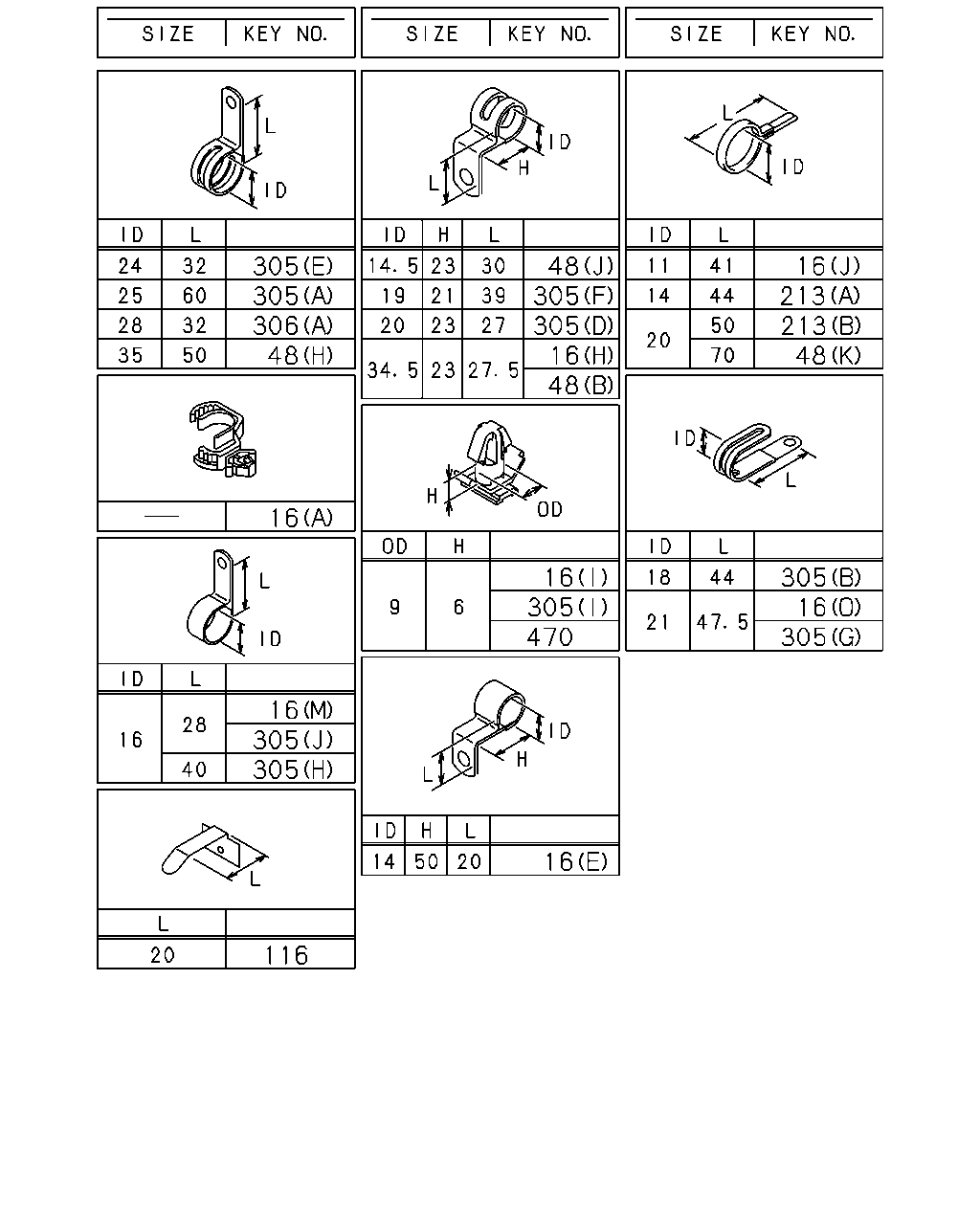

çizim 357434
305 306 305 48 48 16 48 213 213 305 48 16 305 16 16 16 305 305 305 305 305 470 16 116 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (O) ID=21 L=47.5 		8-94178-108-0 01 1 1403-
16 CLIP; HARNESS
(M) ID=16 L=28 		0-95235-556-0 02 1 1304-
16 CLIP; HARNESS
(E) ID=14 H=50 L=20 		1-09700-843-0 02 1 1304-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1304-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1304-
16 CLIP; HARNESS
(G) L=350 		1-09707-183-0 02 1 1304-
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 1304-1304
16 CLIP; HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1304-
16 CLIP; HARNESS
(L) ID=10 & 15 		1-09709-279-1 01 1 1304-1304
16 CLIP; HARNESS
(N) L=140 THA 		8-97920-656-0 01 1 1305-
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 1304-1304
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 03 1 1304-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1304-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1304-
16 CLIP; HARNESS
(D) L=40.6 THA 		8-97229-357-0 02 1 1304-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1304-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (J) ID=11 L=41 		1-09700-403-0 01 1 1304-
48 CLIP; FRAME HARNESS
(E) ID=16X2 L=50 		0-95325-586-0 01 1 1304-
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 06 1 1304-1304
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 04 1 1305-
48 CLIP; FRAME HARNESS
(J) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1304-
48 CLIP; FRAME HARNESS
(B) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1304-1304
48 CLIP; FRAME HARNESS
(H) ID=35 L=50 		1-09701-214-0 01 1 1304-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 01 1 1304-
48 CLIP; FRAME HARNESS
(G) ID=13-18 L=14.5 		1-09709-290-0 03 1 1304-
48 CLIP; FRAME HARNESS
(I) ID=13-18 L=22 		1-09709-292-0 01 1 1304-
48 CLIP; FRAME HARNESS
(D) ID=13-18 L=26 		1-09709-293-0 01 1 1304-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 1304-1304
48 CLIP; FRAME HARNESS
(F) L=140 THA 		8-97920-656-0 02 1 1304-
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 03 1 1304-
213 CLIP; END CROSS HARNESS
(A) ID=14 L=44 		9-09917-427-0 03 1 1304-
213 CLIP; END CROSS HARNESS
(B) ID=20 L=50 		9-09917-430-0 01 1 1304-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1304-
305 CLIP; ENG HARNESS
(H) ID=16 L=40 		0-95235-576-0 01 1 1304-
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 01 1 1304-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
305 CLIP; ENG HARNESS
(F) ID=19 L=39 H=21 		1-09700-972-1 01 1 1304-
305 CLIP; ENG HARNESS
(C) ID=26 L=27 		1-09701-006-0 01 1 1304-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1304-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1304-
305 CLIP; ENG HARNESS
(G) ID=21 L=47.5 		8-94178-108-0 01 1 1304-1402
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1304-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1304-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1304-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1304-

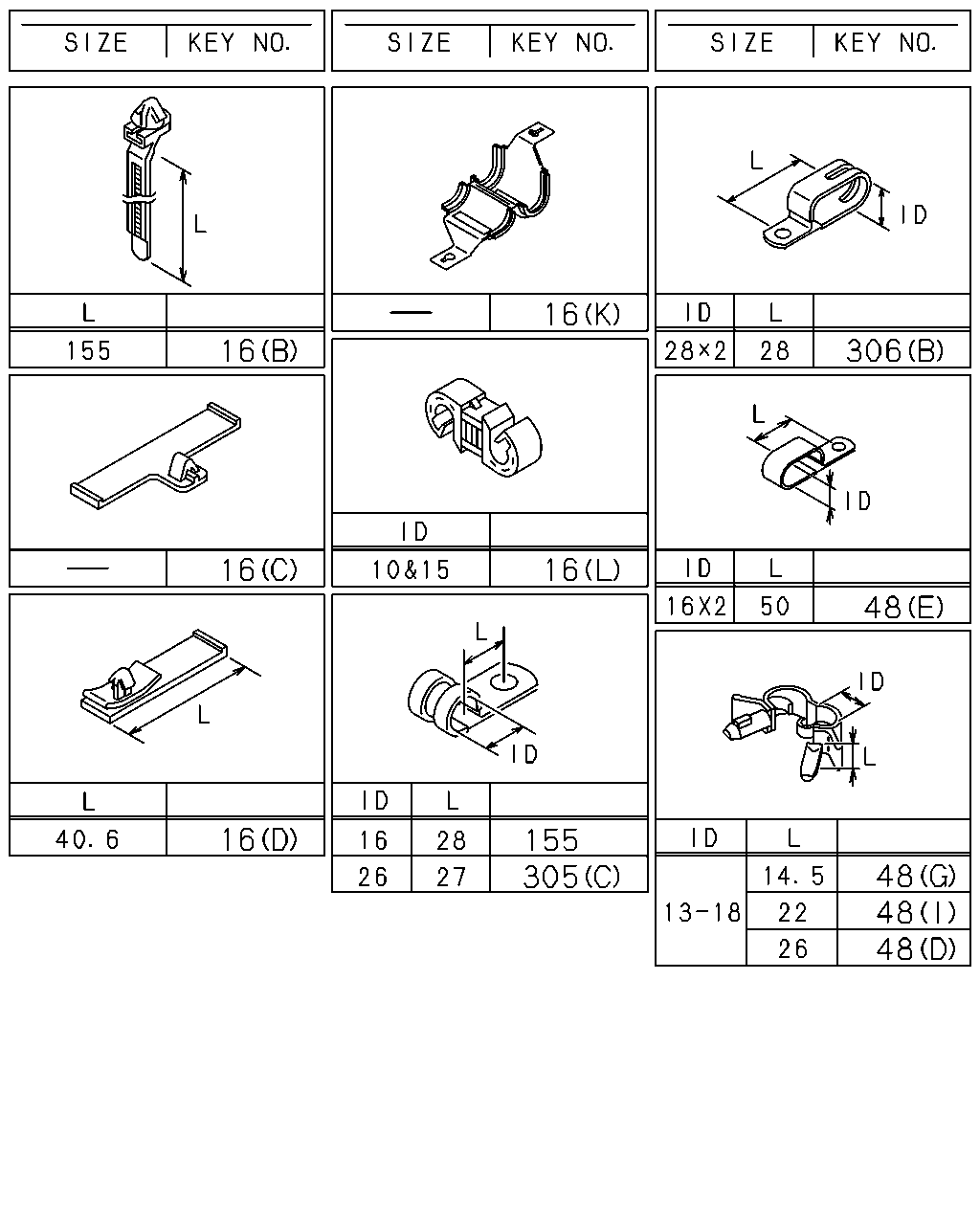

çizim 357574
16 16 16 16 16 155 305 306 48 48 48 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (O) ID=21 L=47.5 		8-94178-108-0 01 1 1403-
16 CLIP; HARNESS
(M) ID=16 L=28 		0-95235-556-0 02 1 1304-
16 CLIP; HARNESS
(E) ID=14 H=50 L=20 		1-09700-843-0 02 1 1304-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1304-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1304-
16 CLIP; HARNESS
(G) L=350 		1-09707-183-0 02 1 1304-
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 1304-1304
16 CLIP; HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1304-
16 CLIP; HARNESS
(L) ID=10 & 15 		1-09709-279-1 01 1 1304-1304
16 CLIP; HARNESS
(N) L=140 THA 		8-97920-656-0 01 1 1305-
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 01 1 1304-1304
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 03 1 1304-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1304-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1304-
16 CLIP; HARNESS
(D) L=40.6 THA 		8-97229-357-0 02 1 1304-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1304-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (J) ID=11 L=41 		1-09700-403-0 01 1 1304-
48 CLIP; FRAME HARNESS
(E) ID=16X2 L=50 		0-95325-586-0 01 1 1304-
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 06 1 1304-1304
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 04 1 1305-
48 CLIP; FRAME HARNESS
(J) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1304-
48 CLIP; FRAME HARNESS
(B) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1304-1304
48 CLIP; FRAME HARNESS
(H) ID=35 L=50 		1-09701-214-0 01 1 1304-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 01 1 1304-
48 CLIP; FRAME HARNESS
(G) ID=13-18 L=14.5 		1-09709-290-0 03 1 1304-
48 CLIP; FRAME HARNESS
(I) ID=13-18 L=22 		1-09709-292-0 01 1 1304-
48 CLIP; FRAME HARNESS
(D) ID=13-18 L=26 		1-09709-293-0 01 1 1304-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 1304-1304
48 CLIP; FRAME HARNESS
(F) L=140 THA 		8-97920-656-0 02 1 1304-
155 CLIP; STARTER EARTH CABLE
ID=16 L=28 		1-09700-872-0 01 1 1403-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1304-
305 CLIP; ENG HARNESS
(H) ID=16 L=40 		0-95235-576-0 01 1 1304-
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 01 1 1304-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
305 CLIP; ENG HARNESS
(F) ID=19 L=39 H=21 		1-09700-972-1 01 1 1304-
305 CLIP; ENG HARNESS
(C) ID=26 L=27 		1-09701-006-0 01 1 1304-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1304-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1304-
305 CLIP; ENG HARNESS
(G) ID=21 L=47.5 		8-94178-108-0 01 1 1304-1402
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1304-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1304-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1304-
çizim 357690
239 304 304 139 304 38 304 304 313 377 38 386 38 242 38 139 150 313 139 150 313 139 139 139 184 38 524 219 294 525 294 127
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE THA 		0-28050-816-0 02 1 1304-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1304-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 1304-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 1304-
38 BOLT; CLIP,HARNESS
(E) M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 1304-1304
38 BOLT; CLIP,HARNESS
(D) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1304-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1304-
139 BOLT; BRKT
(E) M8X12 FLANGE THA 		0-28050-812-0 01 1 1304-
139 BOLT; BRKT
(A) M8X25 FLANGE THA 		0-28650-825-0 01 1 1304-
139 BOLT; BRKT
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1304-
139 BOLT; BRKT
(D) M8X35 FLANGE THA 		0-28650-835-0 01 1 1304-
139 BOLT; BRKT
(C) M10X25 FLANGE THA 		0-28651-025-0 02 1 1304-
139 BOLT; BRKT
(F) M10X35 FLANGE THA 		0-28651-035-0 01 1 1304-
150 BOLT; CLIP
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 1304-
150 BOLT; CLIP
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1304-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1403-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1304-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1304-
219 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 1304-1304
219 NUT
M8 FLANGE THA 		0-91180-108-0 02 1 1304-
239 BOLT; GRAND
M6X10 FLANGE THA 		0-28050-610-0 01 1 1403-
242 BOLT; BRKT,HARNESS
M8X20 FLANGE THA 		0-28650-820-0 01 1 1304-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1304-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1304-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1304-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1304-
294 NUT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1304-
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE THA 		0-28050-612-0 01 1 1304-
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE THA 		0-28050-810-0 01 1 1304-
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE THA 		0-28050-812-0 03 1 1304-
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE THA 		0-28050-816-0 03 1 1304-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE THA 		0-28050-820-0 02 1 1304-
313 BOLT; BRKT
(C) M8X45 FLANGE THA 		0-28050-845-0 02 1 1304-
313 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1304-
313 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 1304-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1304-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1304-
524 NUT; HARNESS
M6 FLANGE THA 		0-91180-106-0 04 1 1304-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1304-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 03 1 1304-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
