8-10 — WIRING HARNESS AND FUSE
(#121356) — 70 parça
◀
[810A] OTHER HARNESS NO.1 (9 parça)
[810A] OTHER HARNESS NO.2 (8 parça)
[810A] CAB HARNESS (23 parça)
[810A] MISSION HARNESS (4 parça)
[810A] RELAY;CAB HARNESS (2 parça)
[810A] ENGINE HARNESS (7 parça)
[810A] AIR TANK HARNESS (2 parça)
[810A] FRAME HARNESS (15 parça)
▶

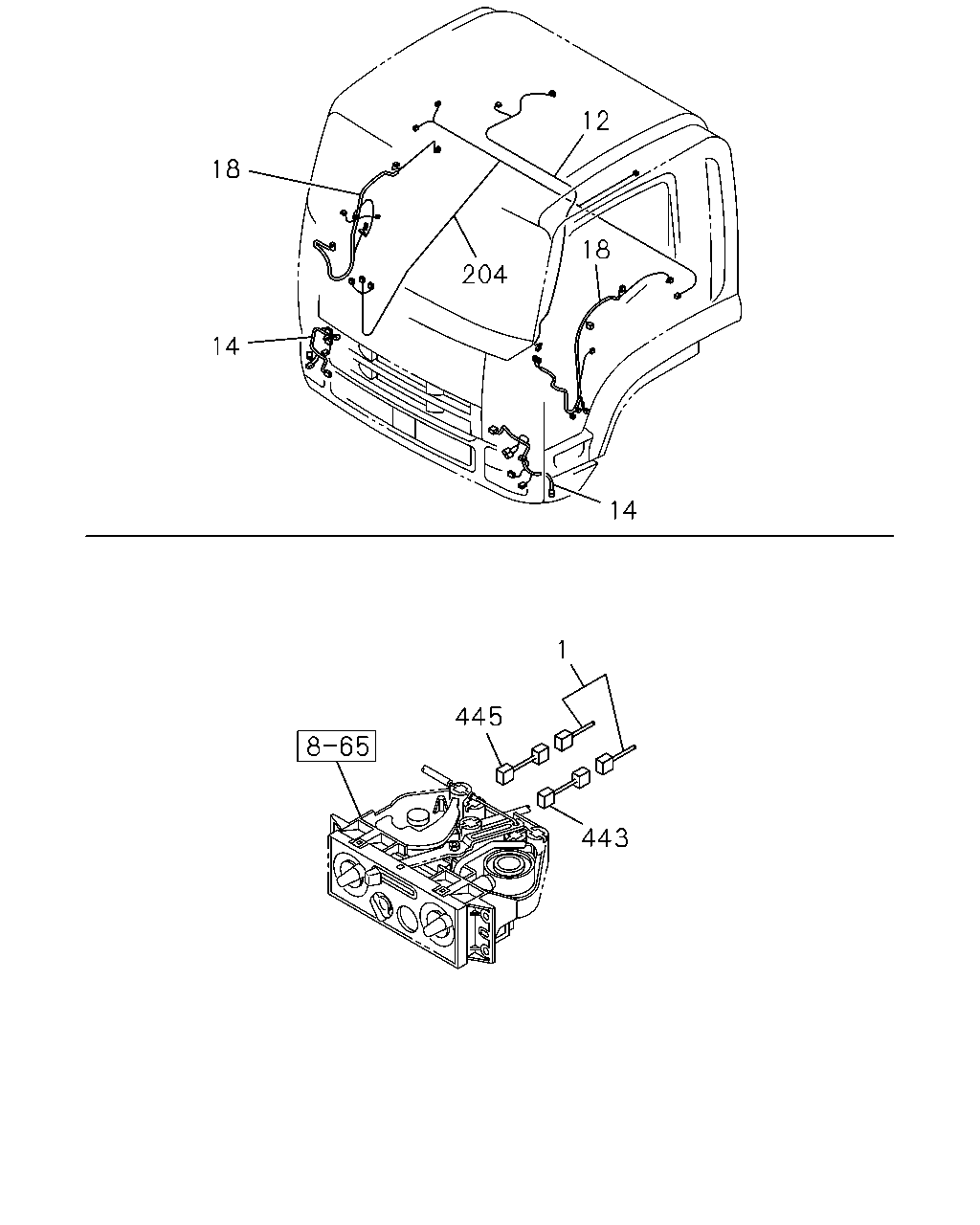

18
14
14
1
445
443
204
18
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-97926-455-0
01
1
1304-
12
HARNESS; ROOF
THA
8-97924-274-0
01
1
1304-
14
HARNESS; HEADLAMP
8-98069-166-0
02
1
1304-1306
14
HARNESS; HEADLAMP
THA
8-94270-986-0
02
1
1307-
18
HARNESS; DOOR
PASSENGER THA
8-98076-305-3
01
1
1304-
18
HARNESS; DOOR
DRIVER THA
8-98076-304-3
01
1
1304-
204
HARNESS; CABLE,FLOOR
THA
8-98081-207-2
01
1
1304-
443
HARNESS; EXT,A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-97926-582-0
01
1
1304-
445
HARNESS; EXT,BLOWER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-97926-581-0
01
1
1304-

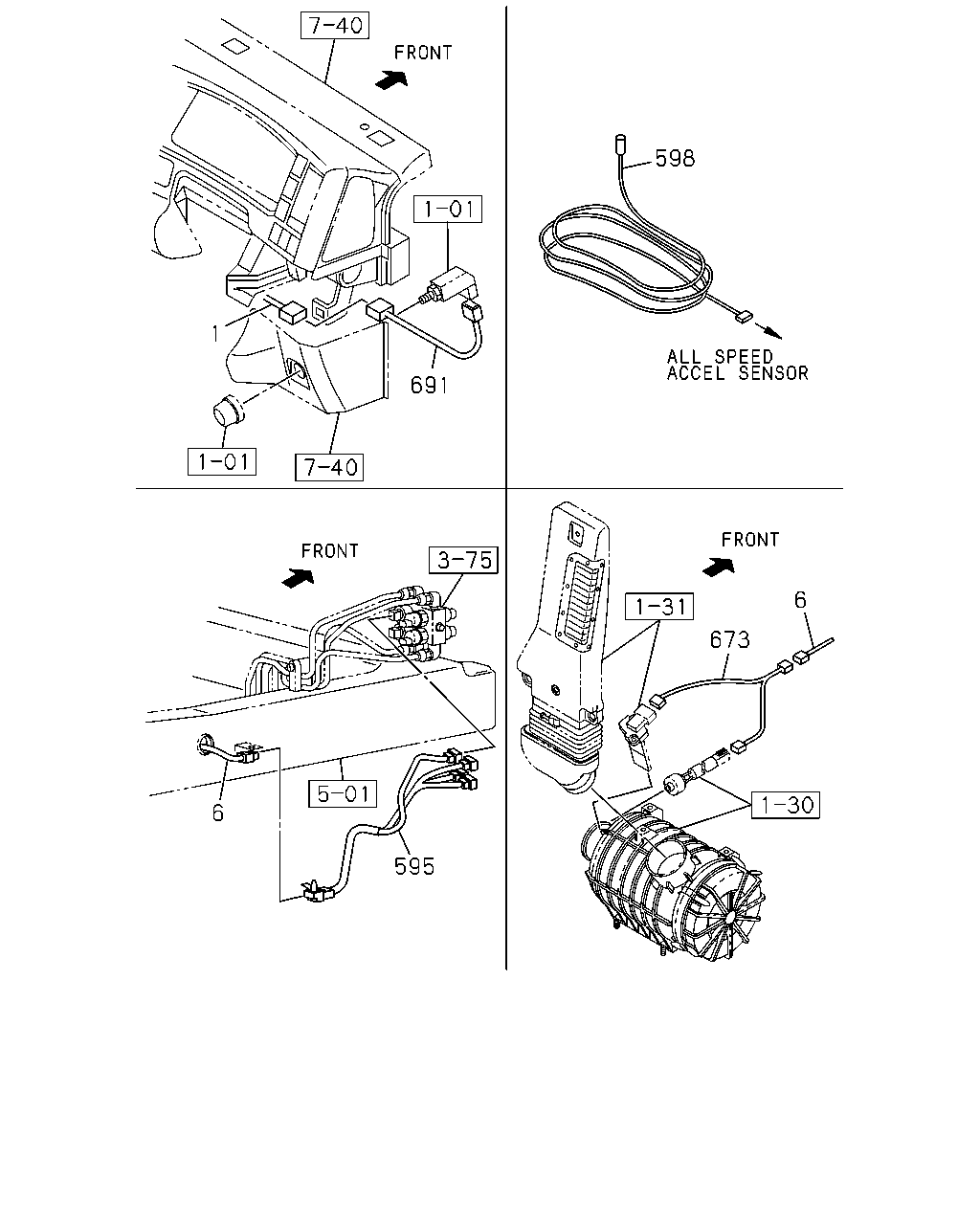

6
595
691
1
598
673
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-97926-455-0
01
1
1304-
6
HARNESS; FRAME
THA
8-97926-419-0
01
1
1304-
595
HARNESS; WARNING,BRK
THA
8-97924-875-0
01
1
1304-
598
HARNESS; EXT,PTO
PTO CONTROL<SV6>
1-82675-898-0
01
1
1304-
673
HARNESS; EXT,SENSOR
8-98069-172-0
01
1
1304-1306
673
HARNESS; EXT,SENSOR
THA
8-97948-234-0
01
1
1307-
691
HARNESS; IDLE CONT
8-98049-014-2
01
1
1304-1306
691
HARNESS; IDLE CONT
THA
8-97948-238-0
01
1
1307-

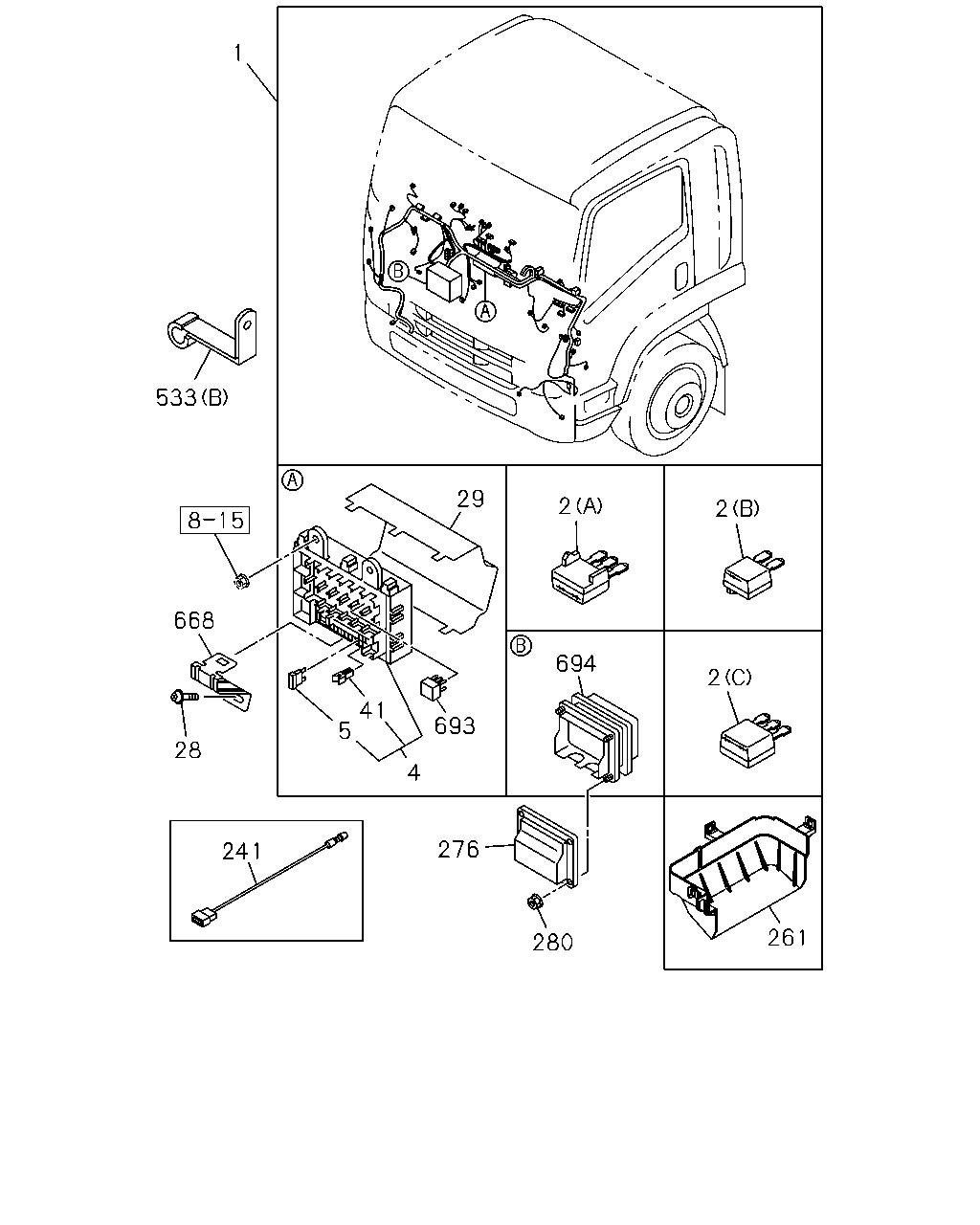

1
29
2
2
2
694
261
280
276
241
4
28
668
5
41
533
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-97926-455-0
01
1
1304-
2
DIODE; CABLE HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) BLACK 3P-1.5A THA
8-94416-438-1
01
1
1304-
2
DIODE; CABLE HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) BLACK 2P-1.5A THA
8-94422-639-1
03
1
1304-
2
DIODE; CABLE HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) BLACK 3P-1.5A THA
8-94422-640-1
01
1
1304-
4
BOX ASM; FUSE,HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98065-666-0
01
1
1304-
5
FUSE; FACIA HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 10A RED THA
8-98054-257-0
AR
1
1304-
5
FUSE; FACIA HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 15A BLUE THA
8-98054-258-0
AR
1
1304-
5
FUSE; FACIA HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 20A YELLOW THA
8-98054-259-0
AR
1
1304-
5
FUSE; FACIA HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 25A WHITE THA
8-98062-982-0
02
1
1304-
28
SCREW; FUSE BOX
M6X16 FLANGE THA
0-28650-616-0
01
1
1304-
29
COVER; FUSE BOX
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98056-968-0
01
1
1304-
41
PULLER; FUSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98054-260-0
01
1
1304-
241
HARNESS; MARKER LAMP
THA
8-97924-671-0
01
1
1304-
261
COVER; CONNECTOR BOX
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98065-986-1
01
1
1304-
276
COVER; BOX,FRAME HARNESS
8-98034-039-1
01
1
1304-
280
NUT; BOX ASM FIX
M6 FLANGE THA
0-91180-106-0
04
1
1304-
533
CLIP
(A) L=180
1-09707-162-1
01
1
1304-
533
CLIP
POOR QUALITY DIESEL FUEL<KF0> (A) L=250
5-09707-030-1
01
1
1304-
533
CLIP
REAR BODY MAKER<XN4> (B) ID=11 H=34 L=27
1-09701-023-0
03
1
1304-1307
533
CLIP
REAR BODY MAKER<XN4> (A) L=170.3 THA
1-09987-182-0
01
1
1308-
668
BRACKET; HARNESS
8-98095-653-2
01
1
1304-
693
RELAY; FUSE BOX
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 24V 10A MATSUSHITA
8-97173-035-1
AR
1
1304-
694
BOX ASM; CONNECTOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98057-771-0
01
1
1304-

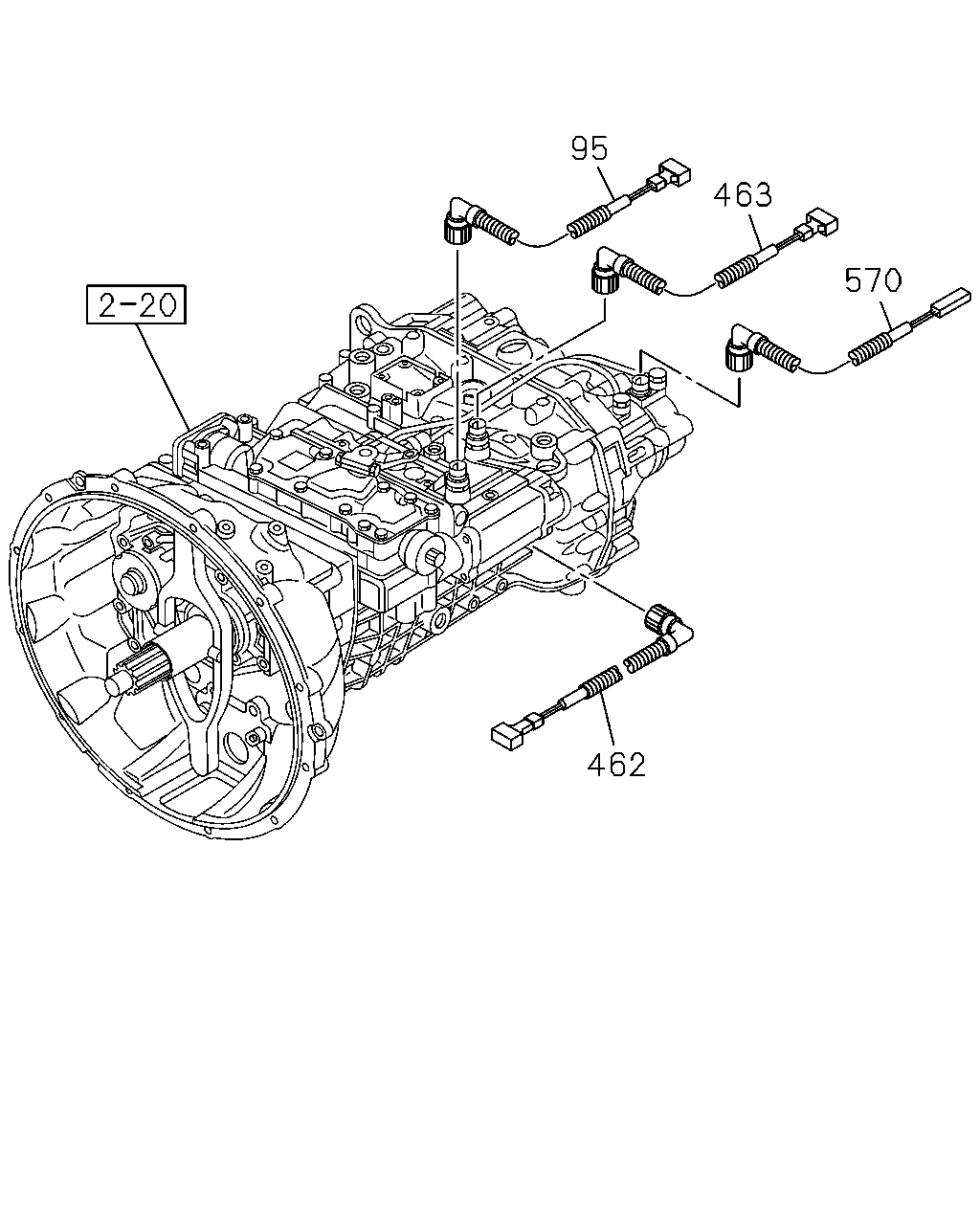

570
463
95
462
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
95
HARNESS; NEUTRAL SW
RED
8-98145-855-0
01
1
1304-
462
HARNESS; SW,RANGE
BLUE
8-98145-857-0
01
1
1304-
463
HARNESS; SW,BACK UP
BLACK
8-98145-856-0
01
1
1304-
570
HARNESS; SPEED SENSOR
8-98148-602-0
01
1
1304-

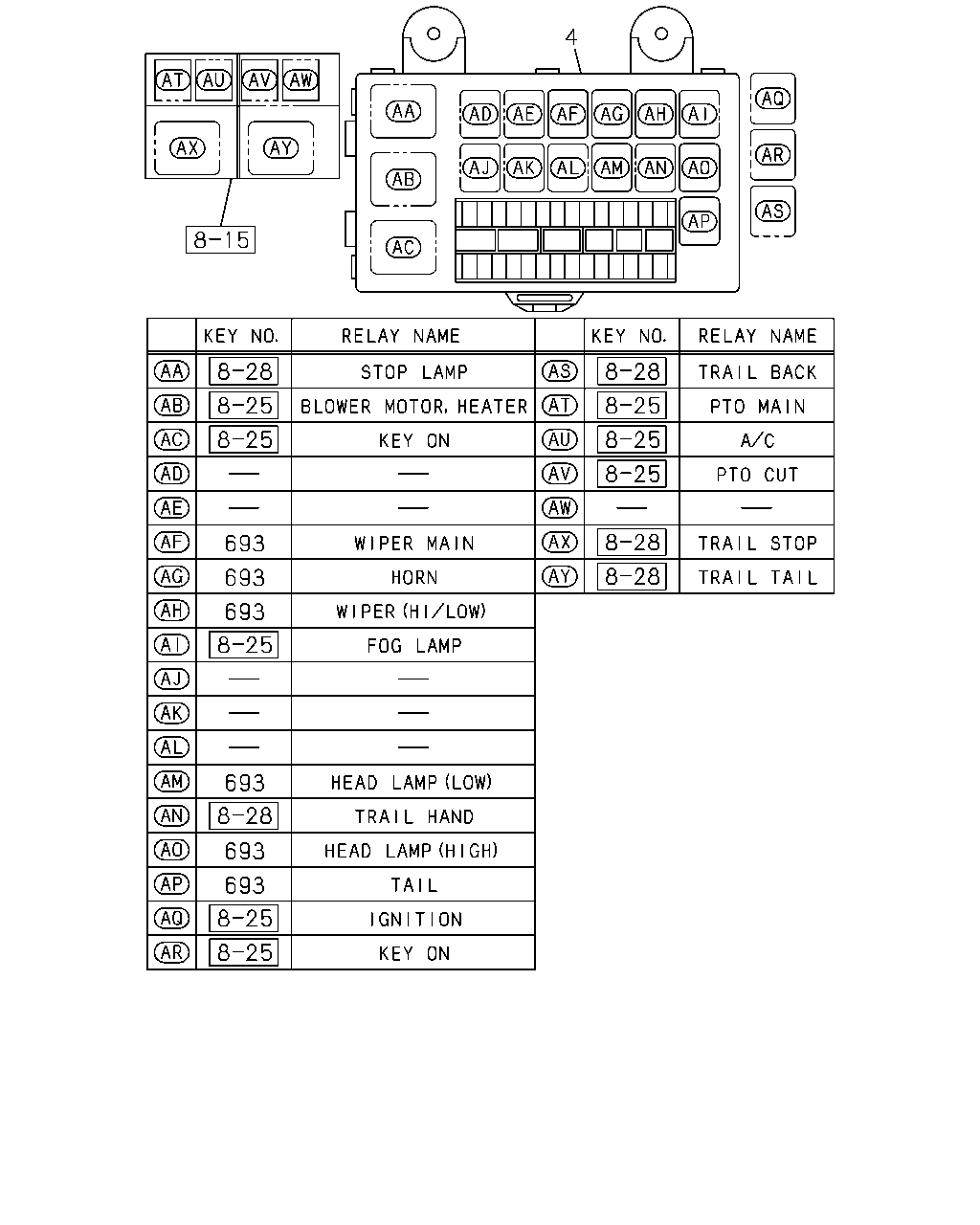

693
693
693
693
693
693
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98065-666-0
01
1
1304-
693
RELAY; FUSE BOX
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 24V 10A MATSUSHITA
8-97173-035-1
AR
1
1304-

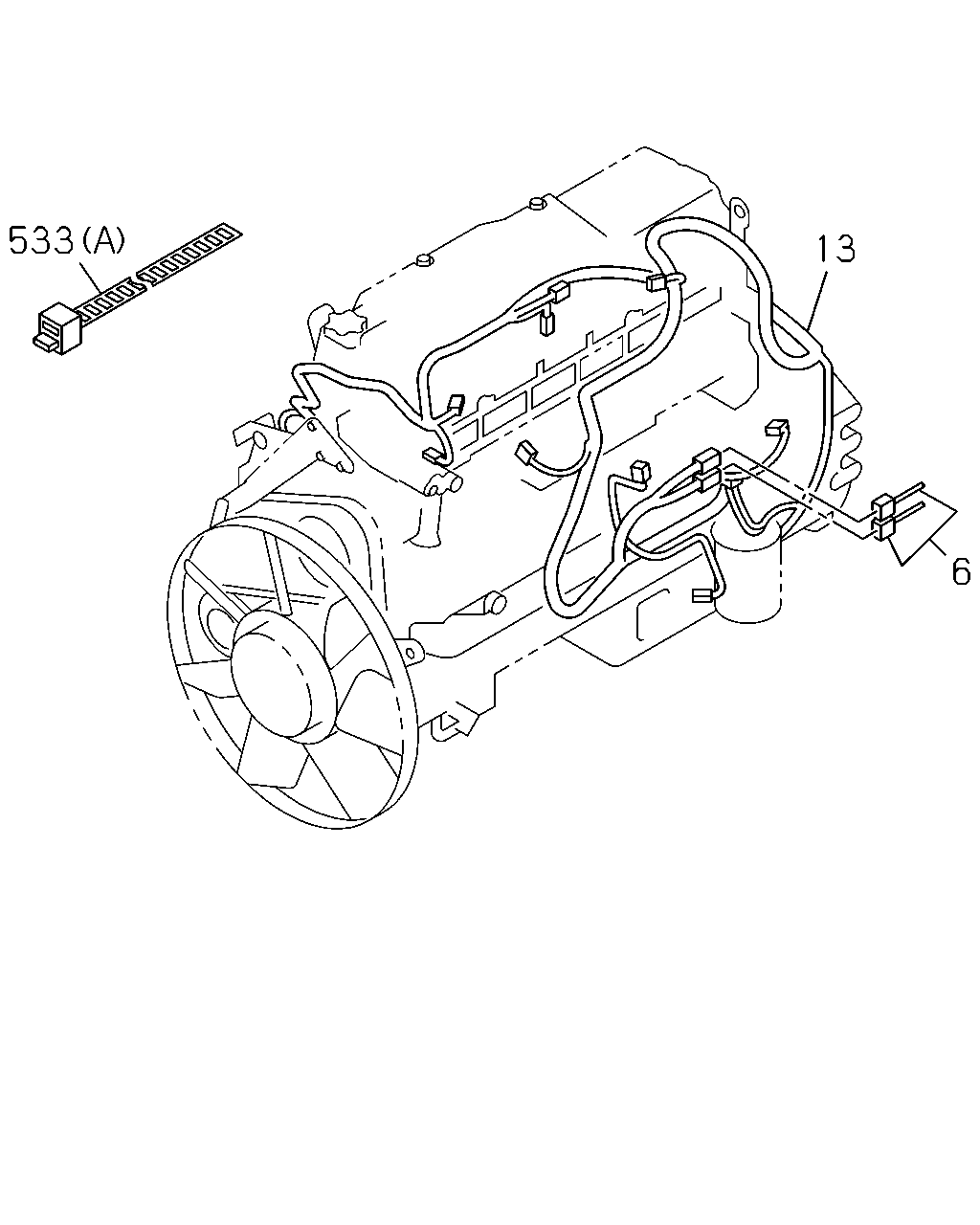

13
6
533
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
THA
8-97926-419-0
01
1
1304-
13
HARNESS; ENG
GENERATOR 24V50A<K89>
8-98171-593-0
01
1
1304-
13
HARNESS; ENG
GENERATOR 24V60A<KG2>
8-98171-594-0
01
1
1304-
533
CLIP
(A) L=180
1-09707-162-1
01
1
1304-
533
CLIP
POOR QUALITY DIESEL FUEL<KF0> (A) L=250
5-09707-030-1
01
1
1304-
533
CLIP
REAR BODY MAKER<XN4> (B) ID=11 H=34 L=27
1-09701-023-0
03
1
1304-1307
533
CLIP
REAR BODY MAKER<XN4> (A) L=170.3 THA
1-09987-182-0
01
1
1308-

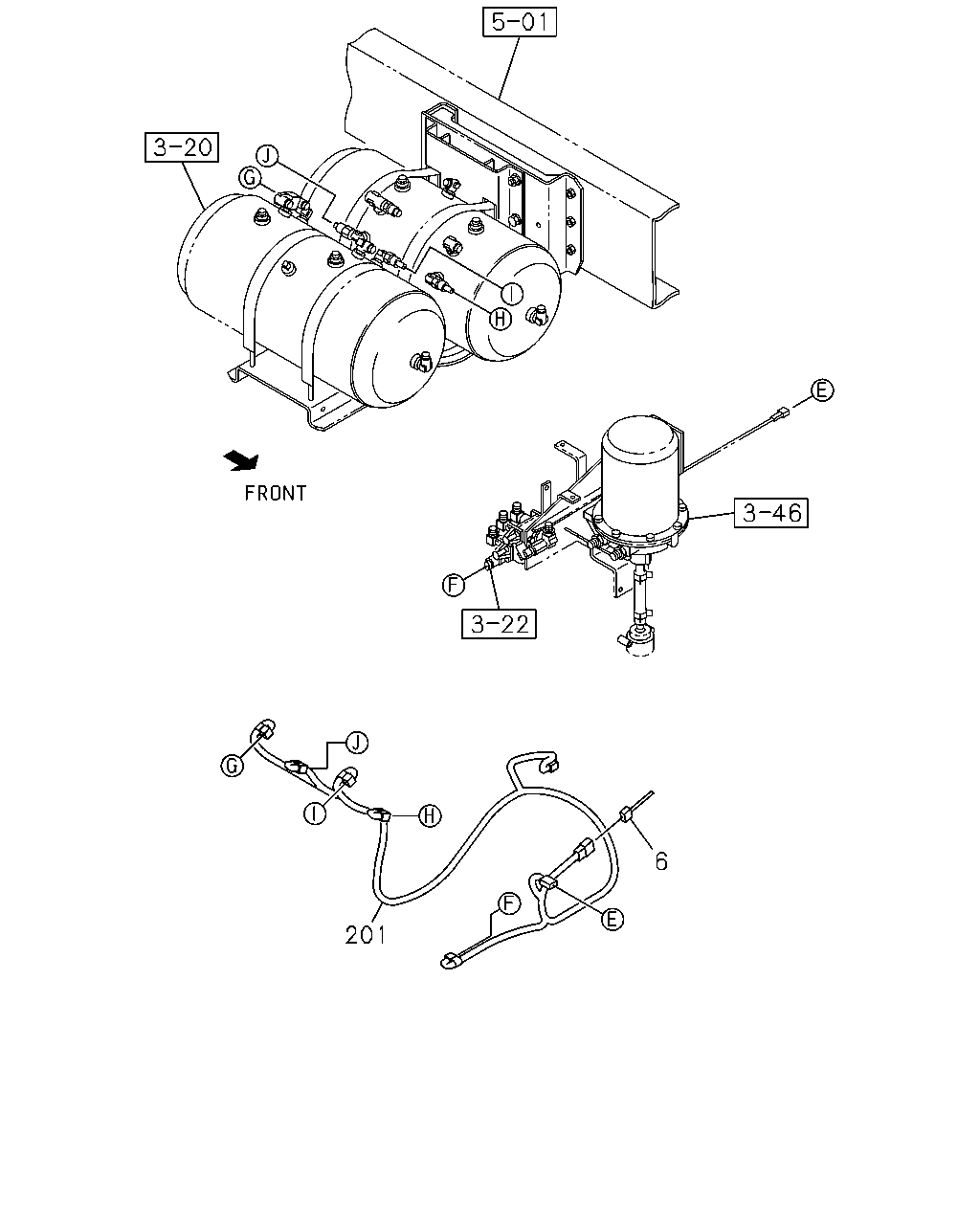

201
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
THA
8-97926-419-0
01
1
1304-
201
HARNESS; AIR TANK
THA
8-98184-703-0
01
1
1304-

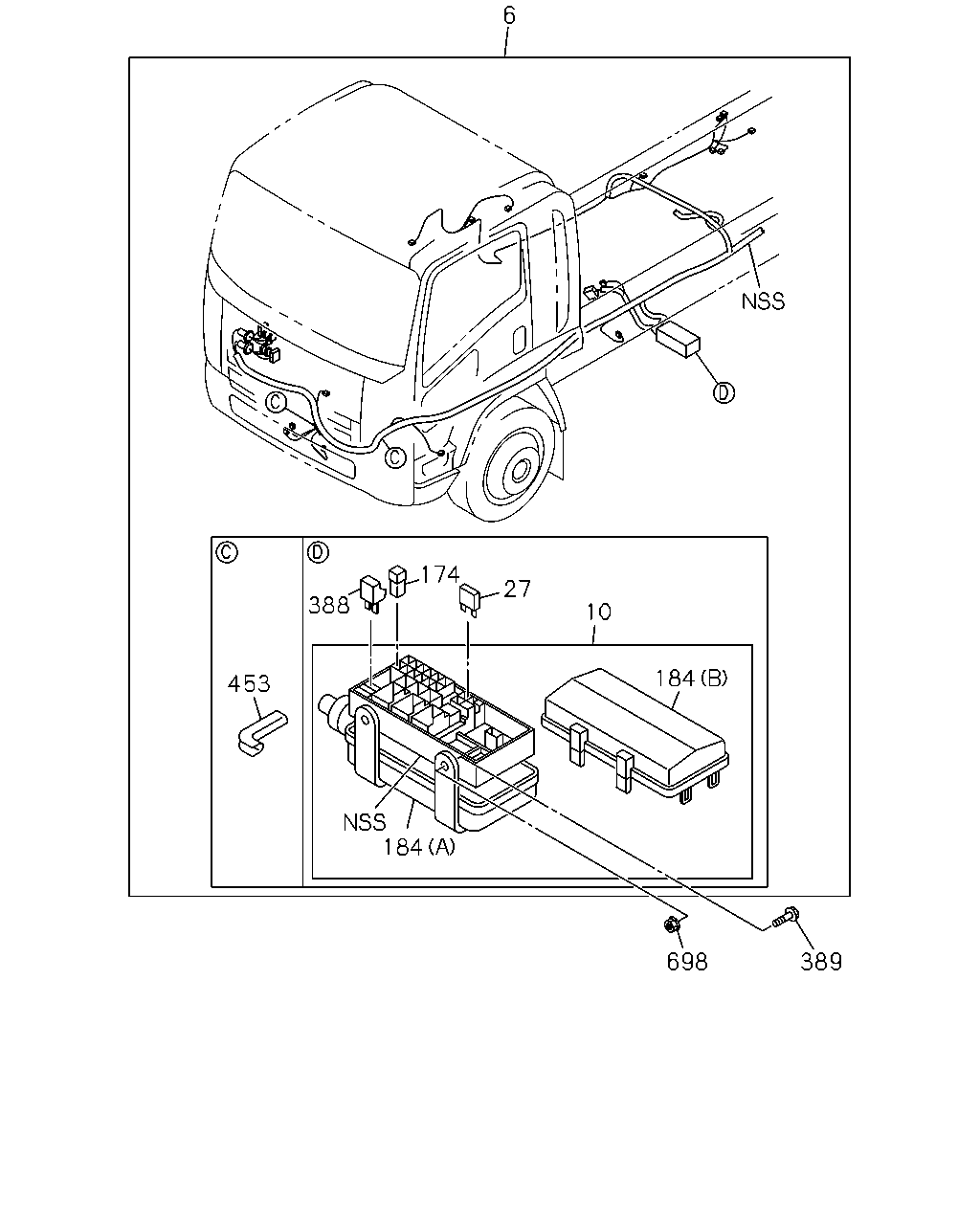

6
27
174
10
184
388
453
184
698
389
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
THA
8-97926-419-0
01
1
1304-
10
BOX; FUSE,HARNESS
THA
8-98030-762-0
01
1
1304-
27
FUSE UNIT
10A RED THA
8-98054-257-0
01
1
1304-
27
FUSE UNIT
15A BLUE THA
8-98054-258-0
02
1
1304-
174
FUSE; SLOW BLOW
60A YELLOW THA
8-97219-407-0
01
1
1304-
174
FUSE; SLOW BLOW
30A PINK THA
8-98079-191-0
01
1
1304-
174
FUSE; SLOW BLOW
40A GREEN THA
8-98079-192-0
01
1
1304-
174
FUSE; SLOW BLOW
50A RED THA
8-98079-193-0
03
1
1304-
174
FUSE; SLOW BLOW
60A YELLOW THA
8-97219-407-0
01
1
1304-
184
COVER; RELAY & FUSE BOX
(A) THA
8-98030-766-0
01
1
1304-
184
COVER; RELAY & FUSE BOX
(B) THA
8-98030-767-1
01
1
1304-
388
DIODE; RELAY BOX
BLACK 2P-1.5A THA
8-94422-639-1
01
1
1304-
389
BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER
1-09030-073-0
03
1
1304-
453
PROTECTOR; HARNESS
THA
1-82699-709-0
01
1
1304-
698
NUT; COVER,RELAY BOX
M8 FLANGE THA
0-91180-108-0
02
1
1304-
