Sayfa 2-20A - Isuzu EPC

2-20A — MANUAL TRANSMISSION ASM AND CASE (#12135) — 356 parça

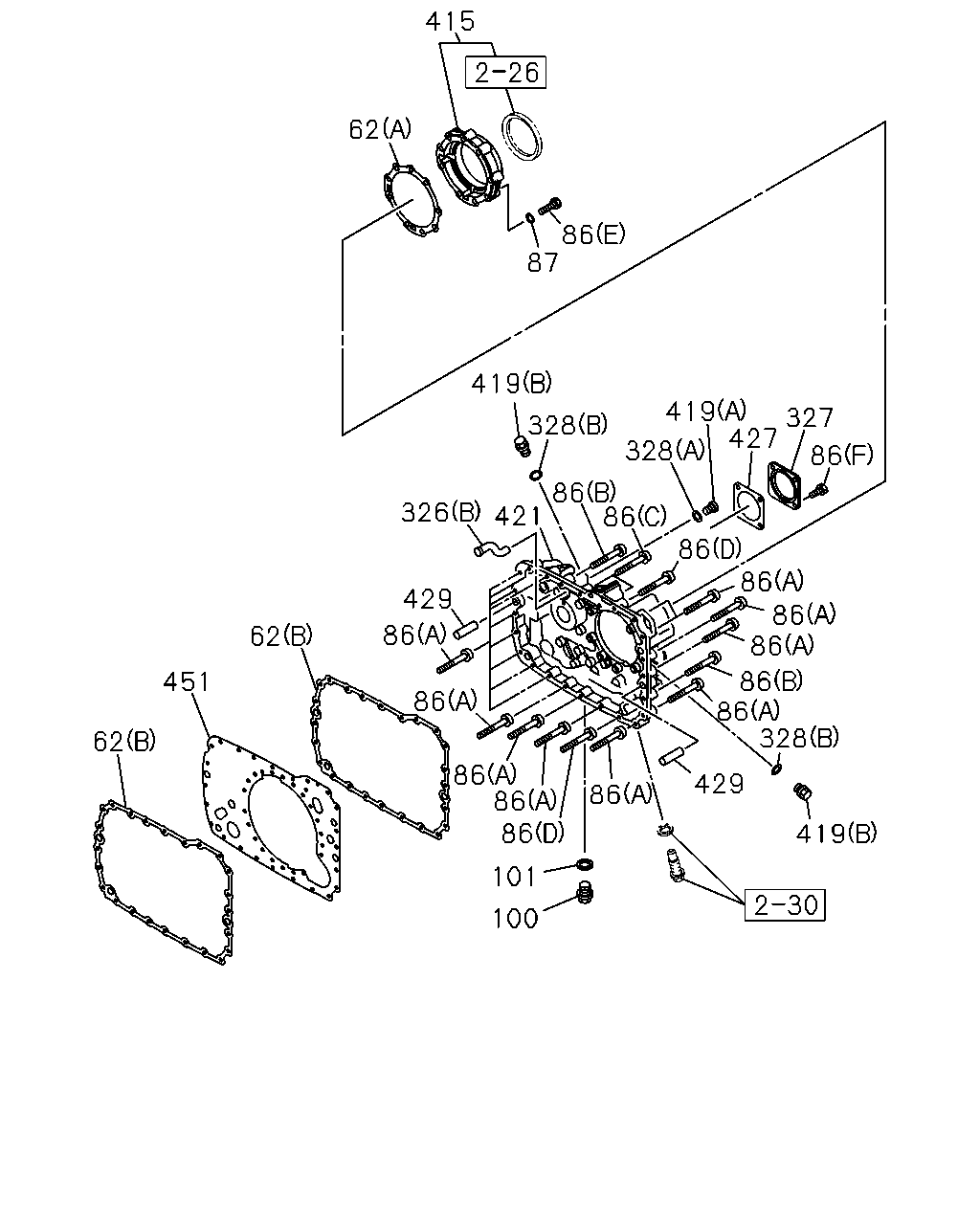

415 62 86 87 419 419 327 427 328 328 86 86 86 86 86 326 421 429 86 86 86 62 86 86 328 451 86 62 86 86 86 429 86 419 101 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28181-230-0	14	1	0312-0512	●
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28151-230-0	14	1	0601-	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	02	1	0312-	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	06	1	0107-		●
326	NOZZLE; OIL,OUTLET	1-33219-067-0	01	1	0107-0204		●
326	NOZZLE; OIL,OUTLET	1-33219-272-0	01	1	0205-		●
328	GASKET; PLUG	8-94244-656-0	01	1	0312-	●
328	GASKET; PLUG	1-34159-100-0	01	1	0107-		●
421	COVER; RR,TRANS	1-33131-201-1	01	1	0312-	●
421	COVER; RR,TRANS	1-33131-238-0	01	1	0107-		●
429	PIN; STRAIGHT (C) OD=10 L=18	9-08151-018-0	04	1	0312-	●
429	PIN; STRAIGHT (A) OD=10 L=18	9-08151-018-0	06	1	0107-		●
429	PIN; STRAIGHT (B) OD=12 L=32	9-08161-232-0	01	1	0107-		●

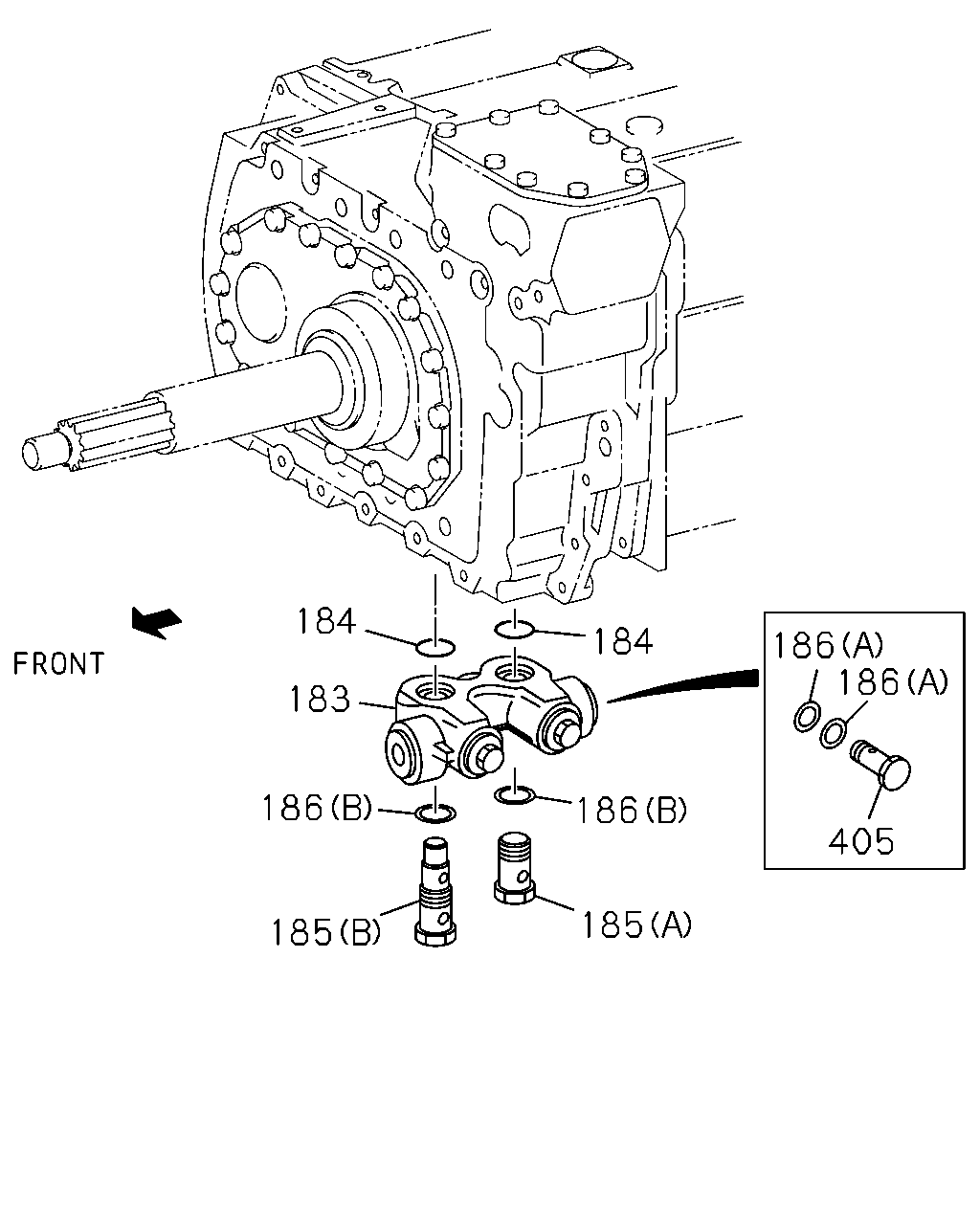

184 184 186 186 183 186 186 405 185 185

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	405	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	0312-	●

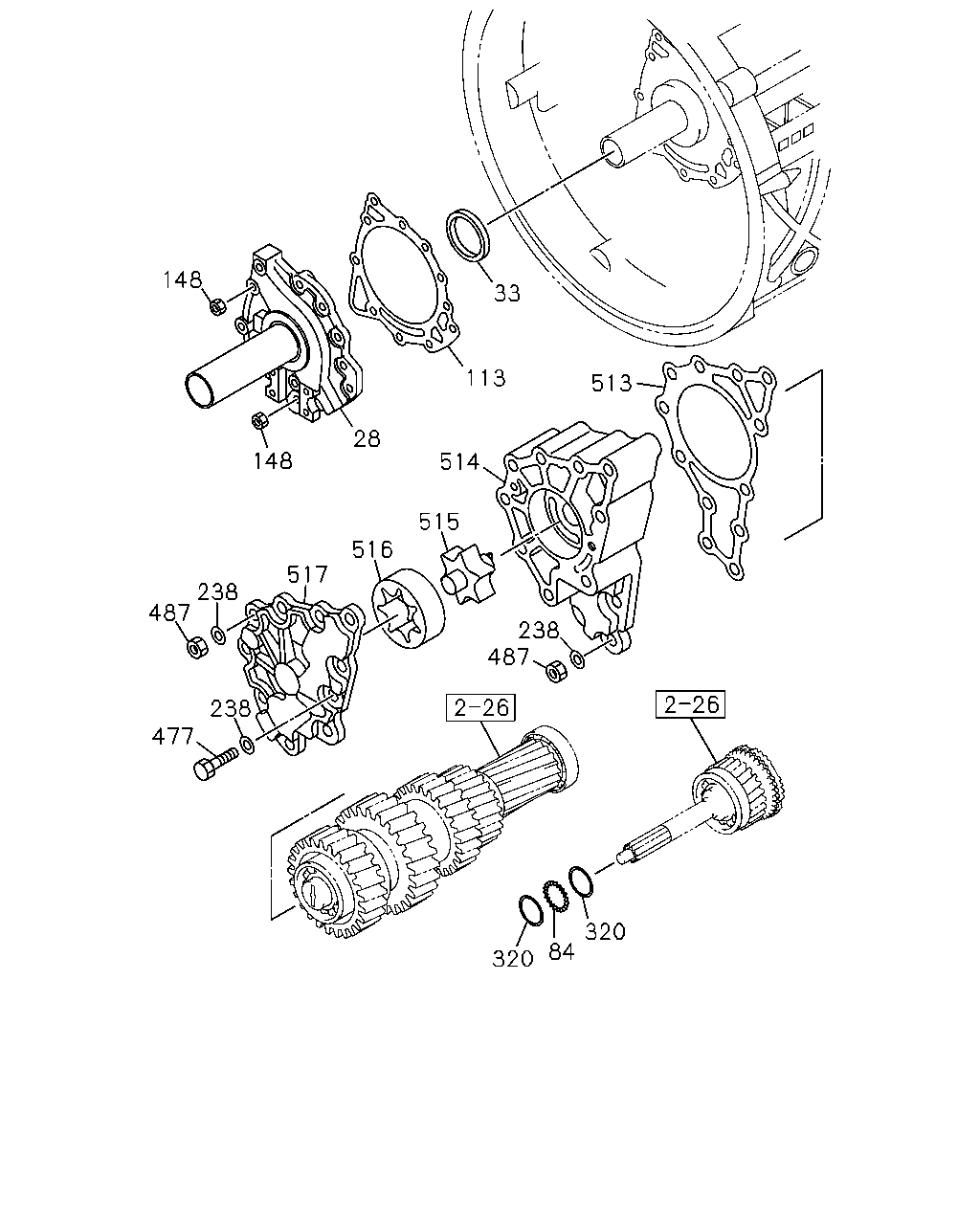

148 33 113 513 28 148 514 515 516 517 238 487 238 487 238 477 320 84 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	COVER; FRT,TRANS CASE	1-33121-161-1	01	1	0312-	●
28	COVER; FRT,TRANS CASE	1-33121-153-0	01	1	0107-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0312-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-624-0	01	1	0107-		●
477	BOLT; OIL PUMP M8X32 W/LK WASHER	9-01900-832-0	02	1	0107-1408		●

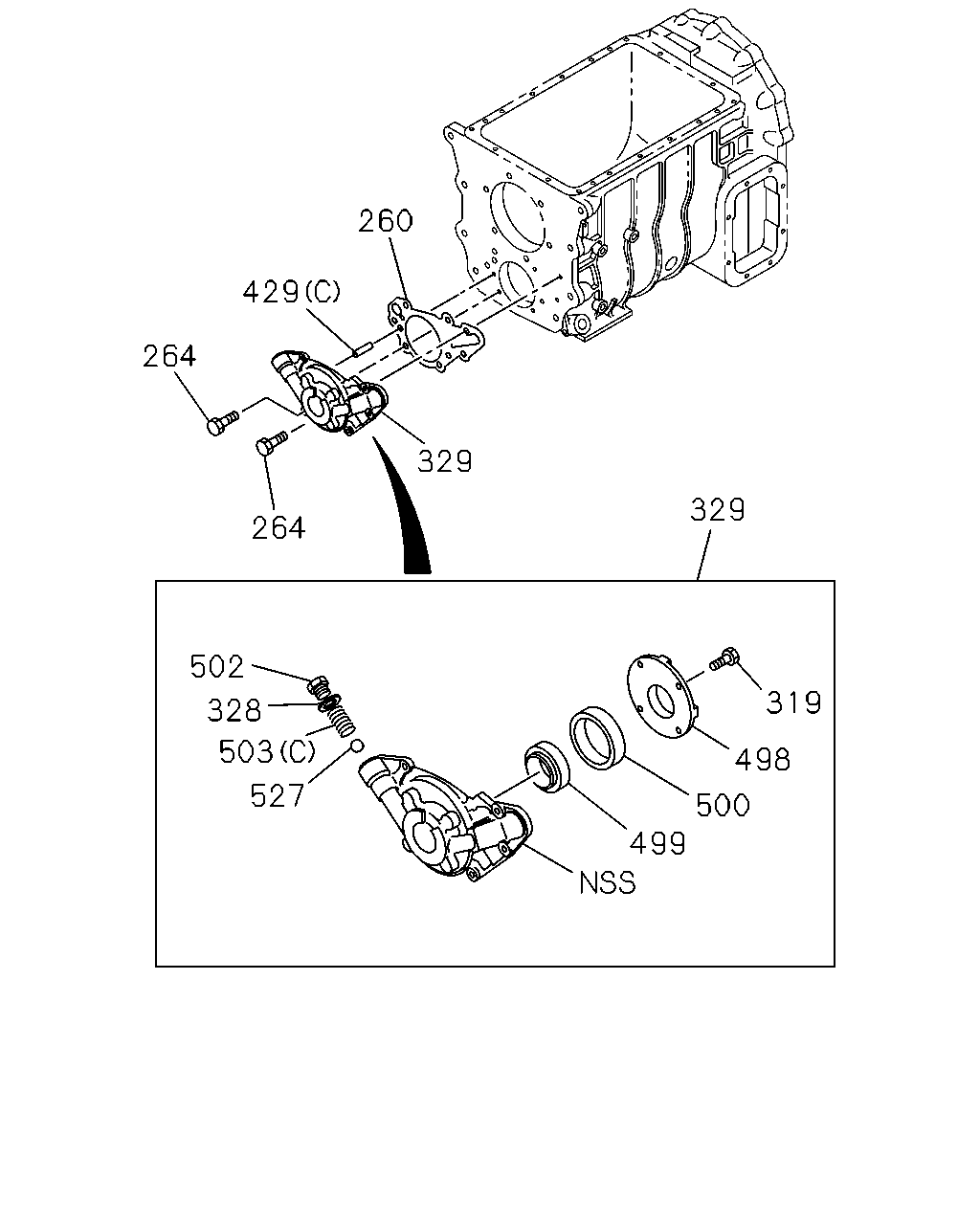

260 429 264 329 329 264 502 319 328 503 498 527 500 499

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
260	GASKET; OIL PUMP	1-34142-026-0	01	1	0312-	●
264	BOLT; OIL PUMP M10X30 FLANGE	0-28181-030-0	05	1	0312-0512	●
264	BOLT; OIL PUMP M10X30 FLANGE	0-28151-030-0	05	1	0601-	●
264	BOLT; OIL PUMP M10X40 FLANGE	0-28181-040-0	02	1	0312-0512	●
264	BOLT; OIL PUMP M10X40 FLANGE	0-28151-040-0	02	1	0601-1211	●
264	BOLT; OIL PUMP M10X40 FLANGE	8-98230-249-0	02	1	1212-	●
264	BOLT; OIL PUMP M8X50	0-10805-850-0	02	1	0107-0512		●
264	BOLT; OIL PUMP M8X50	0-10855-850-0	02	1	0601-		●
264	BOLT; OIL PUMP M8X65	0-10805-865-0	02	1	0107-		●
319	BOLT; COVER	1-34159-075-0	04	1	0312-	●
328	GASKET; PLUG	8-94244-656-0	01	1	0312-	●
328	GASKET; PLUG	1-34159-100-0	01	1	0107-		●
329	PUMP ASM; OIL	1-34150-098-0	01	1	0312-	●
329	PUMP ASM; OIL	1-34150-109-0	01	1	0107-0204		●
329	PUMP ASM; OIL	1-34150-117-0	01	1	0205-1408		●
329	PUMP ASM; OIL	8-98283-996-0	01	1	1409-		●
429	PIN; STRAIGHT (C) OD=10 L=18	9-08151-018-0	04	1	0312-	●
429	PIN; STRAIGHT (A) OD=10 L=18	9-08151-018-0	06	1	0107-		●
429	PIN; STRAIGHT (B) OD=12 L=32	9-08161-232-0	01	1	0107-		●
498	COVER; ROTER,OIL PUMP	1-34159-067-1	01	1	0312-	●
498	COVER; ROTER,OIL PUMP	1-34159-098-0	01	1	0107-0204		●
499	ROTOR; INNER,OIL PUMP	1-34159-053-0	01	1	0312-	●
500	ROTOR; OUTER,OIL PUMP	1-34159-054-0	01	1	0312-	●
502	PLUG; OIL PUMP	8-94244-655-0	01	1	0312-	●
502	PLUG; OIL PUMP	1-34159-101-0	01	1	0107-		●
503	SPRING; OIL PUMP (C)	5-09580-098-0	01	1	0312-	●
503	SPRING; OIL PUMP (A)	1-09580-504-0	01	1	0107-		●
503	SPRING; OIL PUMP (B)	1-34159-102-0	01	1	0107-		●
527	BALL; OIL PUMP	9-00097-531-0	01	1	0107-0311		●
527	BALL; OIL PUMP	9-00097-531-0	01	1	0312-	●	●

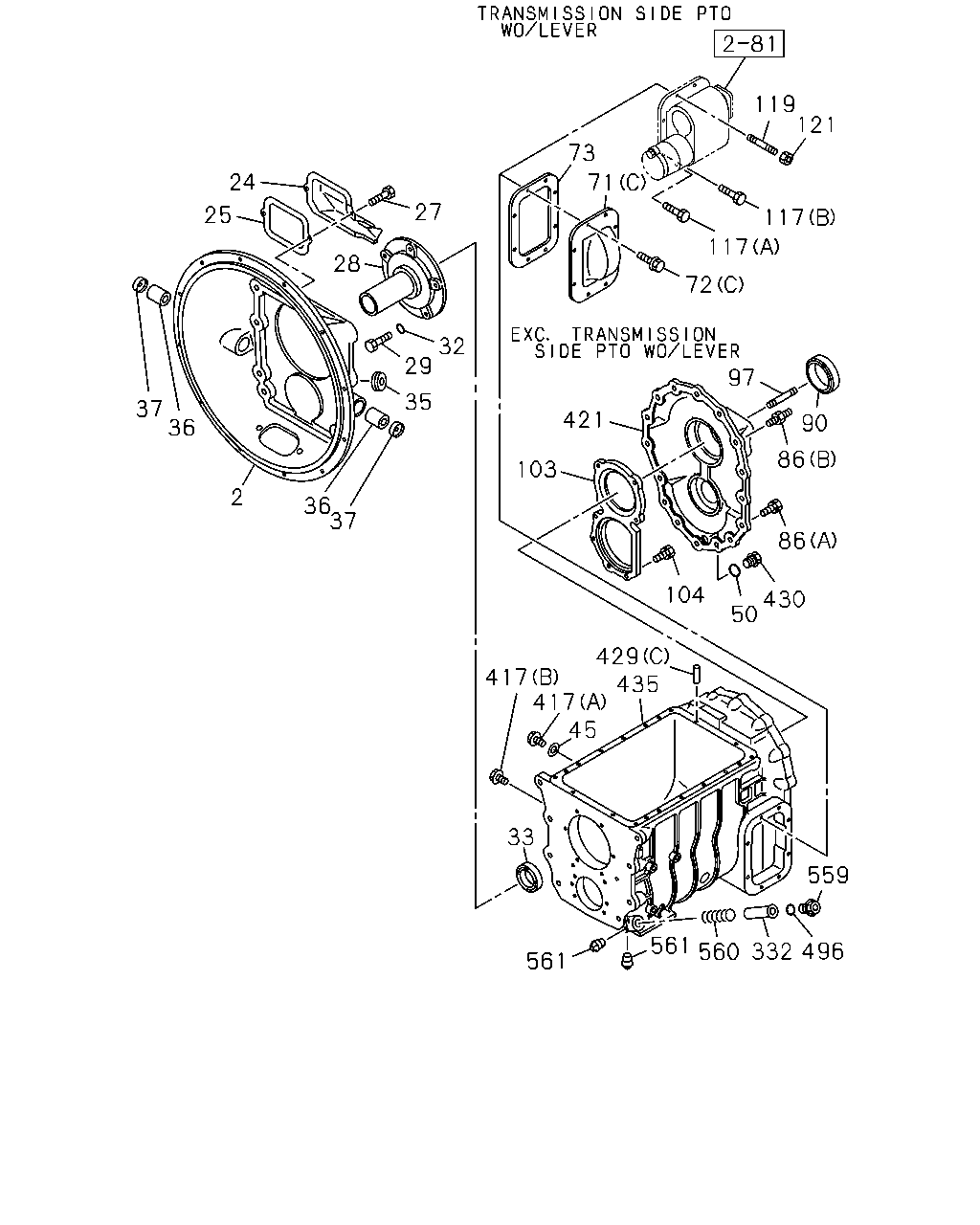

119 121 73 71 24 27 25 117 117 28 72 97 32 29 35 37 36 421 90 86 103 2 36 37 86 104 430 50 429 417 435 417 45 33 559 561 560 561 332 496

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; CLU	1-31111-203-0	01	1	0312-	●
2	HOUSING; CLU	1-31111-204-5	01	1	0107-0608		●
2	HOUSING; CLU	8-98052-280-0	01	1	0609-1003		●
2	HOUSING; CLU	8-98168-737-0	01	1	1004-		●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0107-0311		●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0312-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0107-0311		●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0312-1406	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0312-0512	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	04	1	0601-	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0107-0512		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0601-		●
28	COVER; FRT,TRANS CASE	1-33121-161-1	01	1	0312-	●
28	COVER; FRT,TRANS CASE	1-33121-153-0	01	1	0107-		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	06	1	0312-0805	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	06	1	0806-	●
29	BOLT; FRT COVER M10X40	0-28191-040-0	06	1	0107-0512		●
29	BOLT; FRT COVER M10X40 FLANGE	0-28161-040-0	06	1	0601-1211		●
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1212-		●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	06	1	0312-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0312-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-624-0	01	1	0107-		●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0107-0311		●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0312-	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0107-0311		●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0312-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0107-0311		●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0312-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0107-0311		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0312-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0312-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-33141-044-1	01	1	0312-	●
71	COVER; SIDE,TRANS CASE (A)	1-33141-060-0	01	1	0107-0212		●
71	COVER; SIDE,TRANS CASE (A)	1-33141-066-0	01	1	0301-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	1-33141-057-1	01	1	0107-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12X20 FLANGE	0-28181-220-0	08	1	0312-0512	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12X20 FLANGE	0-28151-220-0	08	1	0601-	●
72	BOLT; SIDE COVER (A) M10X35 FLANGE	0-28781-035-0	08	1	0107-0512		●
72	BOLT; SIDE COVER (A) M10X35 FLANGE	0-28751-035-0	08	1	0601-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M12X30 FLANGE	1-09044-086-0	08	1	0107-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-041-0	01	1	0312-	●
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28181-230-0	14	1	0312-0512	●
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28151-230-0	14	1	0601-	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	02	1	0312-	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	06	1	0107-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	0312-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-625-0	01	1	0107-		●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0312-	●
103	RETAINER; BRG	1-33151-059-0	01	1	0312-	●
103	RETAINER; BRG	1-33151-058-1	01	1	0107-0204		●
103	RETAINER; BRG	1-33151-063-0	01	1	0205-0910		●
103	RETAINER; BRG	1-33151-061-0	01	1	0911-		●
104	BOLT; BRG RET M10X30 FLANGE	0-28181-030-0	01	1	0312-0512	●
104	BOLT; BRG RET M10X30 FLANGE	0-28151-030-0	01	1	0601-0605	●
104	BOLT; BRG RET M10X30 FLANGE	0-28151-030-0	08	1	0606-	●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	07	1	0312-0605	●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	0107-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12X25 FLANGE	0-28181-225-0	02	1	0312-0512	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12X25 FLANGE	0-28151-225-0	02	1	0601-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X120 FLANGE	0-28186-212-0	02	1	0312-0512	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X120 FLANGE	0-28156-212-0	02	1	0601-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) M12X35 FLANGE	0-28781-235-0	04	1	0107-0512		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) M12X35 FLANGE	0-28751-235-0	04	1	0601-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	9-94411-225-0	04	1	0312-0604	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	0-44011-225-0	04	1	0605-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X25 L=43	9-94411-225-0	04	1	0107-0110		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48	9-94411-230-0	04	1	0111-0604		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48	0-44011-230-0	04	1	0605-0609		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48	8-98059-951-0	04	1	0610-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 FLANGE	0-91150-212-0	04	1	0107-0311		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 FLANGE	0-91150-212-0	04	1	0312-0602		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91150-212-0	04	1	0312-0602	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 FLANGE	0-91180-212-0	04	1	0603-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91180-212-0	04	1	0603-	●
332	FILTER; OIL	1-41383-003-0	01	1	0312-	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0107-0311		●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0312-	●	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	0107-0201		●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0202-0311		●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0312-	●	●
421	COVER; RR,TRANS	1-33131-201-1	01	1	0312-	●
421	COVER; RR,TRANS	1-33131-238-0	01	1	0107-		●
429	PIN; STRAIGHT (C) OD=10 L=18	9-08151-018-0	04	1	0312-	●
429	PIN; STRAIGHT (A) OD=10 L=18	9-08151-018-0	06	1	0107-		●
429	PIN; STRAIGHT (B) OD=12 L=32	9-08161-232-0	01	1	0107-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0312-	●
435	CASE; TRANS	1-33111-321-0	01	1	0312-0510	●
435	CASE; TRANS	1-33111-356-0	01	1	0511-	●
435	CASE; TRANS	1-33111-319-6	01	1	0107-0409		●
435	CASE; TRANS	1-33111-352-1	01	1	0410-0412		●
435	CASE; TRANS	1-33111-361-1	01	1	0501-		●
496	GASKET; OIL FILTER ID=26.8	1-09623-058-0	01	1	0312-	●
559	PLUG; OIL M24X17 FLANGE	1-09604-023-0	01	1	0312-	●
560	SPRING; OIL	1-09580-504-0	01	1	0312-	●
561	PLUG PT1/4	9-99204-513-0	02	1	0312-	●

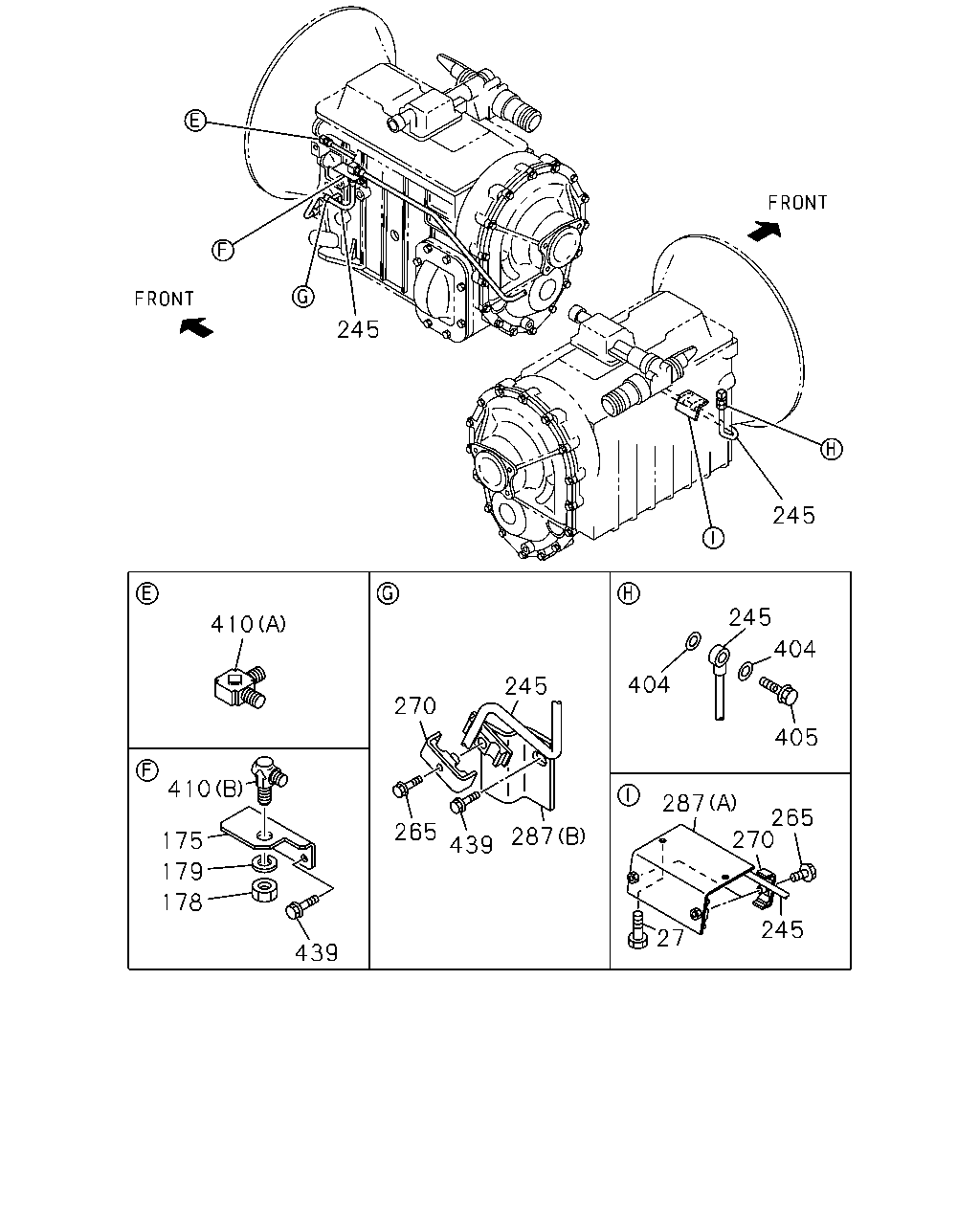

245 245 245 410 404 404 245 270 405 410 287 265 270 265 287 175 439 179 178 27 245 439

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0312-0512	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	04	1	0601-	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0107-0512		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0601-		●
175	BRACKET; UNION	1-46147-216-2	01	1	0312-	●
178	NUT; UNION M16	9-99111-516-0	01	1	0312-0512	●
178	NUT; UNION M16	0-91111-516-0	01	1	0601-	●
179	WASHER; LK,UNION ID=16.2	9-09150-516-0	01	1	0312-0603	●
179	WASHER; LK,UNION ID=16.2	0-91510-516-0	01	1	0604-	●
245	PIPE; OIL L=738	1-32571-147-0	01	1	0312-	●
265	BOLT; CLIP M6X35 FLANGE	0-28680-635-0	03	1	0312-0512	●
265	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	03	1	0601-	●
270	CLIP; OIL PIPE ID=9 & 9 L=25	1-09701-212-2	03	1	0312-	●
287	BRACKET; CLIP,OIL PIPE (A)	1-32579-014-1	01	1	0312-	●
287	BRACKET; CLIP,OIL PIPE (B)	1-32579-015-2	01	1	0312-	●
404	GASKET; OIL PIPE ID=14.2 OD=19.2	1-09630-085-0	02	1	0312-1312	●
404	GASKET; OIL PIPE ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
405	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	0312-	●
410	UNION; OIL PIPE (B)	1-09654-371-0	01	1	0312-	●
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	01	1	0312-	●
439	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	03	1	0312-0512	●
439	BOLT; BRKT M10X16 FLANGE	0-28151-016-0	03	1	0601-	●

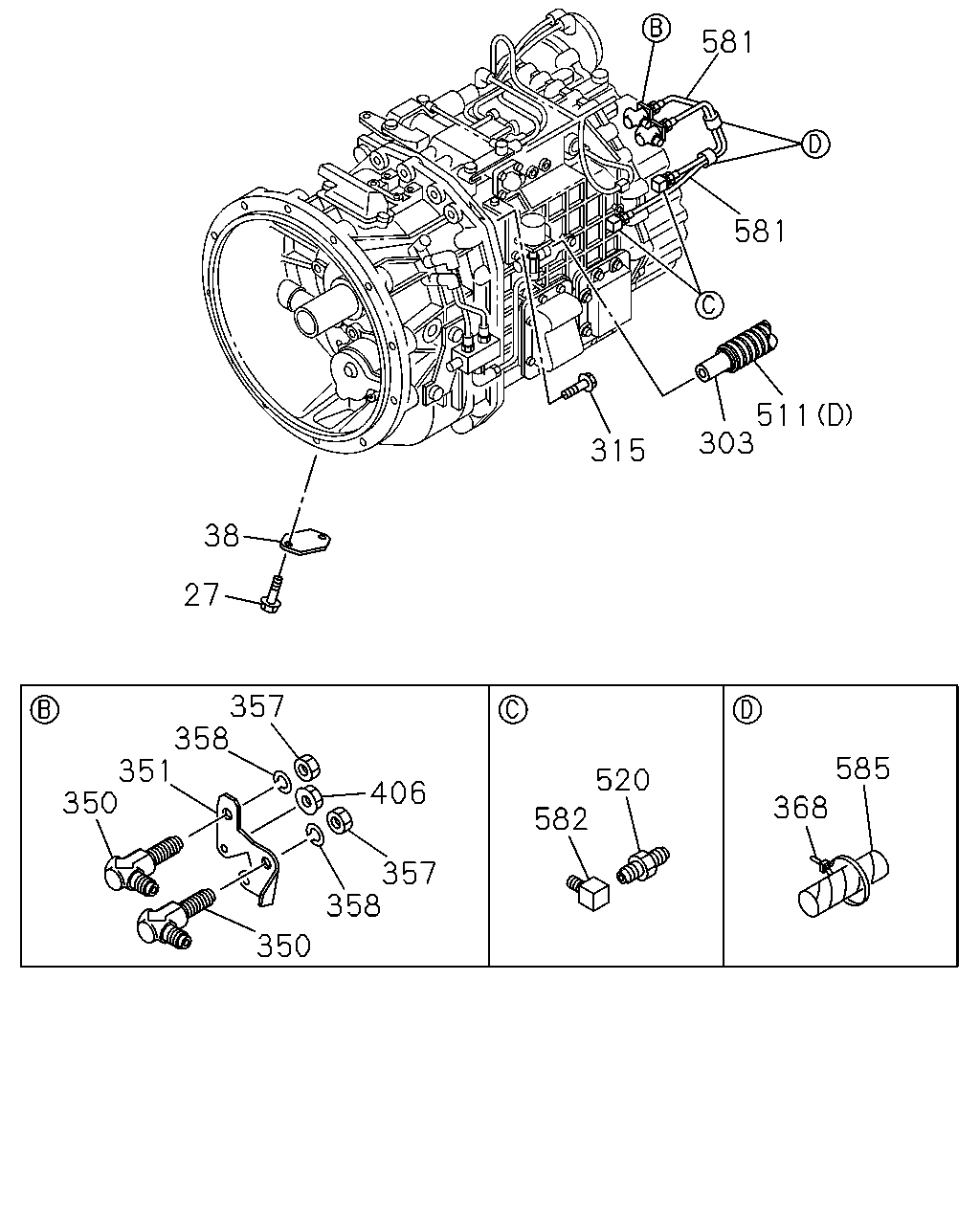

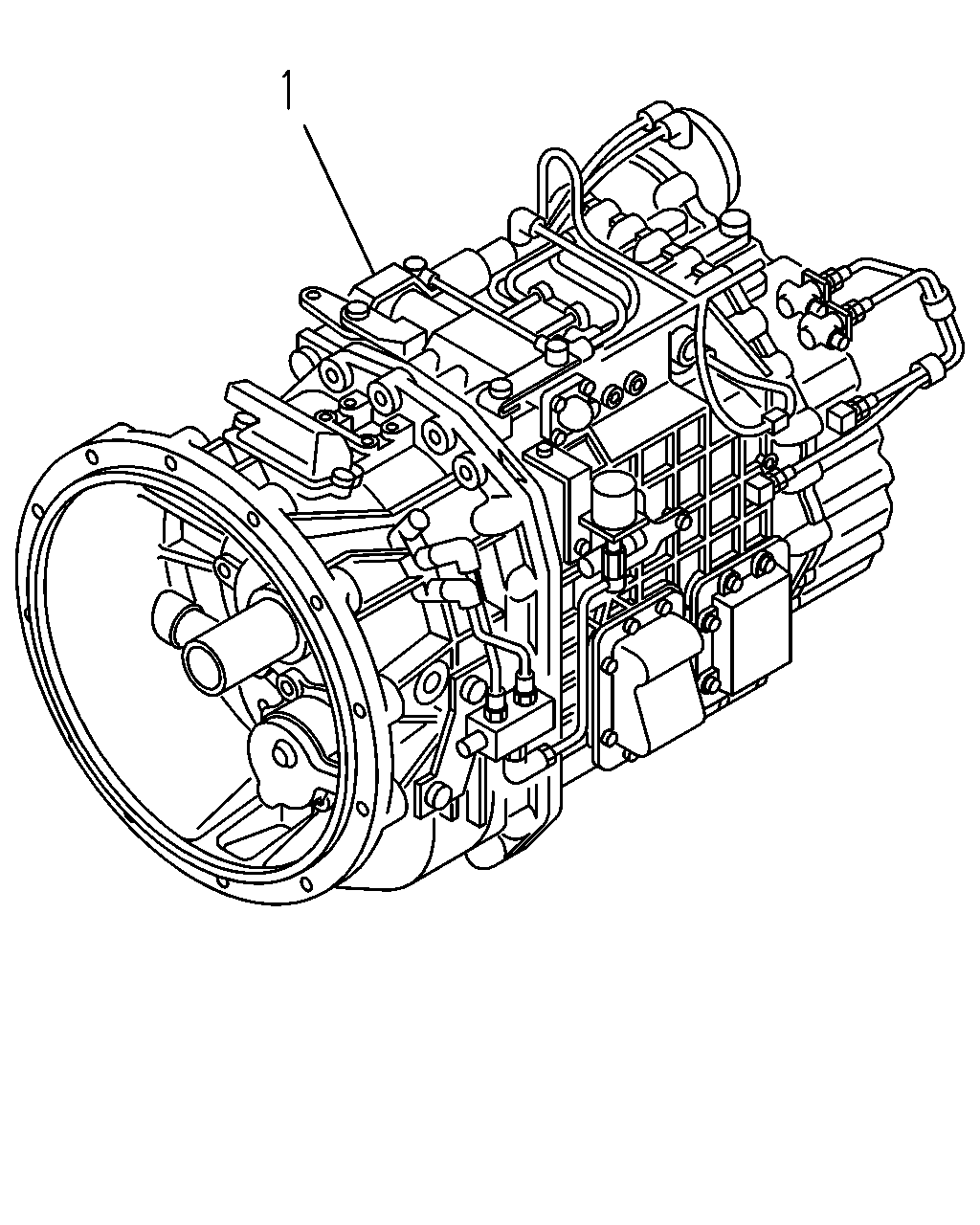

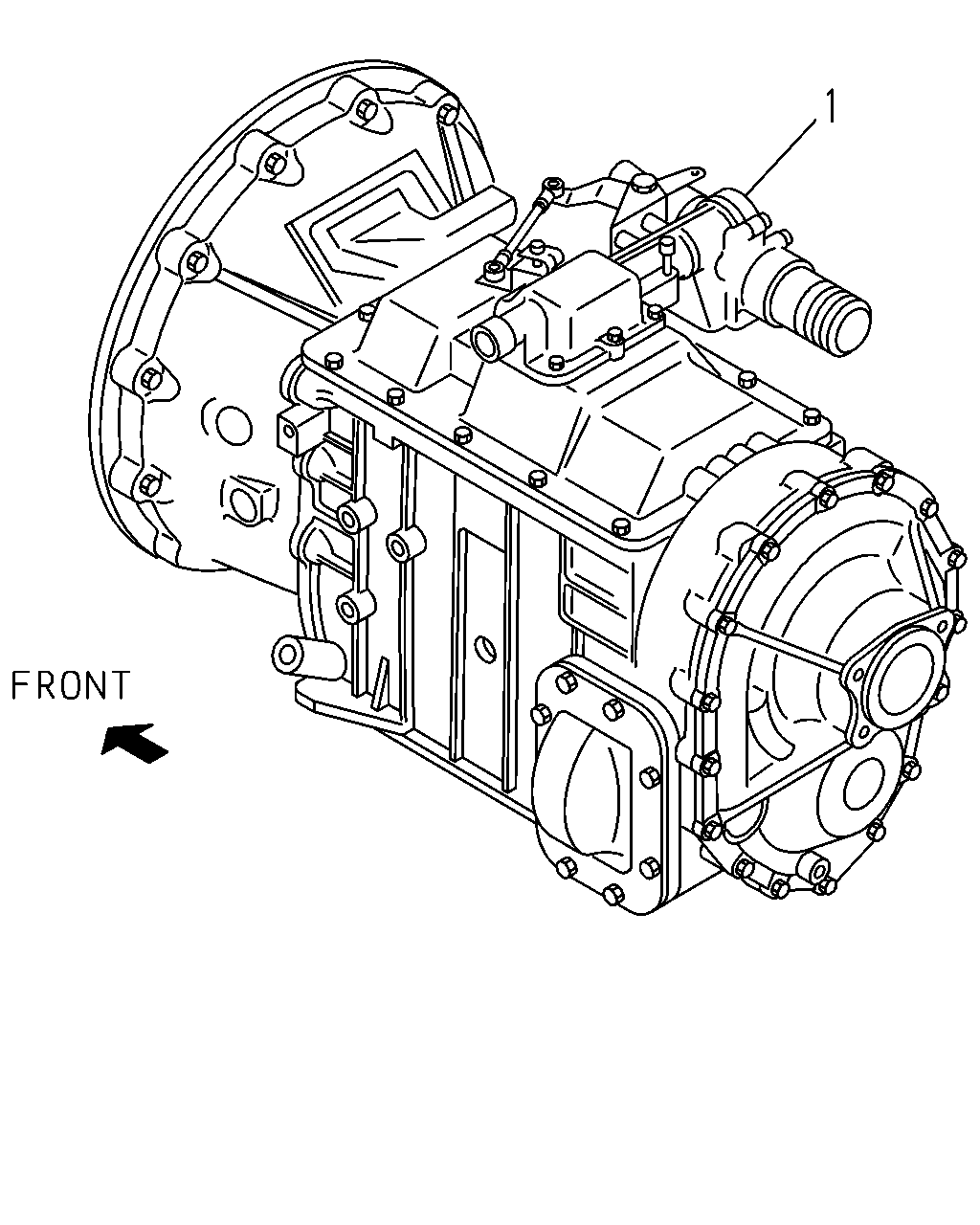

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) CHINA EQUIPMENT(YT2)	1-33044-041-0	01	1	0601-		●
1	TRANSMISSION ASM; MANUAL CHINA EQUIPMENT(YT2) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33044-041-0	01	1	0601-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-202-0	01	1	0312-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-202-0	01	1	0312-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33043-357-0	01	1	0107-0512		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), CHINA EQUIPMENT(YT2)	1-33043-357-0	01	1	0601-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33043-357-0	01	1	0107-0512		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. CHINA EQUIPMENT(YT2)	1-33043-357-0	01	1	0601-		●

581 581 511 303 315 38 27 357 358 351 350 585 520 406 368 582 357 358 350

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0312-0512	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	04	1	0601-	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0107-0512		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0601-		●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0107-		●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-0307		●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0308-		●
303	TUBE; NYLON TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0308-		●
303	TUBE; NYLON L=2000 ID=8	1-87410-073-0	01	1	0107-0107		●
303	TUBE; NYLON L=2000 ID=8	1-87410-073-0	01	1	0107-0201		●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0202-0212		●
303	TUBE; NYLON EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) L=4000 ID=8	1-87410-074-0	01	1	0107-0304		●
303	TUBE; NYLON EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0305-		●
315	BOLT; CASE M12X50 FLANGE	0-28181-250-0	11	1	0107-0512		●
315	BOLT; CASE M12X50 FLANGE	0-28151-250-0	11	1	0601-		●
315	BOLT; CASE M12X110	0-28186-211-0	05	1	0107-0512		●
315	BOLT; CASE M12X110 FLANGE	0-28156-211-0	05	1	0601-		●
315	BOLT; CASE M12X35 FLANGE	0-28781-235-0	02	1	0107-0512		●
315	BOLT; CASE M12X35 FLANGE	0-28751-235-0	02	1	0601-		●
350	UNION; FLEX HOSE,BRKT	1-09664-257-0	02	1	0107-		●
351	BRACKET; UNION,FLEX HOSE	1-46147-303-0	01	1	0107-		●
357	NUT; UNION,FLEX HOSE M22	9-09111-422-0	02	1	0107-0512		●
357	NUT; UNION,FLEX HOSE M22	0-91111-522-0	02	1	0601-		●
358	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	0107-0603		●
358	WASHER; LK,UNION ID=22.5	0-91510-522-0	02	1	0604-		●
368	CLIP; BAND,CABLE L=250	1-09707-126-0	02	1	0107-		●
406	NUT; BRKT M10 FLANGE	0-91150-110-0	02	1	0107-0602		●
406	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	0603-		●
511	TUBE; CORRUGATE TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) L=2000 ID=10 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0308-		●
511	TUBE; CORRUGATE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) L=4000 ID=10	1-87410-089-0	01	1	0107-0304		●
511	TUBE; CORRUGATE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0305-		●
520	CONNECTOR M20	9-99220-610-0	02	1	0107-0607		●
520	CONNECTOR R1/4 & M20	0-92306-010-0	02	1	0608-		●
581	HOSE; OIL COOLER OUTLET L=520	1-09365-144-0	01	1	0107-		●
581	HOSE; OIL COOLER INLET L=650	1-09365-145-0	01	1	0107-		●
582	NIPPLE; ELBOW R1/4 & RC1/4 ELBOW	1-09660-501-0	02	1	0107-		●
585	BAND; FLEX HOSE L=175	1-09707-178-0	02	1	0107-		●

27 329 502 503 527 429 24 25 2 465 498 37 36 473 476 35 232 28 90 86 36 37 421 580 261 318 51 429 104 103 326 546 429 29 111 112 417 45 324 202 417 262 254 255 254 255 503 264 266 429 71 33 71 72 435 119 121 429 117 72 328 477

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; CLU	1-31111-203-0	01	1	0312-	●
2	HOUSING; CLU	1-31111-204-5	01	1	0107-0608		●
2	HOUSING; CLU	8-98052-280-0	01	1	0609-1003		●
2	HOUSING; CLU	8-98168-737-0	01	1	1004-		●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0107-0311		●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0312-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0107-0311		●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0312-1406	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0312-0512	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	04	1	0601-	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0107-0512		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0601-		●
28	COVER; FRT,TRANS CASE	1-33121-161-1	01	1	0312-	●
28	COVER; FRT,TRANS CASE	1-33121-153-0	01	1	0107-		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	06	1	0312-0805	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	06	1	0806-	●
29	BOLT; FRT COVER M10X40	0-28191-040-0	06	1	0107-0512		●
29	BOLT; FRT COVER M10X40 FLANGE	0-28161-040-0	06	1	0601-1211		●
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1212-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0312-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-624-0	01	1	0107-		●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0107-0311		●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0312-	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0107-0311		●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0312-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0107-0311		●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0312-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0107-0311		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0312-	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-200-1	01	1	0107-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-33141-044-1	01	1	0312-	●
71	COVER; SIDE,TRANS CASE (A)	1-33141-060-0	01	1	0107-0212		●
71	COVER; SIDE,TRANS CASE (A)	1-33141-066-0	01	1	0301-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	1-33141-057-1	01	1	0107-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12X20 FLANGE	0-28181-220-0	08	1	0312-0512	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12X20 FLANGE	0-28151-220-0	08	1	0601-	●
72	BOLT; SIDE COVER (A) M10X35 FLANGE	0-28781-035-0	08	1	0107-0512		●
72	BOLT; SIDE COVER (A) M10X35 FLANGE	0-28751-035-0	08	1	0601-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M12X30 FLANGE	1-09044-086-0	08	1	0107-		●
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28181-230-0	14	1	0312-0512	●
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28151-230-0	14	1	0601-	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	02	1	0312-	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	06	1	0107-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	0312-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-625-0	01	1	0107-		●
103	RETAINER; BRG	1-33151-059-0	01	1	0312-	●
103	RETAINER; BRG	1-33151-058-1	01	1	0107-0204		●
103	RETAINER; BRG	1-33151-063-0	01	1	0205-0910		●
103	RETAINER; BRG	1-33151-061-0	01	1	0911-		●
104	BOLT; BRG RET M10X30 FLANGE	0-28181-030-0	01	1	0312-0512	●
104	BOLT; BRG RET M10X30 FLANGE	0-28151-030-0	01	1	0601-0605	●
104	BOLT; BRG RET M10X30 FLANGE	0-28151-030-0	08	1	0606-	●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	07	1	0312-0605	●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	0107-		●
111	PLUG; DRAIN FILLER M24X17 FLANGE	1-09604-064-1	01	1	0107-0201		●
111	PLUG; DRAIN FILLER M24X17 FLANGE	1-09604-022-0	01	1	0202-		●
112	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0107-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12X25 FLANGE	0-28181-225-0	02	1	0312-0512	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12X25 FLANGE	0-28151-225-0	02	1	0601-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X120 FLANGE	0-28186-212-0	02	1	0312-0512	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X120 FLANGE	0-28156-212-0	02	1	0601-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) M12X35 FLANGE	0-28781-235-0	04	1	0107-0512		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) M12X35 FLANGE	0-28751-235-0	04	1	0601-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	9-94411-225-0	04	1	0312-0604	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	0-44011-225-0	04	1	0605-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X25 L=43	9-94411-225-0	04	1	0107-0110		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48	9-94411-230-0	04	1	0111-0604		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48	0-44011-230-0	04	1	0605-0609		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48	8-98059-951-0	04	1	0610-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 FLANGE	0-91150-212-0	04	1	0107-0311		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 FLANGE	0-91150-212-0	04	1	0312-0602		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91150-212-0	04	1	0312-0602	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 FLANGE	0-91180-212-0	04	1	0603-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91180-212-0	04	1	0603-	●
202	BOLT; PLATE M12X35 FLANGE	0-28781-235-0	09	1	0107-0512		●
202	BOLT; PLATE M12X35 FLANGE	0-28751-235-0	09	1	0601-		●
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	0107-		●
254	PLUG; DRAIN,OIL M24X17 FLANGE	1-09604-023-0	02	1	0107-		●
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	0107-		●
261	BOLT; COVER M10X30 FLANGE	0-28181-030-0	07	1	0107-0512		●
261	BOLT; COVER M10X30 FLANGE	0-28151-030-0	07	1	0601-		●
262	STRAINER; OIL PUMP	1-41383-003-0	01	1	0107-		●
264	BOLT; OIL PUMP M10X30 FLANGE	0-28181-030-0	05	1	0312-0512	●
264	BOLT; OIL PUMP M10X30 FLANGE	0-28151-030-0	05	1	0601-	●
264	BOLT; OIL PUMP M10X40 FLANGE	0-28181-040-0	02	1	0312-0512	●
264	BOLT; OIL PUMP M10X40 FLANGE	0-28151-040-0	02	1	0601-1211	●
264	BOLT; OIL PUMP M10X40 FLANGE	8-98230-249-0	02	1	1212-	●
264	BOLT; OIL PUMP M8X50	0-10805-850-0	02	1	0107-0512		●
264	BOLT; OIL PUMP M8X50	0-10855-850-0	02	1	0601-		●
264	BOLT; OIL PUMP M8X65	0-10805-865-0	02	1	0107-		●
266	WASHER; LK ID=8.2	9-09150-508-0	04	1	0107-0603		●
266	WASHER; LK ID=8.2	0-91510-508-0	04	1	0604-		●
318	GASKET; COVER	1-34142-033-0	01	1	0107-0204		●
318	GASKET; COVER	1-34142-034-0	01	1	0205-		●
324	STUD; RR COVER M10X18,M12X110 L=139.5	1-09049-033-1	02	1	0107-		●
326	NOZZLE; OIL,OUTLET	1-33219-067-0	01	1	0107-0204		●
326	NOZZLE; OIL,OUTLET	1-33219-272-0	01	1	0205-		●
328	GASKET; PLUG	8-94244-656-0	01	1	0312-	●
328	GASKET; PLUG	1-34159-100-0	01	1	0107-		●
329	PUMP ASM; OIL	1-34150-098-0	01	1	0312-	●
329	PUMP ASM; OIL	1-34150-109-0	01	1	0107-0204		●
329	PUMP ASM; OIL	1-34150-117-0	01	1	0205-1408		●
329	PUMP ASM; OIL	8-98283-996-0	01	1	1409-		●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0107-0311		●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0312-	●	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	0107-0201		●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0202-0311		●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0312-	●	●
421	COVER; RR,TRANS	1-33131-201-1	01	1	0312-	●
421	COVER; RR,TRANS	1-33131-238-0	01	1	0107-		●
429	PIN; STRAIGHT (C) OD=10 L=18	9-08151-018-0	04	1	0312-	●
429	PIN; STRAIGHT (A) OD=10 L=18	9-08151-018-0	06	1	0107-		●
429	PIN; STRAIGHT (B) OD=12 L=32	9-08161-232-0	01	1	0107-		●
435	CASE; TRANS	1-33111-321-0	01	1	0312-0510	●
435	CASE; TRANS	1-33111-356-0	01	1	0511-	●
435	CASE; TRANS	1-33111-319-6	01	1	0107-0409		●
435	CASE; TRANS	1-33111-352-1	01	1	0410-0412		●
435	CASE; TRANS	1-33111-361-1	01	1	0501-		●
465	GEAR; IDLE,OIL PUMP	1-34151-010-0	01	1	0107-0204		●
465	GEAR; IDLE,OIL PUMP	1-34151-013-0	01	1	0205-1408		●
473	GEAR; OUTPUT,OIL PUMP	1-34151-009-0	01	1	0107-0204		●
473	GEAR; OUTPUT,OIL PUMP	1-34151-012-0	01	1	0205-1408		●
476	GASKET; COVER,OIL PUMP	1-34159-099-0	01	1	0107-		●
477	BOLT; OIL PUMP M8X32 W/LK WASHER	9-01900-832-0	02	1	0107-1408		●
498	COVER; ROTER,OIL PUMP	1-34159-067-1	01	1	0312-	●
498	COVER; ROTER,OIL PUMP	1-34159-098-0	01	1	0107-0204		●
502	PLUG; OIL PUMP	8-94244-655-0	01	1	0312-	●
502	PLUG; OIL PUMP	1-34159-101-0	01	1	0107-		●
503	SPRING; OIL PUMP (C)	5-09580-098-0	01	1	0312-	●
503	SPRING; OIL PUMP (A)	1-09580-504-0	01	1	0107-		●
503	SPRING; OIL PUMP (B)	1-34159-102-0	01	1	0107-		●
527	BALL; OIL PUMP	9-00097-531-0	01	1	0107-0311		●
527	BALL; OIL PUMP	9-00097-531-0	01	1	0312-	●	●
546	RING; SNAP,BRG T=2.00	1-09588-150-1	01	1	0107-		●
580	CASE; RANGE	1-33115-051-2	01	1	0107-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) CHINA EQUIPMENT(YT2)	1-33044-041-0	01	1	0601-		●
1	TRANSMISSION ASM; MANUAL CHINA EQUIPMENT(YT2) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33044-041-0	01	1	0601-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-202-0	01	1	0312-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-202-0	01	1	0312-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33043-357-0	01	1	0107-0512		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), CHINA EQUIPMENT(YT2)	1-33043-357-0	01	1	0601-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33043-357-0	01	1	0107-0512		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. CHINA EQUIPMENT(YT2)	1-33043-357-0	01	1	0601-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
