◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10879 - EXZ LHD FUEL TANK 400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#12133) — 22 parça

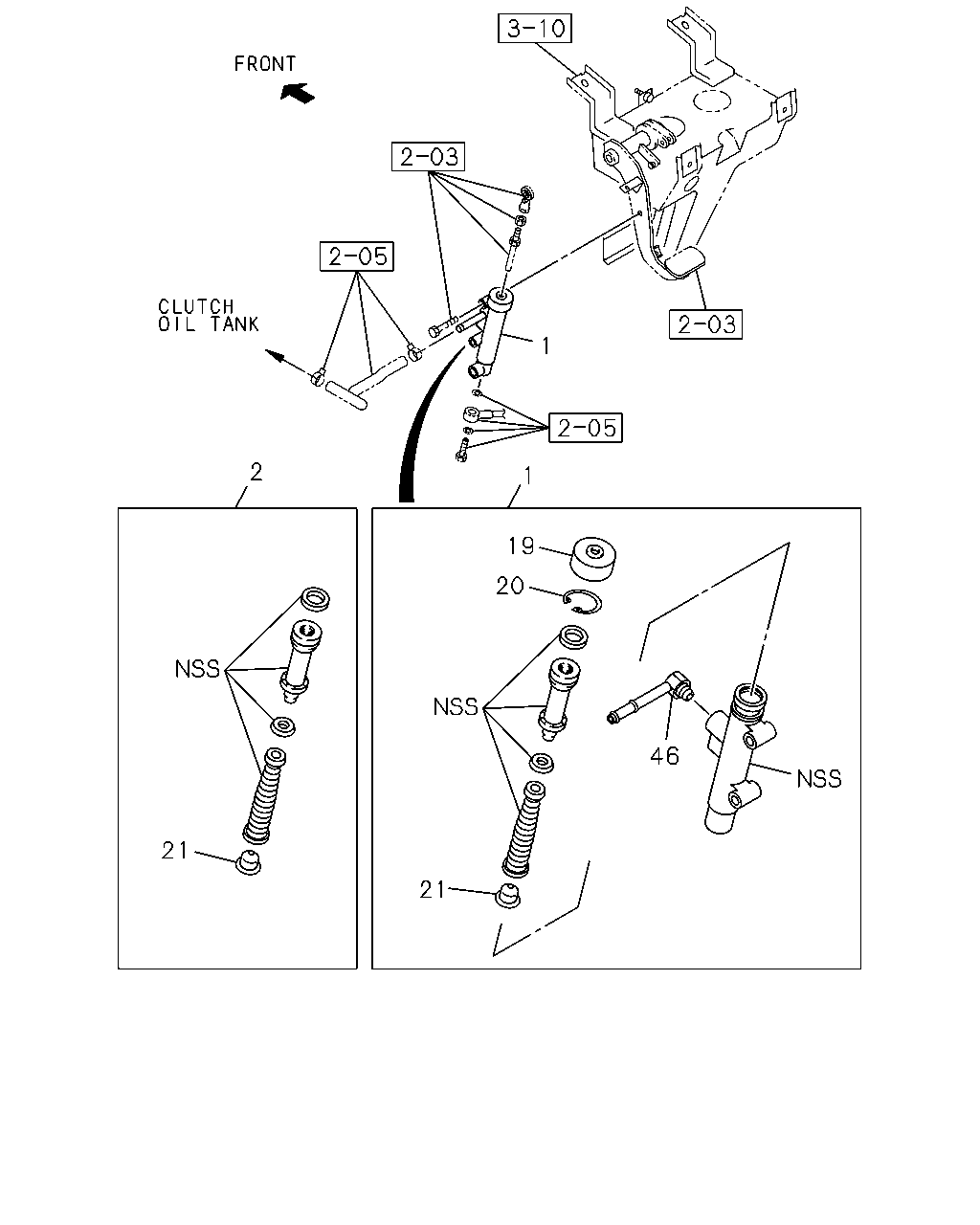

çizim 138730
1 2 1 19 20 46 21 21
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CYLINDER ASM; CLUTCH MASTER
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) 		1-47500-247-1 01 1 0105-0106 ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ZF M/T<X9E> 		1-47500-247-1 01 1 0107- ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-47500-241-3 01 1 0105-0106 ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ZF M/T<X9E> 		1-47500-241-3 01 1 0107- ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
ISUZU M/T<X9A> 		1-47500-239-2 01 1 0107- ● ● ●
2 REPAIR KIT; CLU M/CYL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) 		1-47550-048-0 01 1 0105-0106 ● ● ●
2 REPAIR KIT; CLU M/CYL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ZF M/T<X9E> 		1-47550-048-0 01 1 0107- ● ● ●
2 REPAIR KIT; CLU M/CYL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-47550-046-0 01 1 0105-0106 ● ● ●
2 REPAIR KIT; CLU M/CYL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ZF M/T<X9E> 		1-47550-046-0 01 1 0107- ● ● ●
2 REPAIR KIT; CLU M/CYL
ISUZU M/T<X9A> 		1-85572-010-0 01 1 0107- ● ● ●
19 BOOT; CLU M/CYL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) 		1-47545-011-0 01 1 0105-0106 ● ● ●
19 BOOT; CLU M/CYL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ZF M/T<X9E> 		1-47545-011-0 01 1 0107- ● ● ●
19 BOOT; CLU M/CYL
ISUZU M/T<X9A> 		9-47545-032-0 01 1 0107- ● ● ●
20 RING; SNAP,BODY
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) 		1-47515-009-0 01 1 0105-0106 ● ● ●
20 RING; SNAP,BODY
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ZF M/T<X9E> 		1-47515-009-0 01 1 0107- ● ● ●
20 RING; SNAP,BODY
ISUZU M/T<X9A> OD=26.9 		9-09180-125-0 01 1 0107- ● ● ●
21 VALVE; CHECK
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) 		1-47565-004-0 01 1 0105-0106 ● ● ●
21 VALVE; CHECK
ISUZU M/T<X9A> 		1-47565-004-0 01 1 0107- ● ● ●
21 VALVE; CHECK
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ZF M/T<X9E> 		1-47565-004-0 01 1 0107- ● ● ●
46 CONNECTOR; PIPE
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) 		1-47517-003-0 01 1 0105-0106 ● ● ●
46 CONNECTOR; PIPE
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ZF M/T<X9E> 		1-47517-003-0 01 1 0107- ● ● ●
46 CONNECTOR; PIPE
ISUZU M/T<X9A> 		1-47559-016-0 01 1 0107- ● ● ●
