Isuzu WW
▶
TRUCKS
▶
GVR
▶
11498 - GVR(THAI)EURO3
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

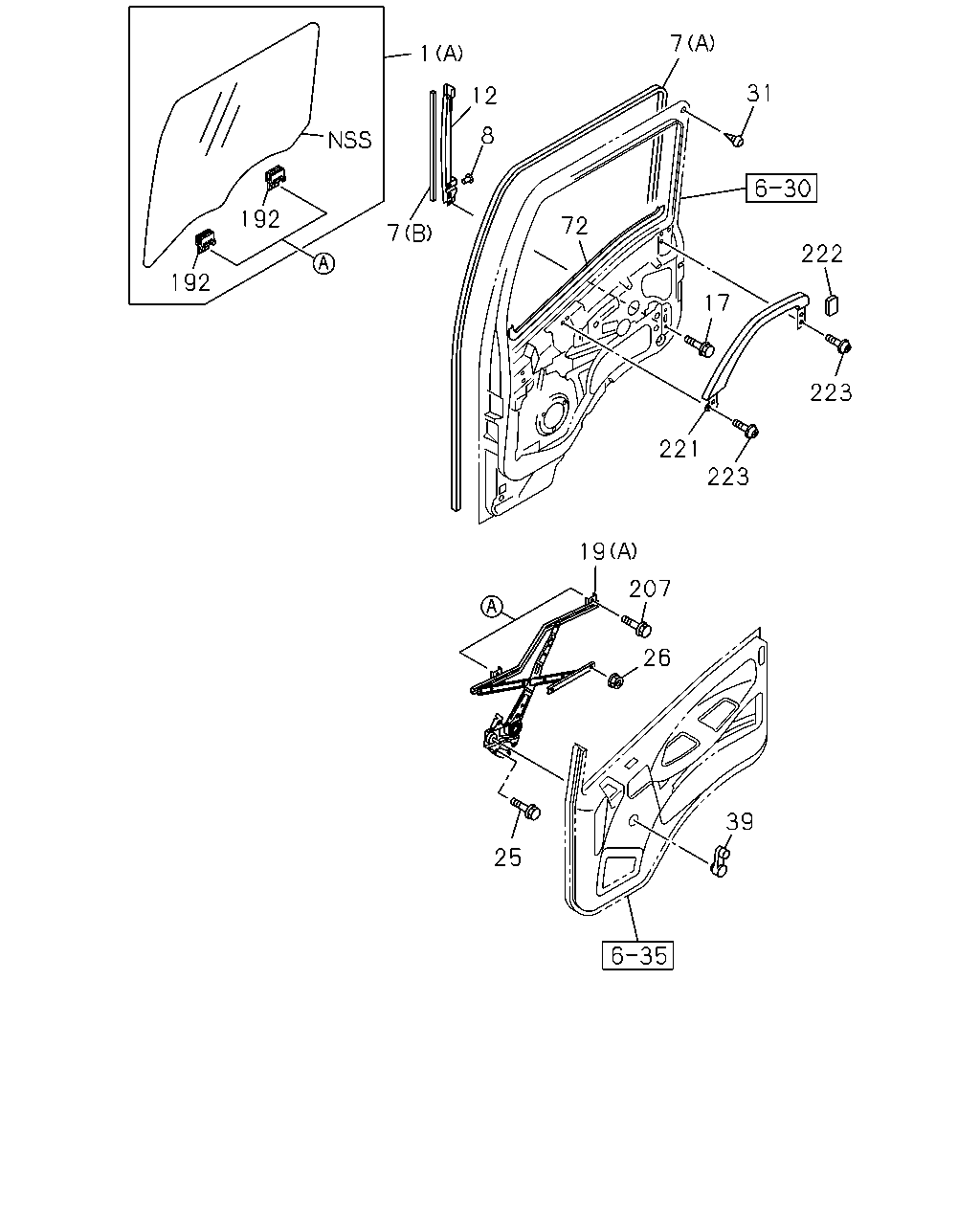

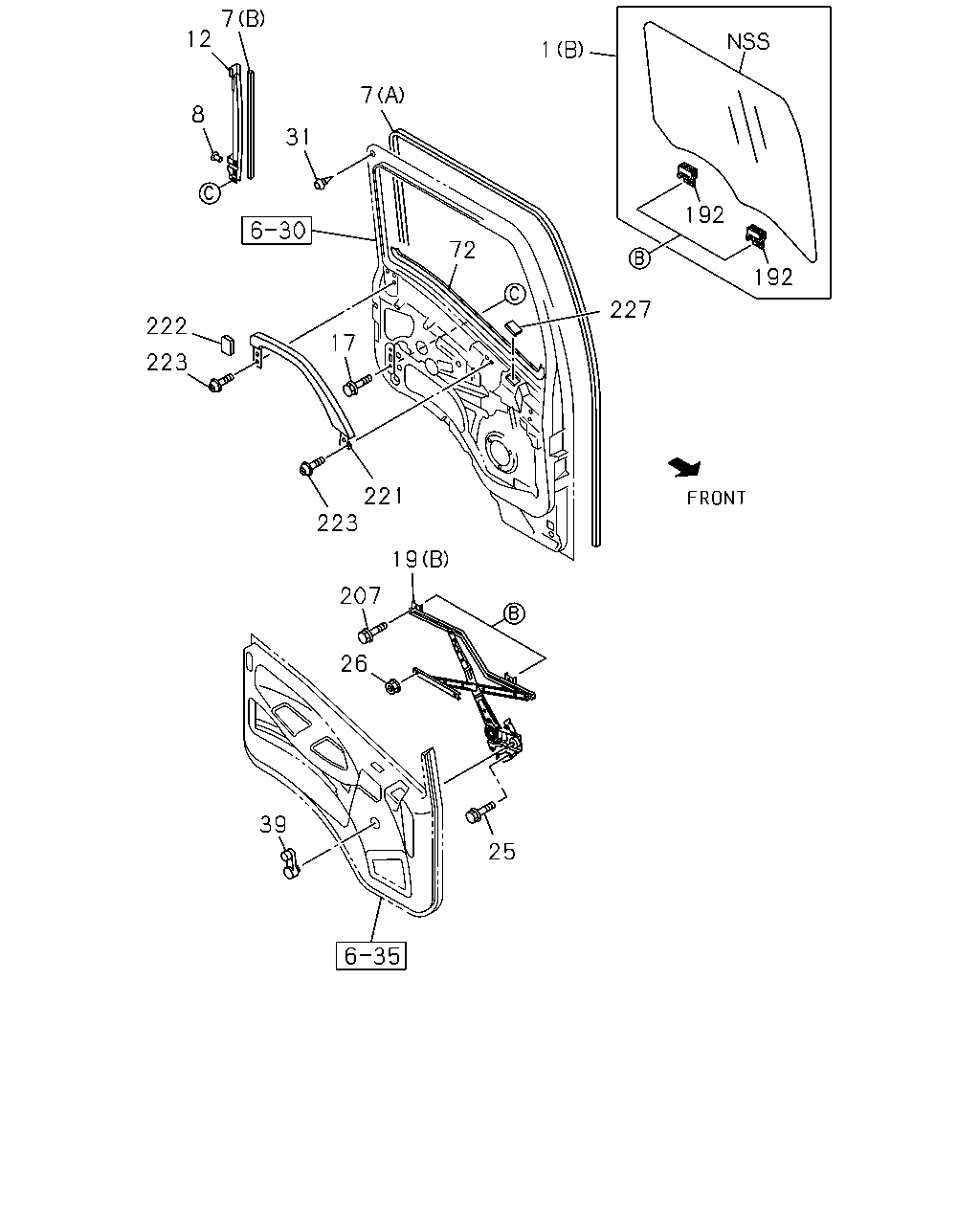

6-31 - FRONT DOOR GLASS AND REGULATOR
▶
6-31 — FRONT DOOR GLASS AND REGULATOR
(#121328) — 53 parça
◀
[631A] RH (26 parça)
[631A] LH (27 parça)
▶
7
31
222
223
221
17
223
19
207
26
39
25
7
8
12
1
192
192
72
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GLASS; FRT DOOR
(B) THA
8-97923-681-3
01
1
1304-
1
GLASS; FRT DOOR
(A) THA
8-97923-680-3
01
1
1304-
7
GLASS RUN; FRT DOOR
(B)
8-98031-742-2
02
1
1304-
7
GLASS RUN; FRT DOOR
(A)
8-98029-196-3
01
1
1304-
7
GLASS RUN; FRT DOOR
(A)
8-98029-195-3
01
1
1304-
8
CLIP; GLASS GUIDE
8-98048-796-0
02
1
1304-
12
CHANNEL; GLASS RUN,FRT
8-98188-419-0
01
1
1304-
12
CHANNEL; GLASS RUN,FRT
8-98188-418-0
01
1
1304-
17
SCREW; RR CHANNEL
M6X10 FLANGE THA
0-28050-610-0
04
1
1304-
19
REGULATOR; WINDOW,FRT DOOR
(B)
8-98029-234-3
01
1
1304-
19
REGULATOR; WINDOW,FRT DOOR
(A)
8-98029-233-3
01
1
1304-
25
BOLT; WINDOW REG
M6X10 FLANGE THA
0-28050-610-0
08
1
1304-
26
NUT; FLANGE,WINDOW REG
M6 FLANGE THA
0-91180-106-0
04
1
1304-
31
STOPPER; RUBBER,DOOR INNER
THA
8-94358-581-0
04
1
1304-1306
31
STOPPER; RUBBER,DOOR INNER
THA
8-97948-266-0
04
1
1307-
39
HANDLE; WINDOW REG,FRT DOOR
GRAY
8-97405-313-3
02
1
1304-1306
39
HANDLE; WINDOW REG,FRT DOOR
THA
8-97948-267-0
02
1
1307-
72
SEAL; WAIST,FRT DOOR
8-98029-193-1
01
1
1304-
72
SEAL; WAIST,FRT DOOR
8-98029-192-1
01
1
1304-
192
HOLDER; DOOR GLASS
THA
8-97288-022-0
04
1
1304-
207
SCREW; DOOR GLASS
M6X10 FLANGE THA
0-28050-610-0
04
1
1304-
221
BAR ASM; DOOR GLASS GUARD
THA
8-97925-104-0
01
1
1304-
221
BAR ASM; DOOR GLASS GUARD
THA
8-97925-103-0
01
1
1304-
222
CAP; GUARD BAR
GRAY
8-97405-319-0
01
1
1304-
222
CAP; GUARD BAR
GRAY
8-97405-318-0
01
1
1304-
223
SCREW; GUARD BAR
M6X25
0-38050-625-0
08
1
1304-
227
192
192
1
7
31
72
7
12
8
222
223
17
221
19
207
223
26
39
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GLASS; FRT DOOR
(B) THA
8-97923-681-3
01
1
1304-
1
GLASS; FRT DOOR
(A) THA
8-97923-680-3
01
1
1304-
7
GLASS RUN; FRT DOOR
(B)
8-98031-742-2
02
1
1304-
7
GLASS RUN; FRT DOOR
(A)
8-98029-196-3
01
1
1304-
7
GLASS RUN; FRT DOOR
(A)
8-98029-195-3
01
1
1304-
8
CLIP; GLASS GUIDE
8-98048-796-0
02
1
1304-
12
CHANNEL; GLASS RUN,FRT
8-98188-419-0
01
1
1304-
12
CHANNEL; GLASS RUN,FRT
8-98188-418-0
01
1
1304-
17
SCREW; RR CHANNEL
M6X10 FLANGE THA
0-28050-610-0
04
1
1304-
19
REGULATOR; WINDOW,FRT DOOR
(B)
8-98029-234-3
01
1
1304-
19
REGULATOR; WINDOW,FRT DOOR
(A)
8-98029-233-3
01
1
1304-
25
BOLT; WINDOW REG
M6X10 FLANGE THA
0-28050-610-0
08
1
1304-
26
NUT; FLANGE,WINDOW REG
M6 FLANGE THA
0-91180-106-0
04
1
1304-
31
STOPPER; RUBBER,DOOR INNER
THA
8-94358-581-0
04
1
1304-1306
31
STOPPER; RUBBER,DOOR INNER
THA
8-97948-266-0
04
1
1307-
39
HANDLE; WINDOW REG,FRT DOOR
GRAY
8-97405-313-3
02
1
1304-1306
39
HANDLE; WINDOW REG,FRT DOOR
THA
8-97948-267-0
02
1
1307-
72
SEAL; WAIST,FRT DOOR
8-98029-193-1
01
1
1304-
72
SEAL; WAIST,FRT DOOR
8-98029-192-1
01
1
1304-
192
HOLDER; DOOR GLASS
THA
8-97288-022-0
04
1
1304-
207
SCREW; DOOR GLASS
M6X10 FLANGE THA
0-28050-610-0
04
1
1304-
221
BAR ASM; DOOR GLASS GUARD
THA
8-97925-104-0
01
1
1304-
221
BAR ASM; DOOR GLASS GUARD
THA
8-97925-103-0
01
1
1304-
222
CAP; GUARD BAR
GRAY
8-97405-319-0
01
1
1304-
222
CAP; GUARD BAR
GRAY
8-97405-318-0
01
1
1304-
223
SCREW; GUARD BAR
M6X25
0-38050-625-0
08
1
1304-
227
RUBBER; SHUTTER
GRAY
8-97405-321-0
01
1
1304-
