◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10879 - EXZ LHD FUEL TANK 400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07A - CLUTCH BOOSTER; MINIPACK ▶
2-07A — CLUTCH BOOSTER; MINIPACK (#12131) — 200 parça

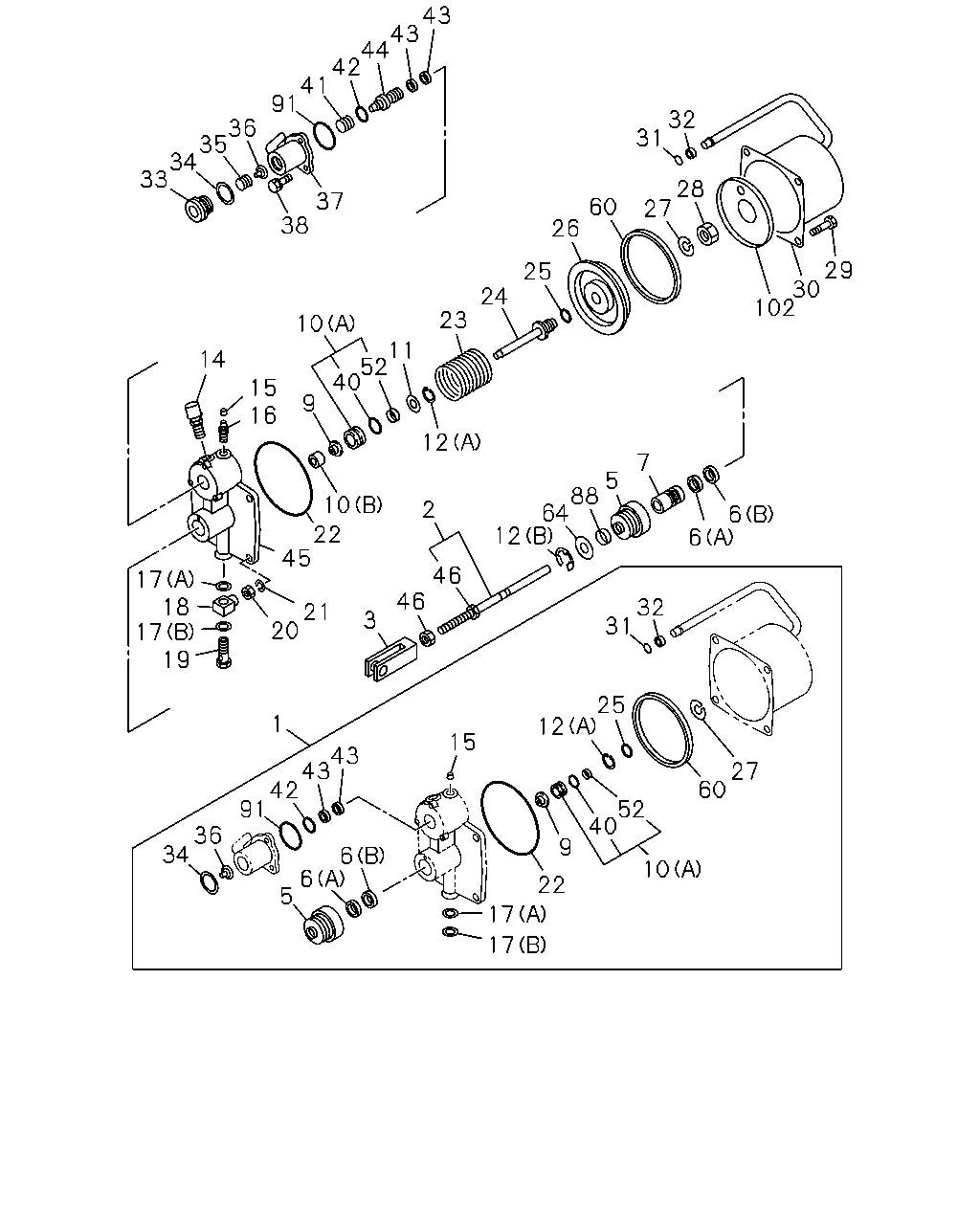

çizim 138699
43 43 44 42 41 91 32 31 36 35 34 33 28 27 37 38 60 26 29 30 102 25 24 23 10 11 52 40 14 15 16 9 12 7 5 88 64 12 10 2 6 22 45 6 46 46 17 18 17 19 32 31 21 20 3 25 1 12 15 43 43 42 91 27 60 52 40 36 34 9 6 10 6 5 22 17 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-572-0 01 1 0312- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-560-0 01 1 0107- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-160-0 01 1 0312- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-227-0 01 1 0107- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 0107-0311 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 0312- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-282-0 01 1 0312- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-555-0 01 1 0107- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(C) 		1-31829-283-0 01 1 0312- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(D) 		1-31829-284-0 01 1 0312- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0107- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0107- ●
7 PISTON; CLU BOOSTER 1-31821-047-0 01 1 0312- ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0107- ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0107-0311 ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0312- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0107-0311 ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0312- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0107-0311 ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0312- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0107-0311 ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0312- ● ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 0107-0311 ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 0312- ● ●
12 RING; RET,CLU BOOSTER
(B) 		8-94415-036-0 01 1 0107- ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0312- ●
14 COVER; EXH,CLU BOOSTER 1-31829-366-0 01 1 0107- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0107-0311 ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0312- ● ●
16 PLUG; END PLATE,CLU BOOSTER 1-31829-351-0 01 1 0312- ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0107- ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0107-0311 ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0312- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0107-0311 ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0312- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0107-0311 ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0312- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0107-0311 ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0312- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0107-0311 ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0312- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0107-0311 ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0312- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 0107-0311 ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 0312- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-295-0 01 1 0312- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-554-0 01 1 0107- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-121-0 01 1 0312- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-224-0 01 1 0107- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 0107-0311 ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 0312- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 0312- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-050-0 01 1 0107- ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 0107-0311 ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 0312- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 0107-0311 ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 0312- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0107-0311 ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0312- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-134-0 01 1 0312- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-128-0 01 1 0107- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0107-0311 ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0312- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0107-0311 ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0312- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0312- ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 0107- ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0107-0311 ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0312- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0312- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0107- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0312- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0107- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0107-0311 ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0312- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0107-0311 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0312- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0107-0311 ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0312- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 0312- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 0107- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 0107-0311 ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 0312- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0107-0311 ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0312- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 0107-0311 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 0312- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-080-1 01 1 0312- ●
45 PLATE; END,CLU BOOSTER 1-31811-133-0 01 1 0107- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 0312- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0107- ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 0107-0311 ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 0312- ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 0312- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 0107- ●
64 WASHER; PUSH ROD
ID=10.5 OD=22 		9-09164-610-0 01 1 0107- ●
88 CLAMP; HOSE,CLU BOOSTER 1-31829-063-0 01 1 0107- ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0107-0311 ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0312- ● ●
102 PLATE; BOOSTER 1-31829-559-0 01 1 0107- ●

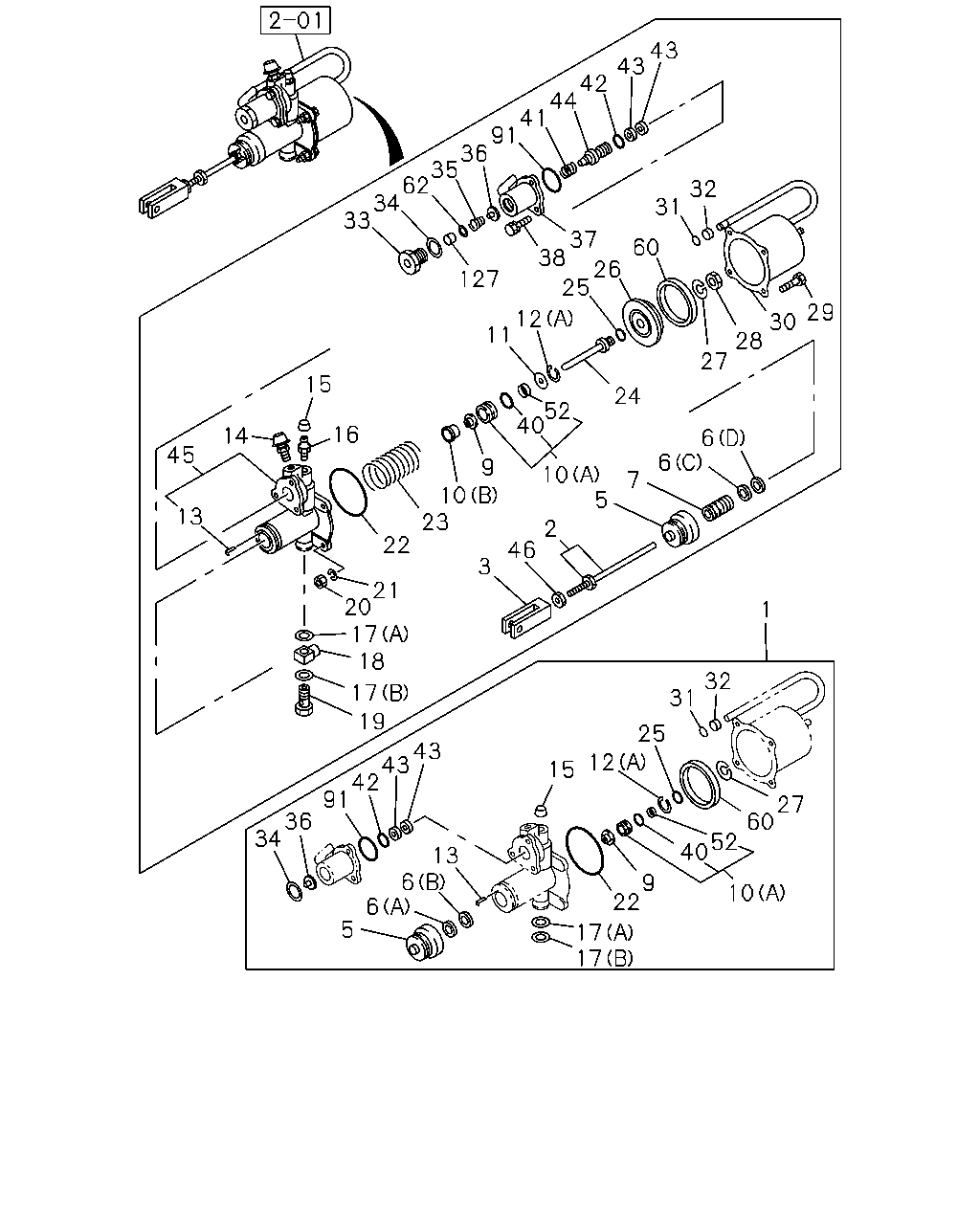

çizim 138704
43 43 42 44 41 91 36 35 62 34 33 32 31 37 38 60 26 25 127 29 12 30 28 27 11 15 24 52 40 16 14 6 6 45 9 10 23 10 5 7 13 2 46 22 3 21 20 17 18 1 32 17 31 19 25 43 43 42 91 12 15 27 60 36 34 52 40 13 6 9 22 10 6 5 17 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-572-0 01 1 0312- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-560-0 01 1 0107- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-160-0 01 1 0312- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-227-0 01 1 0107- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 0107-0311 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 0312- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-282-0 01 1 0312- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-555-0 01 1 0107- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(C) 		1-31829-283-0 01 1 0312- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(D) 		1-31829-284-0 01 1 0312- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0107- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0107- ●
7 PISTON; CLU BOOSTER 1-31821-047-0 01 1 0312- ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0107- ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0107-0311 ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0312- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0107-0311 ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0312- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0107-0311 ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0312- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0107-0311 ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0312- ● ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 0107-0311 ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 0312- ● ●
12 RING; RET,CLU BOOSTER
(B) 		8-94415-036-0 01 1 0107- ●
13 PIN; SPR 1-31829-109-0 01 1 0312- ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0312- ●
14 COVER; EXH,CLU BOOSTER 1-31829-366-0 01 1 0107- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0107-0311 ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0312- ● ●
16 PLUG; END PLATE,CLU BOOSTER 1-31829-351-0 01 1 0312- ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0107- ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0107-0311 ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0312- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0107-0311 ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0312- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0107-0311 ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0312- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0107-0311 ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0312- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0107-0311 ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0312- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0107-0311 ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0312- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 0107-0311 ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 0312- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-295-0 01 1 0312- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-554-0 01 1 0107- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-121-0 01 1 0312- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-224-0 01 1 0107- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 0107-0311 ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 0312- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 0312- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-050-0 01 1 0107- ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 0107-0311 ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 0312- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 0107-0311 ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 0312- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0107-0311 ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0312- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-134-0 01 1 0312- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-128-0 01 1 0107- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0107-0311 ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0312- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0107-0311 ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0312- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0312- ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 0107- ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0107-0311 ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0312- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0312- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0107- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0312- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0107- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0107-0311 ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0312- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0107-0311 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0312- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0107-0311 ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0312- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 0312- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 0107- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 0107-0311 ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 0312- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0107-0311 ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0312- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 0107-0311 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 0312- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-080-1 01 1 0312- ●
45 PLATE; END,CLU BOOSTER 1-31811-133-0 01 1 0107- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 0312- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0107- ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 0107-0311 ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 0312- ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 0312- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 0107- ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0312- ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0107-0311 ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0312- ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 0312- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
