4-10 — FRONT AXLE (#121300) — 82 parça

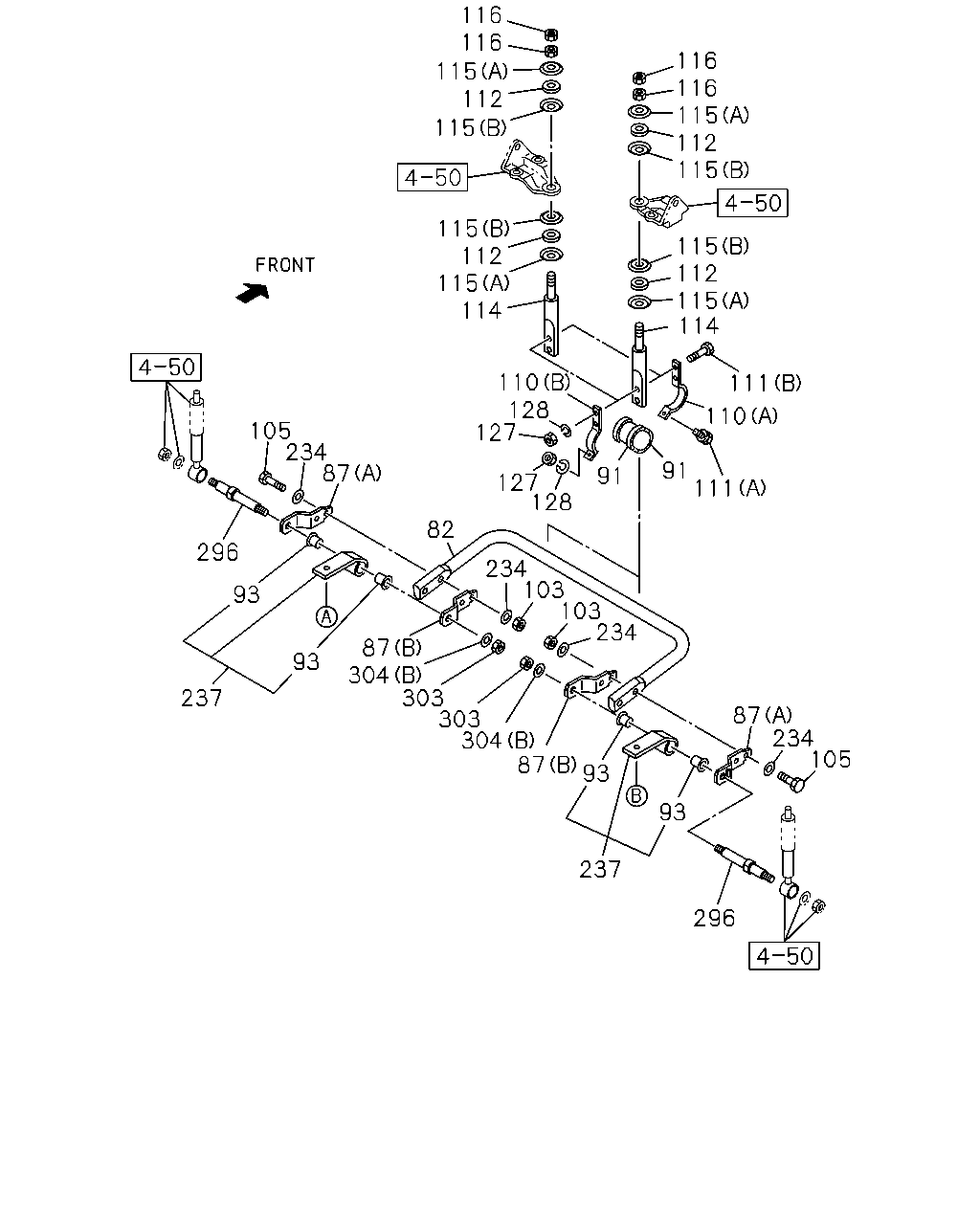

çizim 357869
237 93 87 304 303 303 304 87 93 93 237 87 234 105 296 234 103 103 234 82 87 234 105 127 127 128 91 91 111 110 111 114 115 112 115 128 110 114 115 112 115 115 112 115 116 116 116 116 115 112 115 296 93
BalonParca AdiParca NoAdetTipApplied Date
82 BAR; STAB,FRT SUSP 8-98012-961-1 01 1 1304-
87 BRACKET; STABILIZER
(A) 		8-98012-958-0 02 1 1304-
87 BRACKET; STABILIZER
(B) 		8-98012-959-0 02 1 1304-
91 BUSHING; RUBBER,STAB BAR 1-51779-079-1 04 1 1304-
93 BUSHING; STABILIZER 1-51689-015-3 04 1 1304-
103 NUT; BRKT FIX
M14 THA 		0-91110-514-0 04 1 1304-
105 BOLT; BRKT FIX
M14X70 		0-10956-470-0 04 1 1304-
110 CLAMP; STAB TO ROD
(A) 		1-51789-027-2 02 1 1304-
110 CLAMP; STAB TO ROD
(B) 		1-51789-028-1 02 1 1304-
111 BOLT; CLAMP TO ROD
(A) M12X30 		0-20851-230-0 02 1 1304-
111 BOLT; CLAMP TO ROD
(B) M12X50 		0-20851-250-0 04 1 1304-
112 BUSHING; ROD 9-51631-050-0 04 1 1304-
114 ROD; STAB BAR
THA 		1-51773-065-0 02 1 1304-
115 WASHER; CENTER,STAB TO FRAME
(B) ID=16.8 		1-51631-022-0 04 1 1304-
115 WASHER; CENTER,STAB TO FRAME
(A) ID=14.5 		9-51631-051-0 04 1 1304-
116 NUT; LK,STAB TO FRAME
M14 		0-91111-514-0 04 1 1304-
127 NUT; CLAMP
M12 		0-91110-512-0 06 1 1304-
128 WASHER; LK,CLAMP
ID=12.2 		0-91510-812-0 06 1 1304-
234 WASHER; STAB
ID=15 		8-98010-627-1 08 1 1304-
237 SUPPORT; STAB BAR 1-51681-662-0 02 1 1304-
296 PIN; STAB 8-98022-874-1 02 1 1304-
303 NUT; PIN
M20 		0-91110-520-0 02 1 1304-
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1304-
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 1304-

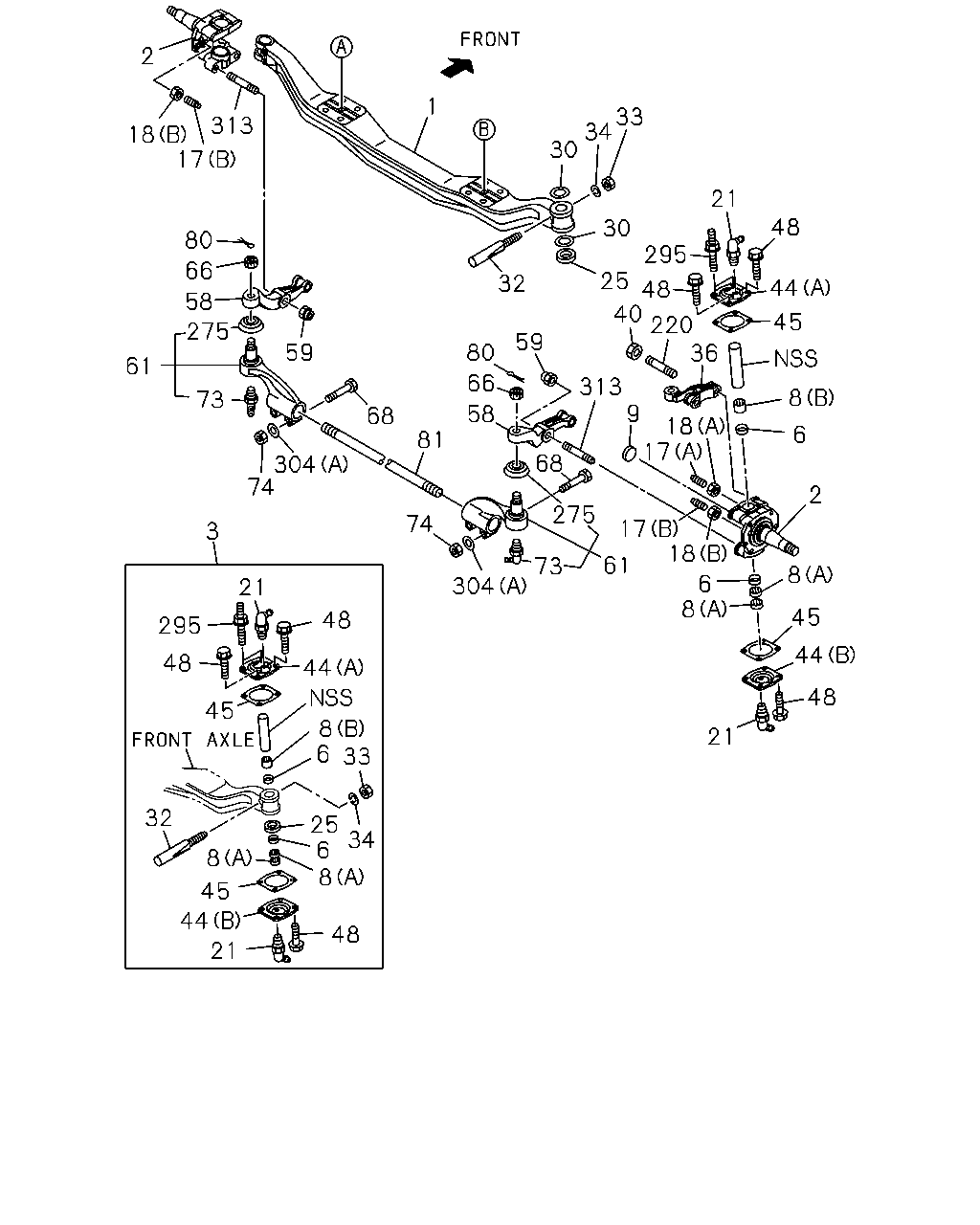

çizim 358419
3 21 48 44 295 48 45 8 6 33 32 8 25 34 6 8 45 44 48 21 21 48 44 45 8 2 6 8 18 17 61 6 8 45 44 48 36 18 17 220 48 295 21 40 25 30 9 74 81 58 66 80 59 32 313 68 275 73 304 30 34 33 1 313 18 2 17 80 66 58 275 59 73 61 68 304 74
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT 8-98170-180-2 01 1 1304-
2 KNUCKLE; FRT AXLE 1-43131-118-1 01 1 1304-
2 KNUCKLE; FRT AXLE 1-43132-101-1 01 1 1304-
3 KING PIN SET 1-87831-349-2 02 1 1304-
6 SEAL; KING PIN 9-09926-024-0 04 1 1304-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1304-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1304-
9 PLUG; KNUCKLE
OD=22 		1-09600-011-2 02 1 1304-
17 BOLT; STOPPER KNUCKLE
(A) M18X53 		1-09009-066-0 01 1 1304-
17 BOLT; STOPPER KNUCKLE
(B) M18X43 		1-09009-190-0 02 1 1304-
18 NUT; STOPPER BOLT,KNUCKLE
(B) M18 THA 		0-91110-518-0 02 1 1304-
18 NUT; STOPPER BOLT,KNUCKLE
(A) OCTAGON M18 		1-09469-011-1 01 1 1304-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1304-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1304-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 THA 		1-43171-185-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 THA 		1-43171-186-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 THA 		1-43171-187-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 THA 		1-43171-188-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 THA 		1-43171-193-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 THA 		1-43171-194-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 THA 		1-43171-195-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 THA 		1-43171-196-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 THA 		1-43171-197-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 THA 		1-43171-198-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 THA 		1-43171-199-0 AR 1 1304-
32 BOLT; KEY,KING PIN 1-43116-002-1 02 1 1304-
33 NUT; KEY BOLT
M10 THA 		0-91110-510-0 02 1 1304-
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1304-
36 ARM; KNUCKLE 1-43133-073-3 01 1 1304-
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1304-
44 COVER; KING PIN
(A) 		8-98100-654-0 02 1 1304-
44 COVER; KING PIN
(B) 		8-98100-655-0 02 1 1304-
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 1304-
48 BOLT; COVER
M10X25 FLANGE THA 		0-28751-025-0 12 1 1304-
58 ARM; TIE ROD 1-43134-049-4 01 1 1304-
58 ARM; TIE ROD 1-43135-049-4 01 1 1304-
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1304-
61 ROD END; TIE ROD 8-98096-753-0 01 1 1304-1306
61 ROD END; TIE ROD 8-98228-106-0 01 1 1307-
61 ROD END; TIE ROD 8-98096-754-0 01 1 1304-1306
61 ROD END; TIE ROD 8-98228-107-0 01 1 1307-
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1304-
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1304-
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1304-
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1304-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1304-
81 ROD; TIE 8-98171-947-0 01 1 1304-
220 STUD; KNUCKLE ARM 1-09300-127-1 02 1 1304-
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1304-1306
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307-
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1304-
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1304-
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 1304-
313 STUD; TIE ROD ARM 1-09300-127-1 04 1 1304-
