Sayfa 2-05 - Isuzu EPC

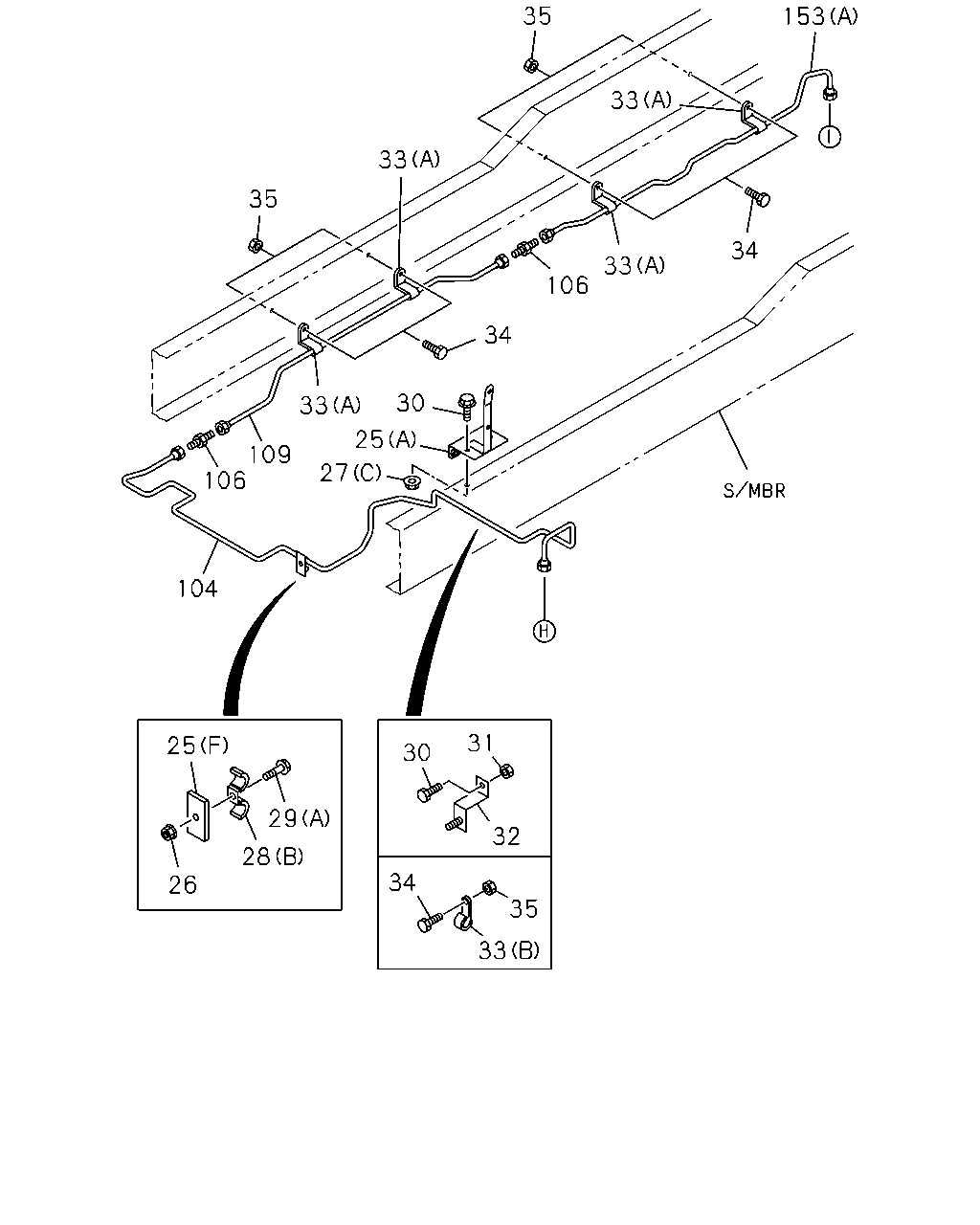

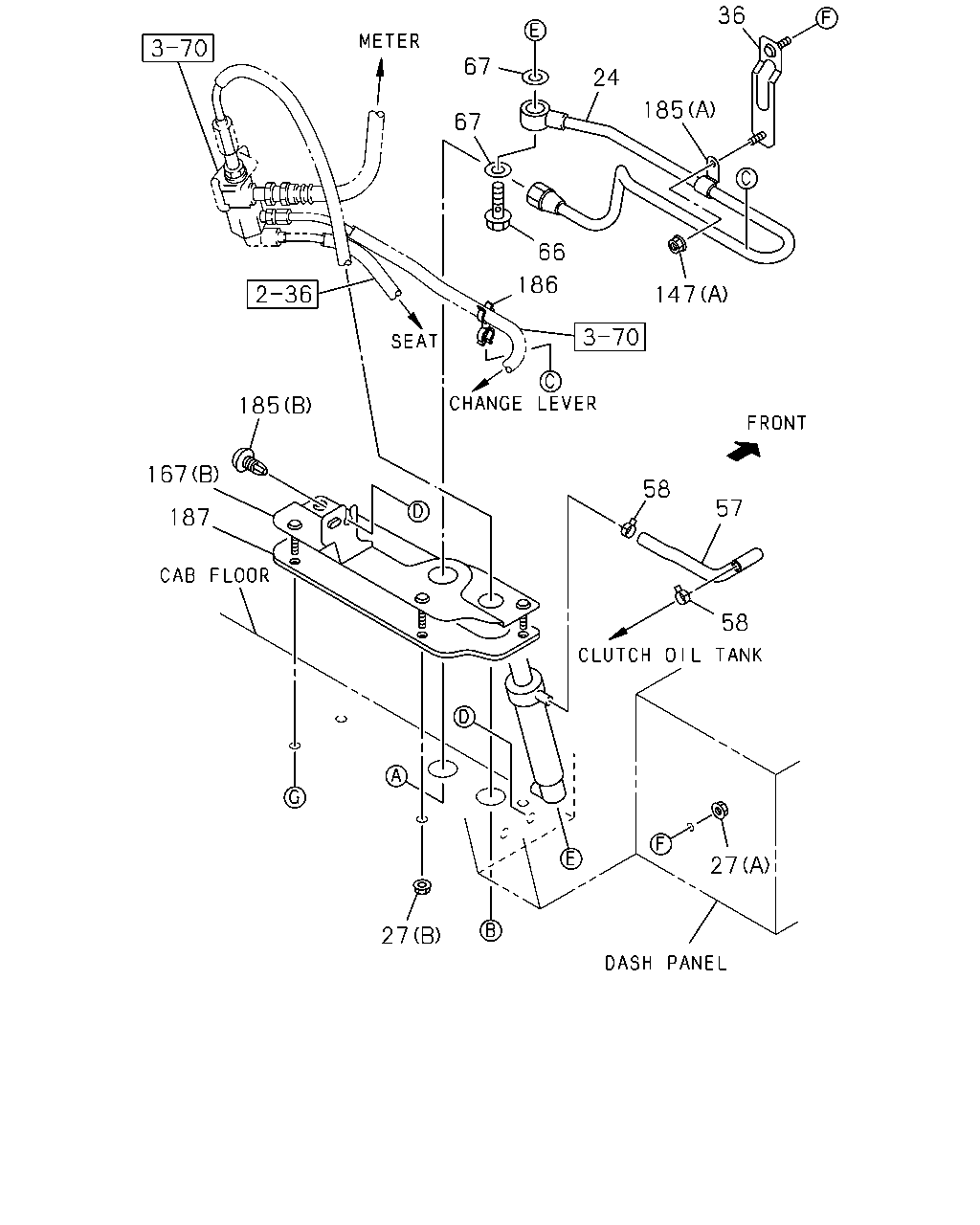

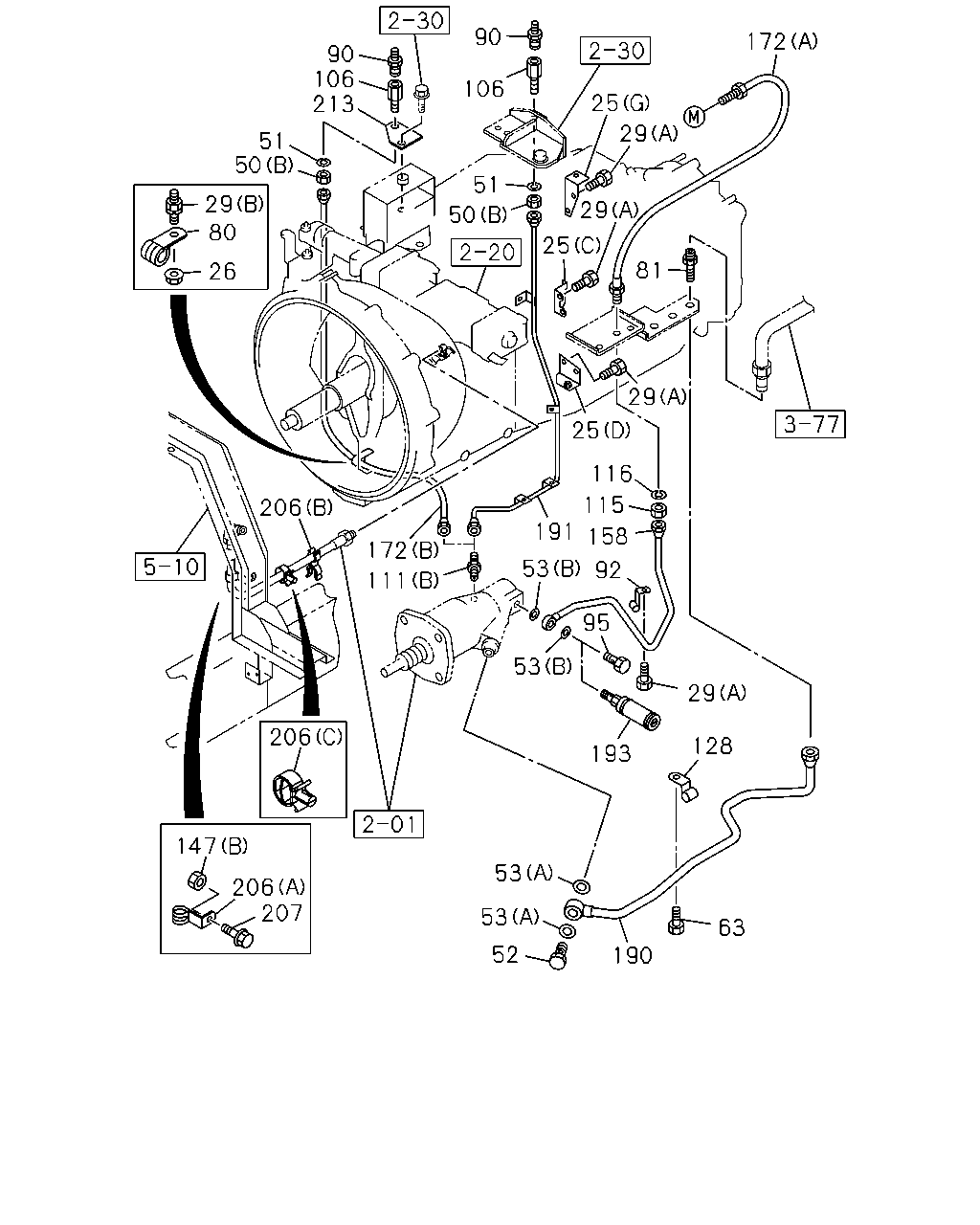

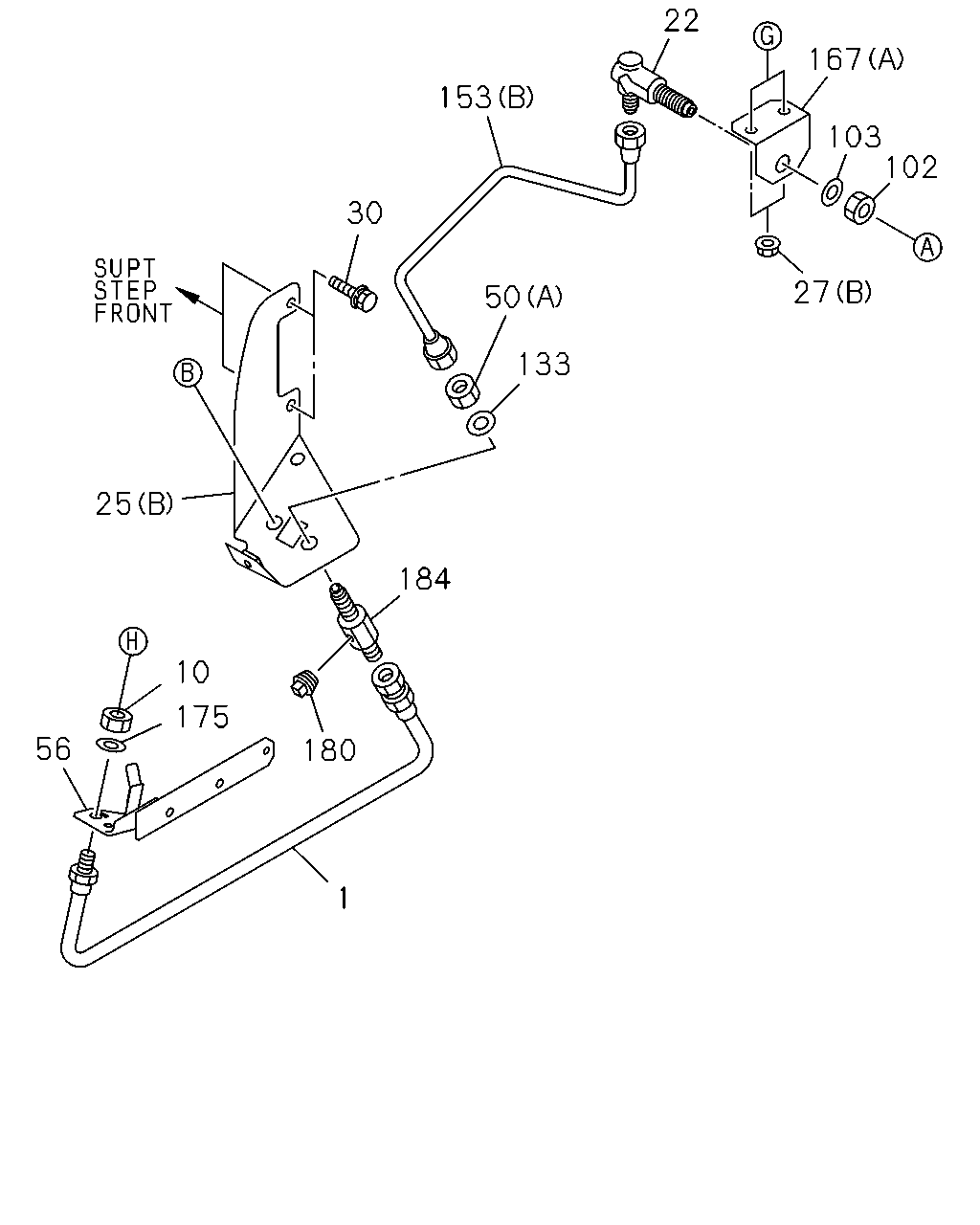

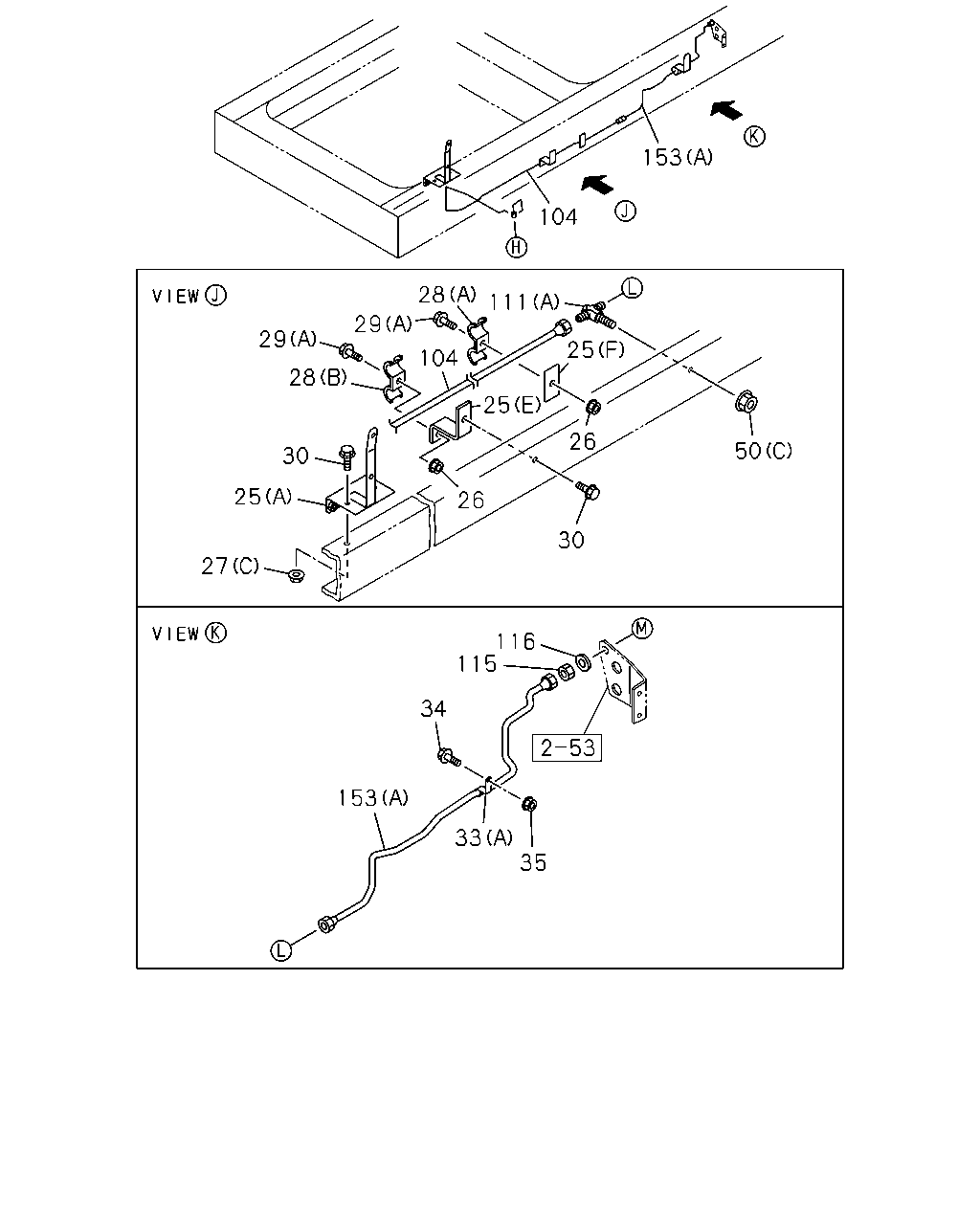

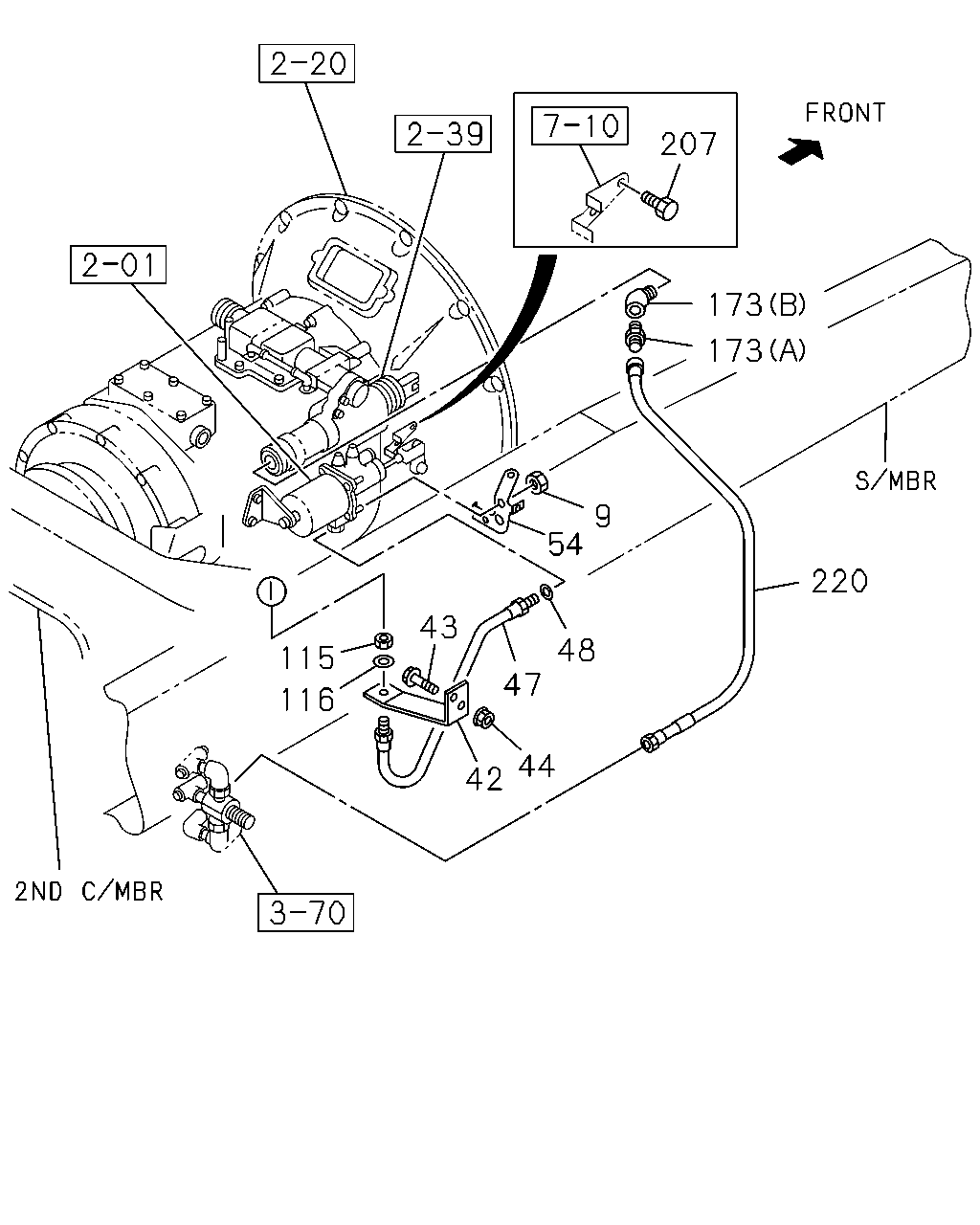

2-05 — CLUTCH PIPING (#12130) — 408 parça

153 104 28 111 29 29 25 104 28 25 26 50 30 25 26 30 27 116 115 34 153 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (F) L=50	1-47475-299-2	01	1	0105-0106
25	BRACKET; OIL PIPE ZF M/T<X9E> (F) L=50	1-47475-299-2	01	1	0107-
25	BRACKET; OIL PIPE (E)	1-47475-881-0	01	1	0105-0106
25	BRACKET; OIL PIPE ZF M/T<X9E> (E)	1-47477-669-1	01	1	0107-
25	BRACKET; OIL PIPE (A)	1-47478-582-1	01	1	0105-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0105-
25	BRACKET; OIL PIPE ISUZU M/T<X9A> (F) L=50	1-47475-299-2	02	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0105-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0105-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0105-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0108-
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	0107-0602
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	02	1	0603-
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91150-108-0	01	1	0108-0602
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	01	1	0603-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0105-0106
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	0107-0602
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91180-108-0	03	1	0603-
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	01	1	0105-0106
27	NUT; BRKT ZF M/T<X9E> (C) M8 FLANGE	0-91150-108-0	01	1	0107-0602
27	NUT; BRKT ZF M/T<X9E> (C) M8 FLANGE	0-91180-108-0	01	1	0603-
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	0105-0602
27	NUT; BRKT (C) M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
28	CLIP; OIL PIPE (A) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0105-0106
28	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0107-
28	CLIP; OIL PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-0106
28	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0107-
28	CLIP; OIL PIPE ISUZU M/T<X9A> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	0107-
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28680-820-0	01	1	0105-0106
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0106
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	01	1	0105-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	05	1	0108-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28050-816-0	05	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	04	1	0105-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X12,M10X20 L=39	1-09039-005-0	01	1	0108-
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0105-0106
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
30	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-0512
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-0904
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-0106
33	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0107-
33	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0107-
33	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0107-
33	CLIP; OIL PIPE ISUZU M/T<X9A> (B) ID=9 L=20	9-09524-835-0	01	1	0107-0606
33	CLIP; OIL PIPE ISUZU M/T<X9A> (B) ID=9 L=20	0-95234-835-0	01	1	0607-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-0106
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28650-830-0	01	1	0601-
34	BOLT; PIPE CLIP ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	02	1	0107-0512
34	BOLT; PIPE CLIP ISUZU M/T<X9A> M8X30 FLANGE	0-28650-830-0	02	1	0601-
34	BOLT; PIPE CLIP ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	04	1	0107-0512
34	BOLT; PIPE CLIP ISUZU M/T<X9A> M8X30 FLANGE	0-28650-830-0	04	1	0601-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0106
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0107-0602
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91180-108-0	01	1	0603-
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	03	1	0107-0602
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	03	1	0603-
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	04	1	0107-0602
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	04	1	0603-
50	NUT; UNION (C) M12 FLANGE	0-91150-212-0	01	1	0105-0106
50	NUT; UNION ZF M/T<X9E> (C) M12 FLANGE	0-91150-212-0	01	1	0107-0602
50	NUT; UNION ZF M/T<X9E> (C) M12 FLANGE	0-91180-212-0	01	1	0603-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0105-0512
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-
50	NUT; UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) M12	9-09840-280-0	01	1	0105-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2143	1-49164-307-0	01	1	0105-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> L=2138 SERVICED BY L=2150	1-47426-394-0	01	1	0107-0108
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> L=2144 SERVICED BY L=2150	1-47426-394-0	01	1	0109-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> L=2284 SERVICED BY L=2400	1-47426-395-0	01	1	0107-0107
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> L=2296	1-49166-267-0	01	1	0107-
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	0105-0106
111	UNION; OIL PIPE ZF M/T<X9E> (A) M14 2WAY	1-09654-176-2	01	1	0107-
111	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-0512
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0105-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-0603
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0105-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	0-91510-514-0	01	1	0604-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1637 SERVICED BY L=1700	1-47426-391-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX (B) L=395	1-49166-204-0	01	1	0107-0606
153	PIPE ASM; CLU,UNION TO FLEX (B) L=501 SERVICED BY L=550	1-47426-377-0	01	1	0607-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=955	1-49163-430-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=955	1-49163-430-0	01	1	0107-

90 172 90 106 213 106 25 29 51 50 51 29 29 80 50 25 81 26 29 25 116 115 206 191 158 172 53 92 111 95 53 29 206 128 193 147 53 206 207 53 63 52 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (F) L=50	1-47475-299-2	01	1	0105-0106
25	BRACKET; OIL PIPE ZF M/T<X9E> (F) L=50	1-47475-299-2	01	1	0107-
25	BRACKET; OIL PIPE (E)	1-47475-881-0	01	1	0105-0106
25	BRACKET; OIL PIPE ZF M/T<X9E> (E)	1-47477-669-1	01	1	0107-
25	BRACKET; OIL PIPE (A)	1-47478-582-1	01	1	0105-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0105-
25	BRACKET; OIL PIPE ISUZU M/T<X9A> (F) L=50	1-47475-299-2	02	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0105-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0105-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0105-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0108-
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	0107-0602
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	02	1	0603-
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91150-108-0	01	1	0108-0602
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	01	1	0603-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0105-0106
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	0107-0602
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91180-108-0	03	1	0603-
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28680-820-0	01	1	0105-0106
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0106
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	01	1	0105-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	05	1	0108-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28050-816-0	05	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	04	1	0105-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X12,M10X20 L=39	1-09039-005-0	01	1	0108-
50	NUT; UNION (C) M12 FLANGE	0-91150-212-0	01	1	0105-0106
50	NUT; UNION ZF M/T<X9E> (C) M12 FLANGE	0-91150-212-0	01	1	0107-0602
50	NUT; UNION ZF M/T<X9E> (C) M12 FLANGE	0-91180-212-0	01	1	0603-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0105-0512
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-
50	NUT; UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) M12	9-09840-280-0	01	1	0105-
51	WASHER; LK TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) ID=12.2	9-09150-512-0	01	1	0105-0603
51	WASHER; LK TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) ID=12.2	0-91510-512-0	01	1	0604-
52	BOLT; EYE,AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) M16X30	1-09675-026-0	01	1	0105-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=16.2	1-09630-086-0	02	1	0105-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0105-
63	BOLT; CLIP,PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28080-816-0	01	1	0105-0512
63	BOLT; CLIP,PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28050-816-0	01	1	0601-
80	CLIP; HOSE TRANSMISSION-ZF 16S221 OD(Y1U) ID=16 L=28	1-09700-872-0	01	1	0108-
81	UNION; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-09664-233-0	01	1	0105-
90	NIPPLE; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-31829-485-0	01	1	0105-
92	CLIP; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ID=9 L=32	9-09524-865-0	01	1	0105-0606
92	CLIP; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ID=9 L=32	0-95234-865-0	01	1	0607-
92	CLIP; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) ID=9 H=32 L=24	1-09701-221-0	01	1	0105-
95	BOLT; EYE,OIL PIPE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M14X27 FLANGE	1-09675-086-0	01	1	0105-
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	9-09223-008-1	01	1	0107-0607
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	9-09223-008-1	01	1	0107-0607
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	0-92113-008-0	01	1	0608-
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	0-92113-008-0	01	1	0608-
106	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-09654-384-0	01	1	0105-
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	0105-0106
111	UNION; OIL PIPE ZF M/T<X9E> (A) M14 2WAY	1-09654-176-2	01	1	0107-
111	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-0512
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0105-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-0603
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0105-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	0-91510-514-0	01	1	0604-
128	CLIP; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ID=13	1-09701-030-1	01	1	0105-
128	CLIP; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U) ID=13 H=18 L=20	1-09701-232-0	01	1	0105-
147	NUT; CLIP FIX (B) M8 FLANGE	0-91150-208-0	01	1	0105-0106
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0107-0602
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91180-208-0	01	1	0603-
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0105-
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER TRANSMISSION-ZF 16S151 OD(Y2N)	1-49119-466-2	01	1	0105-
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U)	1-49161-054-0	01	1	0105-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U) (B) L=570	1-09365-162-0	01	1	0108-0703
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U) (B) L=570	8-98072-344-0	01	1	0704-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=470	1-09364-929-0	01	1	0105-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U) (A) L=380	1-09364-261-0	01	1	0105-
190	PIPE; AIR,UNION TO MINIPAC TRANSMISSION-ZF 16S151 OD(Y2N)	1-49119-465-1	01	1	0105-
190	PIPE; AIR,UNION TO MINIPAC TRANSMISSION-ZF 16S221 OD(Y1U)	1-49161-730-0	01	1	0105-
191	PIPE; OIL,UNION TO MINIPAC TRANSMISSION-ZF 16S151 OD(Y2N)	1-49163-427-0	01	1	0105-
191	PIPE; OIL,UNION TO MINIPAC TRANSMISSION-ZF 16S221 OD(Y1U)	1-49163-428-0	01	1	0105-0107
193	ABSORBER; CLU CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-31820-023-0	01	1	0105-
206	CLIP; TUBE (A) ID=18 L=28 H=30	1-09701-110-0	01	1	0105-0106
206	CLIP; TUBE ZF M/T<X9E> (A) ID=18 L=28 H=30	1-09701-110-0	01	1	0107-
206	CLIP; TUBE (C) ID=13-18 L=14.5	1-09709-290-0	01	1	0105-0106
206	CLIP; TUBE ZF M/T<X9E> (C) ID=13-18 L=14.5	1-09709-290-0	01	1	0107-
206	CLIP; TUBE (B) ID=13 & 12	8-94178-797-0	01	1	0105-0106
206	CLIP; TUBE ZF M/T<X9E> (B) ID=13 & 12	8-94178-797-0	01	1	0107-
207	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0105-0106
207	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
207	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28650-820-0	01	1	0601-
207	BOLT; CLIP MJX16P M/T(Y3Z) M10X16 FLANGE	0-28181-016-0	02	1	0107-0512
207	BOLT; CLIP MJX16P M/T(Y3Z) M10X16 FLANGE	0-28151-016-0	02	1	0601-
213	BRACKET; OIL HOSE TRANSMISSION-ZF 16S221 OD(Y1U)	1-47478-478-0	01	1	0108-

36 67 24 185 67 66 186 147 185 167 58 57 187 58 27 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION L=628	1-47428-381-1	01	1	0105-0106
24	PIPE ASM; CLU,M/CYL TO UNION ZF M/T<X9E> L=628	1-47428-381-1	01	1	0107-
24	PIPE ASM; CLU,M/CYL TO UNION ISUZU M/T<X9A> L=621	1-47428-362-1	01	1	0107-
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	01	1	0105-0106
27	NUT; BRKT ZF M/T<X9E> (C) M8 FLANGE	0-91150-108-0	01	1	0107-0602
27	NUT; BRKT ZF M/T<X9E> (C) M8 FLANGE	0-91180-108-0	01	1	0603-
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	0105-0602
27	NUT; BRKT (C) M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
36	BRACKET; CLIP	1-71117-191-1	01	1	0105-
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	0105-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0105-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0105-0805
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-1312
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
147	NUT; CLIP FIX (B) M8 FLANGE	0-91150-208-0	01	1	0105-0106
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0107-0602
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91180-208-0	01	1	0603-
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0105-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0105-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0105-
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	0105-
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	0105-0205
185	CLIP; BRKT (A) ID=11 L=16	9-09525-025-0	01	1	0206-0606
185	CLIP; BRKT (A) ID=11 L=16	0-95235-025-0	01	1	0607-
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	0105-
187	SEAL; BRKT	1-71117-209-2	01	1	0105-

207 173 173 9 54 220 43 48 115 47 116 44 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE MJD7S M/T(Y2Y) M10 FLANGE	0-91150-210-0	02	1	0312-0602
9	NUT; BRKT,FLEX HOSE MJD7S M/T(Y2Y) M10 FLANGE	0-91180-210-0	02	1	0603-
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A>	1-47479-261-0	01	1	0107-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	02	1	0107-0512
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8X30 FLANGE	0-28650-830-0	02	1	0601-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	0107-0602
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	02	1	0603-
47	HOSE; FLEX,CLU CONT MJD7S M/T(Y2Y) L=500	1-09364-329-0	01	1	0312-
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) L=370	1-09364-646-0	01	1	0107-
48	GASKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> ID=10.2 OD=16.0	9-09571-410-0	01	1	0107-
54	BRACKET; AIR,FLEX HOSE MJD7S M/T(Y2Y)	1-47477-284-1	01	1	0312-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-0512
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0105-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-0603
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0105-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	0-91510-514-0	01	1	0604-
173	CONNECTOR ISUZU M/T<X9A> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-
173	CONNECTOR ISUZU M/T<X9A> (B) R1/4 & RC1/4	1-09664-211-0	01	1	0107-0204
173	CONNECTOR MJX16P M/T(Y3Z) (B) R1/4 & RC1/4	1-09664-211-0	01	1	0205-
207	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0105-0106
207	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
207	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28650-820-0	01	1	0601-
207	BOLT; CLIP MJX16P M/T(Y3Z) M10X16 FLANGE	0-28181-016-0	02	1	0107-0512
207	BOLT; CLIP MJX16P M/T(Y3Z) M10X16 FLANGE	0-28151-016-0	02	1	0601-
220	HOSE; FLEX,POWER ASSIST MJD7S M/T(Y2Y) L=300	1-09363-611-0	01	1	0312-
220	HOSE; FLEX,POWER ASSIST MJX16P M/T(Y3Z) L=270	1-09363-687-0	01	1	0107-

22 167 153 103 102 30 27 50 133 25 184 10 175 56 180 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0105-0703
1	HOSE; FLEX,CLU CONT L=520	8-98072-340-0	01	1	0704-
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-0512
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0105-0607
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	0608-
25	BRACKET; OIL PIPE (F) L=50	1-47475-299-2	01	1	0105-0106
25	BRACKET; OIL PIPE ZF M/T<X9E> (F) L=50	1-47475-299-2	01	1	0107-
25	BRACKET; OIL PIPE (E)	1-47475-881-0	01	1	0105-0106
25	BRACKET; OIL PIPE ZF M/T<X9E> (E)	1-47477-669-1	01	1	0107-
25	BRACKET; OIL PIPE (A)	1-47478-582-1	01	1	0105-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0105-
25	BRACKET; OIL PIPE ISUZU M/T<X9A> (F) L=50	1-47475-299-2	02	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0105-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0105-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0105-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0108-
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	01	1	0105-0106
27	NUT; BRKT ZF M/T<X9E> (C) M8 FLANGE	0-91150-108-0	01	1	0107-0602
27	NUT; BRKT ZF M/T<X9E> (C) M8 FLANGE	0-91180-108-0	01	1	0603-
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	0105-0602
27	NUT; BRKT (C) M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0105-0106
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
30	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-0512
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-0904
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
50	NUT; UNION (C) M12 FLANGE	0-91150-212-0	01	1	0105-0106
50	NUT; UNION ZF M/T<X9E> (C) M12 FLANGE	0-91150-212-0	01	1	0107-0602
50	NUT; UNION ZF M/T<X9E> (C) M12 FLANGE	0-91180-212-0	01	1	0603-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0105-0512
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-
50	NUT; UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) M12	9-09840-280-0	01	1	0105-
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	0105-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-0512
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-0603
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0105-0603
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1637 SERVICED BY L=1700	1-47426-391-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX (B) L=395	1-49166-204-0	01	1	0107-0606
153	PIPE ASM; CLU,UNION TO FLEX (B) L=501 SERVICED BY L=550	1-47426-377-0	01	1	0607-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=955	1-49163-430-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=955	1-49163-430-0	01	1	0107-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0105-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0105-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-0603
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
180	PLUG; PIPE	9-09204-510-0	01	1	0105-0804
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0105-0804
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	0805-

35 153 33 33 35 34 33 106 34 30 33 25 109 106 27 104 31 25 30 29 32 28 34 26 35 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (F) L=50	1-47475-299-2	01	1	0105-0106
25	BRACKET; OIL PIPE ZF M/T<X9E> (F) L=50	1-47475-299-2	01	1	0107-
25	BRACKET; OIL PIPE (E)	1-47475-881-0	01	1	0105-0106
25	BRACKET; OIL PIPE ZF M/T<X9E> (E)	1-47477-669-1	01	1	0107-
25	BRACKET; OIL PIPE (A)	1-47478-582-1	01	1	0105-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0105-
25	BRACKET; OIL PIPE ISUZU M/T<X9A> (F) L=50	1-47475-299-2	02	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0105-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0105-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0105-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0108-
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	0107-0602
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	02	1	0603-
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91150-108-0	01	1	0108-0602
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	01	1	0603-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0105-0106
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	0107-0602
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91180-108-0	03	1	0603-
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	01	1	0105-0106
27	NUT; BRKT ZF M/T<X9E> (C) M8 FLANGE	0-91150-108-0	01	1	0107-0602
27	NUT; BRKT ZF M/T<X9E> (C) M8 FLANGE	0-91180-108-0	01	1	0603-
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	0105-0602
27	NUT; BRKT (C) M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
28	CLIP; OIL PIPE (A) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0105-0106
28	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0107-
28	CLIP; OIL PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-0106
28	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0107-
28	CLIP; OIL PIPE ISUZU M/T<X9A> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	0107-
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28680-820-0	01	1	0105-0106
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0106
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	01	1	0105-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	05	1	0108-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28050-816-0	05	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	04	1	0105-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X12,M10X20 L=39	1-09039-005-0	01	1	0108-
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0105-0106
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
30	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-0512
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-0904
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
31	NUT; BRKT ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	0107-0602
31	NUT; BRKT ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	01	1	0603-
32	BRACKET; CLIP OIL PIPE ISUZU M/T<X9A>	1-47477-235-0	01	1	0107-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-0106
33	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0107-
33	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0107-
33	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0107-
33	CLIP; OIL PIPE ISUZU M/T<X9A> (B) ID=9 L=20	9-09524-835-0	01	1	0107-0606
33	CLIP; OIL PIPE ISUZU M/T<X9A> (B) ID=9 L=20	0-95234-835-0	01	1	0607-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-0106
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28650-830-0	01	1	0601-
34	BOLT; PIPE CLIP ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	02	1	0107-0512
34	BOLT; PIPE CLIP ISUZU M/T<X9A> M8X30 FLANGE	0-28650-830-0	02	1	0601-
34	BOLT; PIPE CLIP ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	04	1	0107-0512
34	BOLT; PIPE CLIP ISUZU M/T<X9A> M8X30 FLANGE	0-28650-830-0	04	1	0601-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0106
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0107-0602
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91180-108-0	01	1	0603-
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	03	1	0107-0602
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	03	1	0603-
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	04	1	0107-0602
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	04	1	0603-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2143	1-49164-307-0	01	1	0105-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> L=2138 SERVICED BY L=2150	1-47426-394-0	01	1	0107-0108
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> L=2144 SERVICED BY L=2150	1-47426-394-0	01	1	0109-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> L=2284 SERVICED BY L=2400	1-47426-395-0	01	1	0107-0107
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> L=2296	1-49166-267-0	01	1	0107-
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	9-09223-008-1	01	1	0107-0607
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	9-09223-008-1	01	1	0107-0607
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	0-92113-008-0	01	1	0608-
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	0-92113-008-0	01	1	0608-
106	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-09654-384-0	01	1	0105-
109	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> L=1015 SERVICED BY L=1100	1-47426-387-0	01	1	0107-0205
109	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> L=1015 SERVICED BY L=1100	1-47434-409-0	01	1	0206-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1637 SERVICED BY L=1700	1-47426-391-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX (B) L=395	1-49166-204-0	01	1	0107-0606
153	PIPE ASM; CLU,UNION TO FLEX (B) L=501 SERVICED BY L=550	1-47426-377-0	01	1	0607-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=955	1-49163-430-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=955	1-49163-430-0	01	1	0107-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
