Isuzu WW
▶
TRUCKS
▶
FVR
▶
10631 - FVR-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-87 - COUPLING; INJECTION PUMP
▶

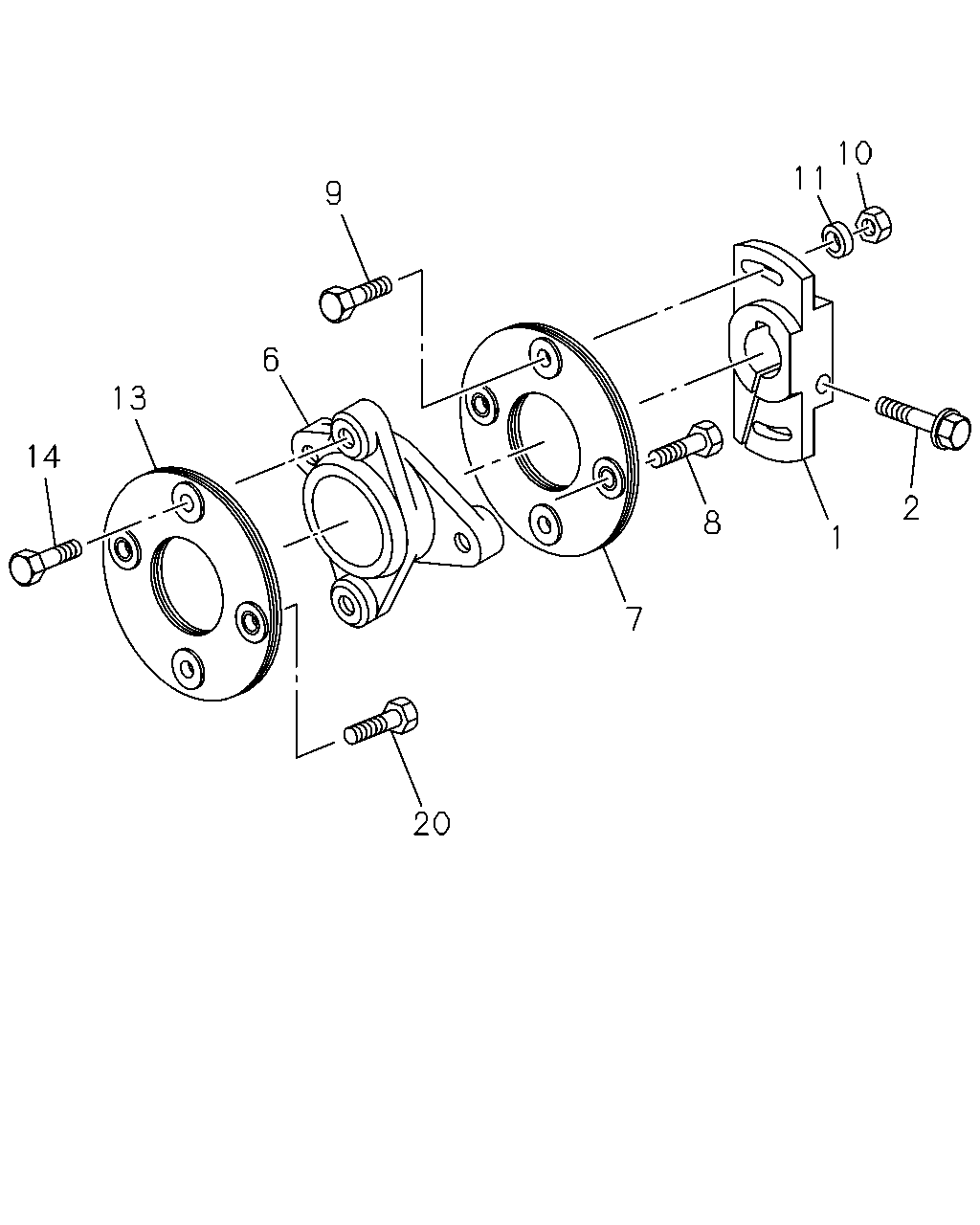

0-87 — COUPLING; INJECTION PUMP
(#1213) — 18 parça
Tümü
A - 6SA1 STD ENG
B - 6SA1TC ENG
C - 6HE1 STD ENG
10
11
9
6
13
14
2
8
1
7
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
COUPLING; INJ PUMP DRIVE
1-15781-018-0
01
1
9202-
●
●
1
COUPLING; INJ PUMP DRIVE
1-15782-014-0
01
1
9202-
●
2
BOLT; COUPLING FIX,INJ PUMP
1-15789-135-0
01
1
9202-
●
●
2
BOLT; COUPLING FIX,INJ PUMP
1-15789-010-0
01
1
9202-
●
6
COUPLING; CROSS,INJ PUMP DRIVE
1-15789-104-0
01
1
9202-
●
●
6
COUPLING; CROSS,INJ PUMP DRIVE
1-15789-155-0
01
1
9202-9210
●
6
COUPLING; CROSS,INJ PUMP DRIVE
1-15789-186-0
01
1
9211-
●
7
PLATE; COUPLING,COUPLING SIDE
1-15789-065-0
01
1
9202-
●
●
●
8
BOLT; PLATE TO CROSS COUPLING
1-15789-120-0
02
1
9202-
●
●
8
BOLT; PLATE TO CROSS COUPLING
1-15749-501-0
02
1
9202-
●
9
BOLT; PLATE TO COUPLING,INJ PUMP
1-15749-488-0
02
1
9202-
●
●
9
BOLT; PLATE TO COUPLING,INJ PUMP
1-15789-122-0
02
1
9202-
●
10
NUT; PLATE TO COUPLING,INJ PUMP
M8
9-09110-508-0
02
1
9202-
●
●
10
NUT; PLATE TO COUPLING,INJ PUMP
1-15789-066-0
02
1
9202-
●
11
WASHER; PLATE TO COUPLING,INJ PUMP
1-15749-432-0
02
1
9202-
●
●
13
PLATE; COUPLING,TIMER SIDE,INJ PUMP
1-15789-065-0
01
1
9202-
●
●
●
14
BOLT; PLATE TO CROSS COUPLING,TIMER SI
1-15789-120-0
02
1
9202-
●
●
●
20
BOLT; COUPLING TO INJ PUMP
1-15789-119-0
02
1
9202-
●
●
●
