3-78 — FIXING PARTS; AIR PIPING (#121295) — 71 parça

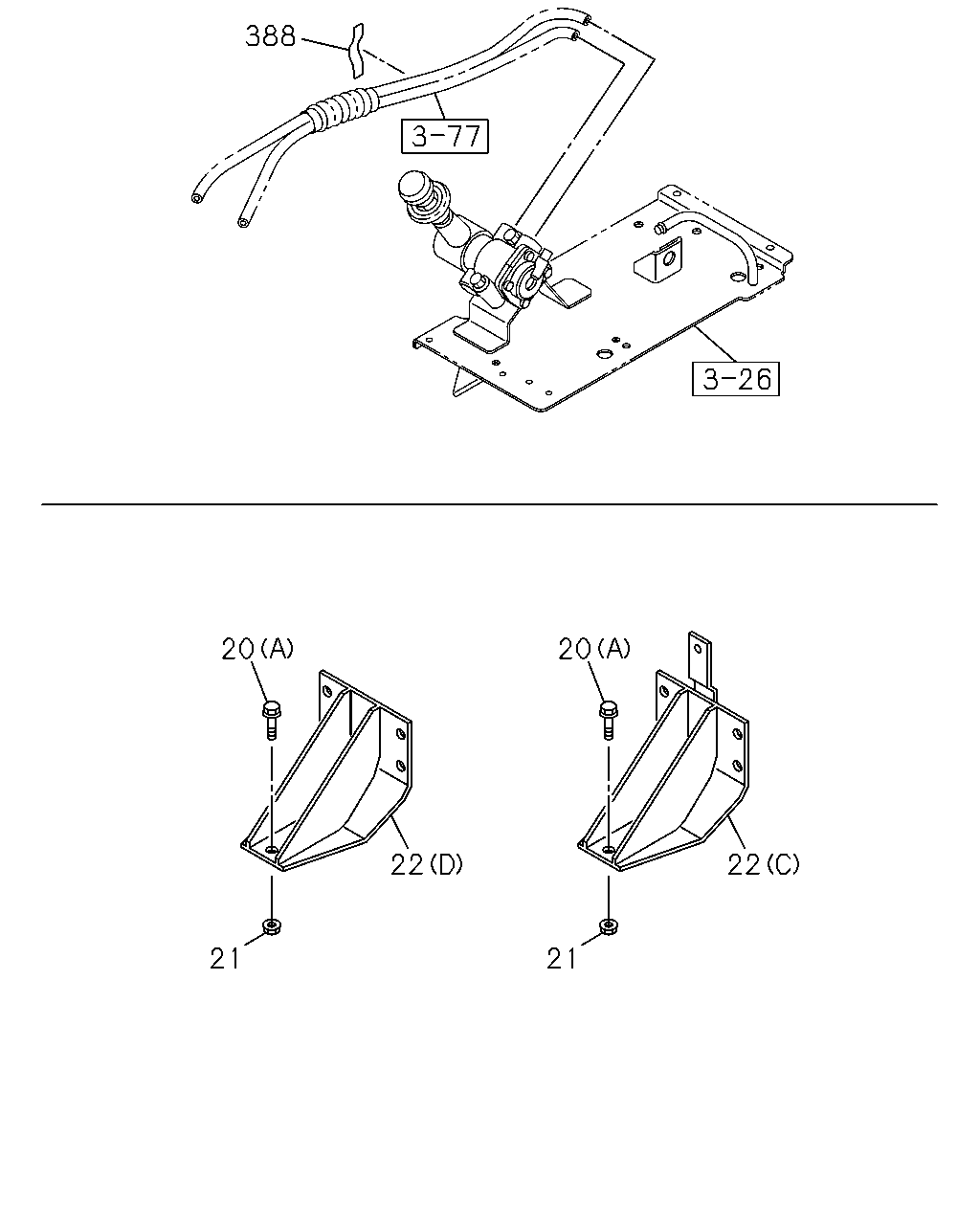

çizim 356413
22 20 22 21 21 20 388
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
(B) M8X10 FLANGE THA 		0-28050-810-0 01 1 1304-
20 BOLT; CLIP
(A) M12X35 FLANGE THA 		0-28051-235-0 08 1 1304-
21 NUT; CLIP
M12 FLANGE THA 		0-91180-212-0 08 1 1304-
22 BRACKET; CLIP
(A) L=150 H=30 		1-47477-629-2 02 1 1304-
22 BRACKET; CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 1304-
22 BRACKET; CLIP
(B) 		1-47479-693-0 01 1 1304-
22 BRACKET; CLIP
(C) FT LH THA 		8-97924-642-0 01 1 1304-
22 BRACKET; CLIP
(D) RR LH THA 		8-97924-643-0 01 1 1304-
22 BRACKET; CLIP
(D) RH THA 		8-97924-644-0 02 1 1304-
388 SEAL
100X40 		1-72498-022-1 03 1 1304-

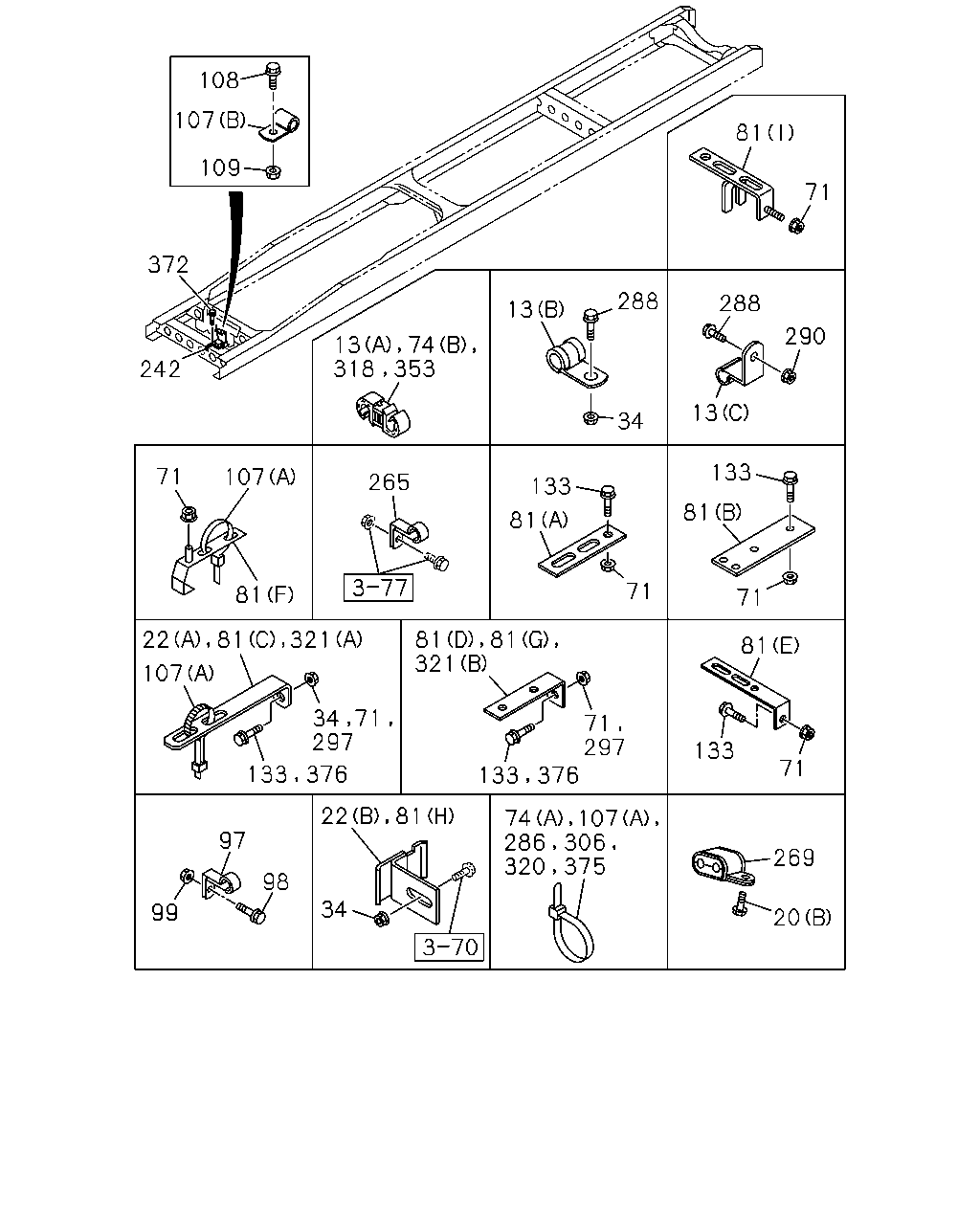

çizim 358469
108 107 109 372 242 13 318 353 74 13 288 34 81 71 288 290 13 133 81 71 71 81 133 265 107 81 71 22 81 321 107 34 71 297 376 133 81 81 321 71 297 376 133 133 81 71 269 20 375 320 286 306 107 74 81 22 34 98 97 99
BalonParca AdiParca NoAdetTipApplied Date
13 CLIP; AIR PIPE
(B) ID=7 L=16 		0-95234-625-0 01 1 1304-
13 CLIP; AIR PIPE
(C) ID=6 H=20 L=20 		1-09700-603-0 01 1 1304-
13 CLIP; AIR PIPE
(A) ID=6.35 & 6.35 		1-09709-273-1 03 1 1304-
13 CLIP; AIR PIPE
(A) ID=6.35 & 15 		1-09709-276-1 03 1 1304-
20 BOLT; CLIP
(B) M8X10 FLANGE THA 		0-28050-810-0 01 1 1304-
20 BOLT; CLIP
(A) M12X35 FLANGE THA 		0-28051-235-0 08 1 1304-
22 BRACKET; CLIP
(A) L=150 H=30 		1-47477-629-2 02 1 1304-
22 BRACKET; CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 1304-
22 BRACKET; CLIP
(B) 		1-47479-693-0 01 1 1304-
22 BRACKET; CLIP
(C) FT LH THA 		8-97924-642-0 01 1 1304-
22 BRACKET; CLIP
(D) RR LH THA 		8-97924-643-0 01 1 1304-
22 BRACKET; CLIP
(D) RH THA 		8-97924-644-0 02 1 1304-
34 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1304-
34 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 04 1 1304-
71 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 19 1 1304-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 07 1 1304-
74 CLIP; NYLON TUBE
(B) ID=12 & 12 		1-09709-280-1 01 1 1304-
81 BRACKET; CLIP
(A) 		1-47477-514-3 02 1 1304-
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 1304-
81 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 03 1 1304-1304
81 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 02 1 1305-
81 BRACKET; CLIP
(E) L=225 		1-47477-646-3 01 1 1304-
81 BRACKET; CLIP
(E) L=225 		1-47477-646-3 01 1 1304-
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 03 1 1304-1304
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 1305-
81 BRACKET; CLIP
(G) L=90 		1-47477-755-1 05 1 1304-
81 BRACKET; CLIP
(H) 		1-47479-693-0 01 1 1304-
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 1304-
81 BRACKET; CLIP
(F) 		8-98047-730-0 02 1 1304-
81 BRACKET; CLIP
(I) 		8-98177-873-0 03 1 1304-
97 CLIP; AIR PIPE
ID=11 H=20 L=20 		8-98033-780-0 01 1 1304-
98 BOLT; PIPE CLIP
M8X30 FLANGE THA 		0-28650-830-0 01 1 1304-
99 NUT; PIPE CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1304-
107 CLIP; NYLON TUBE
(B) ID=19 L=40 		0-95235-876-0 01 1 1304-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 52 1 1304-1406
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 51 1 1407-
108 BOLT; TUBE CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 1304-
109 NUT; TUBE CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1304-
133 BOLT; BRKT
M8X20 FLANGE THA 		0-28650-820-0 03 1 1304-
133 BOLT; BRKT
M8X20 FLANGE THA 		0-28650-820-0 03 1 1304-
133 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1304-
133 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 1304-
133 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 11 1 1304-
242 BRACKET; PIPE CLIP 8-98106-046-0 01 1 1304-
265 CLIP; NYLON TUBE
ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1304-
269 CLIP; BAND,NYLON TUBE
ID=11X2 L=20 		0-95325-035-0 01 1 1304-
286 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1304-
288 BOLT; CLIP,AIR PIPE
M8X20 FLANGE THA 		0-28650-820-0 01 1 1304-
288 BOLT; CLIP,AIR PIPE
M8X20 FLANGE THA 		0-28650-820-0 01 1 1304-
290 NUT; CLIP,AIR PIPE
M8 FLANGE THA 		0-91180-108-0 01 1 1304-
297 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1304-
306 CLIP; NYLON TUBE
L=350 		1-09707-183-0 03 1 1304-
318 CLIP; AIR PIPE
ID=6.35 & 15 		1-09709-276-1 03 1 1304-
320 CLIP; BAND,FLEX FIX
L=250 		5-09707-030-1 01 1 1304-
321 BRACKET; CLIP
(A) L=150 H=30 		1-47477-629-2 01 1 1304-
321 BRACKET; CLIP
(B) L=60 H=30 		1-47477-716-1 01 1 1304-
353 CLIP; AIR PIPE
ID=18 & 18 		8-94323-068-0 01 1 1304-
372 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 1304-
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1304-
376 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1304-
376 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 01 1 1304-
