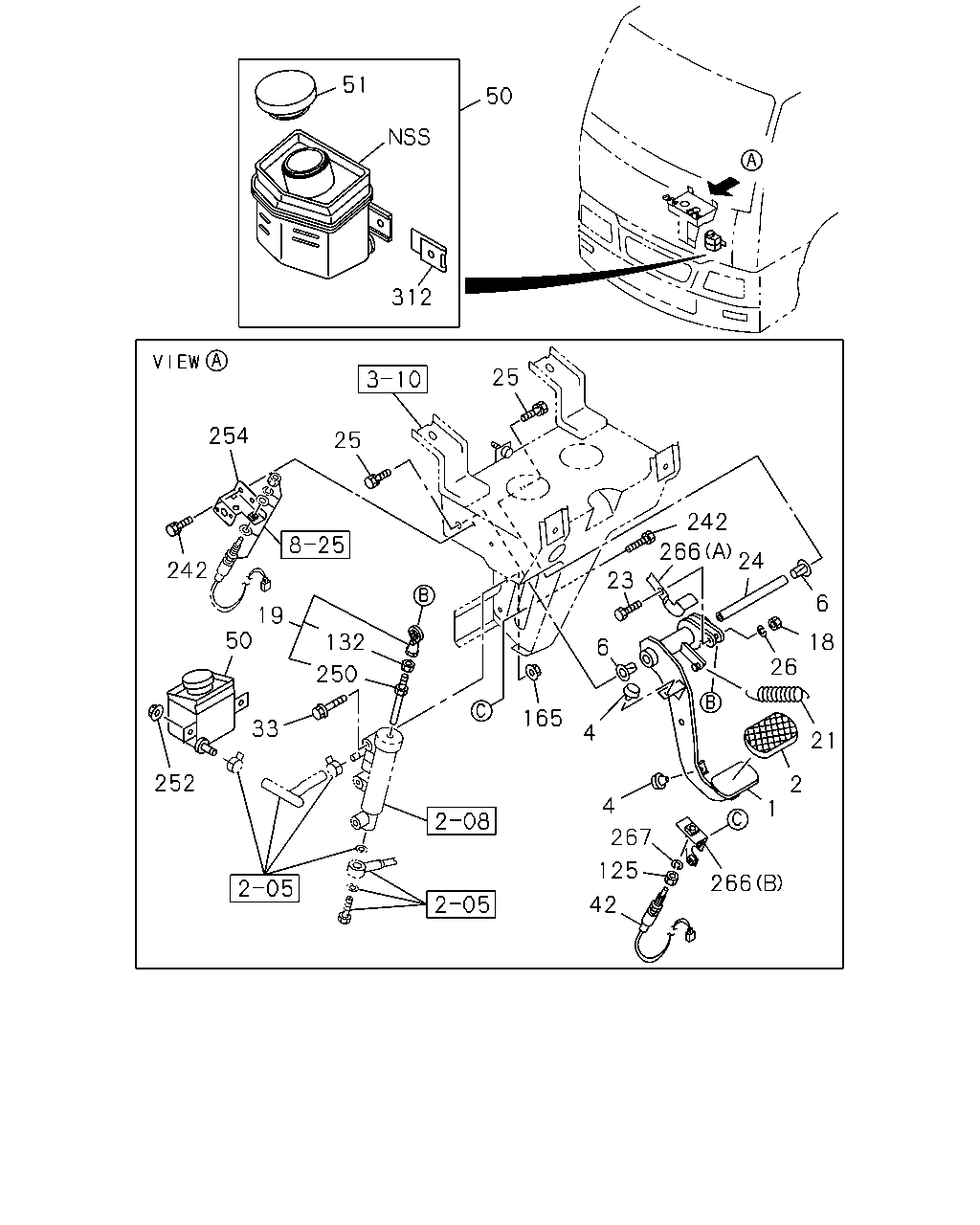

1 |
PEDAL; CLU
MJD7S M/T(Y2Y)
|
1-73907-440-2 |
01 |
1 |
0312- |
| |
1 |
PEDAL; CLU
|
1-73907-472-2 |
01 |
1 |
0105-0106 |
| |
1 |
PEDAL; CLU
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF
16S151 OD(Y2N),MJX16P M/T(Y3Z)
|
1-73907-472-2 |
01 |
1 |
0107- |
| |
2 |
COVER; CLU PEDAL
|
8-97893-618-1 |
01 |
1 |
0105- |
| |
4 |
STOPPER; CLU PEDAL
|
1-47319-014-1 |
02 |
1 |
0105- |
| |
6 |
BUSHING; CLU PEDAL
|
1-09330-045-0 |
02 |
1 |
0105- |
| |
18 |
NUT; PUSH ROD
MJD7S M/T(Y2Y)
M8
|
0-91110-508-0 |
01 |
1 |
0312- |
| |
18 |
NUT; PUSH ROD
M8
|
9-09110-508-0 |
01 |
1 |
0105- |
| |
18 |
NUT; PUSH ROD
TRANSMISSION-ZF 16S221 OD(Y1U)
AIR BAG(TFQ)
M8
|
9-09110-408-0 |
01 |
1 |
0105-0308 |
| |
19 |
ROD ASM; PUSH,CLU
TRANSMISSION-ZF 16S151 OD(Y2N)
|
1-73907-320-1 |
01 |
1 |
0105-0106 |
| |
19 |
ROD ASM; PUSH,CLU
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z)
|
1-73907-320-1 |
01 |
1 |
0107-0311 |
| |
19 |
ROD ASM; PUSH,CLU
TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y),
MJX16P M/T(Y3Z)
|
1-73907-320-1 |
01 |
1 |
0312- |
| |
19 |
ROD ASM; PUSH,CLU
TRANSMISSION-ZF 16S221 OD(Y1U)
|
1-73907-679-0 |
01 |
1 |
0105- |
| |
21 |
SPRING; RETURN,CLU PEDAL
MJD7S M/T(Y2Y)
|
1-73908-265-0 |
01 |
1 |
0312- |
| |
21 |
SPRING; RETURN,CLU PEDAL
|
1-73907-445-0 |
01 |
1 |
0105-0106 |
| |
21 |
SPRING; RETURN,CLU PEDAL
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF
16S151 OD(Y2N),MJX16P M/T(Y3Z)
|
1-73907-445-0 |
01 |
1 |
0107- |
| |
23 |
BOLT; PUSH ROD
M8X39.7
|
1-09009-150-0 |
01 |
1 |
0105- |
| |
24 |
SHAFT; CLU PEDAL
|
1-73998-936-1 |
01 |
1 |
0105- |
| |
25 |
BOLT; PEDAL
M10X25 W/LK WASHER
|
0-50051-025-0 |
02 |
1 |
0105- |
| |
26 |
WASHER; LK,PUSH ROD
MJD7S M/T(Y2Y)
ID=8.2
|
0-91510-608-0 |
01 |
1 |
0312- |
| |
26 |
WASHER; LK,PUSH ROD
ID=8.2
|
9-09150-608-0 |
01 |
1 |
0105- |
| |
33 |
BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE
|
0-28081-060-0 |
02 |
1 |
0105-0512 |
| |
33 |
BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE
|
0-28051-060-0 |
02 |
1 |
0601- |
| |
42 |
SWITCH; CLU
|
1-82380-114-2 |
01 |
1 |
0105-0106 |
| |
42 |
SWITCH; CLU
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF
16S151 OD(Y2N),MJX16P M/T(Y3Z)
|
1-82380-114-2 |
01 |
1 |
0107- |
| |
50 |
TANK; OIL,CLU
|
1-47530-182-0 |
01 |
1 |
0105- |
| |
51 |
CAP; OIL TANK,CLU
|
8-94136-483-1 |
01 |
1 |
0105- |
| |
125 |
NUT; CLU SWITCH
M10
|
9-09110-510-0 |
01 |
1 |
0105-0106 |
| |
125 |
NUT; CLU SWITCH
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF
16S151 OD(Y2N),MJX16P M/T(Y3Z)
M10
|
9-09110-510-0 |
01 |
1 |
0107- |
| |
132 |
NUT; LK,PUSH ROD
MJD7S M/T(Y2Y)
M8
|
0-91110-508-0 |
01 |
1 |
0312- |
| |
132 |
NUT; LK,PUSH ROD
M8
|
9-09110-408-0 |
01 |
1 |
0105-0308 |
| |
132 |
NUT; LK,PUSH ROD
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF
16S151 OD(Y2N),MJX16P M/T(Y3Z)
M8
|
9-09110-408-0 |
01 |
1 |
0309- |
| |
165 |
NUT; CLU M/CYL
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0105-0106 |
| |
165 |
NUT; CLU M/CYL
ZF M/T<X9E>
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0107-0602 |
| |
165 |
NUT; CLU M/CYL
ZF M/T<X9E>
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0603- |
| |
242 |
BOLT; BRKT,CLUTCH
MJD7S M/T(Y2Y)
M6X16 W/LK WASHER
|
0-50040-616-0 |
02 |
1 |
0312- |
| |
242 |
BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER
|
0-50040-616-0 |
04 |
1 |
0105-0106 |
| |
242 |
BOLT; BRKT,CLUTCH
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF
16S151 OD(Y2N),MJX16P M/T(Y3Z)
M6X16 W/LK WASHER
|
0-50040-616-0 |
04 |
1 |
0107- |
| |
250 |
ROD; PUSH,CLU
TRANSMISSION-ZF 16S151 OD(Y2N)
|
1-73996-219-0 |
01 |
1 |
0105-0106 |
| |
250 |
ROD; PUSH,CLU
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z)
|
1-73996-219-0 |
01 |
1 |
0107-0311 |
| |
250 |
ROD; PUSH,CLU
TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y),
MJX16P M/T(Y3Z)
|
1-73996-219-0 |
01 |
1 |
0312- |
| |
250 |
ROD; PUSH,CLU
TRANSMISSION-ZF 16S221 OD(Y1U)
|
1-31422-019-0 |
01 |
1 |
0105- |
| |
252 |
NUT; OIL TANK
M8 FLANGE W/RUBBER
|
1-09984-176-0 |
02 |
1 |
0105- |
| |
254 |
BRACKET; CLU SENSOR
|
1-73998-979-5 |
01 |
1 |
0105- |
| |
266 |
BRACKET; CLU SWITCH
(A)
|
1-73907-395-1 |
01 |
1 |
0105-0106 |
| |
266 |
BRACKET; CLU SWITCH
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF
16S151 OD(Y2N),MJX16P M/T(Y3Z)
(A)
|
1-73907-395-1 |
01 |
1 |
0107- |
| |
266 |
BRACKET; CLU SWITCH
(B)
|
1-73908-354-0 |
01 |
1 |
0105-0106 |
| |
266 |
BRACKET; CLU SWITCH
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF
16S151 OD(Y2N),MJX16P M/T(Y3Z)
(B)
|
1-73908-354-0 |
01 |
1 |
0107- |
| |
267 |
WASHER; LK,CLU SWITCH
ID=10.2
|
9-09150-510-0 |
01 |
1 |
0105-0106 |
| |
267 |
WASHER; LK,CLU SWITCH
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF
16S151 OD(Y2N),MJX16P M/T(Y3Z)
ID=10.2
|
9-09150-510-0 |
01 |
1 |
0107- |
| |
312 |
PLATE; OIL TANK,CLU
|
1-21249-007-1 |
01 |
1 |
0105- |
