Isuzu WW
▶
TRUCKS
▶
GVR
▶
11498 - GVR(THAI)EURO3
▶
3 - Brakes, Brake System
▶
3-26 - TRAILER CONTROL
▶
3-26 — TRAILER CONTROL
(#121284) — 91 parça
◀
[326A] NO.1 (23 parça)
[326A] NO.2 (25 parça)
[326A] NO.4 (16 parça)
[326A] NO.5 (1 parça)
[326A] NO.3 (26 parça)
▶

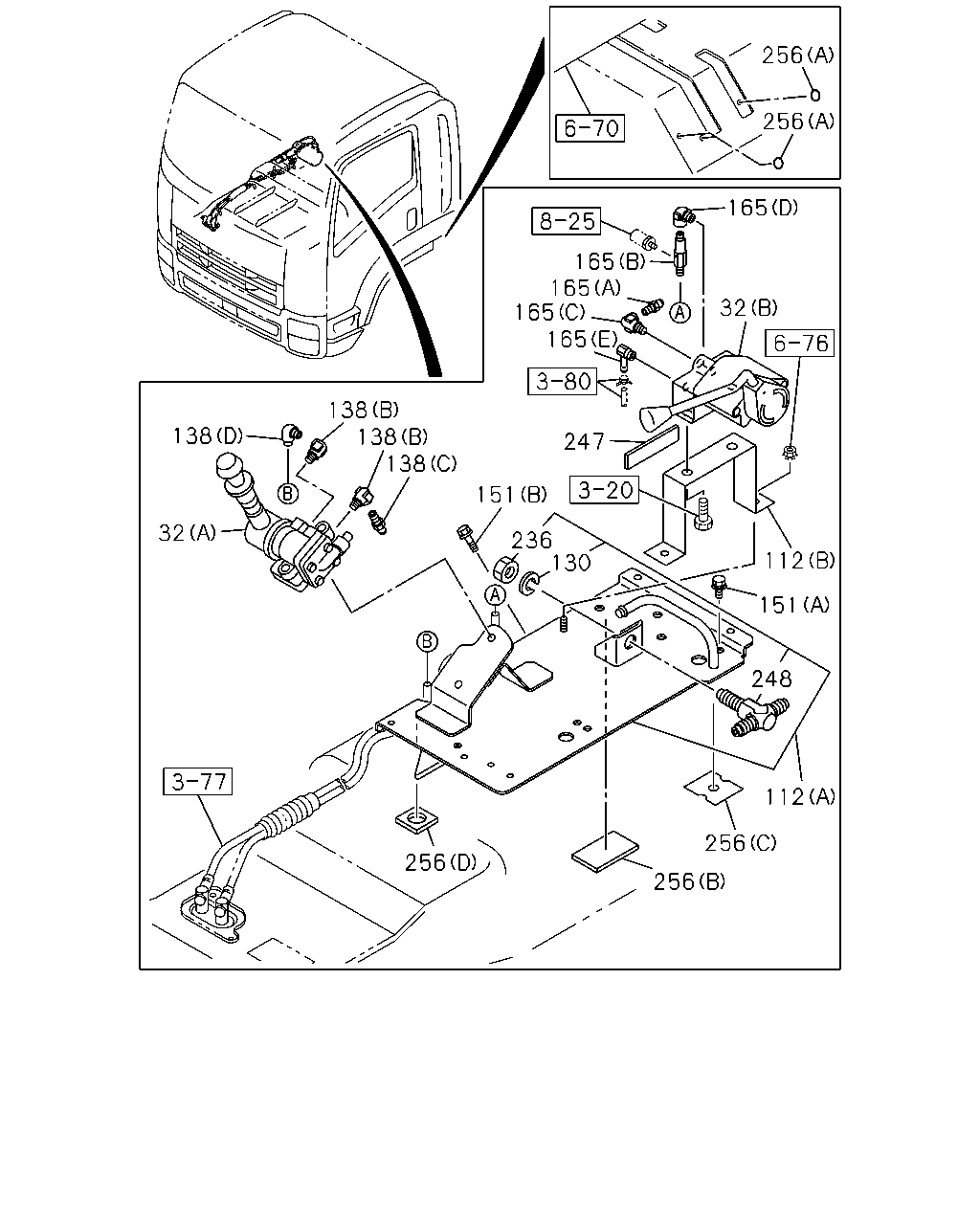

256
256
165
165
165
165
165
32
247
138
138
138
151
236
130
112
151
248
112
256
256
256
32
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
VALVE; BRK,HAND CONT
(B)
1-48100-674-0
01
1
1304-
32
VALVE; BRK,HAND CONT
(A)
1-48460-356-0
01
1
1304-
112
BRACKET; CONT VLV
(B) THA
1-73908-268-0
01
1
1304-
112
BRACKET; CONT VLV
(A)
8-97610-416-2
01
1
1304-
130
WASHER; LK,VLV
ID=16.2
0-91510-816-0
01
1
1304-
138
CONNECTOR; DELIVERY
(B) PT1/4 2WAY
1-09660-693-0
02
1
1304-
138
CONNECTOR; DELIVERY
(D) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1304-
138
CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
1304-
138
CONNECTOR; DELIVERY
(A) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
1304-
151
BOLT; VLV BRKT
(A) M6X16 THA
0-52000-616-0
03
1
1304-
151
BOLT; VLV BRKT
(B) M8X20 W/LK&PL WASHER
0-52000-820-0
02
1
1304-
165
CONNECTOR; HAND BRK VLV
(A)
1-09650-352-1
01
1
1304-
165
CONNECTOR; HAND BRK VLV
(B)
1-09660-335-1
01
1
1304-
165
CONNECTOR; HAND BRK VLV
(C) PT1/4 2WAY
1-09660-693-0
02
1
1304-
165
CONNECTOR; HAND BRK VLV
(D) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
1304-
165
CONNECTOR; HAND BRK VLV
(E) THA
8-97062-077-1
01
1
1304-
236
NUT
M16 THA
0-91111-516-0
01
1
1304-
247
SEAL; HOSE
100X40
1-72498-022-1
01
1
1304-
248
UNION
M16 3WAY
0-92148-610-0
01
1
1304-
256
SEAL
(B)
1-72497-062-1
01
1
1304-
256
SEAL
(A) OD=25 BLACK THA
1-76798-019-0
07
1
1304-
256
SEAL
(C)
1-79996-382-0
01
1
1304-
256
SEAL
(D)
8-98049-765-0
01
1
1304-

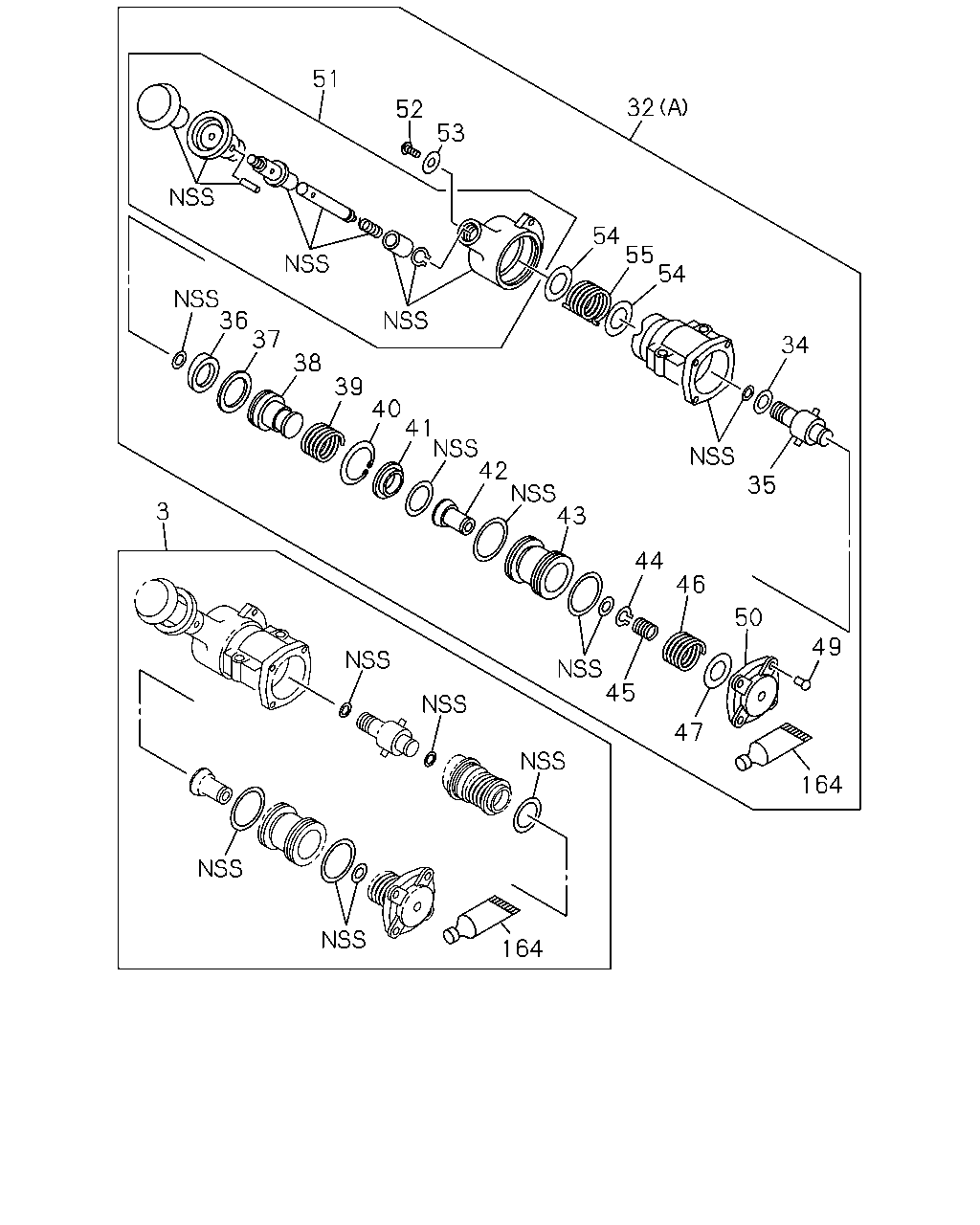

32
51
52
53
54
55
54
34
35
49
50
46
44
43
42
41
40
39
38
37
36
3
45
47
164
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
REPAIR KIT; HAND BRK VLV
1-48469-096-0
01
1
1304-
32
VALVE; BRK,HAND CONT
(B)
1-48100-674-0
01
1
1304-
32
VALVE; BRK,HAND CONT
(A)
1-48460-356-0
01
1
1304-
34
SHIM; CAM HOLDER
1-48469-055-0
AR
1
1304-
35
HOLDER; CAM
1-48469-054-0
01
1
1304-
36
RING; CAM
1-48469-056-0
01
1
1304-
37
GUIDE; CAM RING
1-48469-058-0
01
1
1304-
38
SEAT; EXH VLV
1-48469-057-0
01
1
1304-
39
SPRING; RETURN,CAM RING
1-48469-063-0
01
1
1304-
40
RING; SNAP
1-48469-067-0
01
1
1304-
41
SEAT; FEED VLV
1-48469-066-0
01
1
1304-
42
VALVE; FEED
1-48469-065-0
01
1
1304-
43
PISTON; HAND BRK VLV
1-48469-064-0
01
1
1304-
44
RING; SNAP,FEED VLV
1-48469-068-0
01
1
1304-
45
SPRING; FEED VLV
1-48469-070-0
01
1
1304-
46
SPRING; MAIN,PISTON
1-48469-089-0
01
1
1304-
47
SHIM; MAIN SPRING
1-48469-072-0
AR
1
1304-
49
SCREW; COVER
1-48469-118-0
04
1
1304-
50
COVER; HAND BRK VLV
1-48469-222-0
01
1
1304-
51
HANDLE ASM; HAND BRK VLV
1-48469-122-0
01
1
1304-
52
SCREW; HANDLE
1-48469-062-0
01
1
1304-
53
WASHER; HANDLE
1-48469-061-0
01
1
1304-
54
SEAT; SPRING
1-48469-082-0
02
1
1304-
55
SPRING; RETURN,HANDLE
1-48469-059-0
01
1
1304-
164
GREASE; HAND BRK VLV
1-48469-084-0
01
1
1304-

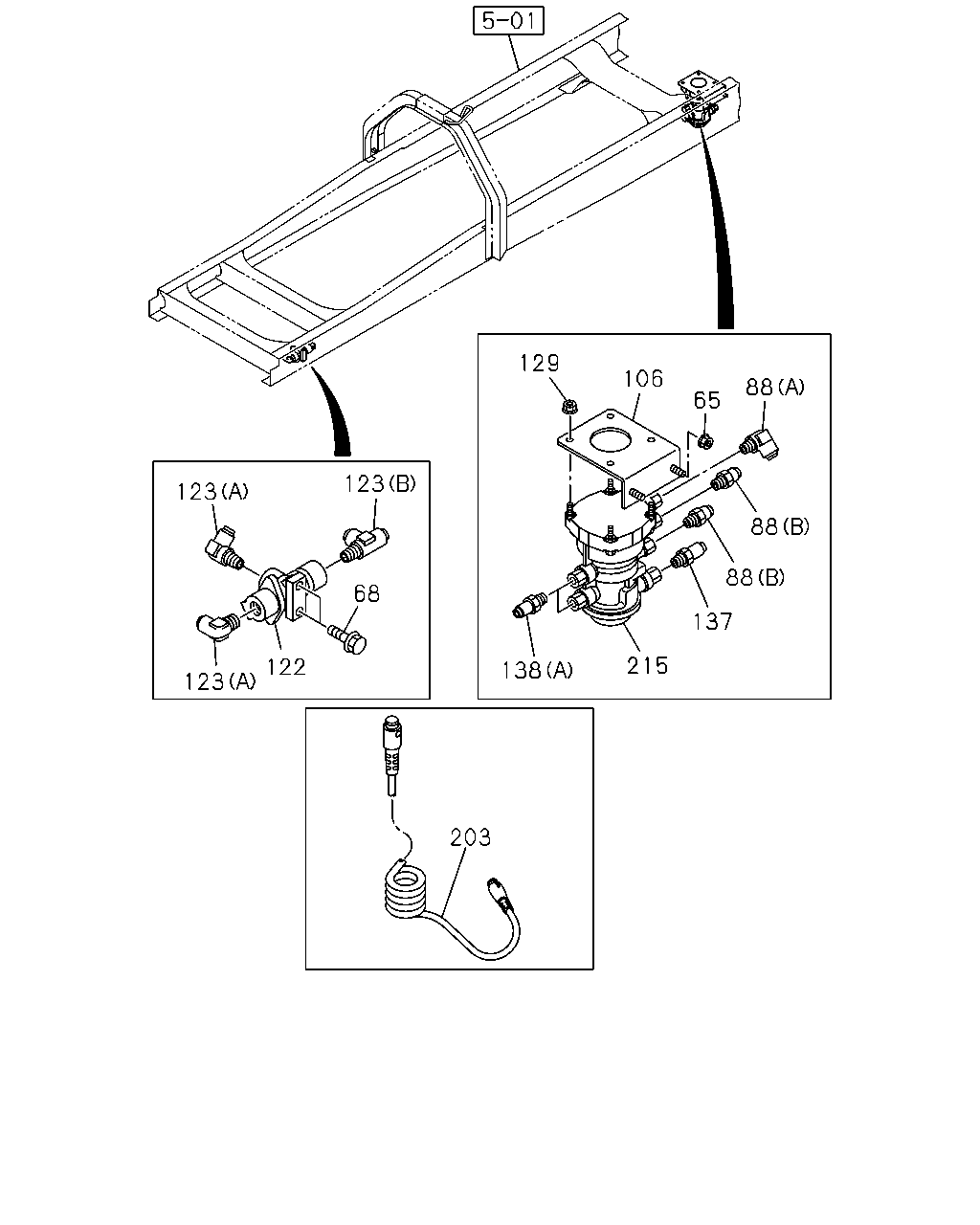

123
123
68
122
123
203
138
215
137
88
88
88
65
106
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
65
NUT; RELAY VLV
M10 FLANGE THA
0-91180-210-0
02
1
1304-
68
BOLT; DOUBLE CHECK VLV
M8X20 FLANGE THA
0-28050-820-0
02
1
1304-
88
CONNECTOR; ELBOW
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1304-
88
CONNECTOR; ELBOW
(B) DIN8X2 & R3/8 3WAY
1-09660-997-0
02
1
1304-
106
BRACKET; VLV
1-48495-168-0
01
1
1304-
122
VALVE ASM; DOUBLE CHECK
1-48410-531-1
01
1
1304-
123
CONNECTOR; DBL CHECK VLV
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
02
1
1304-
123
CONNECTOR; DBL CHECK VLV
(B) DIN8X2 & R3/8 3WAY
1-09660-997-0
01
1
1304-
129
NUT; VLV
M8 FLANGE THA
0-91180-108-0
04
1
1304-
137
CONNECTOR; SUPPLY
DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1304-
138
CONNECTOR; DELIVERY
(B) PT1/4 2WAY
1-09660-693-0
02
1
1304-
138
CONNECTOR; DELIVERY
(D) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1304-
138
CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
1304-
138
CONNECTOR; DELIVERY
(A) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
1304-
203
CABLE; JUMPER
REAR BODY MAKER<XN4> L=5500
8-98107-178-0
01
1
1304-
215
VALVE; TRAILER CONT
8-98091-694-0
01
1
1304-
180
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
180
REPAIR KIT; RELAY VLV
1-85576-449-0
01
1
1304-

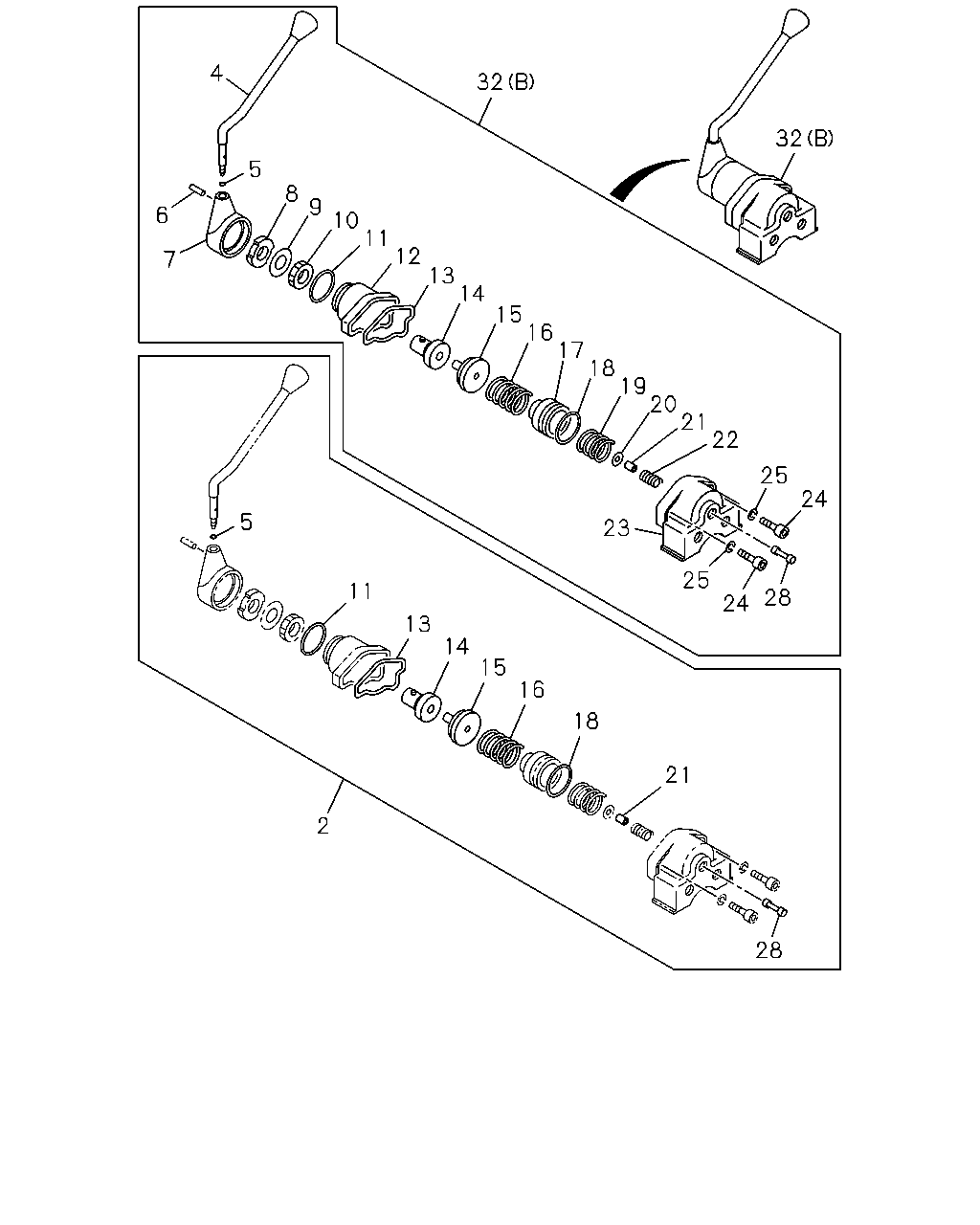

32
32
24
25
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
5
4
6
7
5
11
13
14
2
15
16
18
21
28
28
24
25
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; HAND BRK VLV
1-85576-180-0
01
1
1304-
4
HANDLE ASM; BRK VLV
1-48119-144-0
01
1
1304-
5
GASKET; HANDLE
1-48119-128-0
01
1
1304-
6
PIN; SPR
1-48119-143-0
01
1
1304-
7
HEAD; BRK VLV
1-48119-131-1
01
1
1304-
8
STOPPER; BRK VLV
1-48119-136-0
01
1
1304-
9
WASHER; LK,ADJ
1-48119-123-0
01
1
1304-
10
RING; ADJ
1-48119-122-0
01
1
1304-
11
GASKET; HD TO COVER
1-48119-130-0
01
1
1304-
12
COVER; BRK VLV
1-48129-097-1
01
1
1304-
13
GASKET; BODY TO COVER
1-48119-120-0
01
1
1304-
14
FOLLOWER; CAM
1-48129-109-0
01
1
1304-
15
CAM; FOLLOWER
1-48129-110-0
01
1
1304-
16
SPRING; GRUDUATING
1-48129-101-0
01
1
1304-
17
PISTON; SPR
1-48129-095-0
01
1
1304-
18
GASKET; BODY
1-48129-096-0
01
1
1304-
19
SPRING; PISTON
1-48129-094-0
01
1
1304-
20
GUIDE; VLV
1-48129-090-0
01
1
1304-
21
VALVE; IN & EXH
1-48121-017-0
01
1
1304-
22
SPRING; VLV
1-48123-024-0
01
1
1304-
23
BODY; BRK VLV
1-48111-060-1
01
1
1304-
24
BOLT; EXH VLV
1-48129-092-0
02
1
1304-
25
WASHER; LK,EXH VLV
1-48129-093-0
02
1
1304-
28
STEM ASM; BRK VLV
1-48129-089-0
01
1
1304-
32
VALVE; BRK,HAND CONT
(B)
1-48100-674-0
01
1
1304-
32
VALVE; BRK,HAND CONT
(A)
1-48460-356-0
01
1
1304-
