Isuzu WW
▶
TRUCKS
▶
GVR
▶
11498 - GVR(THAI)EURO3
▶
3 - Brakes, Brake System
▶
3-22 - AIR CONTROL PARTS
▶
3-22 — AIR CONTROL PARTS
(#121283) — 72 parça
◀

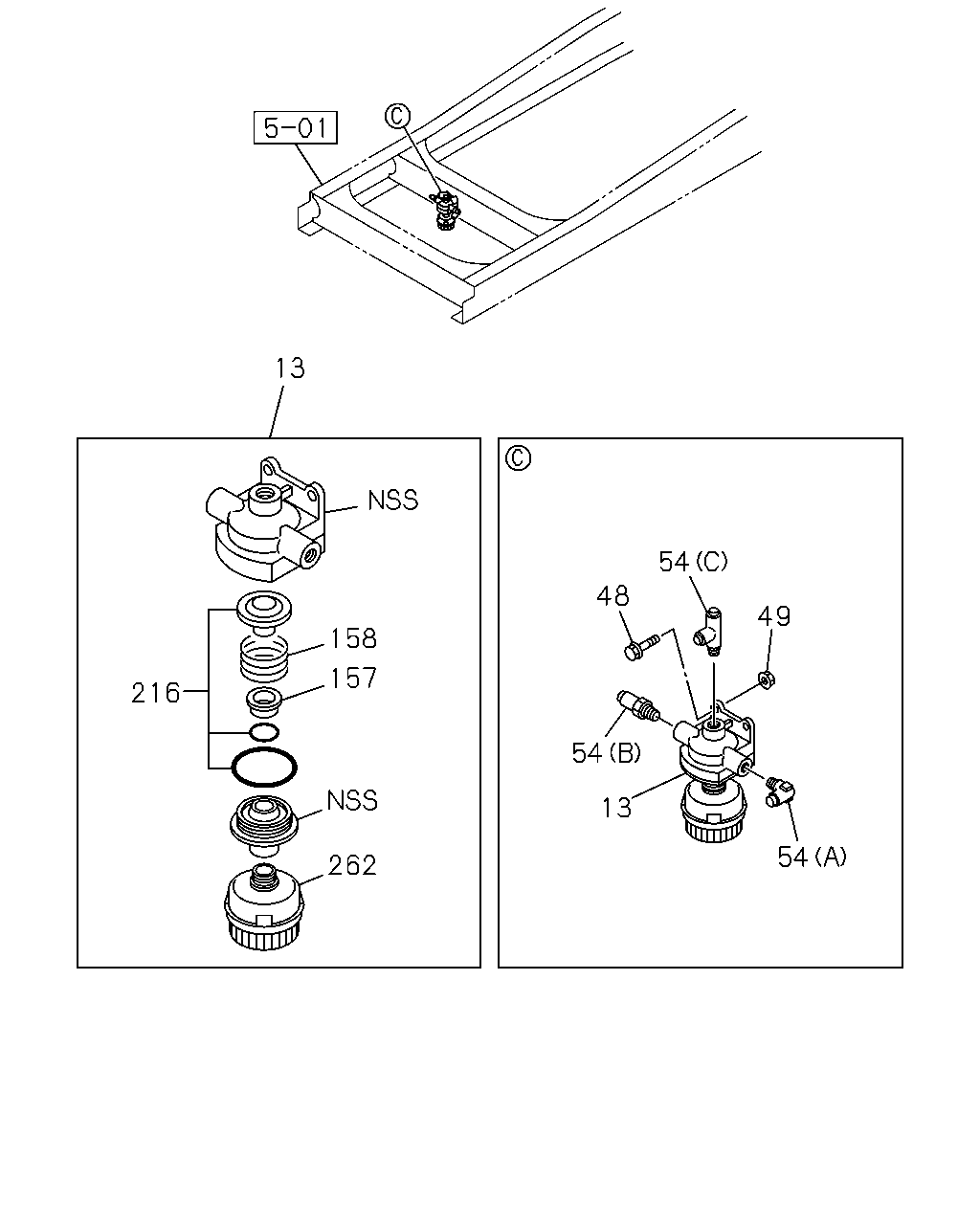

[322A] QUICK RELEASE VALVE (10 parça)
[322A] REPAIR KIT;GOVERNOR (1 parça)

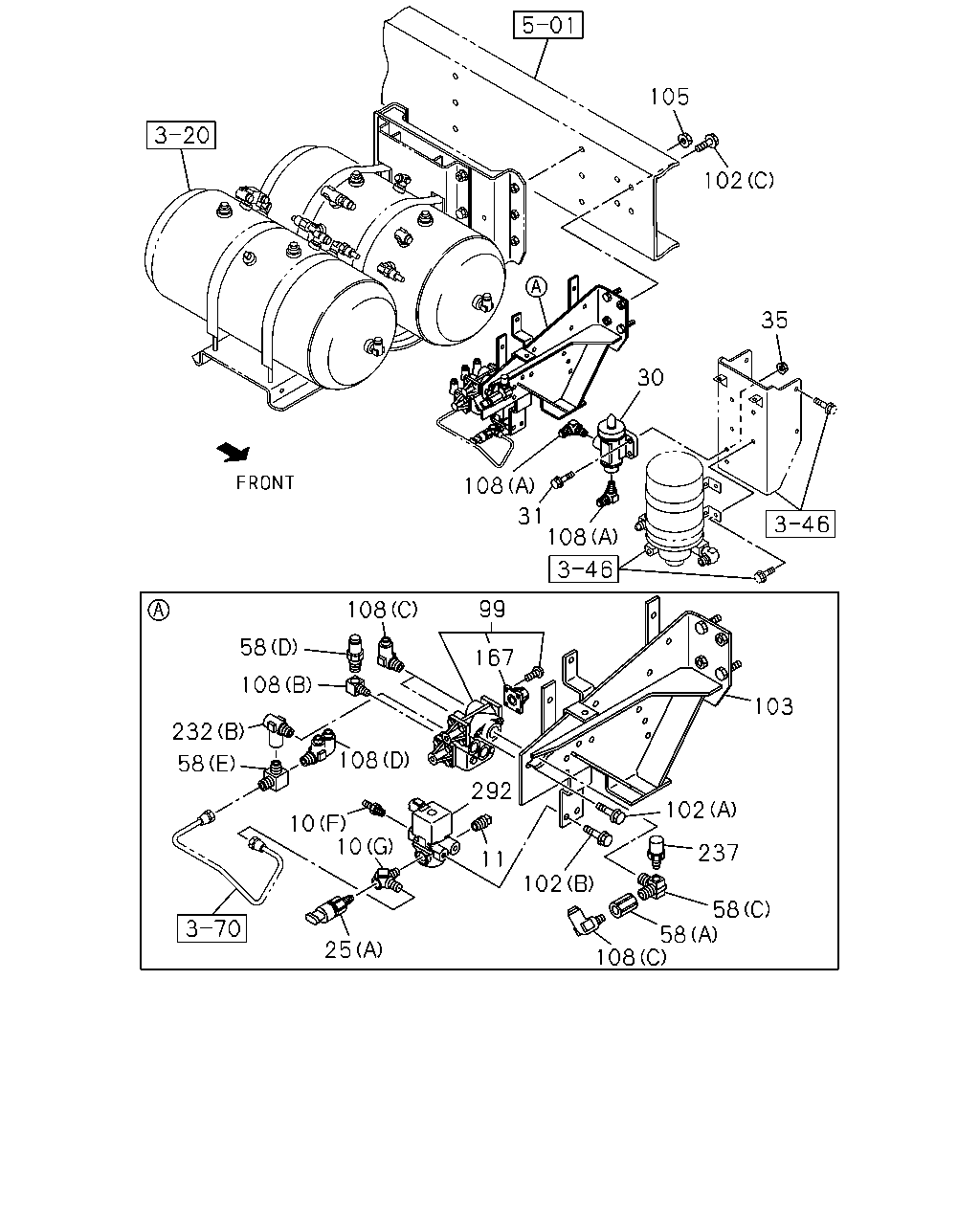

[322A] AIR TANK SIDE (34 parça)

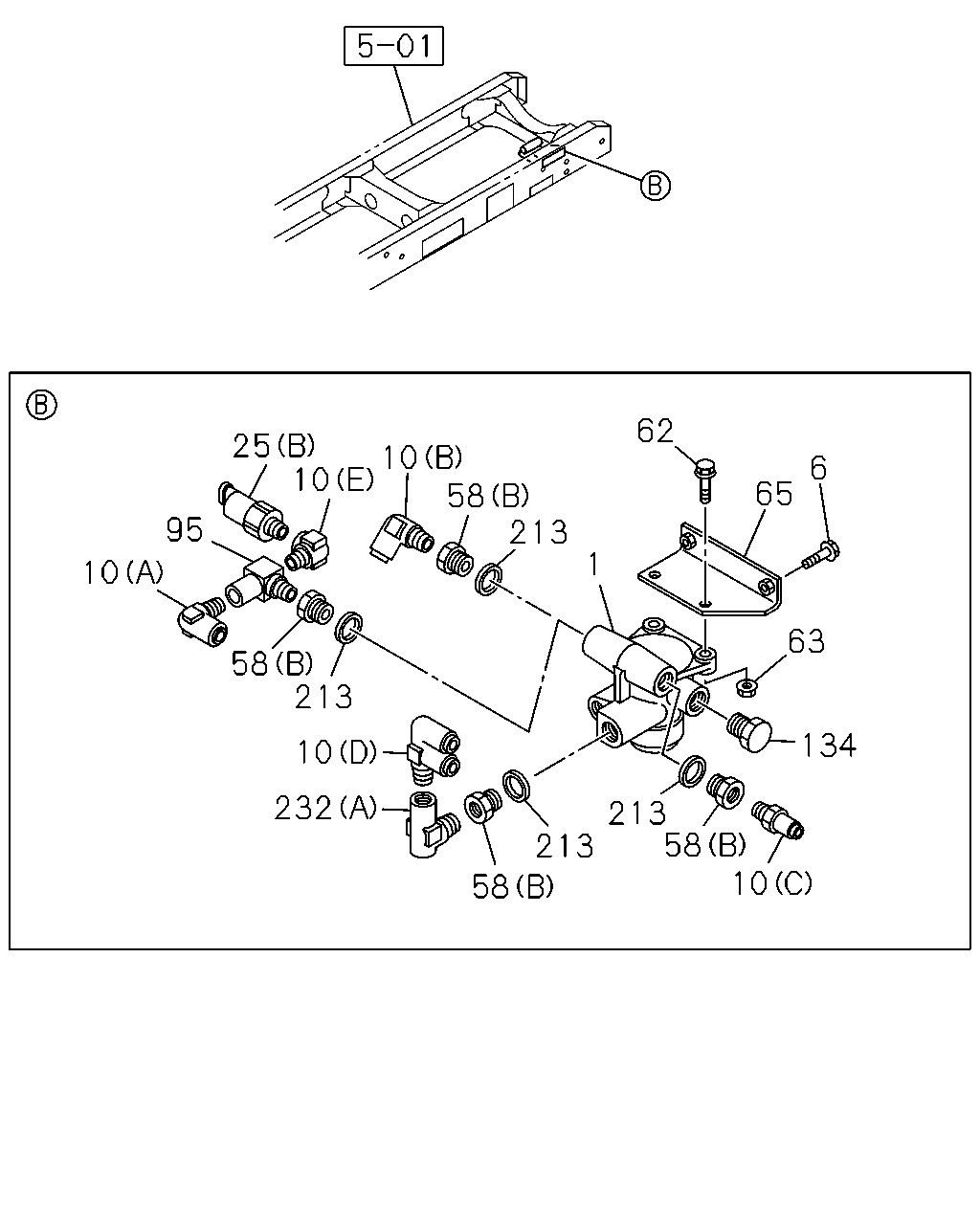

[322A] FRAME SIDE (24 parça)

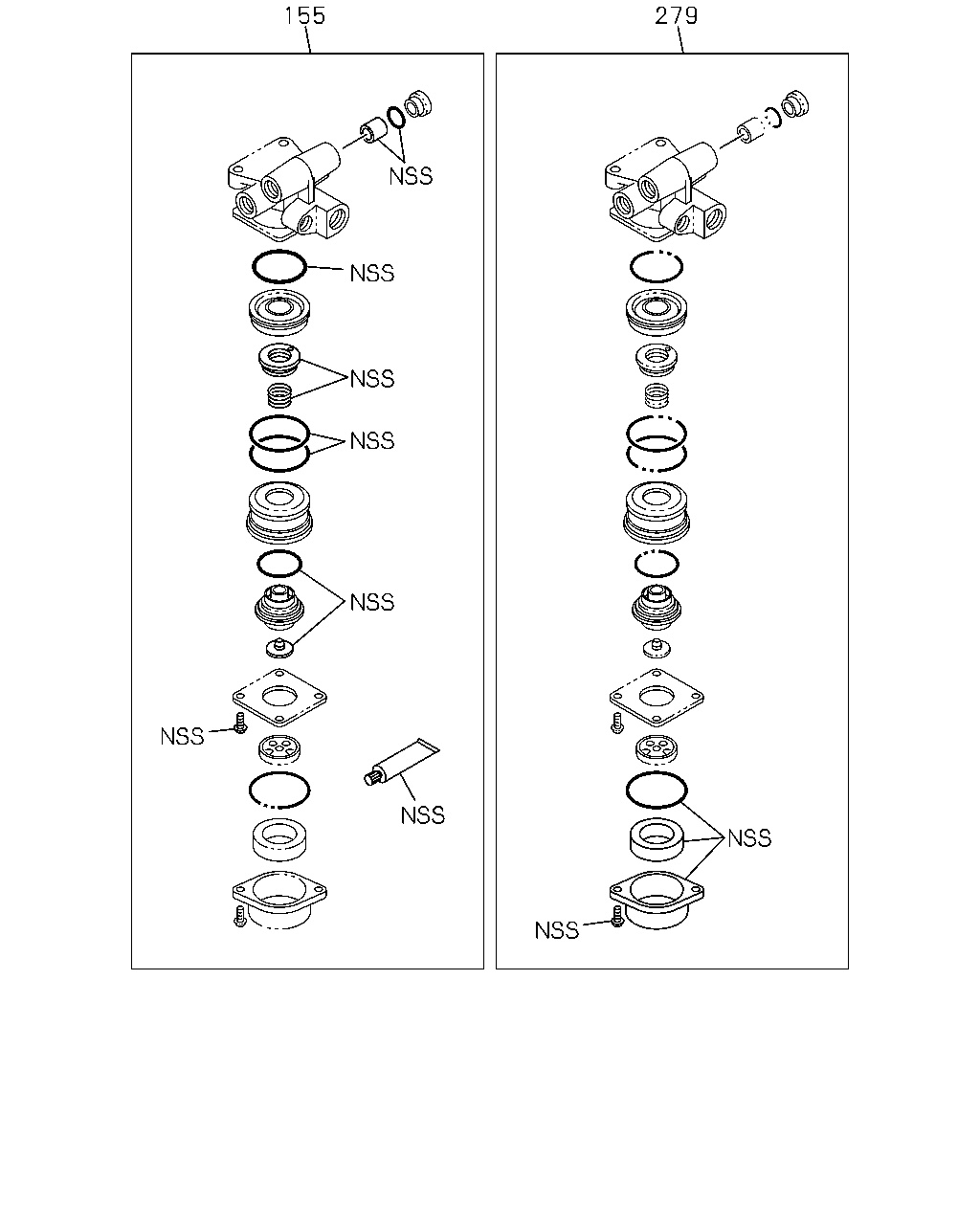

[322A] REPAIR KIT;RELAY VALVE (2 parça)
[322A] REPAIR KIT;PROTECTION VALVE (1 parça)
▶
13
158
157
262
216
48
54
49
54
13
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
VALVE ASM; QUICK RELEASE
1-48410-726-1
01
1
1304-
48
BOLT; QUICK RELEASE VLV
M8X25 FLANGE THA
0-28650-825-0
02
1
1304-
49
NUT; QUICK RELEASE VLV
M8 FLANGE THA
0-91180-108-0
02
1
1304-
54
CONNECTOR; QUICK RELEASE VLV
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
1304-
54
CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1304-
54
CONNECTOR; QUICK RELEASE VLV
(C)
1-09661-207-0
01
1
1304-
157
RETAINER; VALVE
1-48419-020-0
01
1
1304-
158
SPRING; VALVE
9-48419-003-0
01
1
1304-
216
REPAIR KIT; QUICK RELEASE VLV
1-85576-484-0
01
1
1304-
262
SILENCER; RELAY VALVE
1-48219-149-0
01
1
1304-
240
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
240
REPAIR KIT; AIR CONT GOV
1-85576-467-0
01
1
1304-
105
102
35
30
108
31
108
108
58
99
167
103
102
237
58
58
108
102
11
292
108
108
232
58
10
10
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
CONNECTOR
(F) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
1304-
10
CONNECTOR
(G) M12 & PT1/4 3WAY
1-09656-586-1
01
1
1304-
10
CONNECTOR
(E) PT1/4 2WAY
1-09660-693-0
01
1
1304-
10
CONNECTOR
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1304-
10
CONNECTOR
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
1304-
10
CONNECTOR
(C) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
1304-
10
CONNECTOR
(D) DIN12X2 & PT3/8 DOUBLE ELBOW
1-09661-026-0
01
1
1304-
11
PLUG
PT1/4
9-99204-513-0
01
1
1304-
25
SWITCH; PRESSURE
(A) STAMP 5.5
8-97609-249-0
01
1
1304-
25
SWITCH; PRESSURE
(B)
8-98010-856-1
01
1
1304-
30
GOVERNOR; AIR CONT
1-48350-093-2
01
1
1304-
31
BOLT; GOV TO FRAME
M8X30 FLANGE THA
0-28650-830-0
02
1
1304-
35
NUT; GOV TO FRAME
M8 FLANGE THA
0-91180-108-0
02
1
1304-
58
ADAPTER
(B) INNER PT3/8,OUTER M22
1-09650-494-1
04
1
1304-
58
ADAPTER
(A) M20 & RC3/8 STRAIGHT
1-09660-883-0
01
1
1304-
58
ADAPTER
(D) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1304-
58
ADAPTER
(C)
8-98031-238-0
01
1
1304-
58
ADAPTER
(E)
8-98148-475-0
01
1
1304-
99
VALVE; PROTECTION
1-48110-288-2
01
1
1304-
102
BOLT; PROTECTION VALVE
(A) M8X16 FLANGE THA
0-28050-816-0
02
1
1304-
102
BOLT; PROTECTION VALVE
(B) M8X20 FLANGE THA
0-28650-820-0
02
1
1304-
102
BOLT; PROTECTION VALVE
(C) M10X35 FLANGE THA
0-28651-035-0
02
1
1304-
103
BRACKET; PROTECTION VALVE
THA
8-98173-454-0
01
1
1304-
105
NUT; BRKT,VALVE
M10 FLANGE THA
0-91180-210-0
02
1
1304-
108
CONNECTOR; ELBOW
(A) M12 & PT1/4 ELBOW
1-09650-430-0
02
1
1304-
108
CONNECTOR; ELBOW
(B) PT3/8 ELBOW
1-09660-696-0
01
1
1304-
108
CONNECTOR; ELBOW
(C) DIN12 & R3/8 ELBOW
1-09660-959-0
03
1
1304-
108
CONNECTOR; ELBOW
(D)
8-98179-708-0
01
1
1304-
167
COVER; VALVE
1-48119-625-0
04
1
1304-
232
VALVE; CHECK
(A)
1-48320-031-1
01
1
1304-
232
VALVE; CHECK
(B)
8-98032-527-0
01
1
1304-
237
VALVE; SAFETY
1-48320-012-2
01
1
1304-
292
VALVE ASM; MAGNETIC
1-82563-871-2
01
1
1304-1306
292
VALVE ASM; MAGNETIC
THA
8-97948-152-0
01
1
1307-
10
58
213
213
58
134
63
6
65
62
1
213
58
10
10
25
232
213
10
58
95
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; RELAY RWD RR
1-48240-354-1
01
1
1304-
6
BOLT; VLV
M8X35 FLANGE THA
0-28650-835-0
02
1
1304-
10
CONNECTOR
(F) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
1304-
10
CONNECTOR
(G) M12 & PT1/4 3WAY
1-09656-586-1
01
1
1304-
10
CONNECTOR
(E) PT1/4 2WAY
1-09660-693-0
01
1
1304-
10
CONNECTOR
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1304-
10
CONNECTOR
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
1304-
10
CONNECTOR
(C) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
1304-
10
CONNECTOR
(D) DIN12X2 & PT3/8 DOUBLE ELBOW
1-09661-026-0
01
1
1304-
25
SWITCH; PRESSURE
(A) STAMP 5.5
8-97609-249-0
01
1
1304-
25
SWITCH; PRESSURE
(B)
8-98010-856-1
01
1
1304-
58
ADAPTER
(B) INNER PT3/8,OUTER M22
1-09650-494-1
04
1
1304-
58
ADAPTER
(A) M20 & RC3/8 STRAIGHT
1-09660-883-0
01
1
1304-
58
ADAPTER
(D) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1304-
58
ADAPTER
(C)
8-98031-238-0
01
1
1304-
58
ADAPTER
(E)
8-98148-475-0
01
1
1304-
62
BOLT; BRKT FIX
M8X30 FLANGE THA
0-28650-830-0
02
1
1304-
63
NUT; BRKT FIX
M8 FLANGE THA
0-91180-108-0
02
1
1304-
65
BRACKET; RELAY VLV RR
THA
1-47471-032-0
01
1
1304-
95
UNION; AIR VLV
8-98166-127-0
01
1
1304-
134
PLUG; RELAY VALVE
1-09661-502-0
01
1
1304-
213
GASKET
ID=22.5
9-09571-422-0
04
1
1304-
232
VALVE; CHECK
(A)
1-48320-031-1
01
1
1304-
232
VALVE; CHECK
(B)
8-98032-527-0
01
1
1304-
155
279
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
155
REPAIR KIT; RELAY VALVE
1-85576-408-0
01
1
1304-
279
REPAIR KIT; SILENCER
1-85576-409-0
01
1
1304-
241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
241
REPAIR KIT; PROTECTION VALVE
1-85576-451-1
01
1
1304-
