Isuzu WW
▶
TRUCKS
▶
GVR
▶
11498 - GVR(THAI)EURO3
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

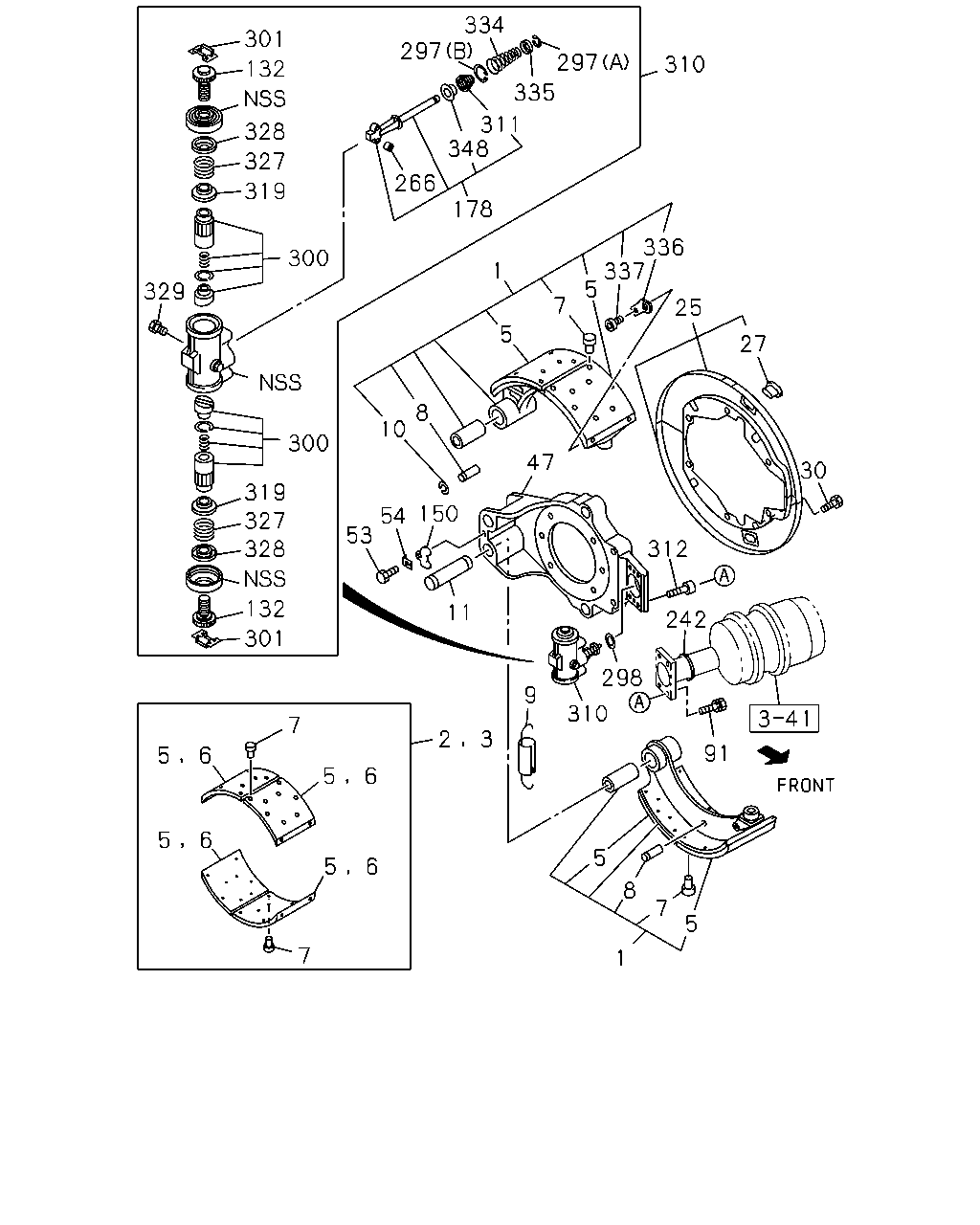

3-05 — REAR WHEEL BRAKE
(#121280) — 59 parça
◀
[305A] NO.2 (13 parça)
[305A] NO.1 (46 parça)
▶
346
301
328
327
319
297
334
297
335
311
348
329
319
327
328
301
347
301
301
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
297
RING; SNAP
(A) THA
1-47649-031-0
02
1
1304-
297
RING; SNAP
(B) THA
1-47649-034-1
02
1
1304-
301
CLIP; ANTI LOTATION
THA
1-47621-017-0
04
1
1304-
311
BOOT; WEDGE
THA
1-47649-042-0
02
1
1304-
319
RING; DRIVE
THA
1-47629-200-0
04
1
1304-
327
SPRING; ADJ
THA
1-47629-196-0
04
1
1304-
328
CAGE; SPRING
THA
1-47629-192-0
04
1
1304-
329
SCREW; LOCATING
THA
1-47619-149-1
04
1
1304-
334
SPRING; ROD
THA
1-47649-041-0
02
1
1304-
335
RETAINER; SPRING
THA
1-47649-020-0
02
1
1304-
346
REPAIR KIT; EXPANDER
THA
1-85576-403-0
02
1
1304-
347
REPAIR KIT; BOOT,EXPANDER
THA
1-85576-404-0
02
1
1304-
348
CAP; EXPANDER
THA
1-47649-044-0
02
1
1304-
301
132
328
327
319
329
300
300
319
327
328
132
301
334
297
310
297
335
311
348
266
178
10
8
5
1
7
5
337
336
25
27
30
312
242
298
91
310
5
8
7
5
1
9
11
150
47
54
53
2
3
5
6
7
5
6
5
6
7
5
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,RR
LEADING THA
1-47170-324-0
01
1
1304-
1
SHOE; BRK,RR
TRAILING THA
1-47170-325-0
01
1
1304-
1
SHOE; BRK,RR
LEADING THA
1-47170-326-0
01
1
1304-
1
SHOE; BRK,RR
TRAILING THA
1-47170-327-0
01
1
1304-
2
LINING SET; RR BRK,STANDARD
1-88310-775-1
02
1
1304-
3
LINING SET; RR BRK,OVER SIZE
1-88310-776-1
02
1
1304-
5
LINING; RR BRK SHOE,STANDARD
THA
1-47126-093-0
08
1
1304-
6
LINING; RR BRK SHOE,OVER SIZE
THA
1-47126-094-0
08
1
1304-
7
RIVET; LINING,RR BRK
L=15.5 THA
1-09732-053-0
AR
1
1304-
8
PIN; RETURN SPRING,RR BRK SHOE
TRAILING THA
1-47119-136-0
02
1
1304-
8
PIN; RETURN SPRING,RR BRK SHOE
LEADING THA
1-47119-172-0
02
1
1304-
9
SPRING; RETURN,BRK SHOE
THA
1-09583-365-1
02
1
1304-
10
RING; SNAP,SPR PIN
ID=10
0-91805-510-0
02
1
1304-
11
PIN; ANCHOR,RR WHEEL BRK
L=138.5 THA
1-47131-045-0
04
1
1304-
25
COVER SET; RR BRK DRUM
1-47151-808-0
01
1
1304-1309
25
COVER SET; RR BRK DRUM
1-47151-878-0
02
1
1310-
25
COVER SET; RR BRK DRUM
1-47151-809-0
01
1
1304-1309
27
COVER; CHECK HOLE,DRUM COVER
THA
1-09333-151-0
04
1
1304-
30
BOLT; DRUM COVER
M10X12 THA
1-47159-187-0
12
1
1304-
47
BRACKET; ANCHOR PIN,RR WHEEL BRK
1-47137-472-0
02
1
1304-1306
47
BRACKET; ANCHOR PIN,RR WHEEL BRK
THA
8-98091-253-1
02
1
1307-
53
BOLT; LOCK PLATE
M10X16 THA
1-47139-173-0
02
1
1304-
54
WASHER; LK,ANCHOR PIN,RR BRK
THA
1-47133-011-0
02
1
1304-
91
BOLT; CHAMBER
M10X53 THA
1-47139-148-0
08
1
1304-
132
SCREW; ADJ,RR BRK
THA
1-47623-035-2
04
1
1304-
150
PLATE; LK,ANCHOR PIN
THA
1-47133-010-0
02
1
1304-
178
WEDGE; RR WHEEL CYL
THA
1-47640-012-0
02
1
1304-
242
SEAL
THA
1-47159-186-0
04
1
1304-
266
ROLLER; WEDGE
THA
1-47643-007-0
04
1
1304-
297
RING; SNAP
(A) THA
1-47649-031-0
02
1
1304-
297
RING; SNAP
(B) THA
1-47649-034-1
02
1
1304-
298
GASKET
THA
1-48259-231-0
02
1
1304-
300
SLEEVE
THA
1-47629-247-1
04
1
1304-
301
CLIP; ANTI LOTATION
THA
1-47621-017-0
04
1
1304-
310
EXPANDER
THA
1-47601-087-0
02
1
1304-
311
BOOT; WEDGE
THA
1-47649-042-0
02
1
1304-
312
BOLT; EXPANDER
THA
1-47634-008-0
04
1
1304-
319
RING; DRIVE
THA
1-47629-200-0
04
1
1304-
327
SPRING; ADJ
THA
1-47629-196-0
04
1
1304-
328
CAGE; SPRING
THA
1-47629-192-0
04
1
1304-
329
SCREW; LOCATING
THA
1-47619-149-1
04
1
1304-
334
SPRING; ROD
THA
1-47649-041-0
02
1
1304-
335
RETAINER; SPRING
THA
1-47649-020-0
02
1
1304-
336
PLATE; PIVOT
THA
1-47119-152-0
04
1
1304-
337
BOLT; PLATE
THA
1-47119-153-0
04
1
1304-
348
CAP; EXPANDER
THA
1-47649-044-0
02
1
1304-
