Isuzu WW
▶
TRUCKS
▶
GVR
▶
11498 - GVR(THAI)EURO3
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶
2-01 — CLUTCH
(#121264) — 49 parça
◀
[201A] BOOSTER AND BRACKET (25 parça)

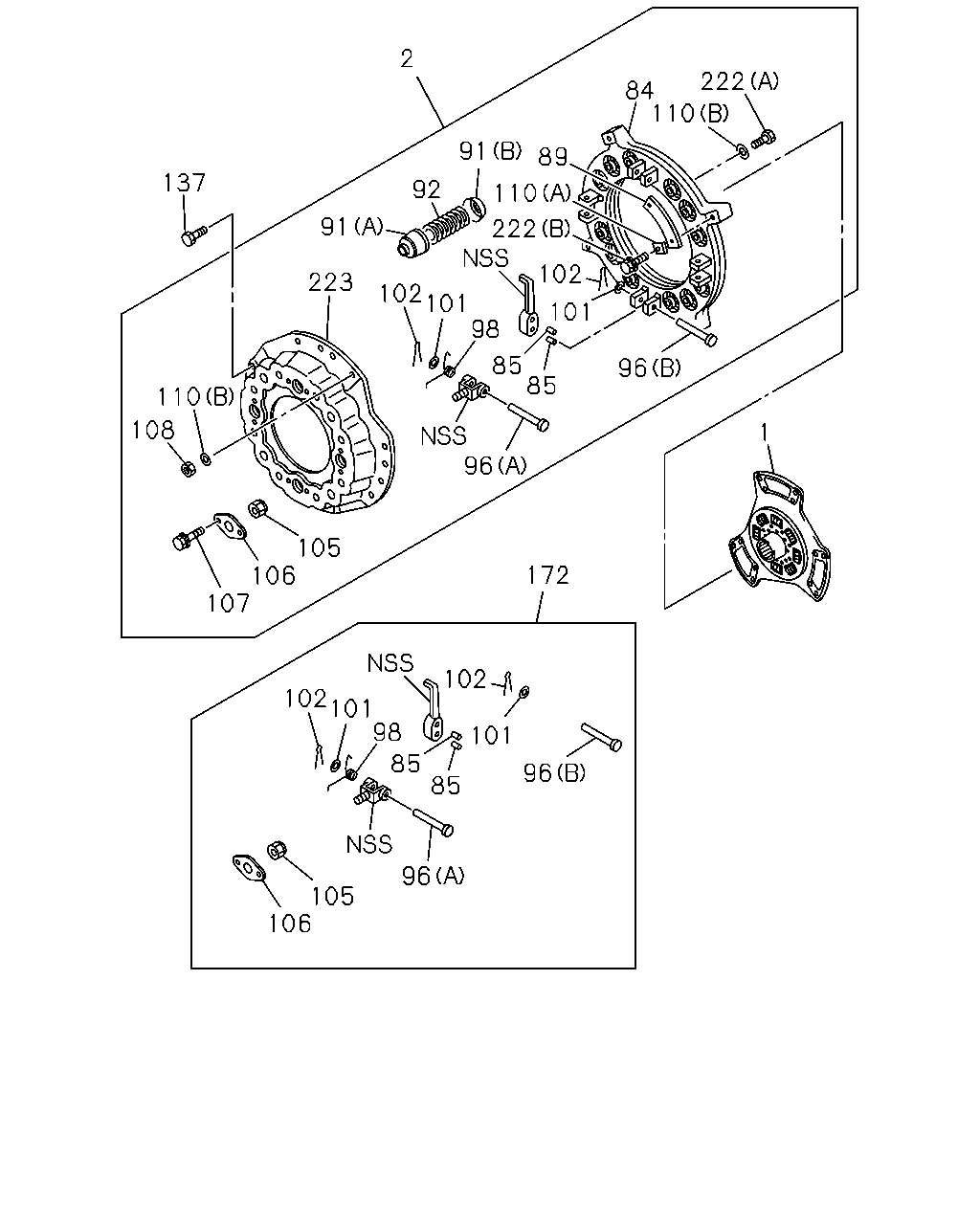

[201A] DISC AND PLATE (24 parça)
▶
155
170
220
157
155
149
170
122
157
154
164
166
148
128
128
123
125
116
118
122
120
57
131
130
119
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
57
FORK; SHIFT,CLU
1-31341-036-0
01
1
1304-
116
BLOCK; SHIFT,CLU
1-31321-086-1
01
1
1304-
118
BEARING; CLU RELEASE
BEST VALUE PARTS
1-87610-108-0
01
1
1304-
118
BEARING; CLU RELEASE
1-09820-117-0
01
1
1304-
119
SPRING; SHIFT FORK
1-31329-014-0
01
1
1304-
119
SPRING; SHIFT FORK
1-31329-015-0
01
1
1304-
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=360
1-09364-881-0
01
1
1304-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 ELBOW
0-90301-610-0
01
1
1304-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10
1-09660-710-0
01
1
1304-
123
CLIP; FLEX HOSE,SHIFT BLOCK
8-97010-484-0
01
1
1304-
125
SHAFT; CLU
1-31342-336-0
01
1
1304-
128
KEY; FEATHER,CLU SHAFT
9-09867-008-0
02
1
1304-
130
SCREW; SHIFT FORK
9-06120-816-0
01
1
1304-
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
1304-
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
1304-
149
EYE; SPRING,RETURN SPRING
1-31426-041-0
01
1
1304-
154
PIN; JAW JOINT
1-31424-009-0
01
1
1304-
155
BRACKET; MINIPACK
(B)
1-31429-472-1
01
1
1304-
155
BRACKET; MINIPACK
(A)
1-31429-473-0
01
1
1304-
157
BOLT; BRKT
M10X25 FLANGE THA
0-28151-025-0
03
1
1304-
164
EYE; SPRING
1-31426-050-0
01
1
1304-
166
NUT; SPRING EYE
M10 FLANGE THA
0-91180-210-0
01
1
1304-
170
NUT; BOOSTER FIX
M10 FLANGE THA
0-91180-210-0
03
1
1304-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS
1-87610-089-0
01
1
1304-1412
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-516-1
01
1
1304-
137
2
91
223
110
108
107
106
105
92
91
110
222
102
102
101
98
85
85
96
96
89
101
84
222
110
172
102
101
98
85
102
101
96
85
96
105
106
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
15"
1-31240-977-2
01
1
1304-
2
PLATE ASM; PRESSURE,CLU
1-31220-380-2
01
1
1304-
84
PLATE; PRESSURE
15"
1-31221-100-0
01
1
1304-
85
BUSHING; RELEASE LEVER
9-31239-116-0
08
1
1304-
89
PLATE; STRAP
1-31229-050-0
16
1
1304-
91
SEAT; SPR
(A) ID=37 H=25
1-31219-012-0
12
1
1304-
91
SEAT; SPR
(B) ID=37 H=15
1-31219-013-0
12
1
1304-
92
SPRING; CLU
1-31214-053-0
12
1
1304-
96
PIN; RELEASE LEVER
(A) L=49.0
1-31232-005-0
04
1
1304-
96
PIN; RELEASE LEVER
(B) L=57.0
1-31232-014-0
04
1
1304-
98
SPRING; RETURN
1-31233-003-0
04
1
1304-
101
WASHER; RELEASE LEVER
1-31239-058-0
08
1
1304-
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08103-022-0
08
1
1304-
105
NUT; SUPPORT
1-31235-014-0
04
1
1304-
106
PLATE; LK,LEVER SUPPORT
1-31239-019-0
04
1
1304-
107
BOLT; LK PLATE
1-31239-061-0
08
1
1304-
108
NUT; STRAP
1-09449-036-0
04
1
1304-
110
WASHER; SPECIAL,STRAP
(A) T=1.2
1-31229-009-0
04
1
1304-
110
WASHER; SPECIAL,STRAP
(B) T=3.2
8-97374-512-0
08
1
1304-
137
BOLT; CLU COVER
M10X20 FLANGE THA
0-28151-020-0
12
1
1304-
172
LEVER KIT; RELEASE,CLU
1-87831-172-1
01
1
1304-
222
BOLT; STRAP
(B) M10X23.2
1-09040-042-0
04
1
1304-
222
BOLT; STRAP
(A) M10X26 HEX SOCKET
1-09040-043-0
04
1
1304-
223
COVER; CLU
1-31211-019-1
01
1
1304-
