Isuzu WW
▶
TRUCKS
▶
GVR
▶
11498 - GVR(THAI)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#121250) — 38 parça
◀
[061A] FIXING PARTS (11 parça)
[061A] BATTERY CABLE WIRING (27 parça)
▶
107
23
13
10
11
2
8
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; BATTERY
L=280 THA
8-97922-383-0
01
1
1304-
2
CABLE; BATTERY
L=305 THA
8-97924-521-1
01
1
1304-
8
CABLE; BATTERY,STARTER
THA
8-97926-432-0
01
1
1304-
10
BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER
8-97087-205-0
01
1
1304-
11
WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0
1-09503-265-0
01
1
1304-
13
GROMMET; BATTERY CABLE
ID=32 OD=40 T=18
1-09891-003-0
01
1
1304-
23
BRACKET; CABLE CLIP TO FRAME
(C) L=55
1-47475-304-0
01
1
1304-
23
BRACKET; CABLE CLIP TO FRAME
(C) L=95
1-82699-085-0
03
1
1304-
23
BRACKET; CABLE CLIP TO FRAME
(A)
8-98044-882-0
01
1
1304-
23
BRACKET; CABLE CLIP TO FRAME
(B)
8-98201-025-0
01
1
1304-
107
CLIP; BAND
L=140 THA
8-97920-656-0
01
1
1304-

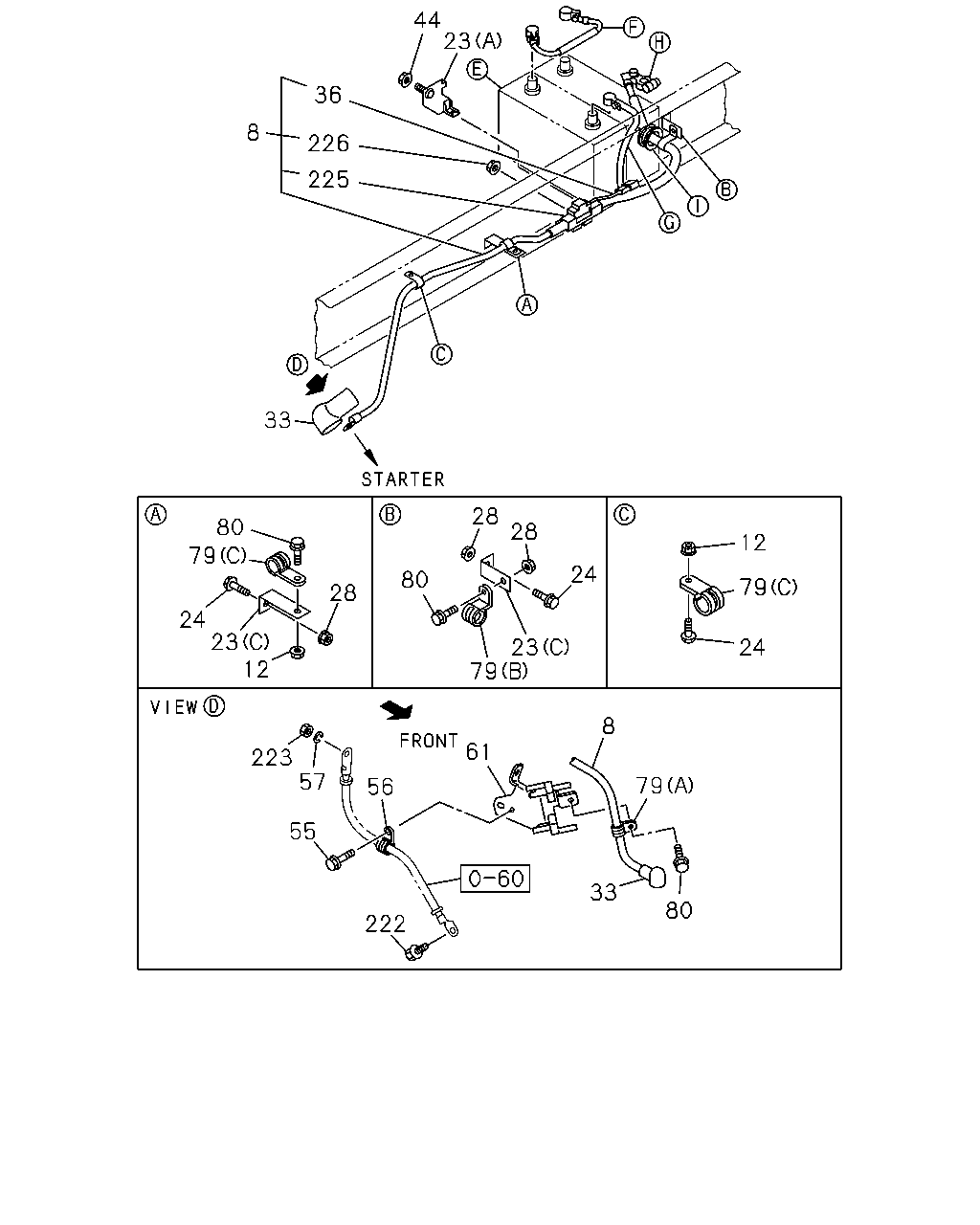

23
44
36
226
8
225
33
80
79
24
23
28
12
28
80
28
24
23
79
12
79
24
8
79
80
33
61
222
56
55
57
223
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
CABLE; BATTERY,STARTER
THA
8-97926-432-0
01
1
1304-
12
NUT; BATTERY CABLE CLIP
M8 FLANGE THA
0-91180-108-0
04
1
1304-
23
BRACKET; CABLE CLIP TO FRAME
(C) L=55
1-47475-304-0
01
1
1304-
23
BRACKET; CABLE CLIP TO FRAME
(C) L=95
1-82699-085-0
03
1
1304-
23
BRACKET; CABLE CLIP TO FRAME
(A)
8-98044-882-0
01
1
1304-
23
BRACKET; CABLE CLIP TO FRAME
(B)
8-98201-025-0
01
1
1304-
24
BOLT; BRKT TO FRAME
M8X30 FLANGE THA
0-28650-830-0
04
1
1304-
28
NUT; BRKT TO FRAME
M8 FLANGE THA
0-91180-108-0
02
1
1304-
28
NUT; BRKT TO FRAME
M8 FLANGE THA
0-91180-108-0
04
1
1304-
33
CAP; INSULATOR
1-82699-431-0
01
1
1304-
36
FUSIBLE LINK; BATTERY
THA
8-97615-498-1
01
1
1304-
44
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
01
1
1304-
55
BOLT; CLIP,BATTERY CABLE
M8X16 FLANGE THA
0-28050-816-0
01
1
1304-1402
56
CLIP; BATTERY CABLE
ID=16 L=28
1-09700-872-0
01
1
1304-1402
57
WASHER; PL,BATTERY CABLE
ID=10.5 OD=22 T=1.6
0-91610-610-0
01
1
1304-1402
61
BRACKET; BATTERY CABLE
8-98051-379-1
01
1
1304-1402
79
CLIP; BATTERY CABLE
(B) ID=19 L=24 H=21
1-09700-109-1
01
1
1304-
79
CLIP; BATTERY CABLE
(C) ID=20 L=70
1-09700-485-0
01
1
1304-
79
CLIP; BATTERY CABLE
(A) ID=16 L=28
1-09700-872-0
01
1
1304-
79
CLIP; BATTERY CABLE
(C) ID=21 L=24
8-98019-191-0
03
1
1304-
80
BOLT; BATTERY CABLE CLIP
M8X16 FLANGE THA
0-28050-816-0
01
1
1304-
80
BOLT; BATTERY CABLE CLIP
M8X25 FLANGE THA
0-28650-825-0
04
1
1304-
222
BOLT; EARTH CABLE
M8X16 FLANGE THA
0-28050-816-0
01
1
1403-
222
BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER
8-97087-205-0
01
1
1304-
223
NUT; EARTH CABLE
M10 FLANGE THA
0-91180-210-0
01
1
1304-
225
BLOCK; TERMINAL
THA
8-98029-689-0
01
1
1304-
226
NUT; FUSIBLE LINK
M6 W/LK WASHER
8-94424-179-0
01
1
1304-
