Isuzu WW
▶
TRUCKS
▶
GVR
▶
11498 - GVR(THAI)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#121236) — 53 parça
◀

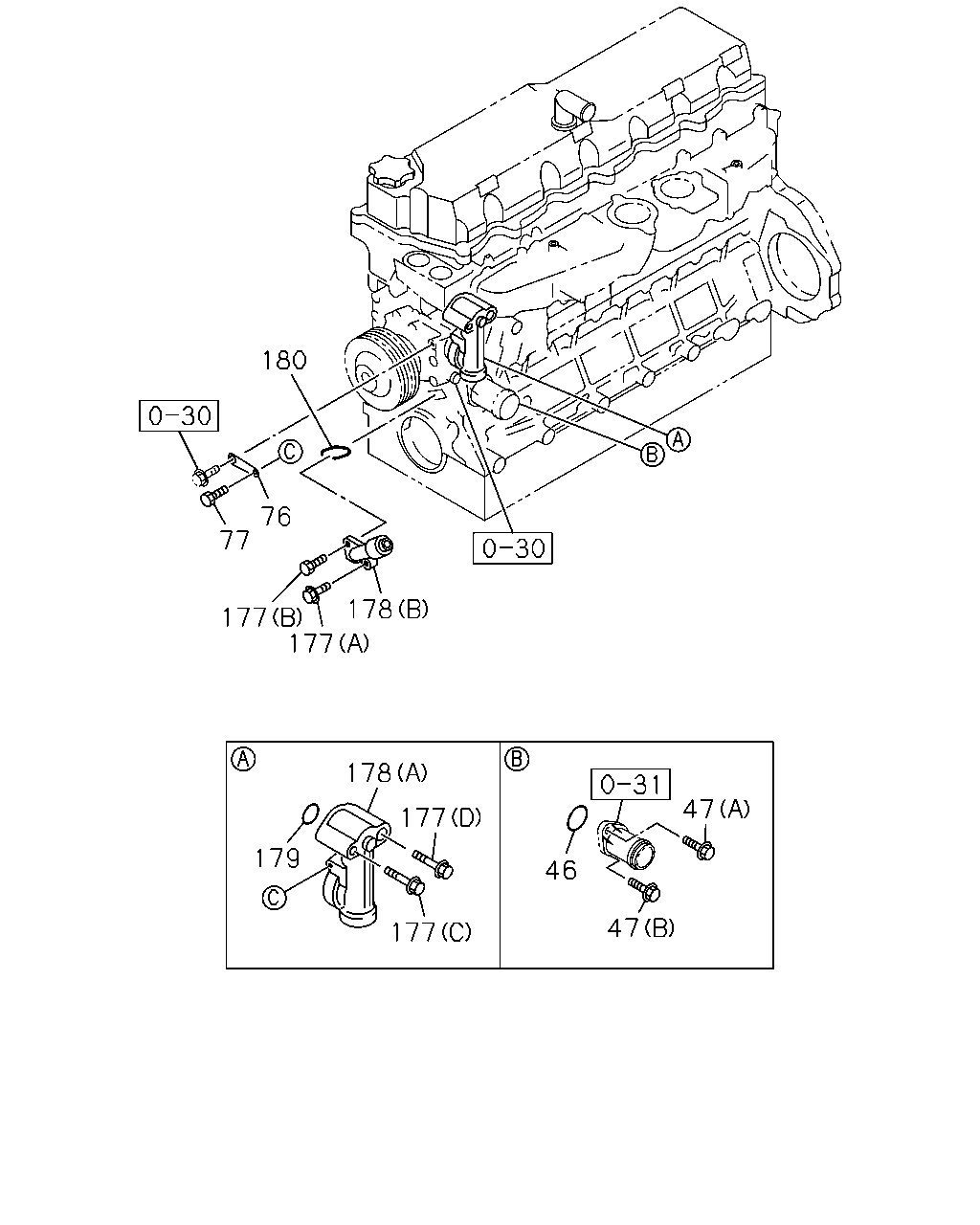

[032A] WATER DUCT (14 parça)
[032A] EGR SIDE (11 parça)

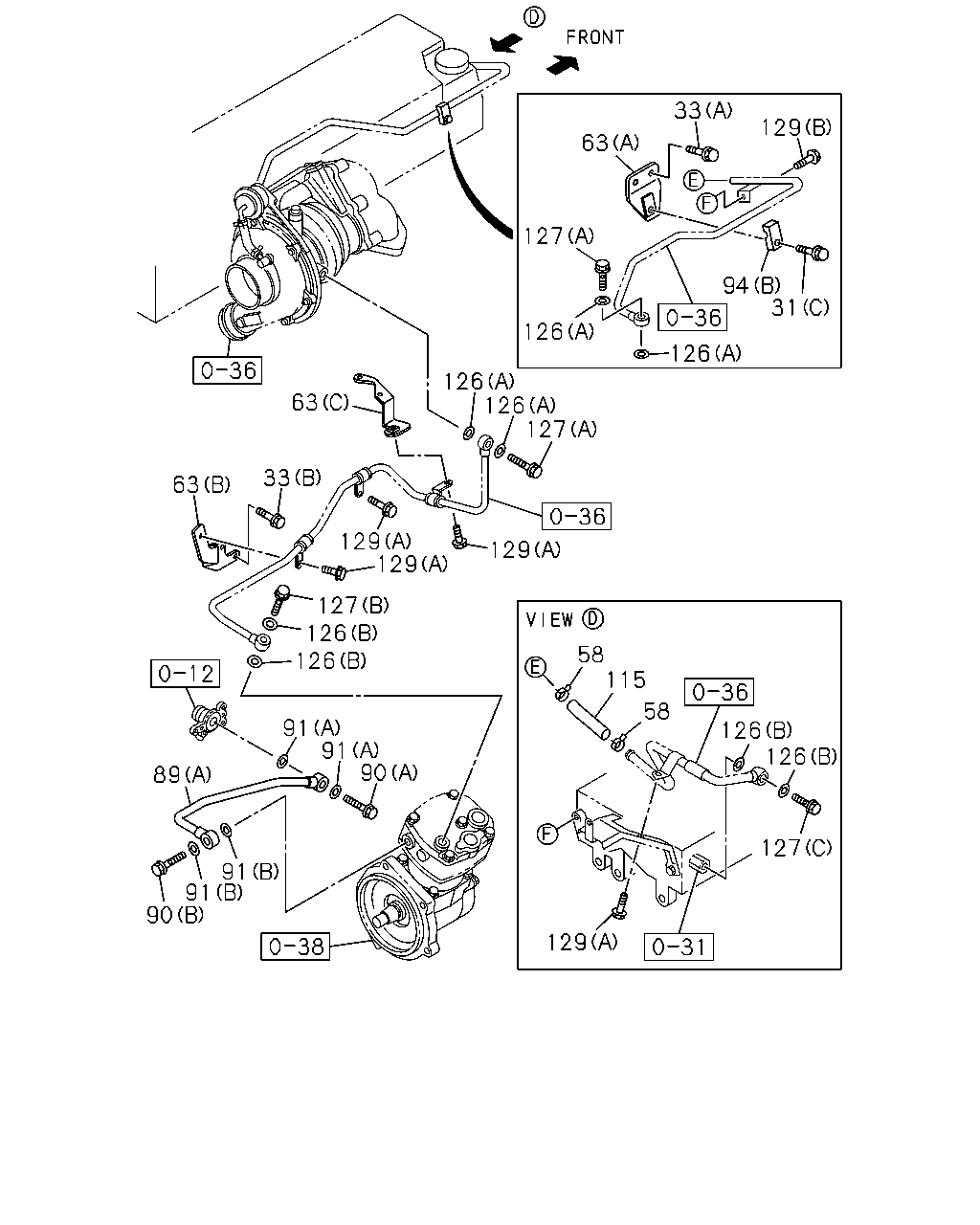

[032A] TURBOCHARGER AND AIR CMPR PIPING (28 parça)
▶
77
76
180
178
177
177
178
179
46
47
47
177
177
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
46
GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3
8-94396-680-2
01
1
1304-
47
BOLT; DUCT,TO OIL COOLER
(A) M8X45 FLANGE THA
0-28050-845-0
01
1
1304-
47
BOLT; DUCT,TO OIL COOLER
(B) M8X25 FLANGE THA
0-28650-825-0
01
1
1304-
76
BRACKET; WATER DUCT,PUMP
8-94394-784-0
01
1
1304-
77
BOLT; BRKT,WATER DUCT
M8X50 FLANGE THA
0-28050-850-0
01
1
1304-
177
BOLT; WATER DUCT
(C) M8X80 FLANGE THA
0-28050-880-0
01
1
1304-
177
BOLT; WATER DUCT
(B) M8X25 FLANGE THA
0-28650-825-0
01
1
1304-
177
BOLT; WATER DUCT
(A) M8X65 FLANGE
1-09044-072-1
01
1
1304-
177
BOLT; WATER DUCT
(D) M16X75 FLANGE
8-94397-360-1
01
1
1304-
178
DUCT; WATER,BYPASS
(B)
8-94390-644-0
01
1
1304-
178
DUCT; WATER,BYPASS
(A)
8-94396-627-3
01
1
1304-
179
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2
8-94396-679-0
01
1
1304-1408
179
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2
8-98276-756-0
01
1
1409-
180
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94396-720-1
01
1
1304-
31
94
94
31
25
24
33
94
94
206
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
BRACKET; WATER PIPE
8-98051-626-1
01
1
1304-
25
BOLT; WATER PIPE
M8X20 FLANGE THA
0-28650-820-0
01
1
1304-
31
BOLT; CLIP
(B) M6X45 FLANGE THA
0-28050-645-0
01
1
1304-
31
BOLT; CLIP
(C) M6X35 FLANGE THA
0-28650-635-0
01
1
1304-
31
BOLT; CLIP
(A) M6X40 FLANGE
0-28650-640-0
01
1
1304-
33
BOLT; BRKT
(B) M8X16 FLANGE THA
0-28050-816-0
02
1
1304-
33
BOLT; BRKT
(A) M8X20 FLANGE THA
0-28050-820-0
02
1
1304-
33
BOLT; BRKT
(A) M8X20 FLANGE THA
0-28650-820-0
02
1
1304-
94
CLIP; WATER PIPE
(B)
8-94396-860-0
01
1
1304-
94
CLIP; WATER PIPE
(A)
8-97605-129-1
04
1
1304-
206
PIPE; WATER,EGR COOLER
8-98000-480-1
01
1
1304-
127
126
126
129
129
33
63
63
63
33
129
127
94
31
126
126
58
115
58
126
127
129
90
91
91
127
126
126
91
91
90
89
129
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
31
BOLT; CLIP
(B) M6X45 FLANGE THA
0-28050-645-0
01
1
1304-
31
BOLT; CLIP
(C) M6X35 FLANGE THA
0-28650-635-0
01
1
1304-
31
BOLT; CLIP
(A) M6X40 FLANGE
0-28650-640-0
01
1
1304-
33
BOLT; BRKT
(B) M8X16 FLANGE THA
0-28050-816-0
02
1
1304-
33
BOLT; BRKT
(A) M8X20 FLANGE THA
0-28050-820-0
02
1
1304-
33
BOLT; BRKT
(A) M8X20 FLANGE THA
0-28650-820-0
02
1
1304-
58
CLIP; RUBBER HOSE
ID=16
8-94392-924-0
02
1
1304-
63
BRACKET; WATER PIPE
(A)
8-94392-951-0
01
1
1304-
63
BRACKET; WATER PIPE
(C)
8-98074-252-0
01
1
1304-
63
BRACKET; WATER PIPE
(B)
8-98074-253-0
01
1
1304-
89
PIPE; WATER,AIR CMPR,IN
8-97610-086-0
01
1
1304-
90
BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT
1-09675-193-0
01
1
1304-
90
BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X28
8-94383-489-0
01
1
1304-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2
1-09630-085-0
02
1
1304-1312
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2
1-09630-086-0
02
1
1304-
94
CLIP; WATER PIPE
(B)
8-94396-860-0
01
1
1304-
94
CLIP; WATER PIPE
(A)
8-97605-129-1
04
1
1304-
115
HOSE; RUBBER
L=60 SERVICED BY L=3000
0-03561-300-0
01
1
1304-
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
1-09630-085-0
04
1
1304-1312
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
8-98251-345-0
04
1
1401-
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2
1-09630-086-0
04
1
1304-
127
BOLT; EYE
(A) M14X27 EYE-BOLT
1-09675-193-0
02
1
1304-
127
BOLT; EYE
(C) M16X25
5-09675-028-2
01
1
1304-
127
BOLT; EYE
(B) M16X28
8-94383-489-0
01
1
1304-
129
BOLT; WATER PIPE TO BRKT
(A) M8X16 FLANGE THA
0-28050-816-0
05
1
1304-1402
129
BOLT; WATER PIPE TO BRKT
(A) M8X16 FLANGE THA
0-28050-816-0
04
1
1403-
129
BOLT; WATER PIPE TO BRKT
(B) M12X20 FLANGE
0-28151-220-0
01
1
1304-
