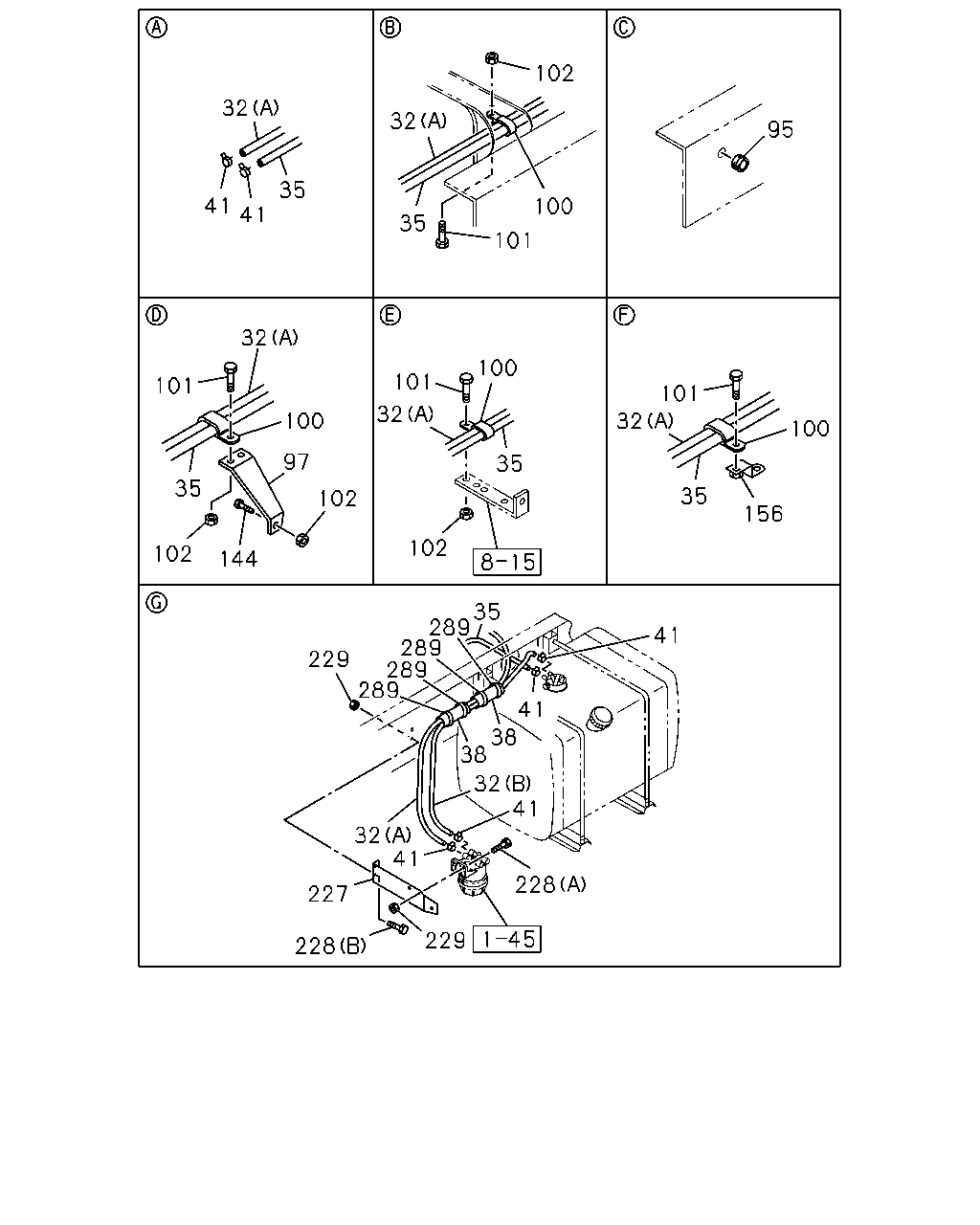

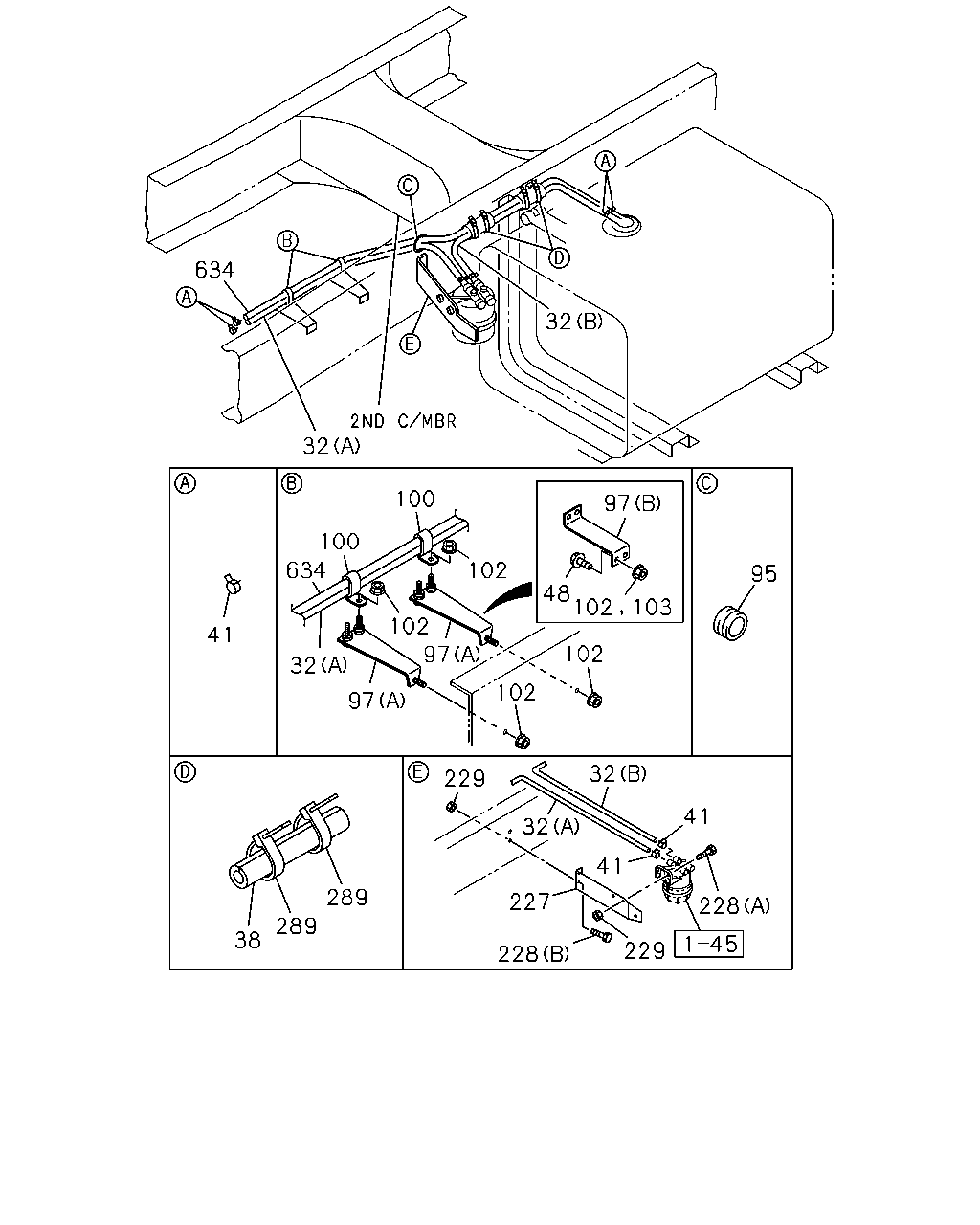

32 |
PIPE; DELIVERY,FUEL TANK
(B)
L=760
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0105- |
| |
32 |
PIPE; DELIVERY,FUEL TANK
(A)
L=1250
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0105- |
| |
38 |
SLEEVE; RUBBER,RUBBER HOSE
L=150
|
1-09360-677-1 |
02 |
1 |
0105- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
ID=14
|
1-09704-102-0 |
06 |
1 |
0105- |
| |
48 |
BOLT; BRKT
SILENCER SINGLE VERTICAL<N28>
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
0112-0512 |
| |
48 |
BOLT; BRKT
SILENCER SINGLE VERTICAL<N28>
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0601- |
| |
95 |
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25
|
1-09332-011-1 |
01 |
1 |
0105- |
| |
97 |
BRACKET; CLIP
SILENCER SINGLE VERTICAL<N28>
(B)
|
1-47479-379-0 |
01 |
1 |
0112- |
| |
97 |
BRACKET; CLIP
EXC. SILENCER SINGLE VERTICAL<N28>
(A)
|
1-47479-247-0 |
02 |
1 |
0112-0408 |
| |
97 |
BRACKET; CLIP
EXC. SILENCER SINGLE VERTICAL<N28>
(A)
|
1-47471-045-0 |
02 |
1 |
0409- |
| |
97 |
BRACKET; CLIP
(A)
|
1-47479-247-0 |
02 |
1 |
0105-0111 |
| |
97 |
BRACKET; CLIP
SILENCER SINGLE VERTICAL<N28>
(A)
|
1-47479-247-0 |
01 |
1 |
0112-0408 |
| |
97 |
BRACKET; CLIP
SILENCER SINGLE VERTICAL<N28>
(A)
|
1-47471-045-0 |
01 |
1 |
0409- |
| |
100 |
CLIP; FUEL PIPE
ID=15
|
1-09700-845-1 |
02 |
1 |
0105-0106 |
| |
100 |
CLIP; FUEL PIPE
|
1-09701-299-0 |
02 |
1 |
0107- |
| |
102 |
NUT; CLIP,FUEL PIPE
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0105-0111 |
| |
102 |
NUT; CLIP,FUEL PIPE
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0112-0602 |
| |
102 |
NUT; CLIP,FUEL PIPE
EXC. SILENCER SINGLE VERTICAL<N28>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0112-0602 |
| |
102 |
NUT; CLIP,FUEL PIPE
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
| |
102 |
NUT; CLIP,FUEL PIPE
EXC. SILENCER SINGLE VERTICAL<N28>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
| |
103 |
NUT; BRKT
SILENCER SINGLE VERTICAL<N28>
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0112-0602 |
| |
103 |
NUT; BRKT
SILENCER SINGLE VERTICAL<N28>
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603- |
| |
227 |
BRACKET; FUEL SEDIMENTER
|
1-22518-168-2 |
01 |
1 |
0105- |
| |
228 |
BOLT; BRKT,SEDIMENTER
(B)
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
0105-0512 |
| |
228 |
BOLT; BRKT,SEDIMENTER
(B)
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0601- |
| |
228 |
BOLT; BRKT,SEDIMENTER
(A)
M10X35 FLANGE
|
0-28681-035-0 |
02 |
1 |
0105-0512 |
| |
228 |
BOLT; BRKT,SEDIMENTER
(A)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0601- |
| |
229 |
NUT; BRKT,FUEL FILTER
M10 FLANGE
|
0-91150-210-0 |
04 |
1 |
0105-0602 |
| |
229 |
NUT; BRKT,FUEL FILTER
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
0603- |
| |
289 |
CLIP; BAND,HOSE
L=250
|
5-09707-030-1 |
04 |
1 |
0105- |
| |
634 |
HOSE; RUBBER RETURN
L=1600
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0105- |
