8-15 — FIXING PARTS; WIRING HARNESS (#121205) — 216 parça

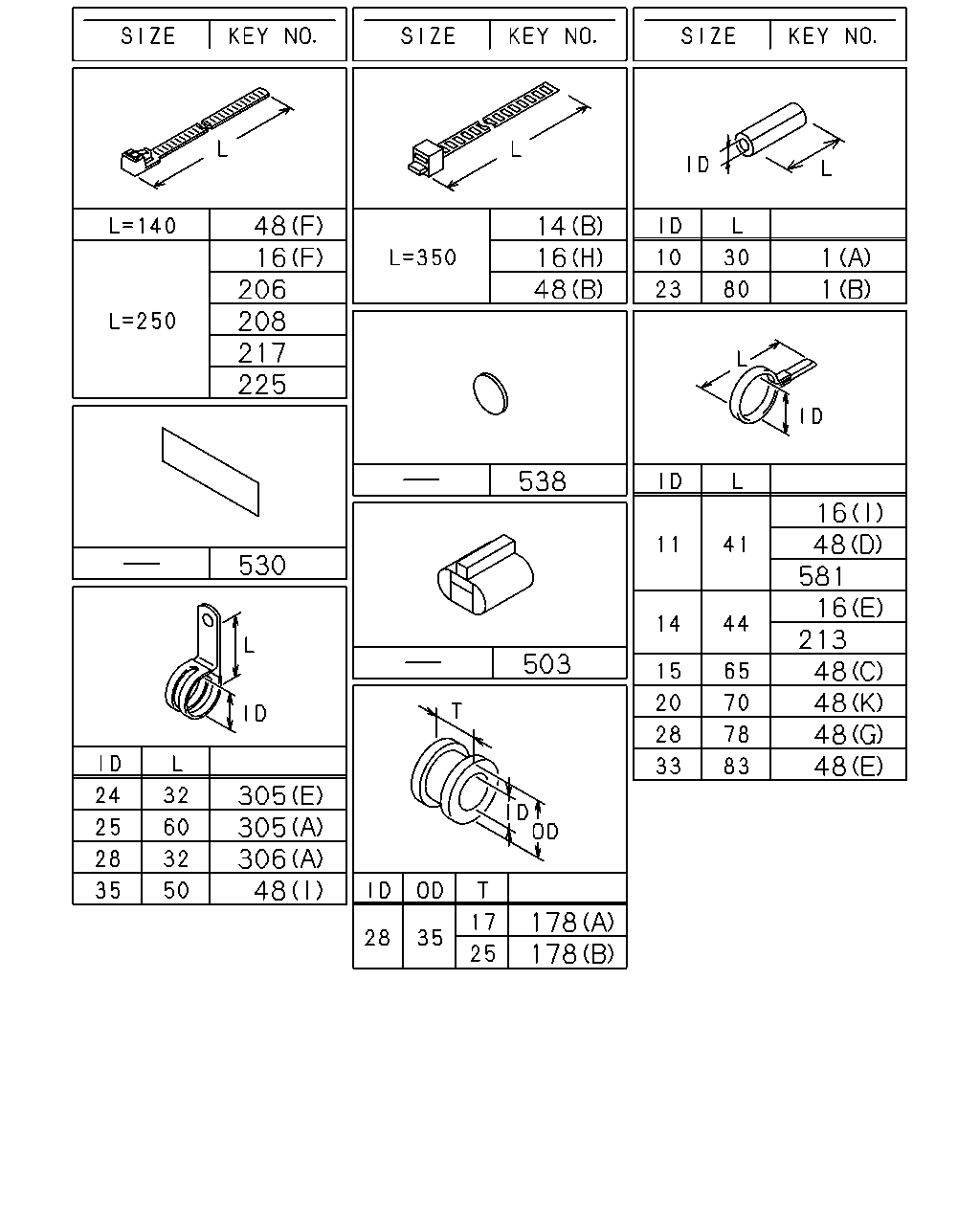

48 206 16 217 208 225 530 305 305 306 48 178 178 503 538 48 16 14 1 1 16 581 48 213 16 48 48 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	1304-1402
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	05	1	1403-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1304-1406
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	04	1	1407-
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	01	1	1304-
14	CLIP; BAND,HARNESS (C) L=251	8-97619-917-0	01	1	1304-
14	CLIP; BAND,HARNESS (A) L=250	8-98216-430-0	14	1	1304-
16	CLIP; HARNESS AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (M) ID=21 L=47.5	8-94178-108-0	01	1	1403-
16	CLIP; HARNESS (L) ID=16 L=28	0-95235-556-0	02	1	1304-
16	CLIP; HARNESS (D) ID=14 H=50 L=20	1-09700-843-0	02	1	1304-
16	CLIP; HARNESS (K) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1304-
16	CLIP; HARNESS (K) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1304-
16	CLIP; HARNESS (H) L=350	1-09707-183-0	02	1	1304-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	03	1	1304-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1304-
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1304-
16	CLIP; HARNESS (G) L=40.6 THA	8-97229-357-0	02	1	1304-
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1304-
16	CLIP; HARNESS (E) ID=14 L=44	9-09917-427-0	03	1	1304-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41	1-09700-403-0	02	1	1304-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (J) ID=5-12 L=26	1-09709-289-0	01	1	1304-
48	CLIP; FRAME HARNESS (A) ID=16X2 L=50	0-95325-586-0	01	1	1304-
48	CLIP; FRAME HARNESS (D) ID=11 L=41	1-09700-403-0	01	1	1304-
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	16	1	1304-
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	01	1	1304-
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	01	1	1304-
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	02	1	1304-
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	02	1	1304-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	02	1	1304-
48	CLIP; FRAME HARNESS (G) ID=28 L=78	1-09700-858-0	02	1	1304-
48	CLIP; FRAME HARNESS (J) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1304-
48	CLIP; FRAME HARNESS (I) ID=35 L=50	1-09701-214-0	01	1	1304-
48	CLIP; FRAME HARNESS (E) ID=33 L=83	1-09701-291-0	04	1	1304-
48	CLIP; FRAME HARNESS (B) L=350	1-09707-183-0	01	1	1304-
48	CLIP; FRAME HARNESS (H) ID=18-24 L=26	1-09709-296-0	01	1	1304-
48	CLIP; FRAME HARNESS (F) L=140 THA	8-97920-656-0	02	1	1304-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	1304-
48	CLIP; FRAME HARNESS POOR QUALITY DIESEL FUEL<KF0> (K) ID=11 L=61	1-09700-484-0	02	1	1304-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1304-
178	GROMMET; HARNESS POOR QUALITY DIESEL FUEL<KF0> (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1304-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	02	1	1304-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1304-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1304-
208	CLIP; HARNESS,MAG VLV PTO CONTROL<SV6> L=250	5-09707-030-1	01	1	1304-
208	CLIP; HARNESS,MAG VLV L=250	5-09707-030-1	01	1	1304-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1304-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1304-
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	08	1	1304-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1304-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1304-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	1304-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-
305	CLIP; ENG HARNESS (F) ID=19 L=39 H=21	1-09700-972-1	01	1	1304-
305	CLIP; ENG HARNESS (C) ID=26 L=27	1-09701-006-0	01	1	1304-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1304-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1304-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	1304-1402
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1304-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1304-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1304-
503	CONNECTOR	1-82690-668-0	01	1	1304-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-1309
530	SEAL; HARNESS 180X40	1-72498-019-1	06	1	1310-
530	SEAL; HARNESS 180X40	1-72498-019-1	19	1	1304-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	01	1	1306-1309
538	SEAL; HOLE OD=25 BLACK THA	1-76798-019-0	01	1	1304-
581	CLIP; HARNESS,REAR SUSP ID=11 L=41	1-09700-403-0	01	1	1304-

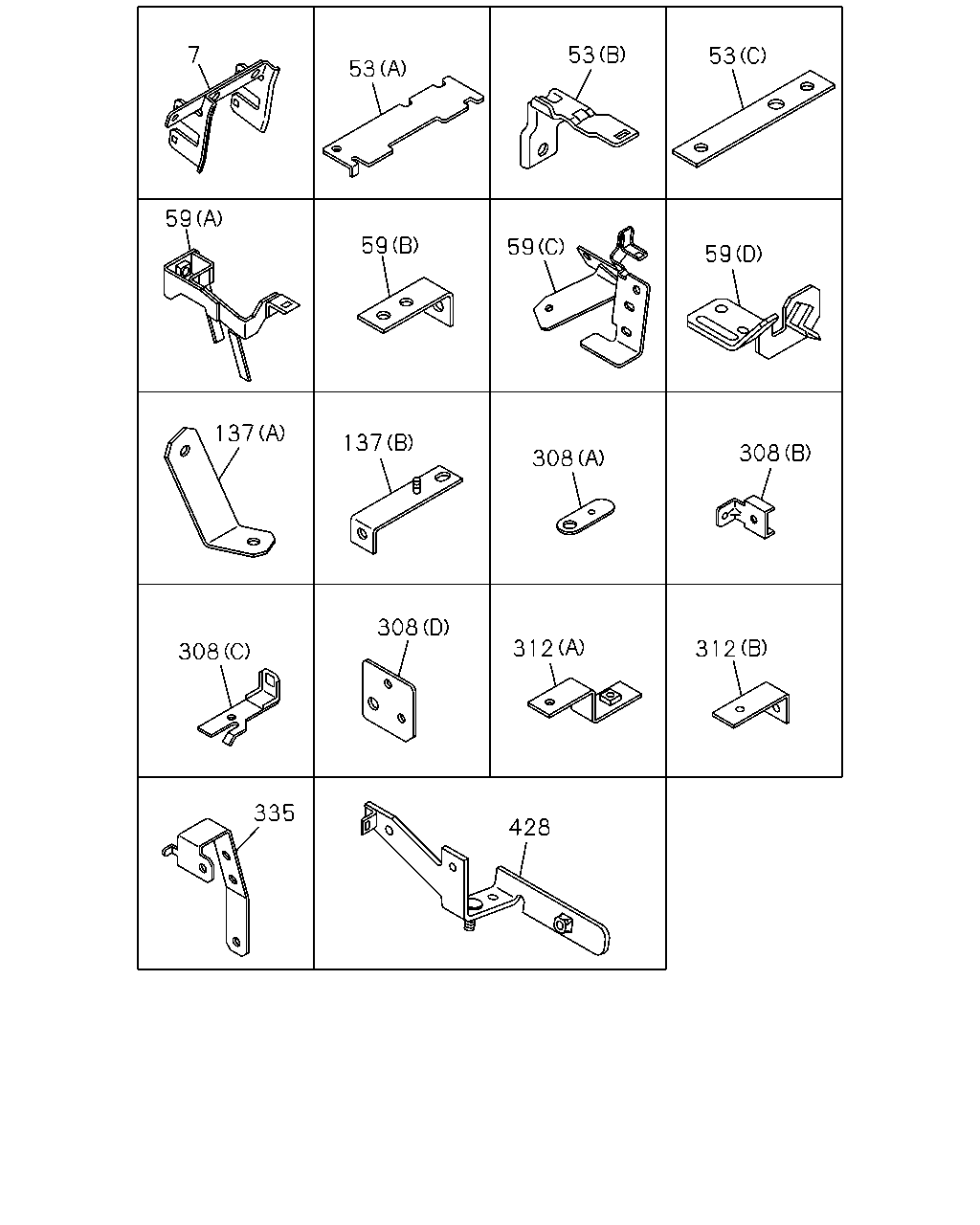

53 53 53 7 59 59 59 59 308 308 137 137 308 308 312 312 428 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR THA	8-97925-591-0	01	1	1304-
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	1304-
53	BRACKET; HARNESS (A)	8-98127-093-0	01	1	1304-
53	BRACKET; HARNESS POOR QUALITY DIESEL FUEL<KF0> (C) L=170	1-47479-380-0	01	1	1304-
59	BRACKET; FRAME HARNESS (B)	1-21464-170-2	01	1	1304-
59	BRACKET; FRAME HARNESS (A)	8-97609-264-2	01	1	1304-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1304-
59	BRACKET; FRAME HARNESS (C)	8-98107-611-0	01	1	1304-
137	BRACKET; HARNESS CLAMP (A)	8-97614-728-1	01	1	1304-
137	BRACKET; HARNESS CLAMP (B)	8-97624-013-0	01	1	1304-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	03	1	1304-
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	1304-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	1304-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	1304-
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	1304-
312	BRACKET; CLIP HARNESS (A)	8-97609-110-1	01	1	1304-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1304-
428	BRACKET	8-98212-082-1	01	1	1304-

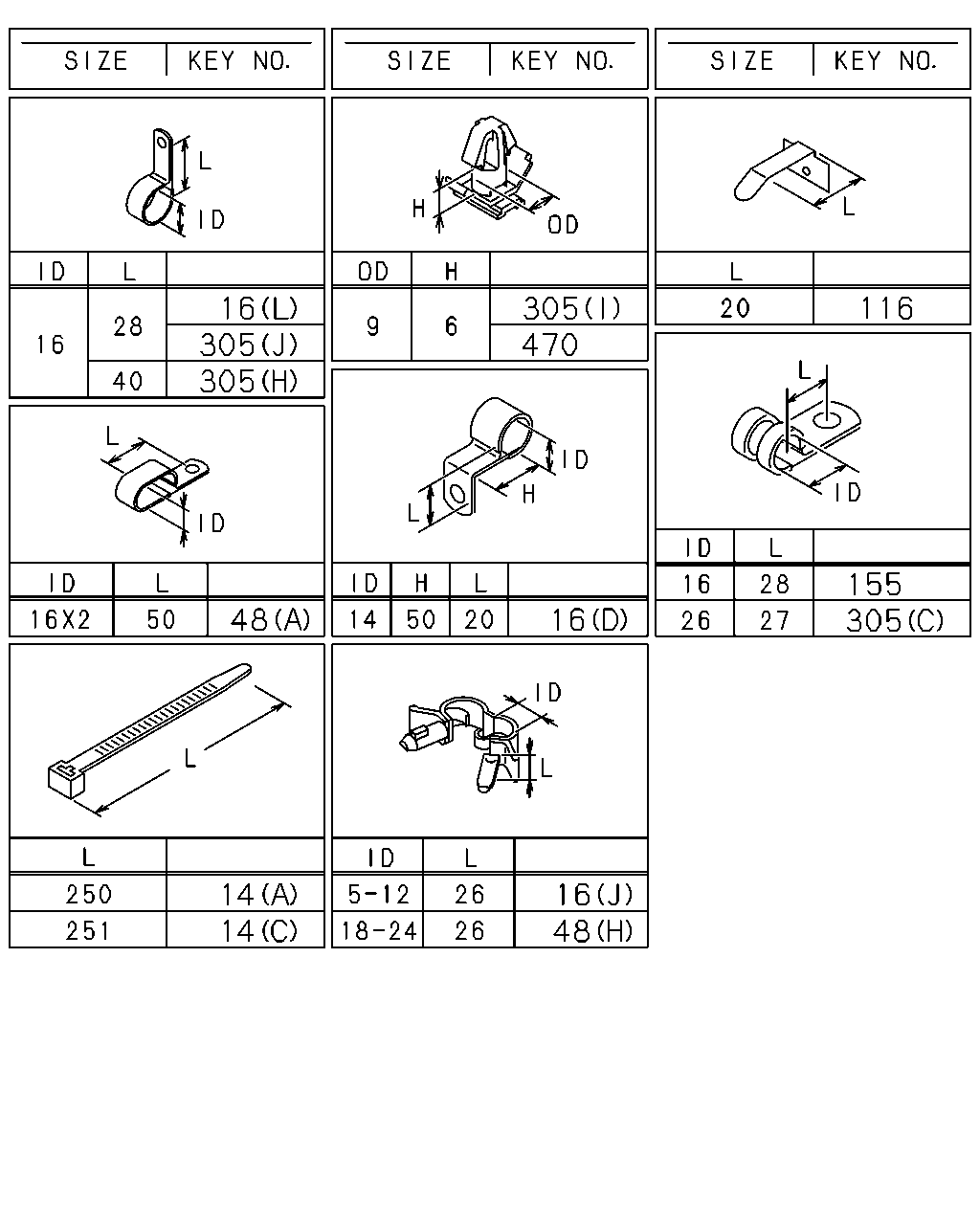

16 305 305 116 470 305 48 14 14 48 16 16 305 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	01	1	1304-
14	CLIP; BAND,HARNESS (C) L=251	8-97619-917-0	01	1	1304-
14	CLIP; BAND,HARNESS (A) L=250	8-98216-430-0	14	1	1304-
16	CLIP; HARNESS AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (M) ID=21 L=47.5	8-94178-108-0	01	1	1403-
16	CLIP; HARNESS (L) ID=16 L=28	0-95235-556-0	02	1	1304-
16	CLIP; HARNESS (D) ID=14 H=50 L=20	1-09700-843-0	02	1	1304-
16	CLIP; HARNESS (K) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1304-
16	CLIP; HARNESS (K) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1304-
16	CLIP; HARNESS (H) L=350	1-09707-183-0	02	1	1304-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	03	1	1304-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1304-
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1304-
16	CLIP; HARNESS (G) L=40.6 THA	8-97229-357-0	02	1	1304-
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1304-
16	CLIP; HARNESS (E) ID=14 L=44	9-09917-427-0	03	1	1304-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41	1-09700-403-0	02	1	1304-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (J) ID=5-12 L=26	1-09709-289-0	01	1	1304-
48	CLIP; FRAME HARNESS (A) ID=16X2 L=50	0-95325-586-0	01	1	1304-
48	CLIP; FRAME HARNESS (D) ID=11 L=41	1-09700-403-0	01	1	1304-
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	16	1	1304-
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	01	1	1304-
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	01	1	1304-
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	02	1	1304-
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	02	1	1304-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	02	1	1304-
48	CLIP; FRAME HARNESS (G) ID=28 L=78	1-09700-858-0	02	1	1304-
48	CLIP; FRAME HARNESS (J) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1304-
48	CLIP; FRAME HARNESS (I) ID=35 L=50	1-09701-214-0	01	1	1304-
48	CLIP; FRAME HARNESS (E) ID=33 L=83	1-09701-291-0	04	1	1304-
48	CLIP; FRAME HARNESS (B) L=350	1-09707-183-0	01	1	1304-
48	CLIP; FRAME HARNESS (H) ID=18-24 L=26	1-09709-296-0	01	1	1304-
48	CLIP; FRAME HARNESS (F) L=140 THA	8-97920-656-0	02	1	1304-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	1304-
48	CLIP; FRAME HARNESS POOR QUALITY DIESEL FUEL<KF0> (K) ID=11 L=61	1-09700-484-0	02	1	1304-
116	CLIP; ROOF HARNESS L=20	1-09987-246-2	03	1	1304-
155	CLIP; STARTER EARTH CABLE ID=16 L=28	1-09700-872-0	01	1	1403-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1304-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1304-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	1304-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-
305	CLIP; ENG HARNESS (F) ID=19 L=39 H=21	1-09700-972-1	01	1	1304-
305	CLIP; ENG HARNESS (C) ID=26 L=27	1-09701-006-0	01	1	1304-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1304-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1304-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	1304-1402
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1304-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1304-

16 306 305 16 305 48 305 305 16 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (M) ID=21 L=47.5	8-94178-108-0	01	1	1403-
16	CLIP; HARNESS (L) ID=16 L=28	0-95235-556-0	02	1	1304-
16	CLIP; HARNESS (D) ID=14 H=50 L=20	1-09700-843-0	02	1	1304-
16	CLIP; HARNESS (K) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1304-
16	CLIP; HARNESS (K) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1304-
16	CLIP; HARNESS (H) L=350	1-09707-183-0	02	1	1304-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	03	1	1304-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1304-
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1304-
16	CLIP; HARNESS (G) L=40.6 THA	8-97229-357-0	02	1	1304-
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1304-
16	CLIP; HARNESS (E) ID=14 L=44	9-09917-427-0	03	1	1304-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41	1-09700-403-0	02	1	1304-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (J) ID=5-12 L=26	1-09709-289-0	01	1	1304-
48	CLIP; FRAME HARNESS (A) ID=16X2 L=50	0-95325-586-0	01	1	1304-
48	CLIP; FRAME HARNESS (D) ID=11 L=41	1-09700-403-0	01	1	1304-
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	16	1	1304-
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	01	1	1304-
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	01	1	1304-
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	02	1	1304-
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	02	1	1304-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	02	1	1304-
48	CLIP; FRAME HARNESS (G) ID=28 L=78	1-09700-858-0	02	1	1304-
48	CLIP; FRAME HARNESS (J) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1304-
48	CLIP; FRAME HARNESS (I) ID=35 L=50	1-09701-214-0	01	1	1304-
48	CLIP; FRAME HARNESS (E) ID=33 L=83	1-09701-291-0	04	1	1304-
48	CLIP; FRAME HARNESS (B) L=350	1-09707-183-0	01	1	1304-
48	CLIP; FRAME HARNESS (H) ID=18-24 L=26	1-09709-296-0	01	1	1304-
48	CLIP; FRAME HARNESS (F) L=140 THA	8-97920-656-0	02	1	1304-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	1304-
48	CLIP; FRAME HARNESS POOR QUALITY DIESEL FUEL<KF0> (K) ID=11 L=61	1-09700-484-0	02	1	1304-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1304-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1304-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	1304-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-
305	CLIP; ENG HARNESS (F) ID=19 L=39 H=21	1-09700-972-1	01	1	1304-
305	CLIP; ENG HARNESS (C) ID=26 L=27	1-09701-006-0	01	1	1304-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1304-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1304-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	1304-1402
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1304-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1304-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1304-

239 304 304 139 304 38 304 304 377 38 386 38 242 38 139 150 313 139 150 313 139 313 139 139 139 313 184 524 219 294 525 294 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE THA	0-28050-816-0	02	1	1304-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1304-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE THA	0-28650-825-0	03	1	1304-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE THA	0-28650-825-0	03	1	1304-
38	BOLT; CLIP,HARNESS (D) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1304-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1304-
139	BOLT; BRKT (E) M8X12 FLANGE THA	0-28050-812-0	01	1	1304-
139	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1304-
139	BOLT; BRKT (B) M8X30 FLANGE THA	0-28650-830-0	01	1	1304-
139	BOLT; BRKT (G) M8X35 FLANGE THA	0-28650-835-0	01	1	1304-
139	BOLT; BRKT (C) M10X25 FLANGE THA	0-28651-025-0	02	1	1304-
139	BOLT; BRKT (D) M10X30 FLANGE THA	0-28651-030-0	01	1	1304-
139	BOLT; BRKT (F) M10X35 FLANGE THA	0-28651-035-0	01	1	1304-
150	BOLT; CLIP (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1304-
150	BOLT; CLIP (B) M8X30 FLANGE THA	0-28650-830-0	01	1	1304-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	1403-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1304-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1304-
219	NUT M8 FLANGE THA	0-91180-108-0	02	1	1304-
239	BOLT; GRAND M6X10 FLANGE THA	0-28050-610-0	01	1	1403-
242	BOLT; BRKT,HARNESS M8X20 FLANGE THA	0-28650-820-0	01	1	1304-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1304-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1304-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	02	1	1304-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	02	1	1304-
294	NUT (B) M10 FLANGE THA	0-91180-210-0	02	1	1304-
294	NUT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	01	1	1304-
304	BOLT; ENG HARNESS CLIP (E) M6X12 FLANGE THA	0-28050-612-0	01	1	1304-
304	BOLT; ENG HARNESS CLIP (D) M8X10 FLANGE THA	0-28050-810-0	01	1	1304-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE THA	0-28050-812-0	03	1	1304-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE THA	0-28050-816-0	03	1	1304-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE THA	0-28050-820-0	02	1	1304-
313	BOLT; BRKT (C) M8X25 FLANGE THA	0-28650-825-0	01	1	1304-
313	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1304-
313	BOLT; BRKT (B) M8X35 FLANGE THA	0-28650-835-0	02	1	1304-
313	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (D) M10X35 FLANGE THA	0-28651-035-0	01	1	1304-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1304-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1304-
524	NUT; HARNESS M6 FLANGE THA	0-91180-106-0	04	1	1304-
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	1304-
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1304-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
