Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11492 - FVZ(THAI)EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶
8-01 — LAMP; FRONT AND FRONT SIDE
(#121201) — 53 parça
◀
[801A] COMPONENT;HEAD,SIDE TURN SIGNAL LAMP (19 parça)
[801A] FIXING;FRONT LAMP (22 parça)
[801A] COMPONENT;FOG LAMP AND FRT COMB LAMP (12 parça)
▶
1
4
408
420
20
23
5
457
382
5
327
427
437
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
8-98225-618-0
01
1
1304-1305
1
LAMP ASM; HEAD
8-98241-310-0
01
1
1306-
1
LAMP ASM; HEAD
8-98225-619-0
01
1
1304-1305
1
LAMP ASM; HEAD
8-98241-311-0
01
1
1306-
4
HEADLAMP UNIT
8-98199-565-0
01
1
1304-
4
HEADLAMP UNIT
8-98199-564-0
01
1
1304-
5
BULB; HEADLAMP
(B) 24V 5W THA
1-82194-042-0
02
1
1304-
5
BULB; HEADLAMP
(A) 24V 75/70W THA
1-82194-063-0
02
1
1304-
20
SCREW; HEADLAMP
THA
8-97378-871-0
06
1
1304-
23
COVER; BULB,HEADLAMP
THA
8-97232-491-0
02
1
1304-
91
BULB; SIDE TURN SIGNAL
24V 21W THA
8-98051-495-0
02
1
1304-
327
LAMP ASM; SIDE TURN SIGNAL
8-97410-181-3
01
1
1304-
327
LAMP ASM; SIDE TURN SIGNAL
8-97410-180-4
01
1
1304-
382
PLUG; SOCKET,HEADLAMP
THA
8-98225-685-0
02
1
1304-
408
CAP; BREATHER,HEADLAMP
THA
8-97378-874-0
02
1
1304-
420
SPRING; BULB,HEADLAMP
THA
8-98218-601-0
02
1
1304-
427
NUT; TURN SIGNAL LAMP
M6 FLANGE THA
0-91180-106-0
02
1
1304-
437
SOCKET; SIDE,TURN
THA
8-98051-390-0
02
1
1304-
457
GRIP; HEADLAMP
THA
8-98241-354-0
02
1
1306-
28
272
175
75
162
175
75
1
162
7
272
60
140
327
175
175
16

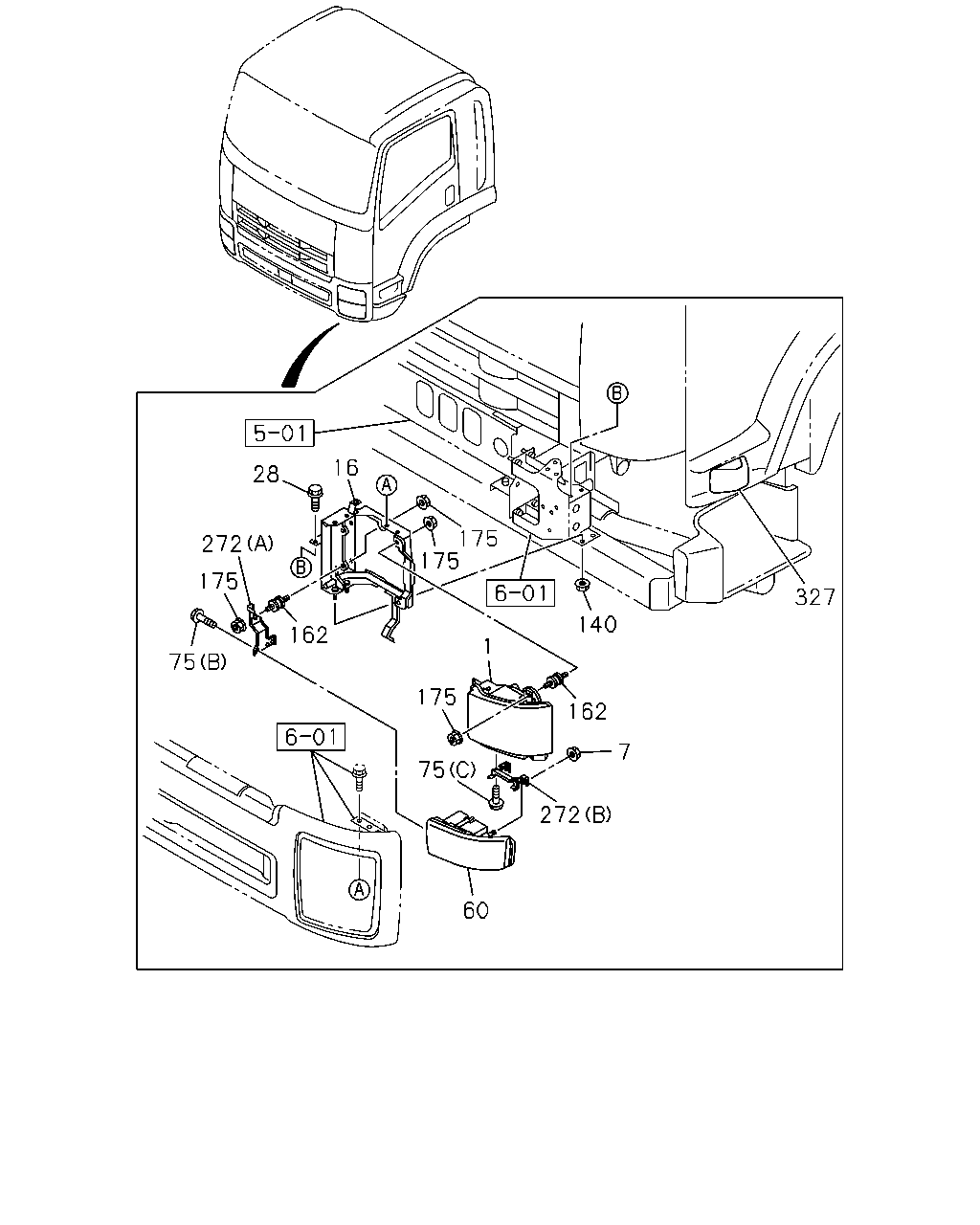

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
8-98225-618-0
01
1
1304-1305
1
LAMP ASM; HEAD
8-98241-310-0
01
1
1306-
1
LAMP ASM; HEAD
8-98225-619-0
01
1
1304-1305
1
LAMP ASM; HEAD
8-98241-311-0
01
1
1306-
7
NUT; FRT COMB LAMP
M6 FLANGE THA
0-91180-106-0
04
1
1304-
16
BRACKET; HEADLAMP
THA
8-98013-015-2
01
1
1304-
16
BRACKET; HEADLAMP
THA
8-98013-016-2
01
1
1304-
28
BOLT; HEADLAMP
M10X25 FLANGE THA
0-28651-025-0
04
1
1304-
60
LAMP ASM; FRT COMB
8-98238-630-0
01
1
1304-
60
LAMP ASM; FRT COMB
8-98238-631-0
01
1
1304-
75
SCREW; FRT COMB LAMP
(B) M6X16 FLANGE THA
0-28650-616-0
04
1
1304-
75
SCREW; FRT COMB LAMP
(C) M5X16 TAPPING W/PL WASHER
0-74360-516-0
06
1
1304-
75
SCREW; FRT COMB LAMP
(A) THA
8-98074-439-0
02
1
1304-
140
NUT
M10 FLANGE THA
0-91180-210-0
04
1
1304-
162
RUBBER; CUSHION UPR
THA
8-97926-571-0
08
1
1304-
175
NUT; BRKT CUSHION RUBBER
M8 FLANGE THA
0-91180-108-0
16
1
1304-
272
BRACKET; FRT COMB LAMP
(A)
8-98051-935-0
01
1
1304-
272
BRACKET; FRT COMB LAMP
(B)
8-98051-938-0
01
1
1304-
272
BRACKET; FRT COMB LAMP
(A)
8-98051-934-0
01
1
1304-
272
BRACKET; FRT COMB LAMP
(B)
8-98051-937-0
01
1
1304-
327
LAMP ASM; SIDE TURN SIGNAL
8-97410-181-3
01
1
1304-
327
LAMP ASM; SIDE TURN SIGNAL
8-97410-180-4
01
1
1304-
60
68
75
439
68
438
304
67
305

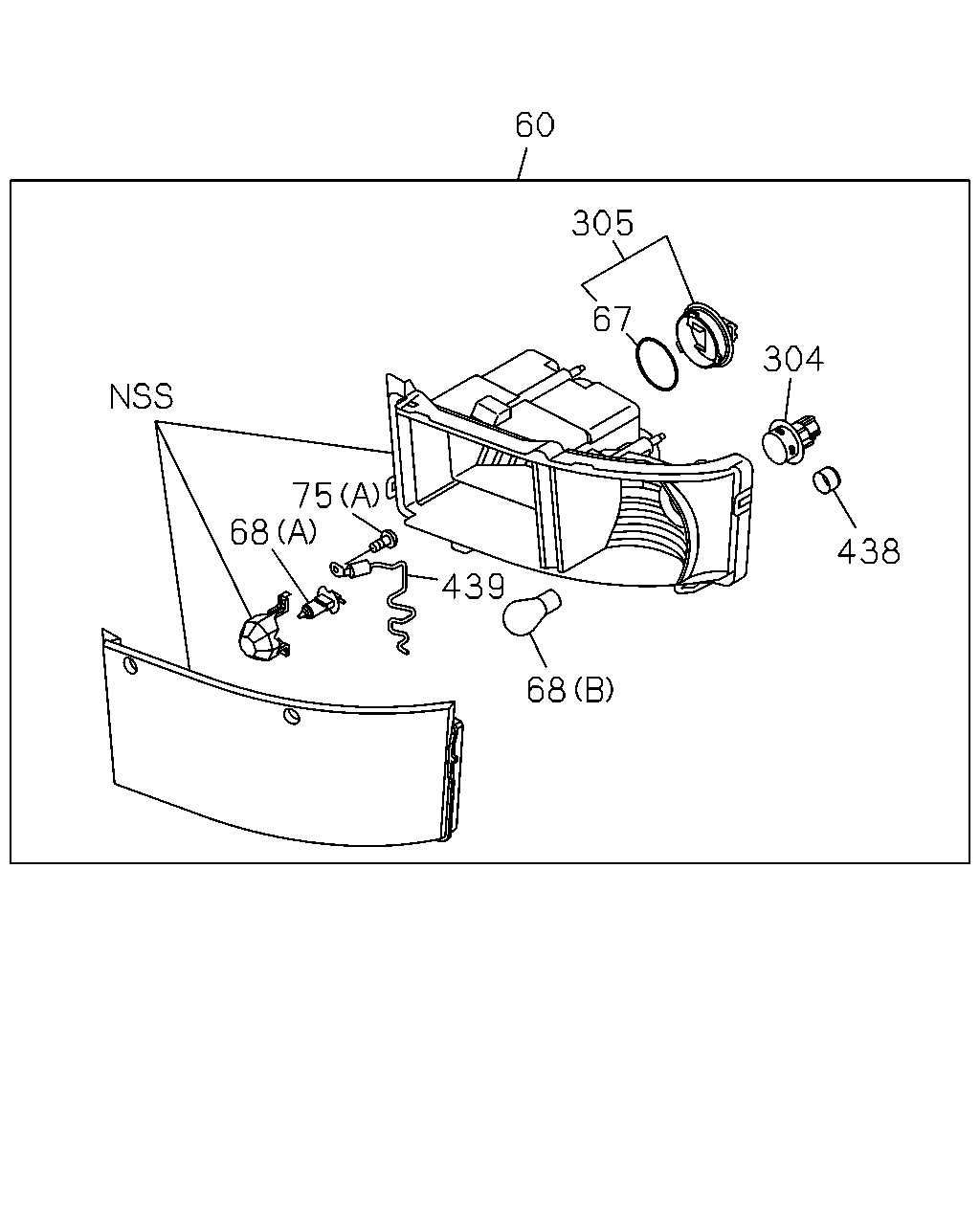

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
60
LAMP ASM; FRT COMB
8-98238-630-0
01
1
1304-
60
LAMP ASM; FRT COMB
8-98238-631-0
01
1
1304-
67
GASKET; FRT COMB LAMP
THA
8-98238-656-0
02
1
1304-
68
BULB; FRT COMB LAMP
(A) 24V 70W THA
1-82194-106-0
02
1
1304-
68
BULB; FRT COMB LAMP
(B) 24V 21W THA
8-98051-495-0
02
1
1304-
75
SCREW; FRT COMB LAMP
(B) M6X16 FLANGE THA
0-28650-616-0
04
1
1304-
75
SCREW; FRT COMB LAMP
(C) M5X16 TAPPING W/PL WASHER
0-74360-516-0
06
1
1304-
75
SCREW; FRT COMB LAMP
(A) THA
8-98074-439-0
02
1
1304-
304
PLUG; SOCKET,FRT COMB LAMP
THA
8-98051-390-0
02
1
1304-
305
COVER; FRT COMB LAMP
8-98240-559-0
02
1
1304-
438
CAP; BREATHER,FRT COMB LAMP
THA
8-97378-874-0
02
1
1304-
439
SPRING SET; COMB LAMP
THA
8-98075-644-0
02
1
1304-
