◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11492 - FVZ(THAI)EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#121173) — 101 parça

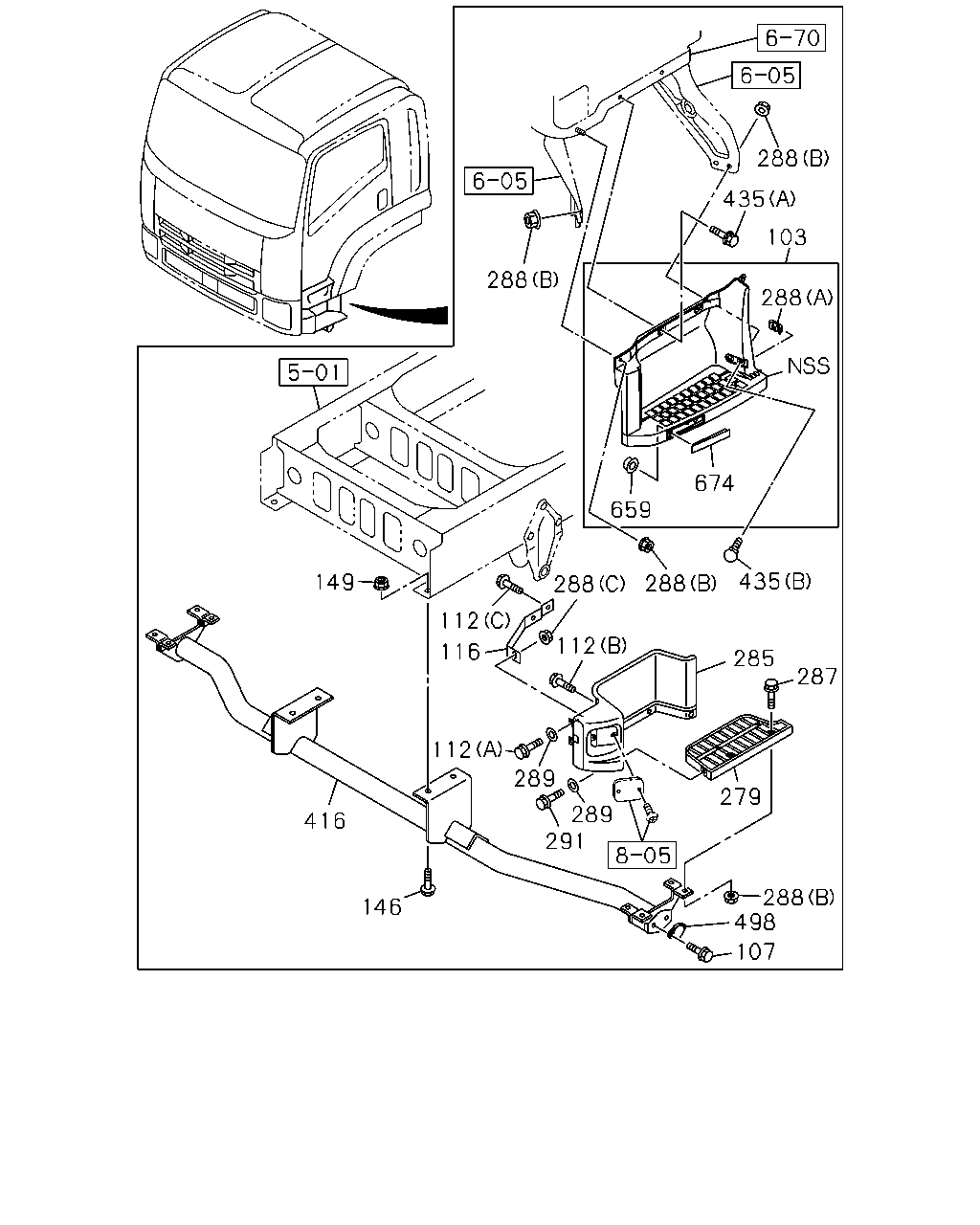

çizim 356780
288 288 435 103 288 674 435 285 287 288 659 288 112 112 116 149 416 112 289 289 291 146 279 288 498 107
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-98069-977-2 01 1 1304-
103 PLATE; STEP 8-98069-976-2 01 1 1304-
107 BOLT; SIDE STEP
M5X16 W/LK&PL WASHER 		8-94198-538-0 04 1 1304-
112 BOLT; 1ST STEP
(A) M6X16 FLANGE THA 		0-28050-616-0 02 1 1304-
112 BOLT; 1ST STEP
(B) M6X20 FLANGE 		0-28050-620-0 02 1 1304-
112 BOLT; 1ST STEP
(C) M8X12 FLANGE THA 		0-28050-812-0 04 1 1304-
116 STAY; 1ST STEP,FRT
THA 		8-98196-756-0 02 1 1304-
146 BOLT; STEP BRKT
M14X45 FLANGE THA 		0-28851-445-0 04 1 1304-
149 NUT; STEP BRKT
M14 FLANGE THA 		0-91180-214-0 04 1 1304-
279 BOARD; STEP 1ST
THA 		8-97924-110-0 01 1 1304-
279 BOARD; STEP 1ST
THA 		8-97924-109-0 01 1 1304-
285 PLATE; STEP,1ST STEP
THA 		8-97924-703-1 01 1 1304-
285 PLATE; STEP,1ST STEP
THA 		8-97924-704-1 01 1 1304-
287 BOLT; BOARD STEP
M8X35 FLANGE THA 		0-28650-835-0 08 1 1304-
288 NUT; STEP
(C) M6 FLANGE THA 		0-91180-106-0 02 1 1304-
288 NUT; STEP
(B) M8 FLANGE THA 		0-91180-108-0 08 1 1304-
288 NUT; STEP
(B) M8 FLANGE THA 		0-91180-108-0 10 1 1304-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1304-
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 10 1 1304-
291 BOLT; STEP PLATE
M6X12 FLANGE THA 		0-28050-612-0 06 1 1304-
416 BRACKET; ASSIST STEP
THA 		8-98167-277-2 01 1 1304-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1304-
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1304-
498 REFLECTOR 1-82290-011-1 02 1 1304-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1304-
674 COVER; REFLECTOR 8-98092-734-0 01 1 1304-
674 COVER; REFLECTOR 8-98092-733-0 01 1 1304-

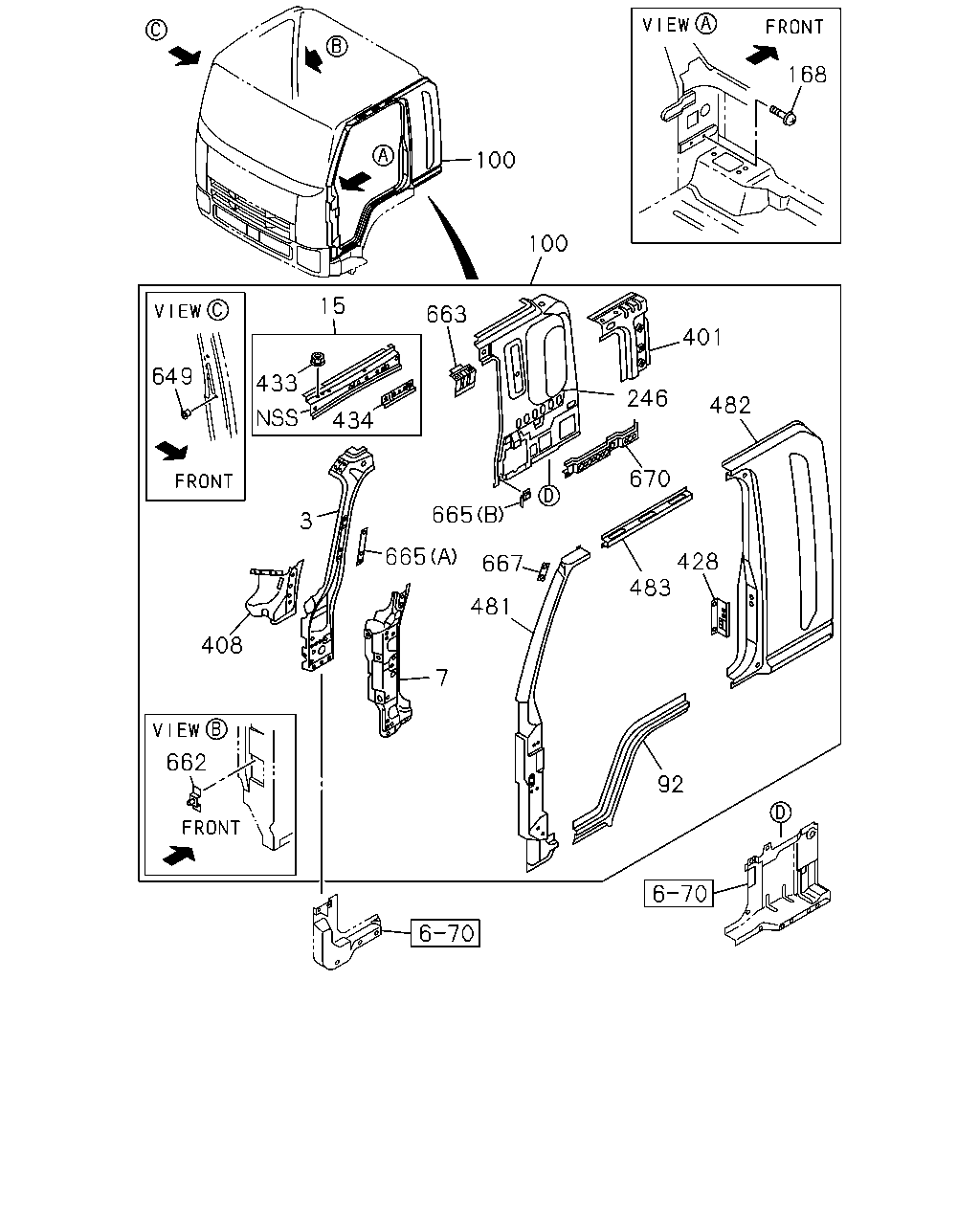

çizim 357013
100 100 15 649 433 434 663 3 408 662 7 665 665 667 481 246 401 482 670 483 428 92 168
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1312-
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1401-
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1304-1310
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1304-1310
7 REINFORCEMENT; HINGE
THA 		8-97927-058-0 01 1 1312-
7 REINFORCEMENT; HINGE
THA 		8-97927-059-0 01 1 1401-
7 REINFORCEMENT; HINGE
THA 		8-97585-244-4 01 1 1304-1310
7 REINFORCEMENT; HINGE
THA 		8-97585-240-3 01 1 1304-1310
15 PANEL; CANT RAIL SIDE
THA 		8-97585-292-2 01 1 1312-
15 PANEL; CANT RAIL SIDE
THA 		8-97585-293-2 01 1 1401-
15 PANEL; CANT RAIL SIDE
THA 		8-97585-293-2 01 1 1304-1310
15 PANEL; CANT RAIL SIDE
THA 		8-97585-292-2 01 1 1304-1310
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1304-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1304-
100 PANEL ASM; BODY SIDE 8-97586-073-9 01 1 1304-1306
100 PANEL ASM; BODY SIDE
THA 		8-97948-575-1 01 1 1307-
100 PANEL ASM; BODY SIDE 8-97586-065-6 01 1 1304-1306
100 PANEL ASM; BODY SIDE
THA 		8-97948-561-1 01 1 1307-
168 BOLT; BODY SIDE PANEL
M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 08 1 1304-
246 PANEL; RR PILLAR,INNER
THA 		8-97586-156-5 01 1 1312-
246 PANEL; RR PILLAR,INNER
THA 		8-97586-158-5 01 1 1401-
246 PANEL; RR PILLAR,INNER
THA 		8-97586-158-5 01 1 1304-1310
246 PANEL; RR PILLAR,INNER
THA 		8-97586-156-5 01 1 1304-1310
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97586-160-2 01 1 1312-
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97586-161-2 01 1 1401-
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97586-161-2 01 1 1304-1310
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97586-160-2 01 1 1304-1310
408 GUSSET; PILLAR 8-97586-193-3 01 1 1312-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1401-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1304-1310
408 GUSSET; PILLAR 8-97586-193-3 01 1 1304-1310
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1312-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1401-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1304-1310
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1304-1310
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1312-1312
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1401-
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1401-
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1304-1310
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1304-1310
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1312-
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1401-
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1304-1310
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1304-1310
481 PANEL; SIDE FRT PILLAR 8-98055-453-0 01 1 1304-
481 PANEL; SIDE FRT PILLAR 8-98055-471-0 01 1 1304-
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1304-
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1304-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1304-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1304-
649 NUT; POP
M5 POP NUT THA 		8-97249-574-0 02 1 1312-
649 NUT; POP
M5 POP NUT THA 		8-97249-574-0 02 1 1304-1310
662 BRACKET; DUCT
THA 		8-97948-248-0 01 1 1312-
662 BRACKET; DUCT 8-97584-611-1 01 1 1304-1306
662 BRACKET; DUCT
THA 		8-97948-248-0 01 1 1307-1310
663 BRACKET; AIR
THA 		8-97948-277-0 01 1 1312-
663 BRACKET; AIR
THA 		8-97948-278-0 01 1 1401-
663 BRACKET; AIR 8-97585-208-2 01 1 1304-1306
663 BRACKET; AIR
THA 		8-97948-278-0 01 1 1307-1310
663 BRACKET; AIR 8-97585-207-2 01 1 1304-1306
663 BRACKET; AIR
THA 		8-97948-277-0 01 1 1307-1310
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1304-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1304-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1304-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1304-
667 BRACKET; MIRROR 8-98109-948-0 02 1 1312-
667 BRACKET; MIRROR 8-98109-948-0 01 1 1401-
667 BRACKET; MIRROR 8-98109-948-0 01 1 1304-1310
667 BRACKET; MIRROR 8-98109-948-0 02 1 1304-1310
670 STIFFENER; PANEL,SIDE
THA 		8-98015-044-1 01 1 1312-1312
670 STIFFENER; PANEL,SIDE
THA 		8-98015-044-1 01 1 1401-
670 STIFFENER; PANEL,SIDE
THA 		8-98015-044-1 01 1 1401-
670 STIFFENER; PANEL,SIDE
THA 		8-98015-044-1 01 1 1304-1310
670 STIFFENER; PANEL,SIDE
THA 		8-98015-044-1 01 1 1304-1310
