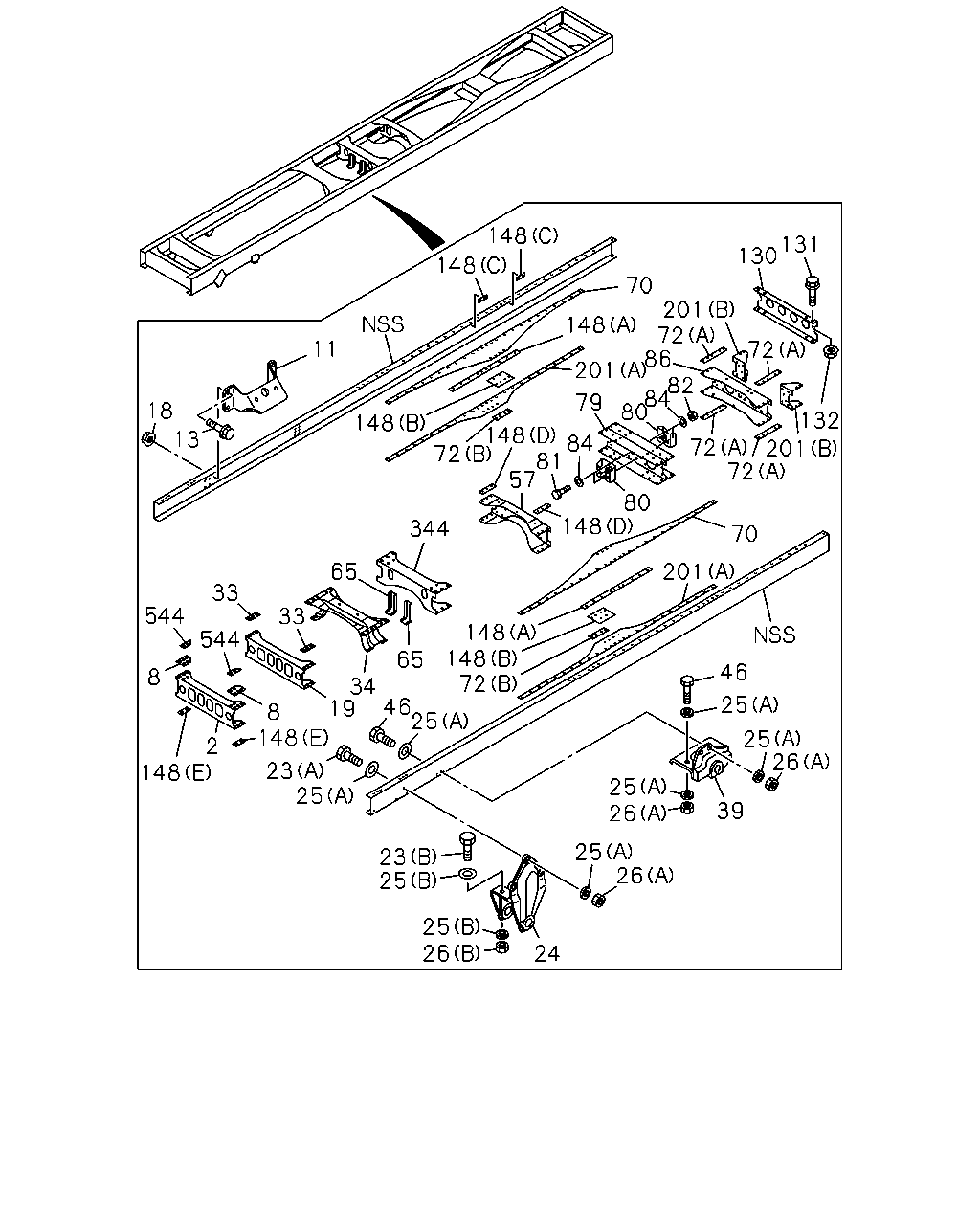

5-01 — FRAME AND OTHER PARTS
(#121164) — 53 parça
148
148
11
13
18
544
33
544
8
148
8
148
23
25
19
34
33
65
344
72
148
148
57
81
84
79
201
148
70
72
201
130
131
72
132
201
72
72
80
80
84
82
86
148
201
70
46
25
25
26
25
26
25
26
24
26
25
25
23
25
46
65
148
148
72
2
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97610-852-6
01
1
1304-1307
2
MEMBER; CROSS,1ST
THA
8-97948-166-0
01
1
1308-
8
GUSSET; 1ST C/MBR
THA
8-97611-027-0
02
1
1304-1307
8
GUSSET; 1ST C/MBR
THA
8-97948-167-0
02
1
1308-
11
BRACKET; ENG MTG
8-97619-550-0
02
1
1304-
13
BOLT; BRKT,ENG MTG
M12X40 FLANGE
0-28661-240-0
08
1
1304-
18
NUT; BRKT,ENG MTG
M12 FLANGE THA
0-91180-212-0
08
1
1304-
19
MEMBER; CROSS,2ND
8-97610-853-4
01
1
1304-1307
19
MEMBER; CROSS,2ND
THA
8-97948-169-0
01
1
1308-
23
BOLT; BRKT,SPR
(A) M14X50
0-20951-450-0
06
1
1304-
23
BOLT; BRKT,SPR
(B) M16X60
0-20951-660-0
04
1
1304-
24
BRACKET; FRT SPR,FRT
8-98018-840-0
01
1
1304-1307
24
BRACKET; FRT SPR,FRT
THA
8-97948-158-0
01
1
1308-
24
BRACKET; FRT SPR,FRT
8-98018-841-0
01
1
1304-1307
24
BRACKET; FRT SPR,FRT
THA
8-97948-160-0
01
1
1308-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1304-
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
28
1
1304-
26
NUT; BRKT,SPR
(A) M14 THA
0-91110-514-0
14
1
1304-
26
NUT; BRKT,SPR
(B) M16 THA
0-91110-516-0
04
1
1304-
33
SPACER; 2ND C/MBR,UPR
8-97611-040-0
02
1
1304-1307
33
SPACER; 2ND C/MBR,UPR
THA
8-97948-140-0
02
1
1308-
34
MEMBER; CROSS,3RD
8-97610-854-2
01
1
1304-1307
34
MEMBER; CROSS,3RD
THA
8-97948-172-0
01
1
1308-
39
BRACKET; FRT SPR,RR
THA
8-97924-625-0
01
1
1304-
39
BRACKET; FRT SPR,RR
THA
8-97924-626-0
01
1
1304-
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
08
1
1304-
57
MEMBER; CROSS,RR SUSP FRT
THA
8-97612-103-1
01
1
1304-
65
BRACKET; CENTER BRG
8-97614-126-0
02
1
1304-
70
GUSSET; TRUNNION,UPR
8-97612-106-0
02
1
1304-
72
SPACER; TRUNNION
(A)
8-97612-110-0
04
1
1304-1307
72
SPACER; TRUNNION
(A) THA
8-97948-182-0
04
1
1308-
72
SPACER; TRUNNION
(B) THA
8-97922-399-0
02
1
1304-
79
MEMBER; CROSS,TRUNNION ASM
THA
8-97612-104-0
01
1
1304-
80
BRACKET; C/MBR
THA
1-53363-068-0
02
1
1304-1307
80
BRACKET; C/MBR
THA
8-97948-138-0
02
1
1308-
81
BOLT; BRKT
M14X50
0-10956-450-0
02
1
1304-
82
NUT; BRKT
M14 THA
0-91110-514-0
02
1
1304-
84
WASHER; PL,BRKT
ID=15
8-98010-627-1
04
1
1304-
86
MEMBER; CROSS,RR SUSP RR
THA
8-97924-655-0
01
1
1304-
130
MEMBER; CROSS,END
THA
8-97916-031-0
01
1
1304-
131
BOLT; END C/MBR
M12X30 W/LK WASHER THA
0-50541-230-0
04
1
1304-
132
NUT; END C/MBR
M12
0-91110-512-0
04
1
1304-
148
SPACER; C/MBR
(E)
8-97611-039-0
02
1
1304-1307
148
SPACER; C/MBR
(E) THA
8-97948-168-0
02
1
1308-
148
SPACER; C/MBR
(D) THA
8-97612-109-0
02
1
1304-
148
SPACER; C/MBR
(C)
8-97612-111-0
04
1
1304-1307
148
SPACER; C/MBR
(A)
8-97612-112-0
02
1
1304-
148
SPACER; C/MBR
(B)
8-97612-113-0
02
1
1304-
201
GUSSET; C/MBR
(B) THA
8-97612-108-2
02
1
1304-
201
GUSSET; C/MBR
(A)
8-97618-440-1
02
1
1304-
344
MEMBER; CROSS,4TH
8-97611-238-1
01
1
1304-1307
344
MEMBER; CROSS,4TH
THA
8-97948-180-0
01
1
1308-
544
PLATE; CAB FRT MTG
8-97615-598-0
02
1
1304-1307
