Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11492 - FVZ(THAI)EURO3
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

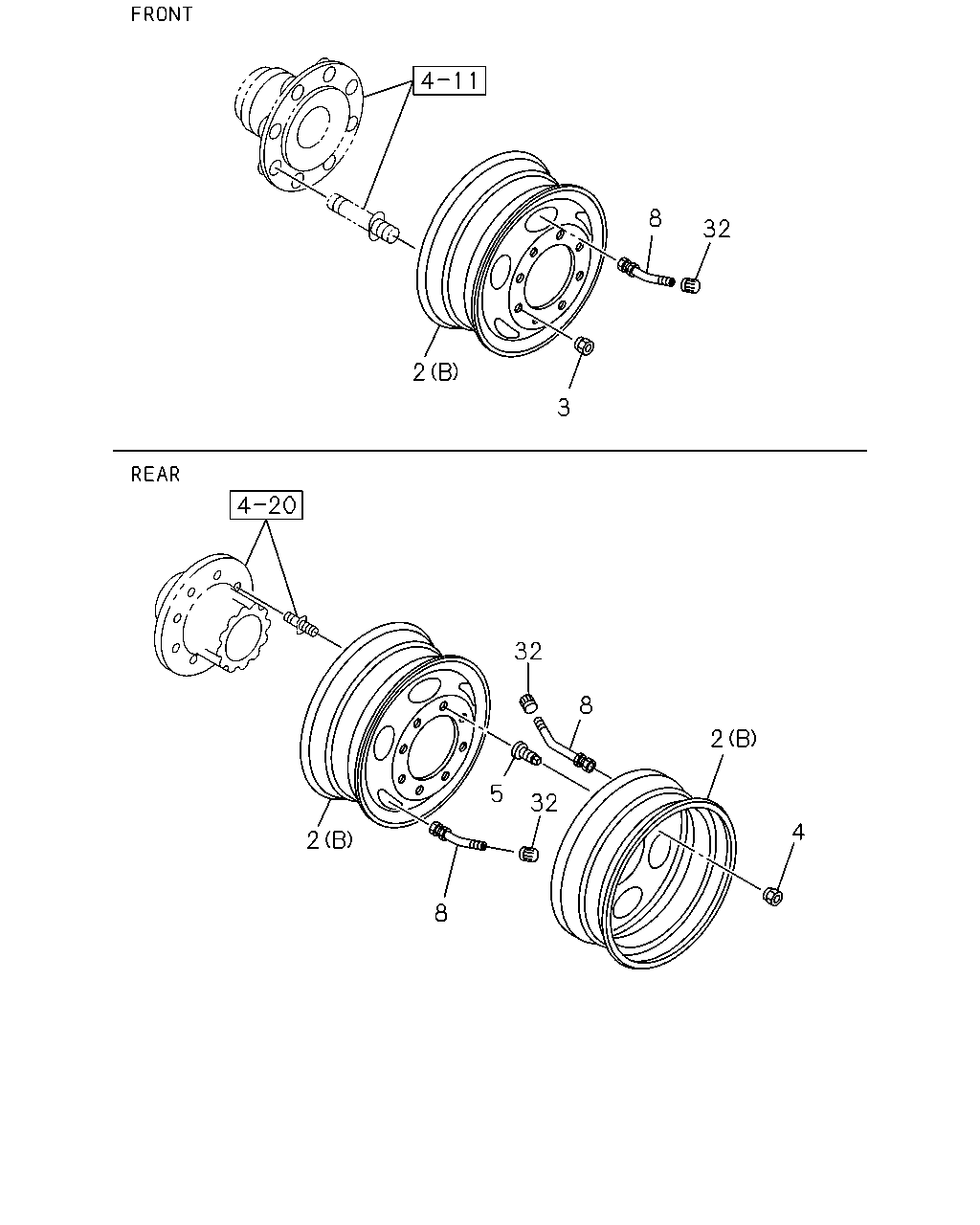

4-80 — ROAD WHEEL
(#121163) — 37 parça
◀
[480A] NO.1 (18 parça)
[480A] NO.2 (19 parça)
▶
5
4
2
31
31
2
3
31
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) FRONT
1-42350-758-0
02
1
1304-
2
WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) REAR
1-42350-758-0
08
1
1304-
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) SPARE
1-42350-758-0
01
1
1304-
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) SPARE
1-42350-667-0
01
1
1304-
2
WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13<Q62> (A) FRONT
1-42350-362-0
02
1
1304-
2
WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13<Q62> (A) REAR
1-42350-362-0
08
1
1304-
2
WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL REAR<R46> (A) SPARE
1-42350-362-0
01
1
1304-
2
WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) FRONT
1-42350-667-0
02
1
1304-
2
WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) REAR
1-42350-667-0
08
1
1304-
3
NUT; WHEEL,FRT AXLE
M24 LH THREAD THA
8-97916-064-0
08
1
1304-
3
NUT; WHEEL,FRT AXLE
M24 THA
8-97916-063-0
08
1
1304-
4
NUT; WHEEL,RR AXLE
M30 LH THREAD THA
8-97916-121-0
16
1
1304-
4
NUT; WHEEL,RR AXLE
M30 THA
8-97916-066-0
16
1
1304-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD THA
8-97916-676-0
16
1
1304-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD THA
8-97916-065-0
16
1
1304-
31
RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.50VX20 165-13<Q62> FRONT
1-42355-004-1
02
1
1304-
31
RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.50VX20 165-13<Q62> REAR
1-42355-004-1
08
1
1304-
31
RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL REAR<R46> SPARE
1-42355-004-1
01
1
1304-
4
2
8
32
5
32
8
2
2
3
8
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) FRONT
1-42350-758-0
02
1
1304-
2
WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) REAR
1-42350-758-0
08
1
1304-
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) SPARE
1-42350-758-0
01
1
1304-
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) SPARE
1-42350-667-0
01
1
1304-
2
WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13<Q62> (A) FRONT
1-42350-362-0
02
1
1304-
2
WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13<Q62> (A) REAR
1-42350-362-0
08
1
1304-
2
WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL REAR<R46> (A) SPARE
1-42350-362-0
01
1
1304-
2
WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) FRONT
1-42350-667-0
02
1
1304-
2
WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) REAR
1-42350-667-0
08
1
1304-
3
NUT; WHEEL,FRT AXLE
M24 LH THREAD THA
8-97916-064-0
08
1
1304-
3
NUT; WHEEL,FRT AXLE
M24 THA
8-97916-063-0
08
1
1304-
4
NUT; WHEEL,RR AXLE
M30 LH THREAD THA
8-97916-121-0
16
1
1304-
4
NUT; WHEEL,RR AXLE
M30 THA
8-97916-066-0
16
1
1304-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD THA
8-97916-676-0
16
1
1304-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD THA
8-97916-065-0
16
1
1304-
8
VALVE; TIRE
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> FRONT
1-42370-020-3
02
1
1304-
8
VALVE; TIRE
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> REAR
1-42370-020-3
08
1
1304-
8
VALVE; TIRE
SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE
1-42370-020-3
01
1
1304-
32
CAP; VALVE
SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>
1-42374-001-0
11
1
1304-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
