Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#12115) — 239 parça

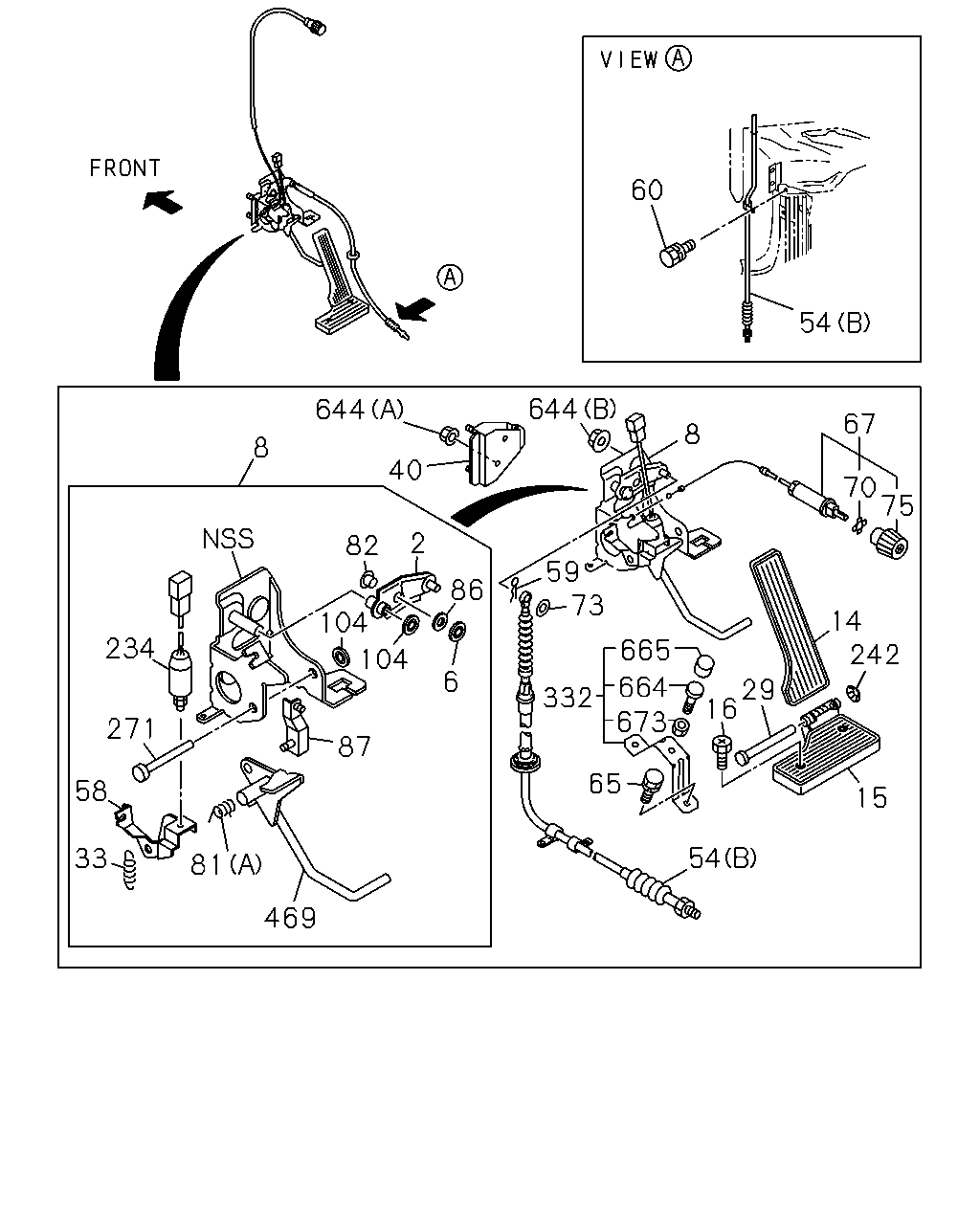

60 54 644 644 67 8 8 40 70 75 2 82 59 73 86 14 242 104 234 665 104 6 664 673 29 16 332 271 87 65 58 15 54 33 81 469

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-550-2	01	1	0105-	●	●	●
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-210-2	01	1	0105-	●	●	●
6	RING; SNAP,LINK TO LINK EXC. ELECTRONIC GOV RED3(KG5) ID=4	9-09185-404-0	02	1	0105-0604	●	●	●
6	RING; SNAP,LINK TO LINK EXC. ELECTRONIC GOV RED3(KG5) ID=4	0-91805-504-0	02	1	0605-	●	●	●
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-551-4	01	1	0105-	●	●	●
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-73996-206-6	01	1	0105-	●	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0105-	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0105-	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0105-	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0105-	●	●	●
33	SPRING; IDLING CONT LEVER EXC. ELECTRONIC GOV RED3(KG5)	8-94414-815-0	01	1	0105-	●	●	●
40	BRACKET; ENG CONT CABLE	1-71907-269-0	01	1	0105-	●	●	●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (A) L=1300	1-23230-132-0	01	1	0105-	●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (B) L=2050	1-73907-476-4	01	1	0105-	●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	0105-	●	●	●
58	LEVER; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-242-1	01	1	0105-	●	●	●
59	PIN; SNAP,ENG CONT CABLE RLD GOVERNOR(SD7) L=27.7	1-09747-005-0	01	1	0105-	●	●	●
60	BOLT; CABLE RLD GOVERNOR(SD7) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0105-0904	●	●	●
60	BOLT; CABLE RLD GOVERNOR(SD7) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●	●	●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-	●	●	●
67	CABLE ASM; IDLE CONT EXC. ELECTRONIC GOV RED3(KG5) L=399	1-73998-912-3	01	1	0105-0204	●	●	●
67	CABLE ASM; IDLE CONT EXC. ELECTRONIC GOV RED3(KG5) L=315	1-73908-423-1	01	1	0205-	●	●	●
70	NUT; CONT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-73908-045-1	01	1	0105-	●	●	●
73	WASHER; PL,ACCEL CONT CABLE RLD GOVERNOR(SD7) ID=8.4	9-09160-508-0	01	1	0105-0605	●	●	●
73	WASHER; PL,ACCEL CONT CABLE RLD GOVERNOR(SD7) ID=8.4 OD=16	0-91610-508-0	01	1	0606-	●	●	●
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	8-97066-797-1	01	1	0105-0109	●	●	●
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	8-97137-504-0	01	1	0110-0204	●	●	●
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	1-73908-409-0	01	1	0205-	●	●	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0105-	●	●	●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	1-71907-268-0	01	1	0105-0206	●	●	●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	8-97997-917-0	01	1	0207-	●	●	●
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5) L=31.5	1-53459-627-0	01	1	0105-	●	●	●
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5)	1-71907-244-1	02	1	0105-	●	●	●
86	WASHER; PL,ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) ID=6.4	9-09160-506-0	02	1	0105-	●	●	●
87	LINK; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-211-1	01	1	0105-	●	●	●
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	01	1	0105-	●	●	●
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	02	1	0105-	●	●	●
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5)	1-82380-131-2	01	1	0105-	●	●	●
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5)	1-82380-114-3	01	1	0105-	●	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0105-	●	●	●
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5) OD=8.0 L=69	1-71907-298-0	01	1	0105-	●	●	●
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) OD=8.0 L=74	1-71907-212-1	01	1	0105-	●	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0105-	●	●	●
469	LEVER ASM EXC. ELECTRONIC GOV RED3(KG5)	1-71907-209-5	01	1	0105-	●	●	●
644	NUT; LINK,ENG CONT (B) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●
644	NUT; LINK,ENG CONT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
644	NUT; LINK,ENG CONT (A) M8 FLANGE W/RUBBER	1-09984-176-0	03	1	0105-	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0105-	●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0105-	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	0105-0512	●	●	●
673	NUT; STOPPER M8	0-91111-508-0	01	1	0601-	●	●	●

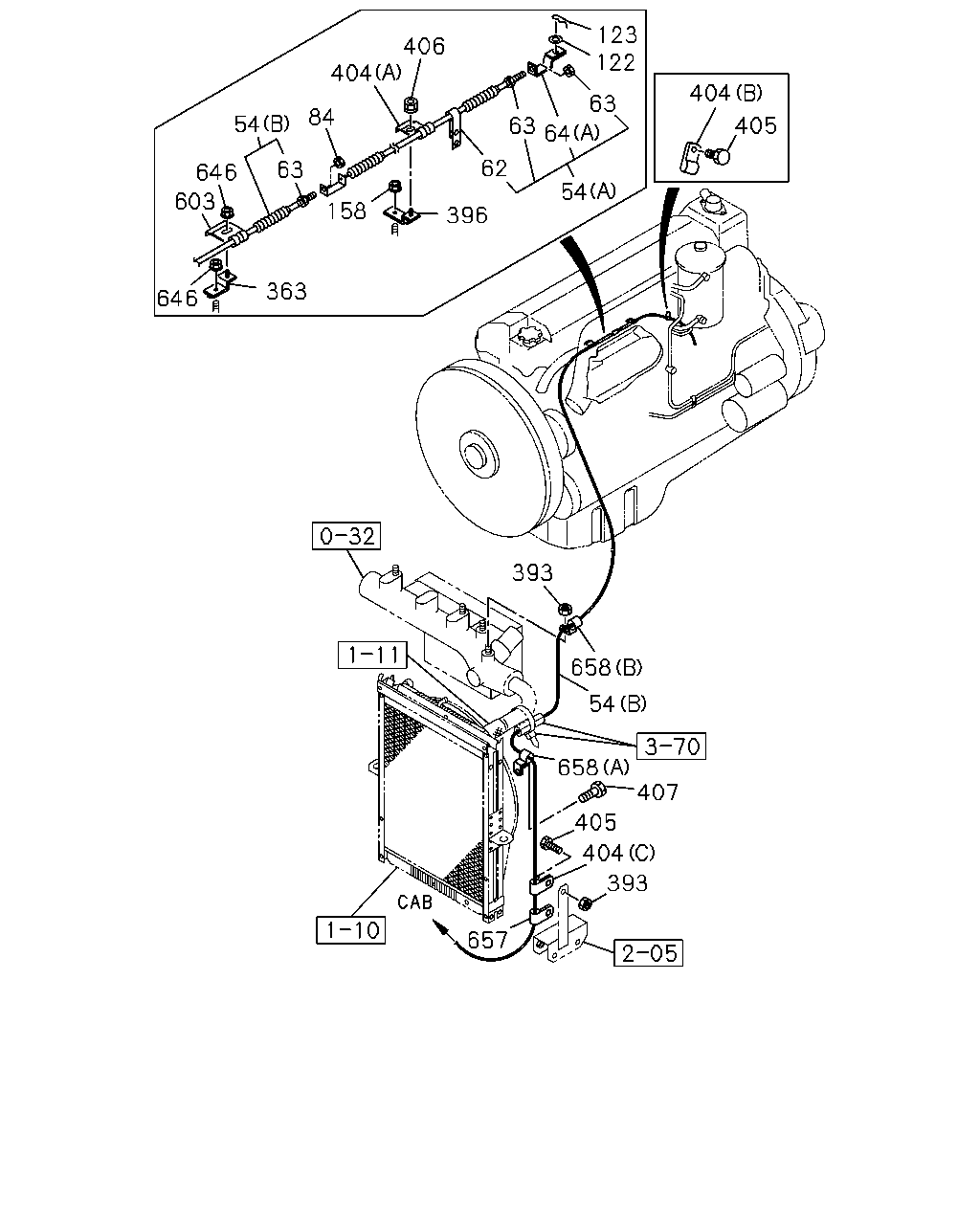

123 122 406 404 404 405 63 63 64 84 54 158 62 63 646 603 54 396 646 363 393 658 54 658 407 405 404 393 657

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (A) L=1300	1-23230-132-0	01	1	0105-	●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (B) L=2050	1-73907-476-4	01	1	0105-	●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	0105-	●	●	●
62	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) L=30	1-09700-326-0	01	1	0105-	●
63	NUT; LOCK,BRKT EXC. ELECTRONIC GOV RED3(KG5) M8	9-09111-408-0	02	1	0105-	●
63	NUT; LOCK,BRKT RLD GOVERNOR(SD7) M8	9-09111-408-0	01	1	0105-	●
64	BRACKET; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (A)	1-23219-105-1	01	1	0105-	●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	0105-	●	●	●
84	NUT; ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0105-0501	●	●	●
84	NUT; ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) M8	9-09110-408-0	01	1	0502-0512	●	●	●
84	NUT; ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) M8	0-91110-508-0	01	1	0601-	●	●	●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	0105-0605	●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0105-0605		●	●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	0-91610-505-0	01	1	0606-	●
122	WASHER; PL,CABLE ID=5.3	0-91610-505-0	01	1	0606-		●	●
122	WASHER; PL,CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=8.4	9-09160-508-0	01	1	0105-0605	●
122	WASHER; PL,CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=8.4 OD=16	0-91610-508-0	01	1	0606-	●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	0105-	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0105-		●	●
123	PIN; SNAP,CABLE EXC. ELECTRONIC GOV RED3(KG5) L=27.7	1-09747-005-0	01	1	0105-	●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●	●
158	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
363	SPACER; BRKT,ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5)	1-47477-804-3	01	1	0105-	●	●	●
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●	●
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●	●
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
396	BRACKET; CLIP	1-47478-055-0	01	1	0105-	●	●	●
404	CLIP; CABLE (A)	1-14319-111-0	01	1	0105-	●
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A)	1-14319-111-0	01	1	0105-	●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	0105-0606	●	●	●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=9 L=40	9-09524-875-0	01	1	0105-0606	●
404	CLIP; CABLE (B) ID=9 L=40	0-95234-875-0	01	1	0607-	●	●	●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=9 L=40	0-95234-875-0	01	1	0607-	●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=11 L=20	9-09525-035-0	01	1	0105-0606	●	●	●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=11 L=20	0-95235-035-0	01	1	0607-	●	●	●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	0105-		●	●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5) M6X16 FLANGE	0-28080-616-0	02	1	0105-0512	●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5) M6X16 FLANGE	0-28050-616-0	02	1	0601-	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●	●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●	●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
407	BOLT; CLIP TO ENG EXC. ELECTRONIC GOV RED3(KG5) M8X12 FLANGE	0-28080-812-0	01	1	0105-0512	●	●	●
407	BOLT; CLIP TO ENG EXC. ELECTRONIC GOV RED3(KG5) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●	●
603	BRACKET; ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5)	1-14319-140-0	01	1	0105-	●	●	●
646	NUT; BRKT,LEVER EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●
646	NUT; BRKT,LEVER EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
657	CLIP; ENG CONT CABLE RLD GOVERNOR(SD7) ID=11 L=20	9-09525-035-0	01	1	0105-0606	●	●	●
657	CLIP; ENG CONT CABLE RLD GOVERNOR(SD7) ID=11 L=20	0-95235-035-0	01	1	0607-	●	●	●
658	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (A) ID=9 H=20 L=50	1-09700-084-0	01	1	0105-	●	●	●
658	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0105-0707	●	●	●
658	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-	●	●	●

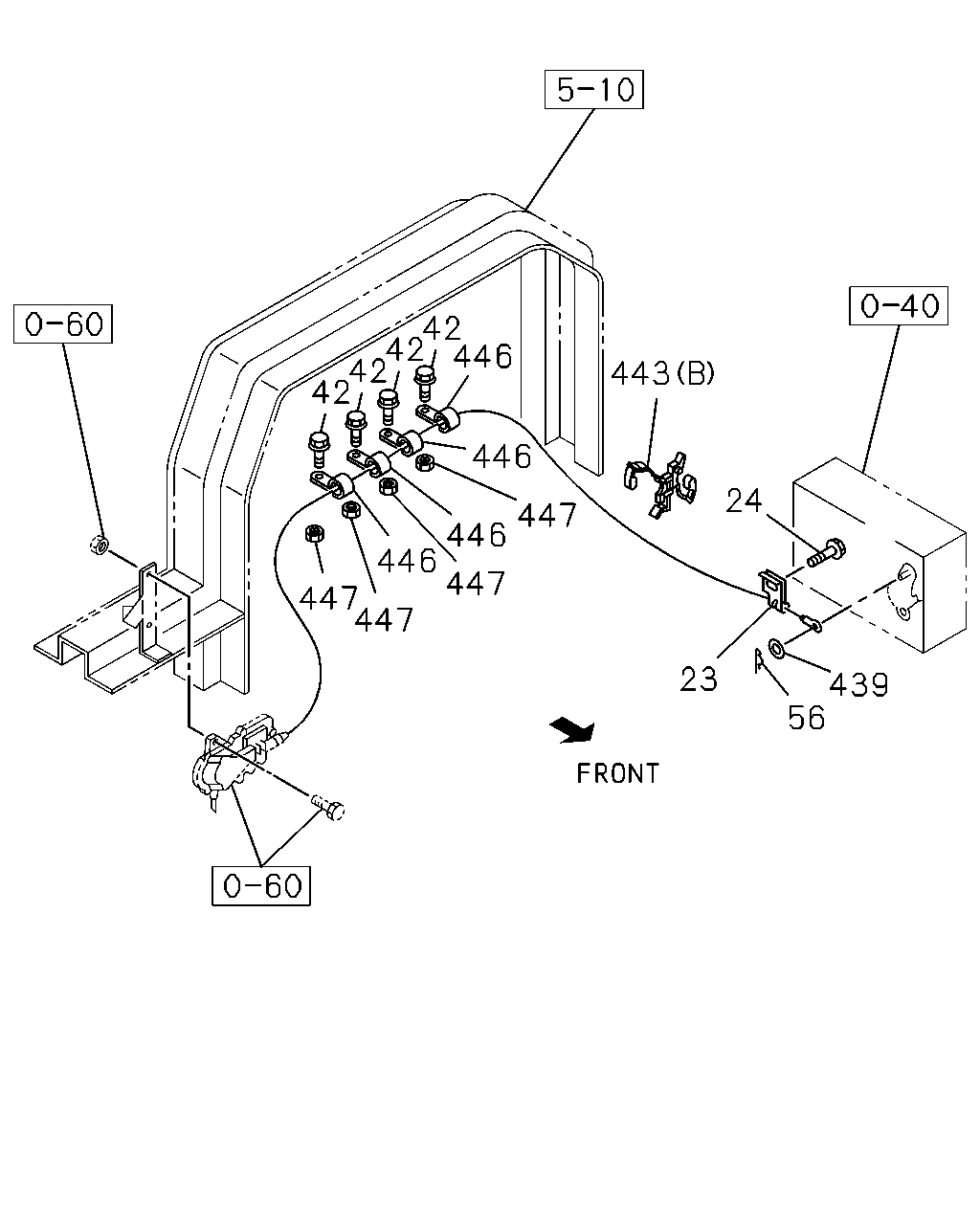

42 42 446 42 42 443 446 24 447 446 446 447 447 447 23 439 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	0105-0112	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-140-0	01	1	0201-0401	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-113-0	01	1	0402-0402	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	0403-	●	●	●
23	BRACKET; FUEL CUT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-14319-138-0	01	1	0105-	●	●	●
24	BOLT; BRKT EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●	●
24	BOLT; BRKT EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●	●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	04	1	0105-0512	●	●	●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	0105-	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0105-0605	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (C) ID=9 H=20 L=50	1-09700-084-0	01	1	0105-	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=11 H=20 L=20	5-09700-351-0	01	1	0105-0707	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-	●	●	●
443	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=6-10 & 6-10	1-09709-192-1	01	1	0105-	●	●	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) ID=11 L=20	9-09525-035-0	01	1	0105-0606	●	●	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) ID=11 L=20	0-95235-035-0	01	1	0607-	●	●	●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7 L=28	9-09524-655-0	04	1	0105-0606	●	●	●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7 L=28	0-95234-655-0	04	1	0607-	●	●	●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●	●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●

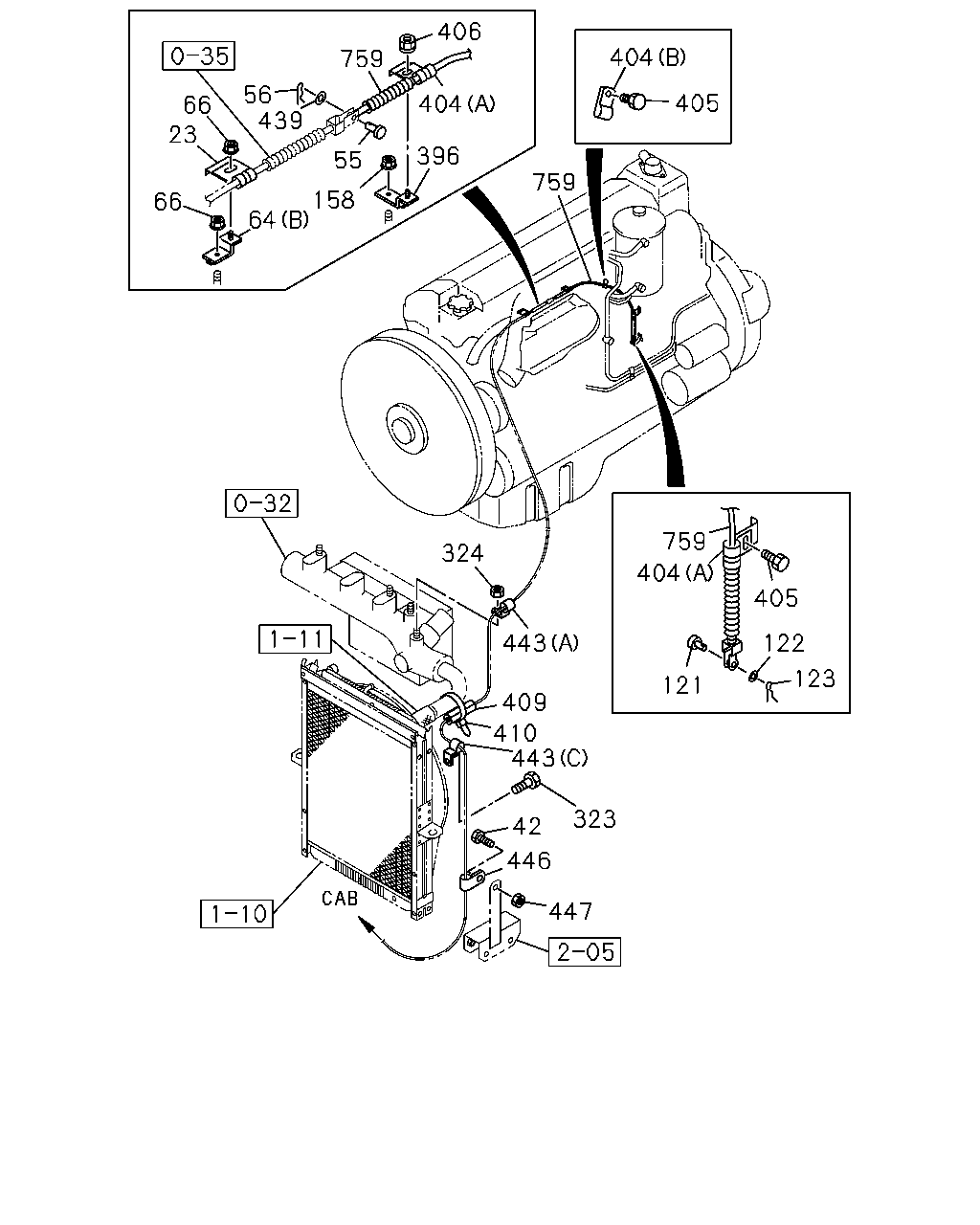

406 759 404 56 439 405 404 66 23 55 396 158 64 759 66 759 404 324 405 443 122 123 121 409 410 443 42 446 323 447

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	0105-0112	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-140-0	01	1	0201-0401	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-113-0	01	1	0402-0402	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	0403-	●	●	●
23	BRACKET; FUEL CUT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-14319-138-0	01	1	0105-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●	●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	04	1	0105-0512	●	●	●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
55	PIN; JAW JOINT ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	0105-	●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	0105-	●	●	●
64	BRACKET; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (A)	1-23219-105-1	01	1	0105-	●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	0105-	●	●	●
66	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●
66	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
121	PIN; JOINT,CABLE ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	0105-	●
121	PIN; JOINT,CABLE L=11	1-09744-102-0	01	1	0105-		●	●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	0105-0605	●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0105-0605		●	●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	0-91610-505-0	01	1	0606-	●
122	WASHER; PL,CABLE ID=5.3	0-91610-505-0	01	1	0606-		●	●
122	WASHER; PL,CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=8.4	9-09160-508-0	01	1	0105-0605	●
122	WASHER; PL,CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=8.4 OD=16	0-91610-508-0	01	1	0606-	●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	0105-	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0105-		●	●
123	PIN; SNAP,CABLE EXC. ELECTRONIC GOV RED3(KG5) L=27.7	1-09747-005-0	01	1	0105-	●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●	●
158	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
323	BOLT; CLIP ELECTRONIC GOV RED3(KG5) M8X12 FLANGE	0-28080-812-0	01	1	0105-0512	●	●	●
323	BOLT; CLIP ELECTRONIC GOV RED3(KG5) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●	●
324	NUT; CLIP FIX ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●	●
324	NUT; CLIP FIX ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
396	BRACKET; CLIP	1-47478-055-0	01	1	0105-	●	●	●
404	CLIP; CABLE (A)	1-14319-111-0	01	1	0105-	●
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A)	1-14319-111-0	01	1	0105-	●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	0105-0606	●	●	●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=9 L=40	9-09524-875-0	01	1	0105-0606	●
404	CLIP; CABLE (B) ID=9 L=40	0-95234-875-0	01	1	0607-	●	●	●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=9 L=40	0-95234-875-0	01	1	0607-	●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=11 L=20	9-09525-035-0	01	1	0105-0606	●	●	●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=11 L=20	0-95235-035-0	01	1	0607-	●	●	●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	0105-		●	●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5) M6X16 FLANGE	0-28080-616-0	02	1	0105-0512	●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5) M6X16 FLANGE	0-28050-616-0	02	1	0601-	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●	●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●	●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
409	SLEEVE ELECTRONIC GOV RED3(KG5) ID=6 OD=10 L=70	1-09376-512-0	01	1	0105-0105	●	●	●
410	CLIP; BAND ELECTRONIC GOV RED3(KG5) L=300	1-09707-001-1	01	1	0105-0504	●	●	●
410	CLIP; BAND ELECTRONIC GOV RED3(KG5) L=350	1-09707-183-0	01	1	0505-	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0105-0605	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (C) ID=9 H=20 L=50	1-09700-084-0	01	1	0105-	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=11 H=20 L=20	5-09700-351-0	01	1	0105-0707	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-	●	●	●
443	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=6-10 & 6-10	1-09709-192-1	01	1	0105-	●	●	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) ID=11 L=20	9-09525-035-0	01	1	0105-0606	●	●	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) ID=11 L=20	0-95235-035-0	01	1	0607-	●	●	●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7 L=28	9-09524-655-0	04	1	0105-0606	●	●	●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7 L=28	0-95234-655-0	04	1	0607-	●	●	●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●	●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
759	WIRE; CONT,FUEL CUT ELECTRONIC GOV RED3(KG5) L=752	1-23230-026-1	01	1	0105-	●
759	WIRE; CONT,FUEL CUT L=752	1-23230-026-1	01	1	0105-		●	●

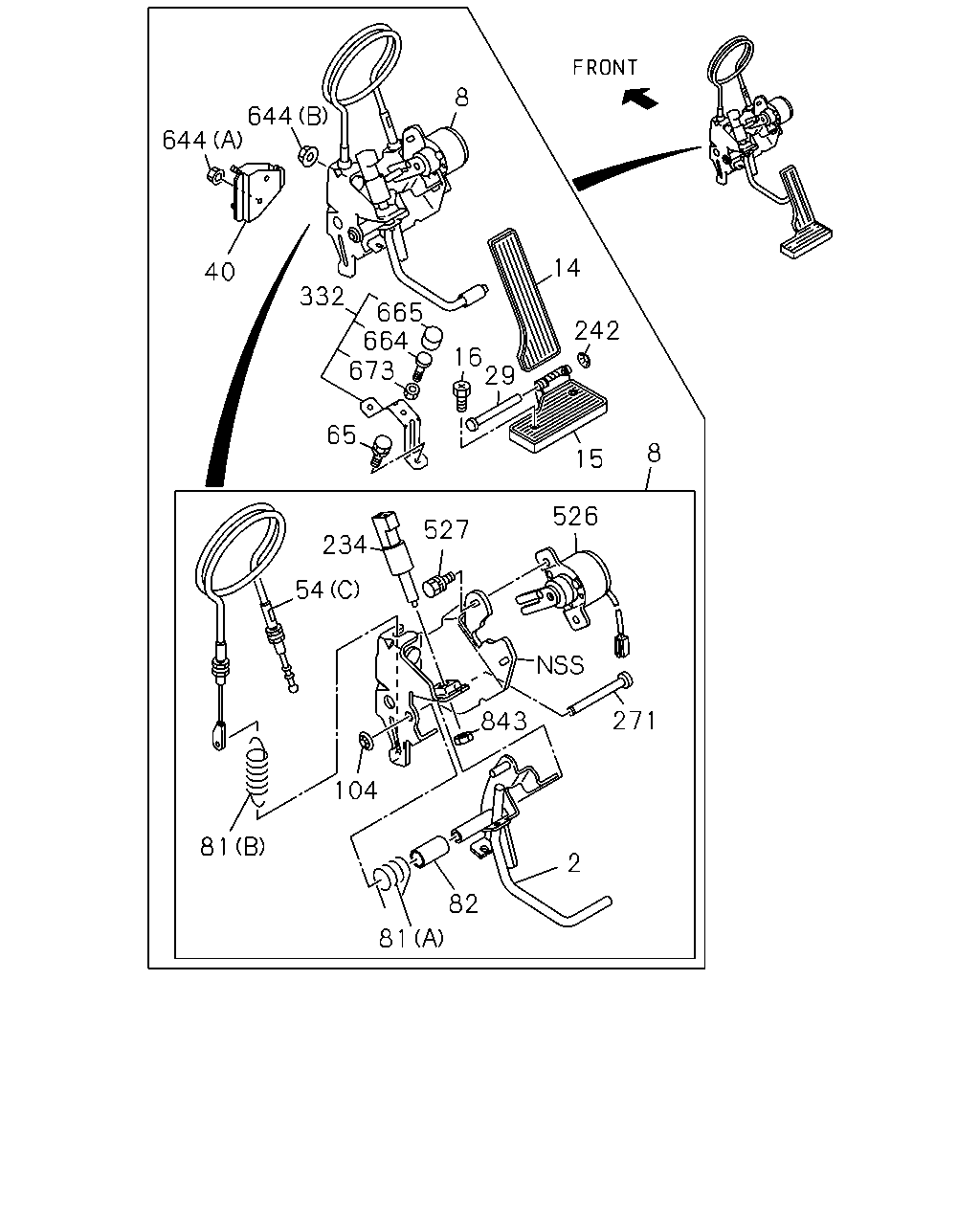

8 644 644 14 40 332 665 664 673 242 16 29 65 8 15 526 527 234 54 843 271 104 81 2 82 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-550-2	01	1	0105-	●	●	●
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-210-2	01	1	0105-	●	●	●
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-551-4	01	1	0105-	●	●	●
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-73996-206-6	01	1	0105-	●	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0105-	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0105-	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0105-	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0105-	●	●	●
40	BRACKET; ENG CONT CABLE	1-71907-269-0	01	1	0105-	●	●	●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (A) L=1300	1-23230-132-0	01	1	0105-	●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (B) L=2050	1-73907-476-4	01	1	0105-	●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	0105-	●	●	●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-	●	●	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0105-	●	●	●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	1-71907-268-0	01	1	0105-0206	●	●	●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	8-97997-917-0	01	1	0207-	●	●	●
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5) L=31.5	1-53459-627-0	01	1	0105-	●	●	●
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5)	1-71907-244-1	02	1	0105-	●	●	●
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	01	1	0105-	●	●	●
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	02	1	0105-	●	●	●
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5)	1-82380-131-2	01	1	0105-	●	●	●
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5)	1-82380-114-3	01	1	0105-	●	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0105-	●	●	●
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5) OD=8.0 L=69	1-71907-298-0	01	1	0105-	●	●	●
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) OD=8.0 L=74	1-71907-212-1	01	1	0105-	●	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0105-	●	●	●
526	SENSOR; ACCEL ELECTRONIC GOV RED3(KG5)	1-81534-003-2	01	1	0105-	●	●	●
527	BOLT; ACCEL SENSOR ELECTRONIC GOV RED3(KG5) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-0206	●	●	●
527	BOLT; ACCEL SENSOR ELECTRONIC GOV RED3(KG5) M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	0207-	●	●	●
644	NUT; LINK,ENG CONT (B) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●
644	NUT; LINK,ENG CONT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
644	NUT; LINK,ENG CONT (A) M8 FLANGE W/RUBBER	1-09984-176-0	03	1	0105-	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0105-	●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0105-	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	0105-0512	●	●	●
673	NUT; STOPPER M8	0-91111-508-0	01	1	0601-	●	●	●
843	NUT ELECTRONIC GOV RED3(KG5) M12	9-99111-412-0	01	1	0105-0512	●	●	●
843	NUT ELECTRONIC GOV RED3(KG5) M12	0-91111-512-0	01	1	0601-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
