Isuzu WW
▶
TRUCKS
▶
FRR
▶
11476 - FRR THAILAND EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-52 - PIPING; AIR CONDITIONING
▶
8-52 — PIPING; AIR CONDITIONING
(#121149) — 29 parça
◀

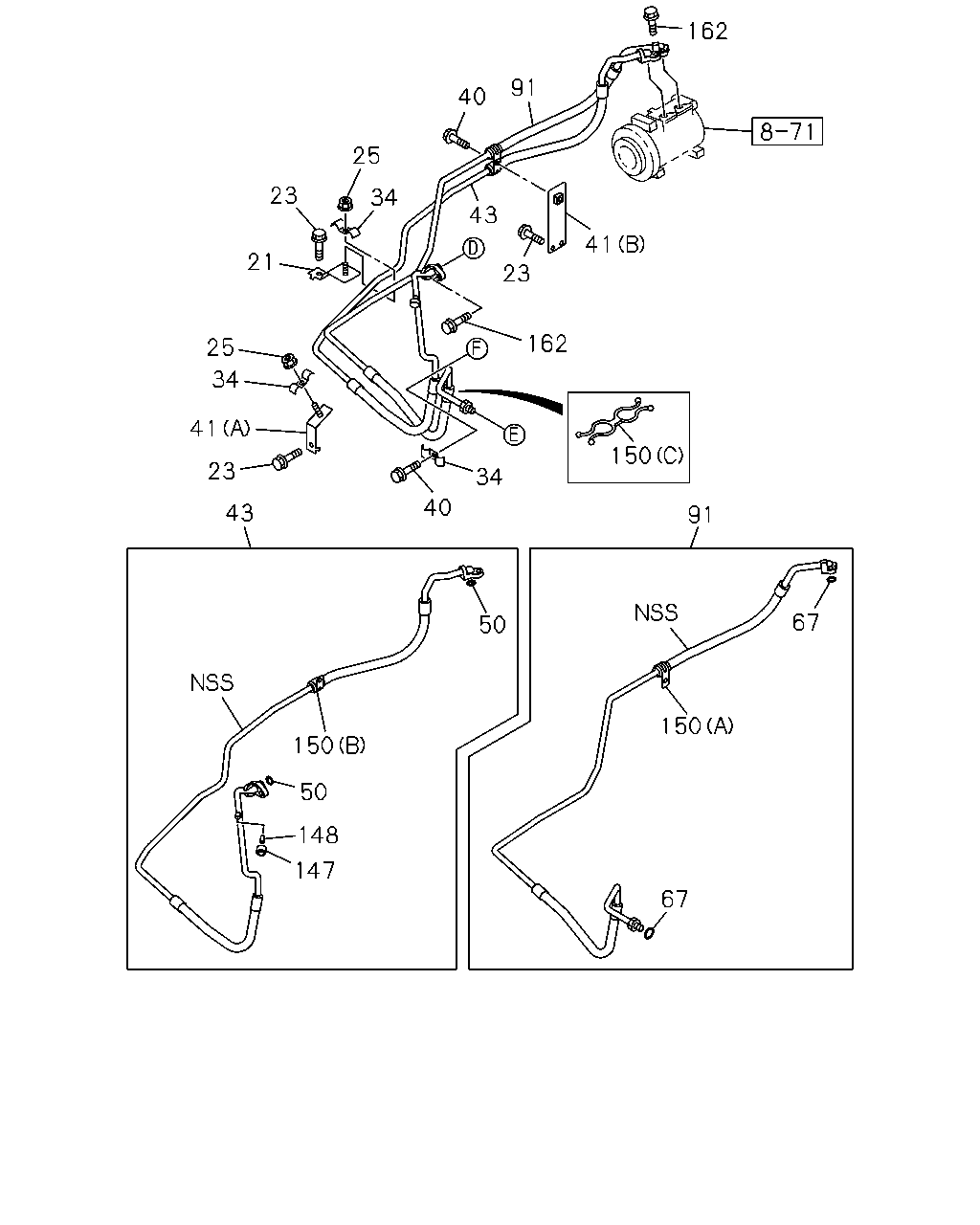

[852A] FRAME SIDE (17 parça)
[852A] CAB SIDE (12 parça)
▶
162
91
40
43
23
162
41
34
25
23
21
25
41
34
23
43
40
34
150
91
67
150
67
148
147
50
150
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-98010-187-0
01
1
1304-
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X25 FLANGE THA
0-28650-825-0
04
1
1304-
25
NUT; BRKT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8 FLANGE THA
0-91180-108-0
02
1
1304-
34
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-98043-673-0
03
1
1304-
40
BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X25 FLANGE THA
0-28650-825-0
02
1
1304-
41
BRACKET; PIPE CLIP
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)
8-98010-188-1
01
1
1304-
41
BRACKET; PIPE CLIP
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)
8-98032-049-0
01
1
1304-
43
HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-98043-677-2
01
1
1304-
50
GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> ID=14.5 THA
8-97095-908-0
02
1
1304-
67
GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> ID=11.7 THA
8-97095-907-0
02
1
1304-
91
HOSE; FLEX,CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-98043-678-2
01
1
1304-
147
CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> CAP MARK L THA
1-83539-331-0
01
1
1304-
148
VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-97095-909-0
01
1
1304-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA
1-83574-249-0
01
1
1304-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA
1-83574-264-0
01
1
1304-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C)
8-94423-042-0
01
1
1304-
162
BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X25 FLANGE
0-28050-625-0
03
1
1304-
174
116
158
27
158
116
12
27
33
33
27
158
116
156
171
202
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-98041-328-0
01
1
1304-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) ID=9 H=20 L=20
0-95207-308-0
01
1
1304-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) ID=16 H=24 L=20
0-95207-315-0
01
1
1304-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) ID=11.8 & 7.5
1-09709-182-0
01
1
1304-
33
BOLT; CLIP
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X16 FLANGE THA
0-28650-616-0
02
1
1304-
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) ID=7.4 THA
8-97095-906-0
02
1
1304-
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) ID=11.7 THA
8-97095-907-0
01
1
1304-
156
VALVE; PIPE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98151-702-0
01
1
1304-
158
BOLT; PIPE FIX
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X25 FLANGE
0-28050-625-0
03
1
1304-
171
CAP; PIPE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> CAP MARK H THA
8-97095-911-0
01
1
1304-
174
PIPE; COOLER,CONDENSER TO FLEX HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-98041-330-0
01
1
1304-
202
SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
1-83564-391-0
01
1
1304-
