8-15 — FIXING PARTS; WIRING HARNESS (#121141) — 170 parça

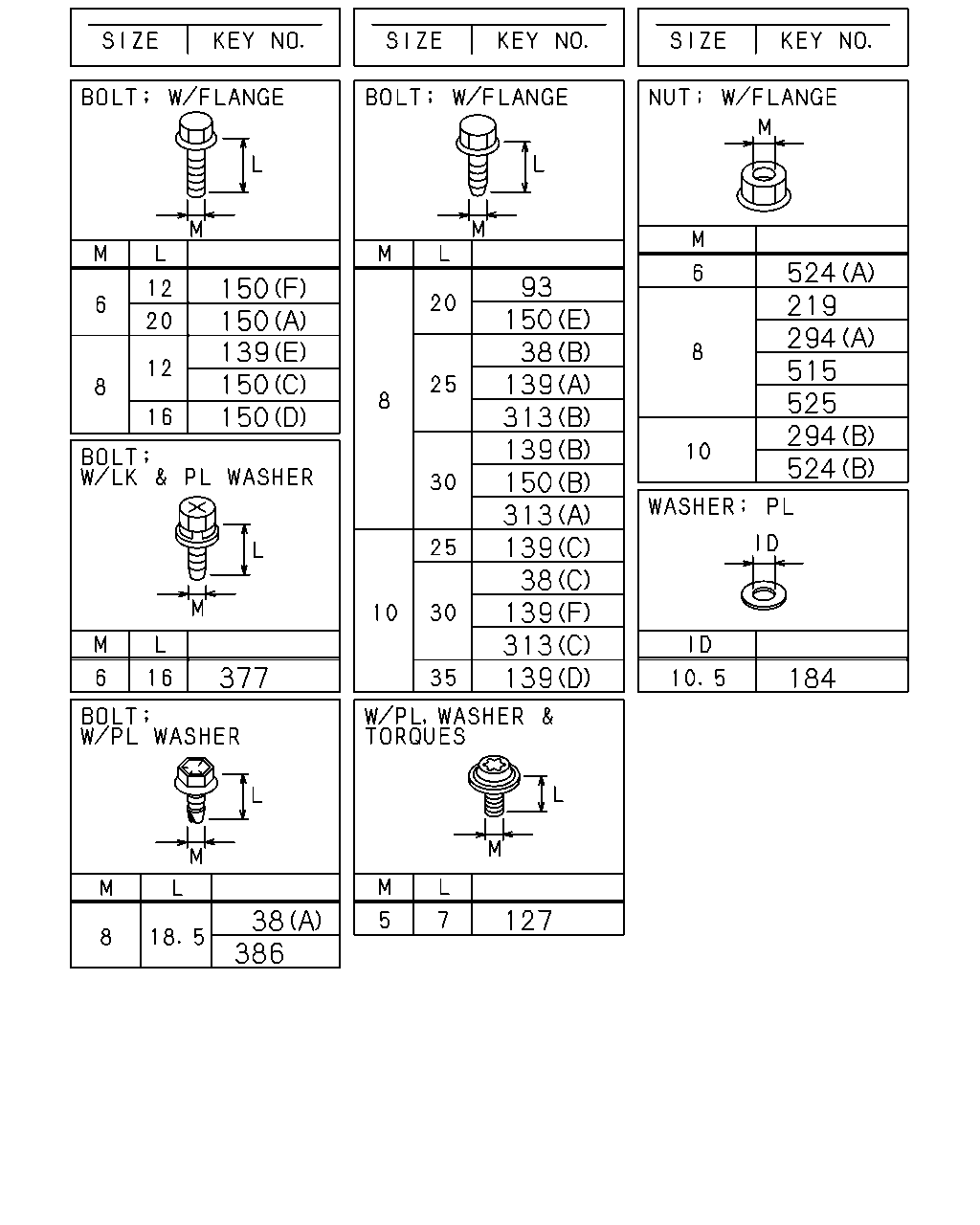

çizim 357091
150 150 150 139 150 377 38 386 139 313 139 38 150 139 313 139 38 139 313 150 93 524 294 525 515 294 219 524 184 127
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1304-
38 BOLT; CLIP,HARNESS
(C) M10X30 FLANGE THA 		0-28651-030-0 01 1 1304-
38 BOLT; CLIP,HARNESS
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1304-
93 BOLT; ECM HARNESS CLIP
M8X20 FLANGE THA 		0-28650-820-0 02 1 1304-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1304-
139 BOLT; BRKT
(E) M8X12 FLANGE THA 		0-28050-812-0 01 1 1304-
139 BOLT; BRKT
(A) M8X25 FLANGE THA 		0-28650-825-0 01 1 1304-
139 BOLT; BRKT
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1304-
139 BOLT; BRKT
(B) M8X30 FLANGE THA 		0-28650-830-0 02 1 1304-
139 BOLT; BRKT
(C) M10X25 FLANGE THA 		0-28651-025-0 02 1 1304-
139 BOLT; BRKT
(F) M10X30 FLANGE THA 		0-28651-030-0 01 1 1304-
139 BOLT; BRKT
(D) M10X35 FLANGE THA 		0-28651-035-0 01 1 1304-
150 BOLT; CLIP
(A) M6X20 FLANGE 		0-28050-620-0 01 1 1304-1304
150 BOLT; CLIP
(F) M6X12 FLANGE THA 		0-28050-612-0 01 1 1305-1312
150 BOLT; CLIP
(F) M6X12 FLANGE THA 		0-28050-612-0 02 1 1401-
150 BOLT; CLIP
(C) M8X12 FLANGE THA 		0-28050-812-0 01 1 1304-
150 BOLT; CLIP
(D) M8X16 FLANGE THA 		0-28050-816-0 01 1 1304-1304
150 BOLT; CLIP
(E) M8X20 FLANGE THA 		0-28650-820-0 01 1 1304-
150 BOLT; CLIP
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1304-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1304-
219 NUT
M8 FLANGE THA 		0-91180-108-0 02 1 1304-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 04 1 1304-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1304-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1304-
294 NUT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1304-
294 NUT
POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA 		0-91180-210-0 01 1 1304-
294 NUT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1304-
313 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1304-
313 BOLT; BRKT
POOR QUALITY DIESEL FUEL<KF0> (C) M10X30 FLANGE THA 		0-28651-030-0 01 1 1304-
313 BOLT; BRKT
4HK1-TCS ENG<RJS> (A) M8X30 FLANGE THA 		0-28650-830-0 01 1 1304-1311
313 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 1312-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1304-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1304-
515 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1304-
524 NUT; HARNESS
(A) M6 FLANGE THA 		0-91180-106-0 04 1 1304-
524 NUT; HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 01 1 1304-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1304-1310
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1311-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1311-

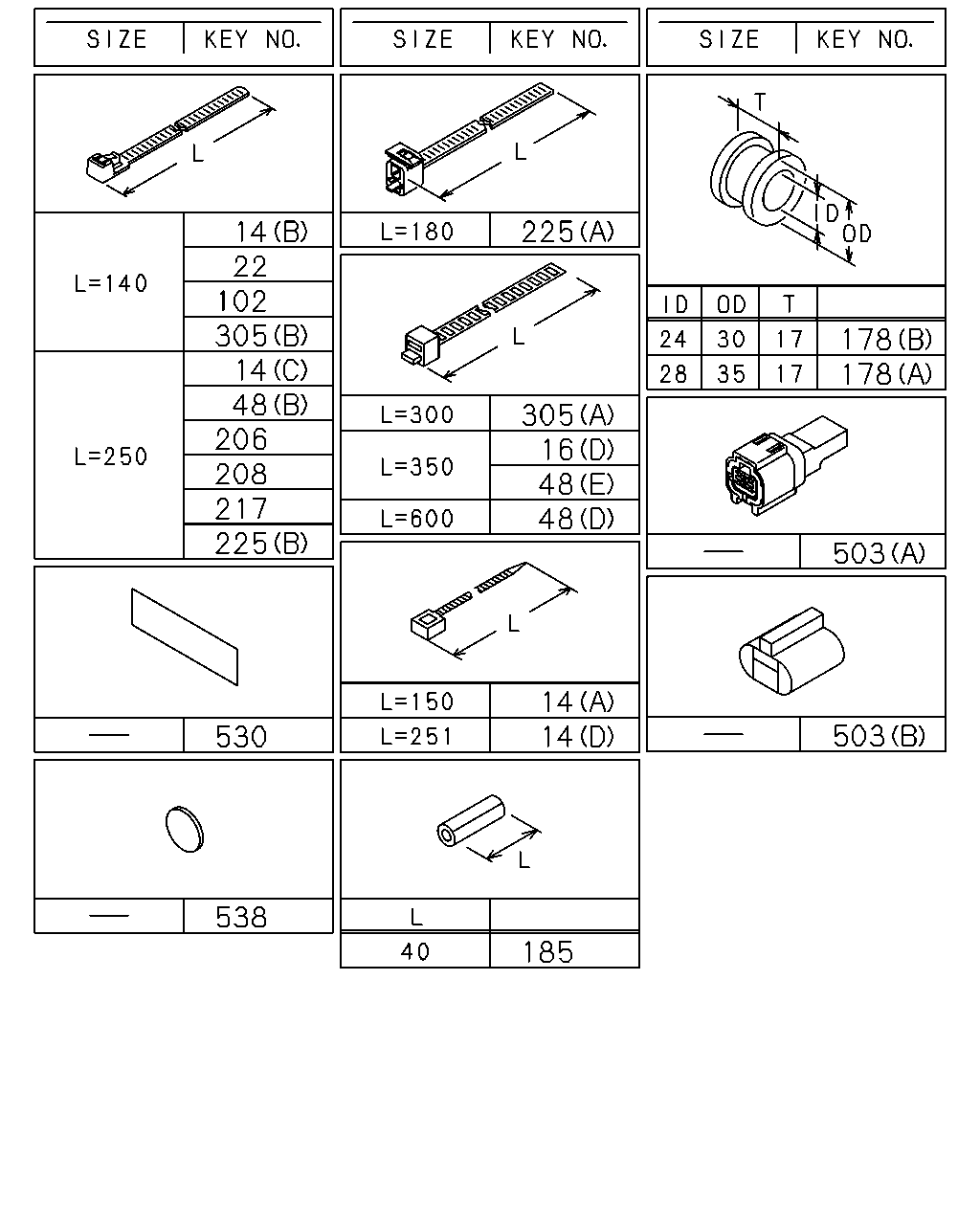

çizim 357126
14 102 14 305 48 208 217 206 225 530 538 225 305 48 48 16 14 14 185 178 503 503 178 22
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 02 1 1304-1312
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 01 1 1401-
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 04 1 1304-1304
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 02 1 1305-
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 02 1 1305-
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 02 1 1304-1304
14 CLIP; BAND,HARNESS
(A) L=150 		8-97355-273-0 01 1 1304-
14 CLIP; BAND,HARNESS
(D) L=251 		8-97619-917-0 01 1 1304-
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 1304-
16 CLIP; HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1304-
16 CLIP; HARNESS
(D) L=350 		1-09707-183-0 02 1 1304-
16 CLIP; HARNESS
(J) OD=9 H=6 		1-09709-178-0 01 1 1304-
16 CLIP; HARNESS
(G) ID=10 & 10 		1-09709-277-1 04 1 1304-
16 CLIP; HARNESS
(I) ID=10 & 12 		1-09709-278-1 01 1 1304-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1304-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1304-
16 CLIP; HARNESS
(E) L=40.6 THA 		8-97229-357-0 02 1 1304-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1304-
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (K) ID=5-12 L=18 		1-09709-287-0 02 1 1304-
16 CLIP; HARNESS
WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (L) ID=11 L=41 		1-09700-403-0 01 1 1304-
16 CLIP; HARNESS
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (L) ID=11 L=41 		1-09700-403-0 02 1 1304-
22 CLIP; ENG HARNESS
L=140 		5-09707-031-1 02 1 1304-
48 CLIP; FRAME HARNESS
(C) ID=5.5X2 L=35 		1-09700-974-0 01 1 1304-
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 1304-
48 CLIP; FRAME HARNESS
(D) L=600 		1-09707-107-1 01 1 1304-
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 1304-
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 03 1 1304-
48 CLIP; FRAME HARNESS
(B) L=250 		5-09707-030-1 03 1 1304-
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 02 1 1304-
48 CLIP; FRAME HARNESS
WHEEL BASE 3400MM<34W> (A) ID=14 L=44 		9-09917-427-0 10 1 1304-
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM<43W> (A) ID=14 L=44 		9-09917-427-0 16 1 1304-
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM<49W> (A) ID=14 L=44 		9-09917-427-0 19 1 1304-
102 CLIP; BAND
L=140 		5-09707-031-1 01 1 1304-1304
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1304-
178 GROMMET; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1304-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 03 1 1304-
178 GROMMET; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1304-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1304-
185 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 01 1 1305-1312
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 1304-
208 CLIP; HARNESS,MAG VLV
L=250 		5-09707-030-1 01 1 1304-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1304-
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 1304-
225 CLIP; AIR TANK HARNESS
(B) L=250 		5-09707-030-1 01 1 1304-
305 CLIP; ENG HARNESS
(A) L=300 		1-09707-001-1 01 1 1304-
305 CLIP; ENG HARNESS
(B) L=140 		5-09707-031-1 02 1 1304-
503 CONNECTOR
(B) 		1-82690-666-0 01 1 1304-
503 CONNECTOR
(A) 		1-82691-191-0 01 1 1304-
530 SEAL; HARNESS
180X40 		1-72498-019-1 19 1 1304-1305
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1306-1309
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 1310-
538 SEAL; HOLE
OD=25 BLACK THA 		1-76798-019-0 01 1 1304-

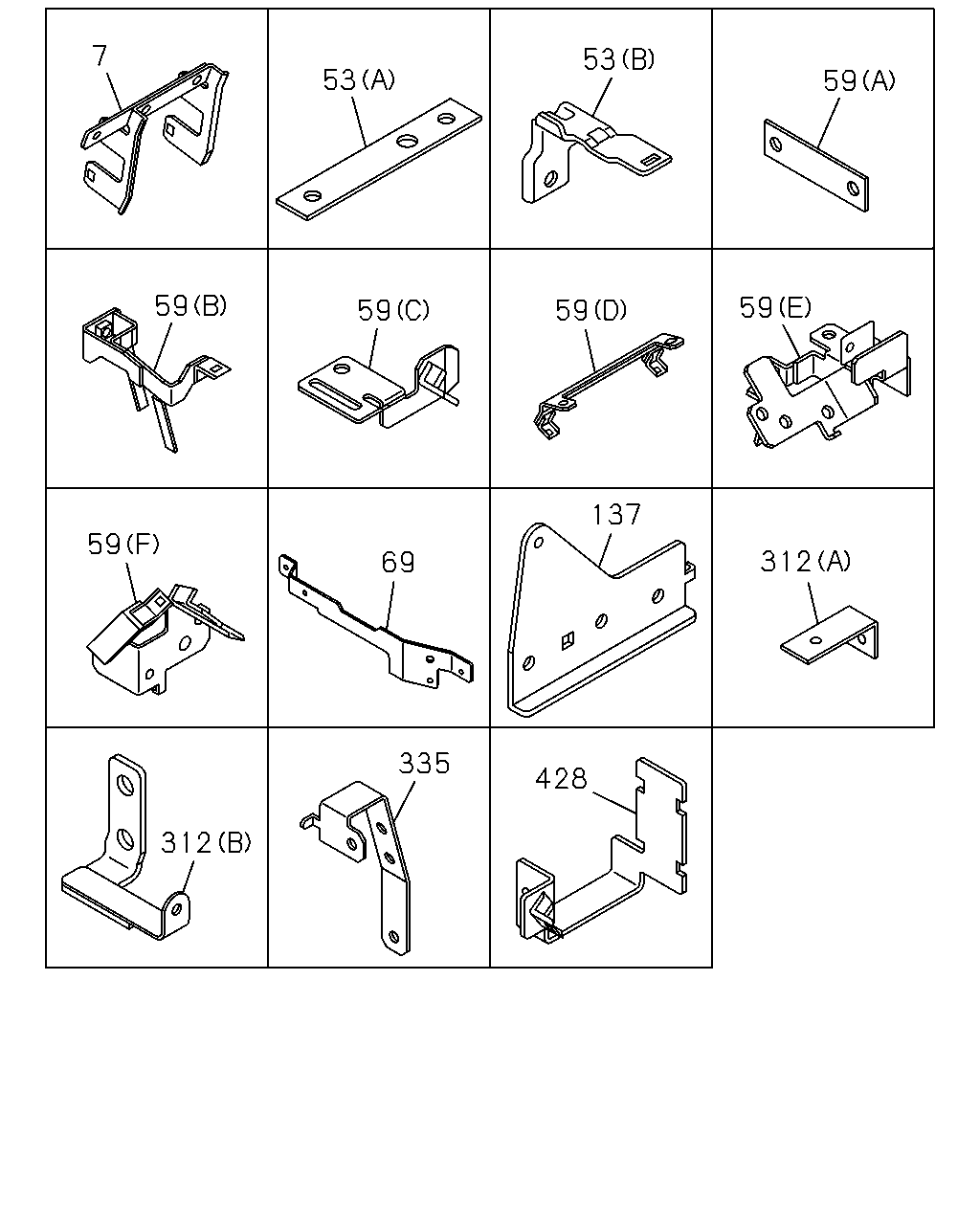

çizim 357236
7 59 59 312 53 59 69 335 53 59 137 428 59 59 312
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR
THA 		8-97925-591-0 01 1 1304-
53 BRACKET; HARNESS
(B) 		8-98052-458-0 01 1 1304-
53 BRACKET; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (A) L=170 		1-47479-380-0 01 1 1304-
59 BRACKET; FRAME HARNESS
(C) 		8-97616-305-0 01 1 1304-
59 BRACKET; FRAME HARNESS
(D) 		8-97619-533-0 01 1 1304-
59 BRACKET; FRAME HARNESS
(E) 		8-97619-535-0 01 1 1304-1405
59 BRACKET; FRAME HARNESS
(F) 		8-97622-828-0 01 1 1406-
59 BRACKET; FRAME HARNESS
(A) L=85 		8-98044-743-0 01 1 1304-
59 BRACKET; FRAME HARNESS
(B) 		8-98099-963-0 01 1 1304-
69 BRACKET; CLIP 8-97614-738-0 01 1 1304-
137 BRACKET; HARNESS CLAMP 8-97624-016-0 01 1 1304-
312 BRACKET; CLIP HARNESS
(A) L=55 		1-47475-304-0 01 1 1304-
312 BRACKET; CLIP HARNESS
(B) 		8-98094-804-0 01 1 1304-
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 1304-
428 BRACKET 8-98116-461-0 01 1 1304-

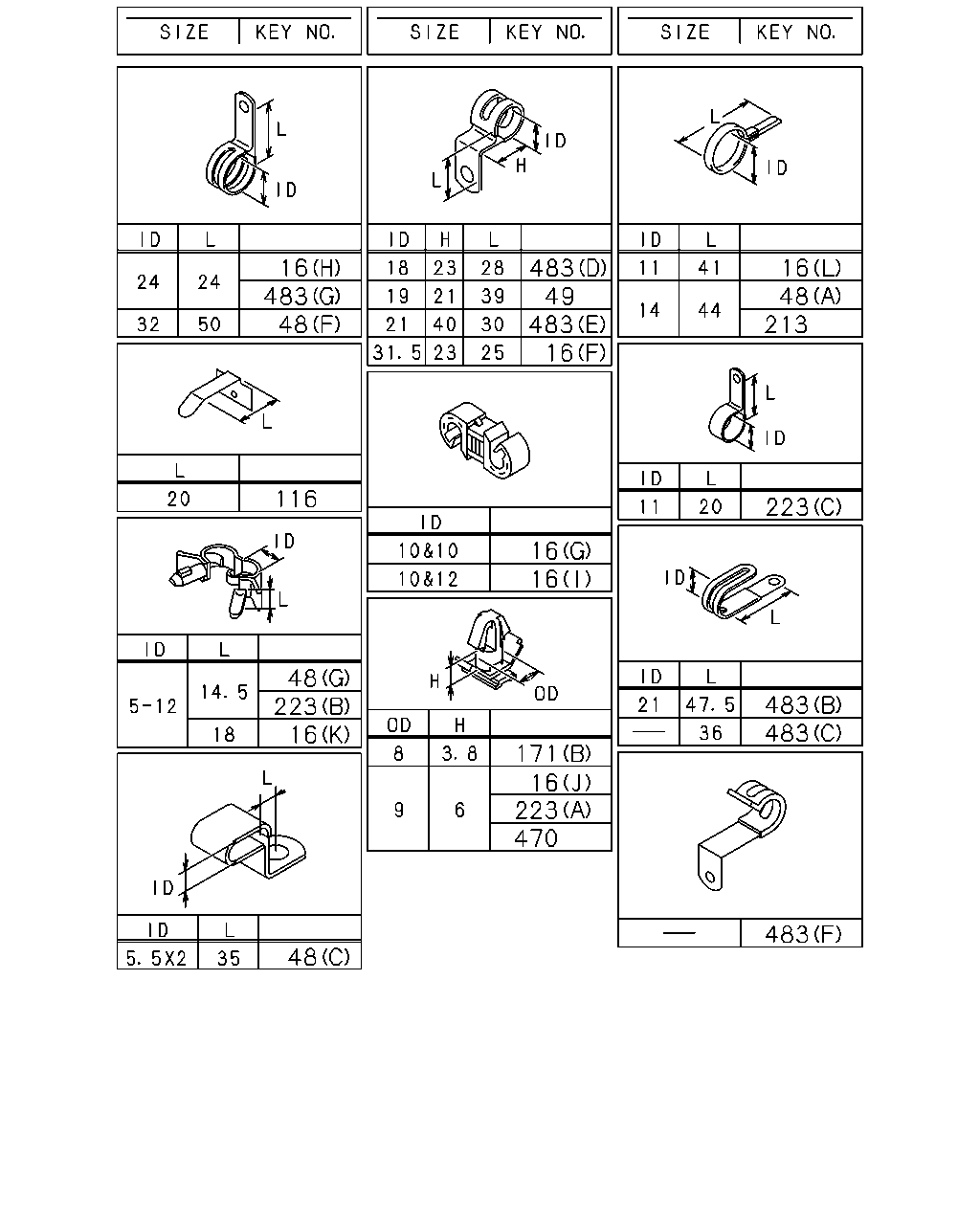

çizim 357355
483 483 483 223 213 48 16 483 16 483 49 16 16 171 16 223 470 48 16 48 223 116 48 16 483
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 1304-
16 CLIP; HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1304-
16 CLIP; HARNESS
(D) L=350 		1-09707-183-0 02 1 1304-
16 CLIP; HARNESS
(J) OD=9 H=6 		1-09709-178-0 01 1 1304-
16 CLIP; HARNESS
(G) ID=10 & 10 		1-09709-277-1 04 1 1304-
16 CLIP; HARNESS
(I) ID=10 & 12 		1-09709-278-1 01 1 1304-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1304-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1304-
16 CLIP; HARNESS
(E) L=40.6 THA 		8-97229-357-0 02 1 1304-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1304-
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (K) ID=5-12 L=18 		1-09709-287-0 02 1 1304-
16 CLIP; HARNESS
WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (L) ID=11 L=41 		1-09700-403-0 01 1 1304-
16 CLIP; HARNESS
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (L) ID=11 L=41 		1-09700-403-0 02 1 1304-
48 CLIP; FRAME HARNESS
(C) ID=5.5X2 L=35 		1-09700-974-0 01 1 1304-
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 1304-
48 CLIP; FRAME HARNESS
(D) L=600 		1-09707-107-1 01 1 1304-
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 1304-
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 03 1 1304-
48 CLIP; FRAME HARNESS
(B) L=250 		5-09707-030-1 03 1 1304-
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 02 1 1304-
48 CLIP; FRAME HARNESS
WHEEL BASE 3400MM<34W> (A) ID=14 L=44 		9-09917-427-0 10 1 1304-
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM<43W> (A) ID=14 L=44 		9-09917-427-0 16 1 1304-
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM<49W> (A) ID=14 L=44 		9-09917-427-0 19 1 1304-
49 CLIP; GEN HARNESS
ID=19 L=39 H=21 		1-09700-972-1 01 1 1304-
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 03 1 1304-
171 CLIP; STARTER HARNESS
(B) OD=8 H=3.8 		1-09709-309-0 01 1 1304-
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 1304-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1304-
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=20 		0-95235-035-0 01 1 1304-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 05 1 1304-1311
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 1312-
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 04 1 1304-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1304-
483 CLIP; ENG HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 01 1 1401-
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1304-
483 CLIP; ENG HARNESS
(E) ID=21 L=30 H=40 		1-09700-991-1 01 1 1304-
483 CLIP; ENG HARNESS
(G) ID=24 L=24 		1-09701-001-1 01 1 1304-
483 CLIP; ENG HARNESS
(F) 		1-09987-281-0 01 1 1304-
483 CLIP; ENG HARNESS
(A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1304-
483 CLIP; ENG HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 01 1 1304-1304
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 01 1 1304-
çizim 357534
16 16 16 16 483 171
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 1304-
16 CLIP; HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1304-
16 CLIP; HARNESS
(D) L=350 		1-09707-183-0 02 1 1304-
16 CLIP; HARNESS
(J) OD=9 H=6 		1-09709-178-0 01 1 1304-
16 CLIP; HARNESS
(G) ID=10 & 10 		1-09709-277-1 04 1 1304-
16 CLIP; HARNESS
(I) ID=10 & 12 		1-09709-278-1 01 1 1304-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1304-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1304-
16 CLIP; HARNESS
(E) L=40.6 THA 		8-97229-357-0 02 1 1304-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1304-
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (K) ID=5-12 L=18 		1-09709-287-0 02 1 1304-
16 CLIP; HARNESS
WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (L) ID=11 L=41 		1-09700-403-0 01 1 1304-
16 CLIP; HARNESS
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (L) ID=11 L=41 		1-09700-403-0 02 1 1304-
171 CLIP; STARTER HARNESS
(B) OD=8 H=3.8 		1-09709-309-0 01 1 1304-
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 1304-
483 CLIP; ENG HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 01 1 1401-
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1304-
483 CLIP; ENG HARNESS
(E) ID=21 L=30 H=40 		1-09700-991-1 01 1 1304-
483 CLIP; ENG HARNESS
(G) ID=24 L=24 		1-09701-001-1 01 1 1304-
483 CLIP; ENG HARNESS
(F) 		1-09987-281-0 01 1 1304-
483 CLIP; ENG HARNESS
(A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1304-
483 CLIP; ENG HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 01 1 1304-1304
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 01 1 1304-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
