Isuzu WW
▶
TRUCKS
▶
FRR
▶
11476 - FRR THAILAND EURO3
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-40 - INSTRUMENT PANEL AND BOX
▶
7-40 — INSTRUMENT PANEL AND BOX
(#121130) — 101 parça
◀

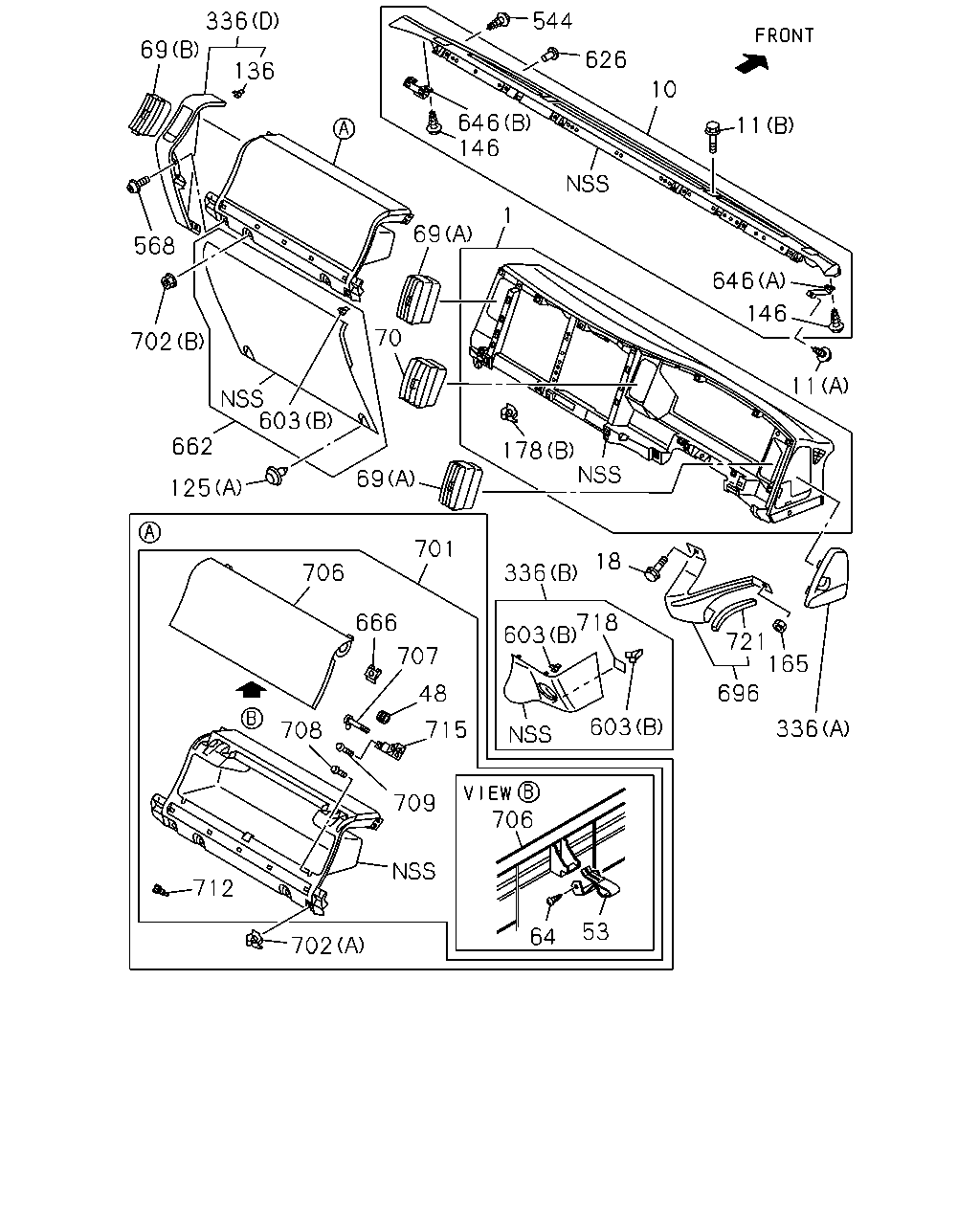

[740A] INST PANEL AND OTHER PARTS (46 parça)

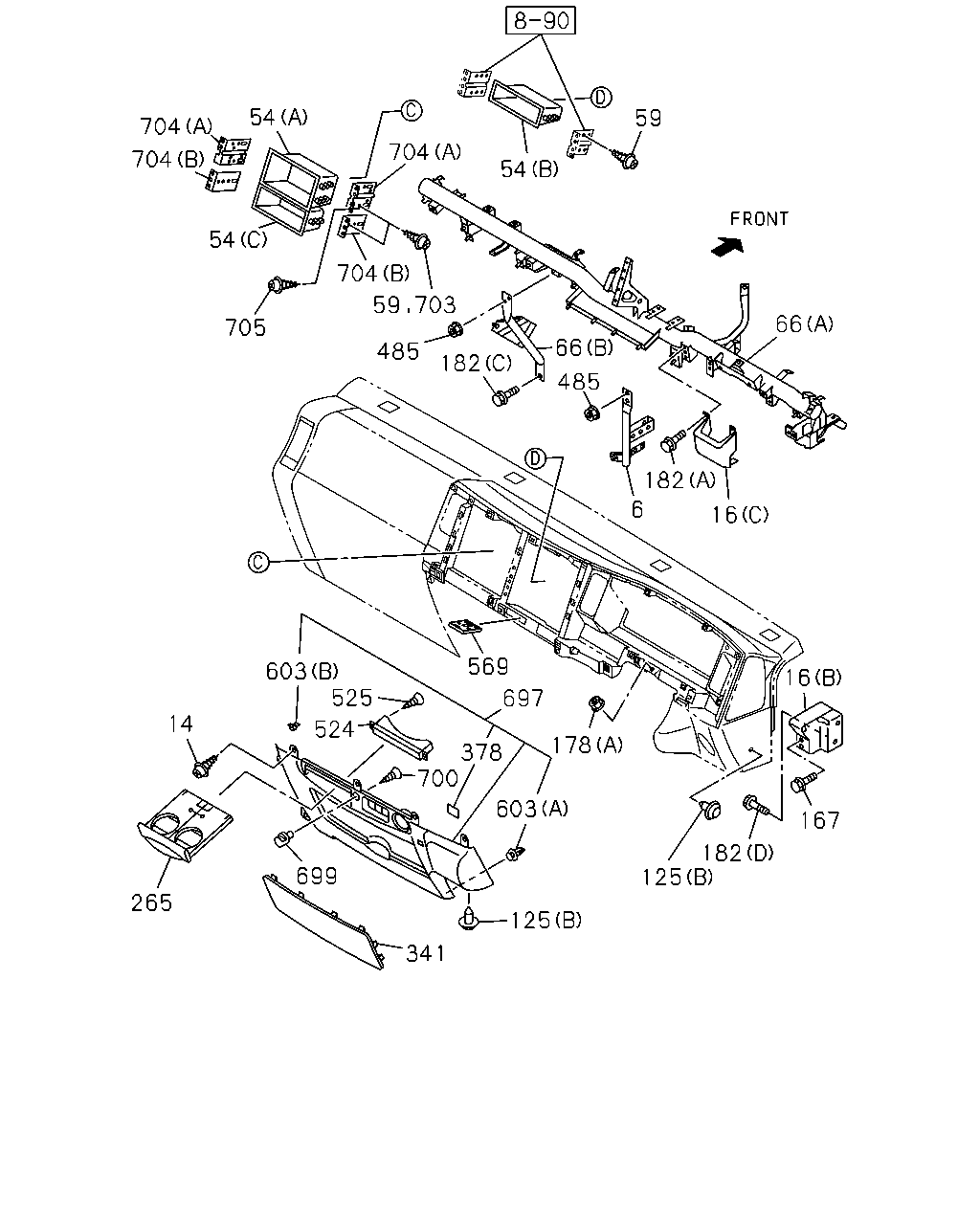

[740A] REINFORCEMENT AND OTHER PARTS (40 parça)

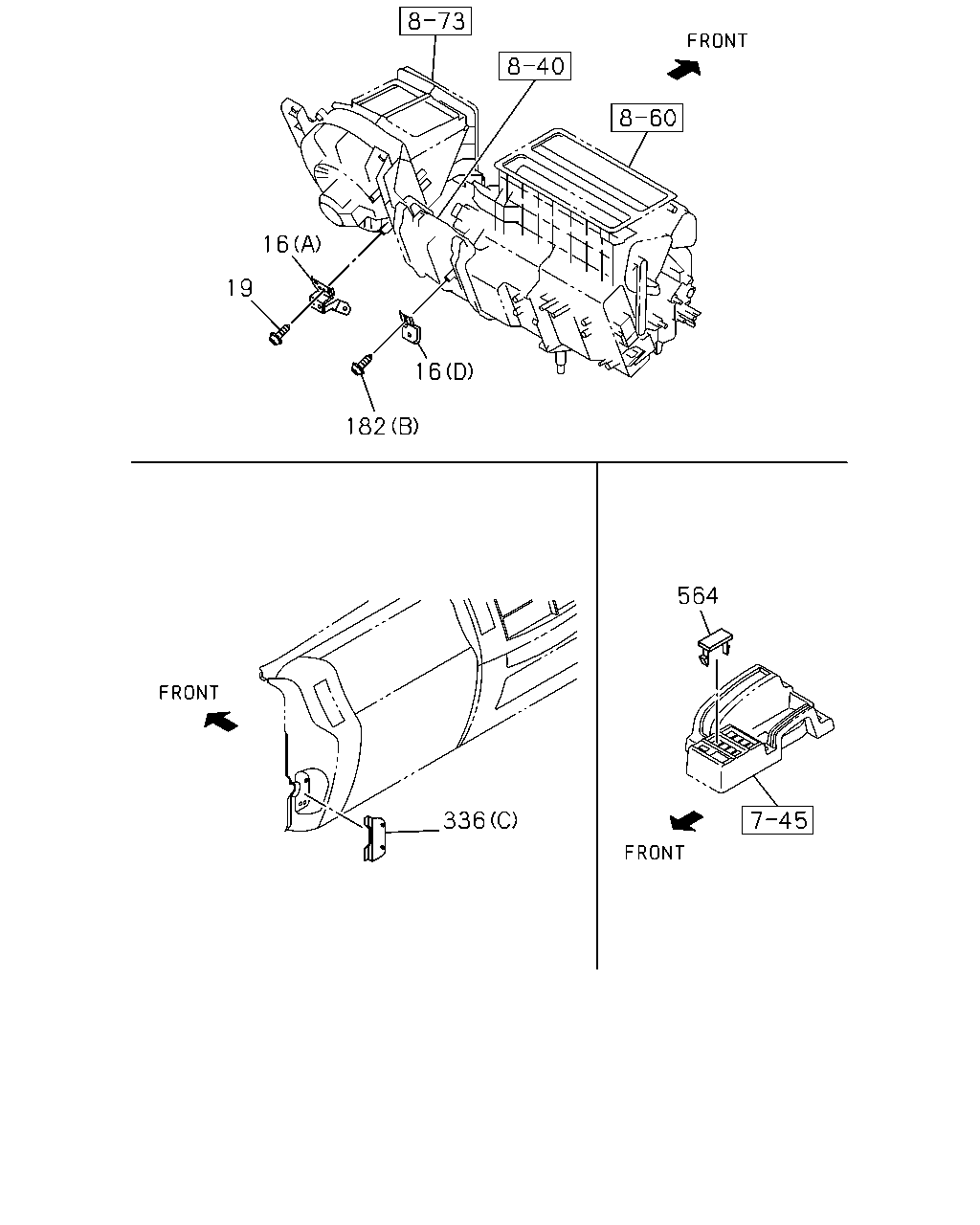

[740A] BRACKET AND COVER (15 parça)
▶
336
69
136
568
702
603
662
69
125
706
666
701
707
48
715
708
709
702
712
706
64
53
603
603
718
721
696
165
336
18
336
70
69
1
11
178
146
646
544
626
10
11
646
146
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; INST
THA
8-97926-376-1
01
1
1304-
10
PANEL ASM; GARNISH
GRAY
8-97422-095-0
01
1
1304-
11
BOLT; INST PNL
(A) T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
08
1
1304-
11
BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER
8-98018-440-0
04
1
1304-
18
BOLT; BRKT
M6X12 HEXALOBULAR SOCKET THA
0-38050-612-0
01
1
1304-
48
SPRING; GLOVE BOX LID
THA
8-97926-410-0
01
1
1304-
48
SPRING; GLOVE BOX LID
THA
8-97926-411-0
01
1
1304-
53
STRIKER; GLOVE BOX
THA
8-97926-403-1
01
1
1304-
64
SCREW; STRIKER
M4X85 THA
8-97926-404-0
01
1
1304-
69
GRILLE; SIDE,AIR OUTLET
(A)
8-98028-561-2
02
1
1304-
69
GRILLE; SIDE,AIR OUTLET
(B)
8-98028-562-2
01
1
1304-
70
GRILLE; CENTER,AIR OUTLET
8-98028-563-2
01
1
1304-
125
CLIP; INST PANEL
(B) GRAY
8-97408-817-0
04
1
1304-
125
CLIP; INST PANEL
(A) GRAY
8-97419-968-1
02
1
1304-
136
CLIP; INST COVER
8-98076-254-0
02
1
1304-
146
SCREW; TAP
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
03
1
1304-
165
NUT; BRKT KNEE PAD
M6 FLANGE THA
0-91180-106-0
01
1
1304-
178
NUT; INST PANEL
(B) THA
8-97926-385-0
30
1
1304-
178
NUT; INST PANEL
(A) M6 FLANGE THA
0-91180-106-0
01
1
1304-
336
COVER; INST PANEL SIDE
(A) GRAY
8-97407-420-1
01
1
1304-
336
COVER; INST PANEL SIDE
(D) GRAY
8-97407-427-4
01
1
1304-
336
COVER; INST PANEL SIDE
(C) GRAY
8-97409-491-1
01
1
1304-
336
COVER; INST PANEL SIDE
(B) GRAY
8-97422-653-0
01
1
1304-
544
SCREW; TRAY
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
03
1
1304-
568
BOLT; COVER
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1304-
603
CLIP; COVER
(A)
8-98004-025-0
01
1
1304-
603
CLIP; COVER
(B)
8-98021-271-0
04
1
1304-
603
CLIP; COVER
(B)
8-98021-271-0
05
1
1304-
626
RETAINER
OD=15 BLACK
8-94279-804-0
02
1
1304-
646
BRACKET; GARNISH PANEL
(A)
8-98051-490-2
01
1
1304-
646
BRACKET; GARNISH PANEL
(B)
8-98051-492-2
01
1
1304-
662
COVER; LWR,INST PANEL
GRAY
8-97407-428-2
01
1
1304-
666
INSERT; INST PANEL
M5 THA
8-97926-400-0
04
1
1304-
696
BRACKET; KNEE
8-98066-085-1
01
1
1304-
701
TRAY; INST
THA
8-97926-381-1
01
1
1304-
702
NUT; TRAY
(B) M6 FLANGE THA
0-91180-106-0
02
1
1304-
702
NUT; TRAY
(A)
8-98037-629-0
01
1
1304-
706
LID; TRAY INST
THA
8-97926-402-1
01
1
1304-
707
SHAFT; TRAY INST LID
THA
8-97926-393-0
02
1
1304-
708
STOPPER; TRAY INST LID
THA
8-97926-394-0
02
1
1304-
709
SCREW; TRAY INST
M5X16 TAPPING THA
0-71040-516-0
04
1
1304-
712
LOCK; TRAY INST LID
THA
8-97926-395-0
01
1
1304-
715
SUPPORT; TRAY,HINGE
THA
8-97926-396-0
01
1
1304-
715
SUPPORT; TRAY,HINGE
THA
8-97926-397-0
01
1
1304-
718
SEAL; COVER
7X31
8-98061-777-0
01
1
1304-
721
FINISHER; BRKT,KNEE
L=140
8-97892-742-0
01
1
1304-
704
704
54
705
54
704
704
59
703
485
54
59
66
182
485
66
16
182
603
525
524
14
265
699
341
125
603
700
378
569
697
178
125
182
167
16
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
SUPPORT; INST PANEL
8-98196-255-0
01
1
1304-
14
SCREW; INST PNL
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1304-
16
BRACKET; INST PNL
(A)
8-97585-612-2
01
1
1304-
16
BRACKET; INST PNL
(D)
8-98010-154-0
01
1
1304-
16
BRACKET; INST PNL
(C)
8-98053-711-0
01
1
1304-
16
BRACKET; INST PNL
(B) THA
8-97926-512-0
01
1
1304-
16
BRACKET; INST PNL
(B) THA
8-97926-511-0
01
1
1304-
54
POCKET; CENTER CLUSTER
(A) H=108.4 BLACK
8-97407-129-2
01
1
1304-
54
POCKET; CENTER CLUSTER
(B) THA
8-97926-412-0
01
1
1304-
54
POCKET; CENTER CLUSTER
(C) THA
8-97926-414-0
01
1
1304-
59
SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR
8-98058-632-0
04
1
1304-
66
REINFORCEMENT; INST PANEL
(B)
8-98151-167-0
01
1
1304-
66
REINFORCEMENT; INST PANEL
(A)
8-98170-401-0
01
1
1304-1406
66
REINFORCEMENT; INST PANEL
(A)
8-98240-605-0
01
1
1407-
125
CLIP; INST PANEL
(B) GRAY
8-97408-817-0
04
1
1304-
125
CLIP; INST PANEL
(A) GRAY
8-97419-968-1
02
1
1304-
167
BOLT; REINF TO INST
M8X23 FLANGE
8-97264-766-0
04
1
1304-
178
NUT; INST PANEL
(B) THA
8-97926-385-0
30
1
1304-
178
NUT; INST PANEL
(A) M6 FLANGE THA
0-91180-106-0
01
1
1304-
182
BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE THA
0-28050-816-0
04
1
1304-
182
BOLT; BRKT,INST PANEL
(A) M6X12 HEXALOBULAR SOCKET THA
0-38050-612-0
02
1
1304-
182
BOLT; BRKT,INST PANEL
(B) T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1304-
182
BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER
8-98018-439-0
01
1
1304-
265
HOLDER; CUP
GRAY
8-97418-528-0
01
1
1304-
341
LID; FUSE BOX
GRAY
8-97422-209-0
01
1
1304-
378
SEAL; INST PANEL
5X30
8-98176-199-0
01
1
1304-
485
NUT; SUPPORT CLIP,HARNESS
M6 FLANGE THA
0-91180-106-0
04
1
1304-
524
STAND ASM; CUP,INST
8-98054-414-0
01
1
1304-
525
SCREW; CUP STAND
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
03
1
1304-
569
HOLDER; CARD
8-97410-276-0
01
1
1304-
603
CLIP; COVER
(A)
8-98004-025-0
01
1
1304-
603
CLIP; COVER
(B)
8-98021-271-0
04
1
1304-
603
CLIP; COVER
(B)
8-98021-271-0
05
1
1304-
697
PANEL; INST CENTER
GRAY
8-97422-207-1
01
1
1304-
699
HOOK; INST PANEL
GRAY
8-97408-927-0
01
1
1304-
700
BOLT; HOOK
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1304-
703
SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR
8-98058-632-0
04
1
1304-
704
BRACKET; CENTER POCKET
(B)
8-97585-616-2
02
1
1304-
704
BRACKET; CENTER POCKET
(A)
8-97585-618-2
02
1
1304-
705
SCREW; BRACKET CENTER POCKET
T25 M5X20 TAPPING HEXALOBULAR
0-72180-520-0
08
1
1304-
16
19
16
182
336
564
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
BRACKET; INST PNL
(A)
8-97585-612-2
01
1
1304-
16
BRACKET; INST PNL
(D)
8-98010-154-0
01
1
1304-
16
BRACKET; INST PNL
(C)
8-98053-711-0
01
1
1304-
16
BRACKET; INST PNL
(B) THA
8-97926-512-0
01
1
1304-
16
BRACKET; INST PNL
(B) THA
8-97926-511-0
01
1
1304-
19
SCREW; BRKT
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1304-
182
BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE THA
0-28050-816-0
04
1
1304-
182
BOLT; BRKT,INST PANEL
(A) M6X12 HEXALOBULAR SOCKET THA
0-38050-612-0
02
1
1304-
182
BOLT; BRKT,INST PANEL
(B) T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1304-
182
BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER
8-98018-439-0
01
1
1304-
336
COVER; INST PANEL SIDE
(A) GRAY
8-97407-420-1
01
1
1304-
336
COVER; INST PANEL SIDE
(D) GRAY
8-97407-427-4
01
1
1304-
336
COVER; INST PANEL SIDE
(C) GRAY
8-97409-491-1
01
1
1304-
336
COVER; INST PANEL SIDE
(B) GRAY
8-97422-653-0
01
1
1304-
564
COVER; SW
8-97043-732-1
06
1
1304-
