1 |

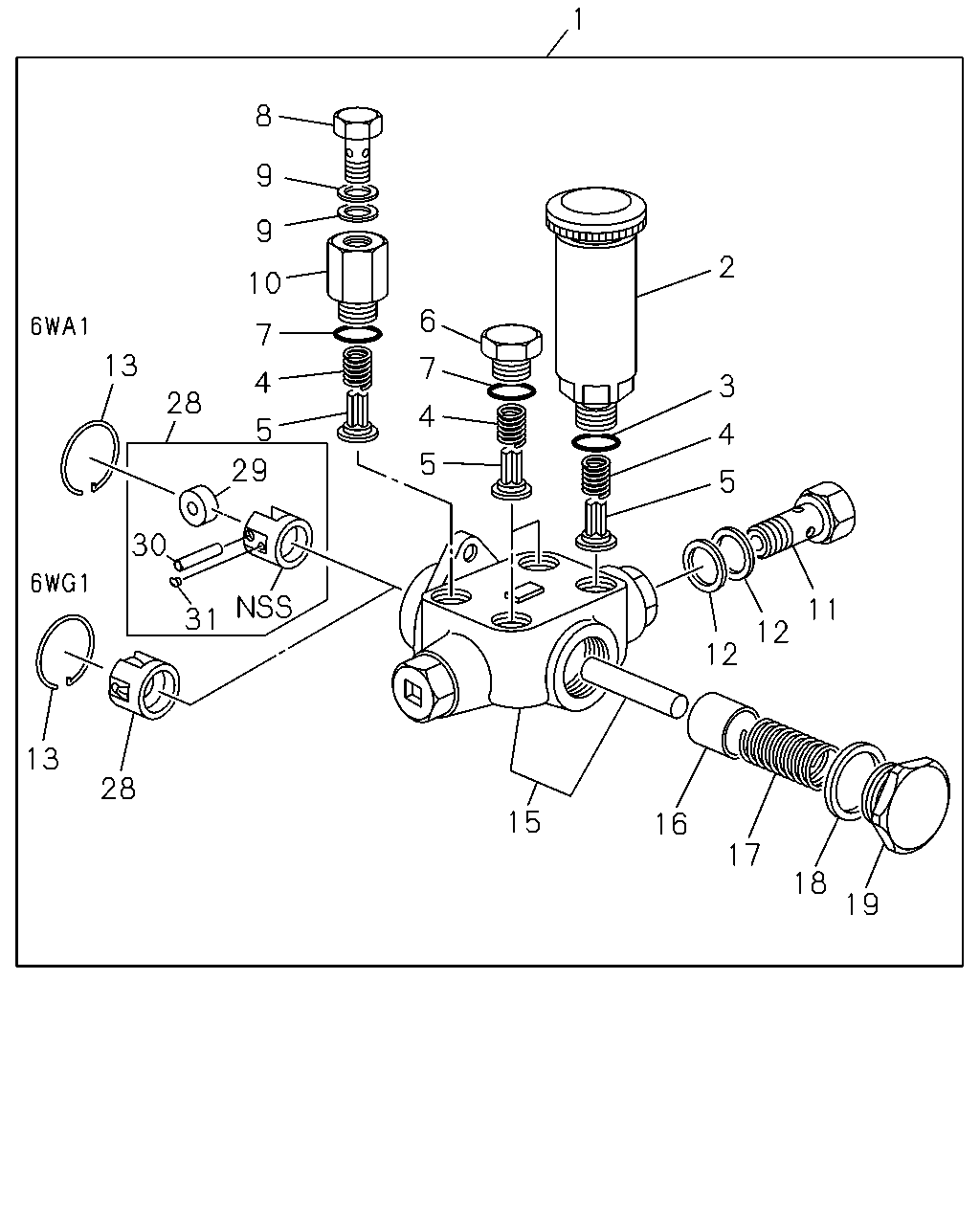

PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-290-6,
C = 1-15603-295-6, D = 1-15603-296-5
|
1-15750-190-0 |
01 |
1 |
- |
| |
2 |
PUMP; PRIMING,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-290-6,
C = 1-15603-295-6, D = 1-15603-296-5
|
1-15761-006-1 |
01 |
1 |
- |
| |
3 |
GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-290-6,
C = 1-15603-295-6, D = 1-15603-296-5
|
1-19623-016-0 |
01 |
1 |
- |
| |
4 |
SPRING; VLV,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-290-6,
C = 1-15603-295-6, D = 1-15603-296-5
|
9-81351-702-0 |
04 |
1 |
- |
| |
5 |
VALVE; FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-290-6,
C = 1-15603-295-6, D = 1-15603-296-5
|
1-15755-002-0 |
04 |
1 |
- |
| |
6 |
PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-290-6,
C = 1-15603-295-6, D = 1-15603-296-5
|
1-15759-009-0 |
02 |
1 |
- |
| |
7 |
GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-290-6,
C = 1-15603-295-6, D = 1-15603-296-5
|
9-81355-031-0 |
03 |
1 |
- |
| |
8 |
BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-290-6,
C = 1-15603-295-6, D = 1-15603-296-5
|
1-15759-011-0 |
01 |
1 |
- |
| |
9 |
GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=14.2 OD=19.2
ASM PART: A = 1-15603-265-5, B = 1-15603-290-6,
C = 1-15603-295-6, D = 1-15603-296-5
|
1-09630-085-0 |
02 |
1 |
- |
| |
10 |
ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-290-6,
C = 1-15603-295-6, D = 1-15603-296-5
|
1-15759-052-0 |
01 |
1 |
- |
| |
11 |
BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: A = 1-15603-265-5
|
1-15759-029-0 |
01 |
1 |
-0511 |
| |
11 |
BOLT; EYE,FUEL INL,FEED PUMP
M14X30
ASM PART: A = 1-15603-265-5
|
8-97203-957-0 |
01 |
1 |
0512- |
| |
11 |
BOLT; EYE,FUEL INL,FEED PUMP
M14X30
ASM PART: B = 1-15603-290-6, C = 1-15603-295-6,
D = 1-15603-296-5
|
8-97203-957-0 |
01 |
1 |
- |
| |
12 |
GASKET; EYE BOLT,INL,FUEL FEED PUMP
ID=14.2 OD=19.2
ASM PART: A = 1-15603-265-5, B = 1-15603-290-6,
C = 1-15603-295-6, D = 1-15603-296-5
|
1-09630-085-0 |
02 |
1 |
- |
| |
13 |
RING; SNAP,TAPPET,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-290-6,
C = 1-15603-295-6, D = 1-15603-296-5
|
9-81355-062-0 |
01 |
1 |
- |
| |
15 |
HOUSING; FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-290-6,
C = 1-15603-295-6, D = 1-15603-296-5
|
1-15751-046-0 |
01 |
1 |
- |
| |
16 |
PISTON; FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-290-6,
C = 1-15603-295-6, D = 1-15603-296-5
|
9-81351-205-0 |
01 |
1 |
- |
| |
17 |
SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-290-6,
C = 1-15603-295-6, D = 1-15603-296-5
|
9-81351-503-0 |
01 |
1 |
- |
| |
18 |
GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-290-6,
C = 1-15603-295-6, D = 1-15603-296-5
|
9-81355-035-0 |
01 |
1 |
- |
| |
19 |
PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-290-6,
C = 1-15603-295-6, D = 1-15603-296-5
|
8-94171-185-0 |
01 |
1 |
- |
| |
28 |
TAPPET ASM; FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-290-6,
C = 1-15603-295-6, D = 1-15603-296-5
|
1-15754-006-0 |
01 |
1 |
- |
| |
29 |
ROLLER; TAPPET,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-290-6,
C = 1-15603-295-6, D = 1-15603-296-5
|
1-15759-055-0 |
01 |
1 |
- |
| |
30 |
PIN; TAPPET ROLLER,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-290-6,
C = 1-15603-295-6, D = 1-15603-296-5
|
1-15759-056-0 |
01 |
1 |
- |
| |
31 |
GUIDE; TAPPET,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-290-6,
C = 1-15603-295-6, D = 1-15603-296-5
|
1-15759-057-0 |
02 |
1 |
- |
