Isuzu WW
▶
TRUCKS
▶
FRR
▶
11476 - FRR THAILAND EURO3
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶
7-20 — MIRROR AND MIRROR STAY
(#121128) — 90 parça
◀

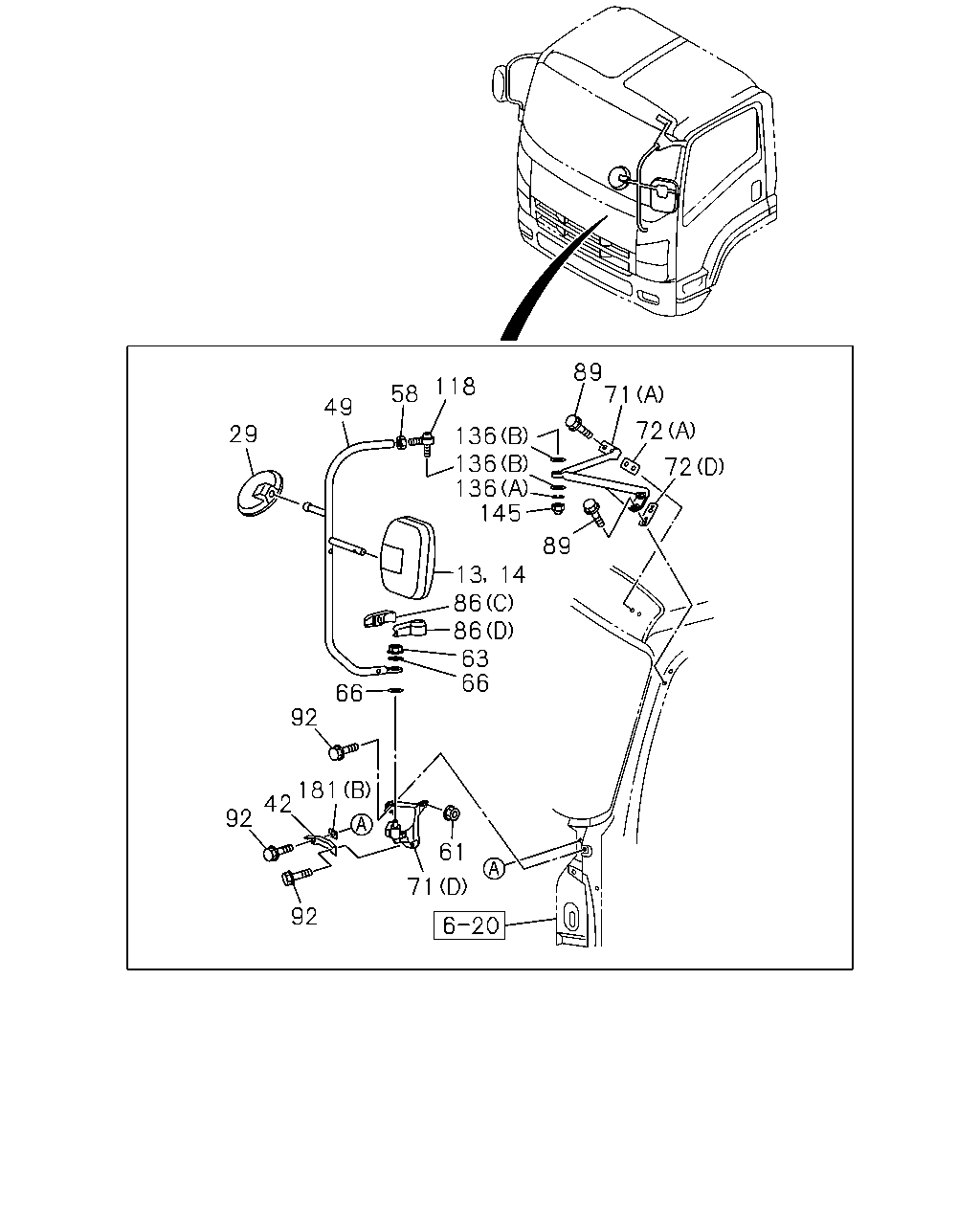

[720A] LH (36 parça)

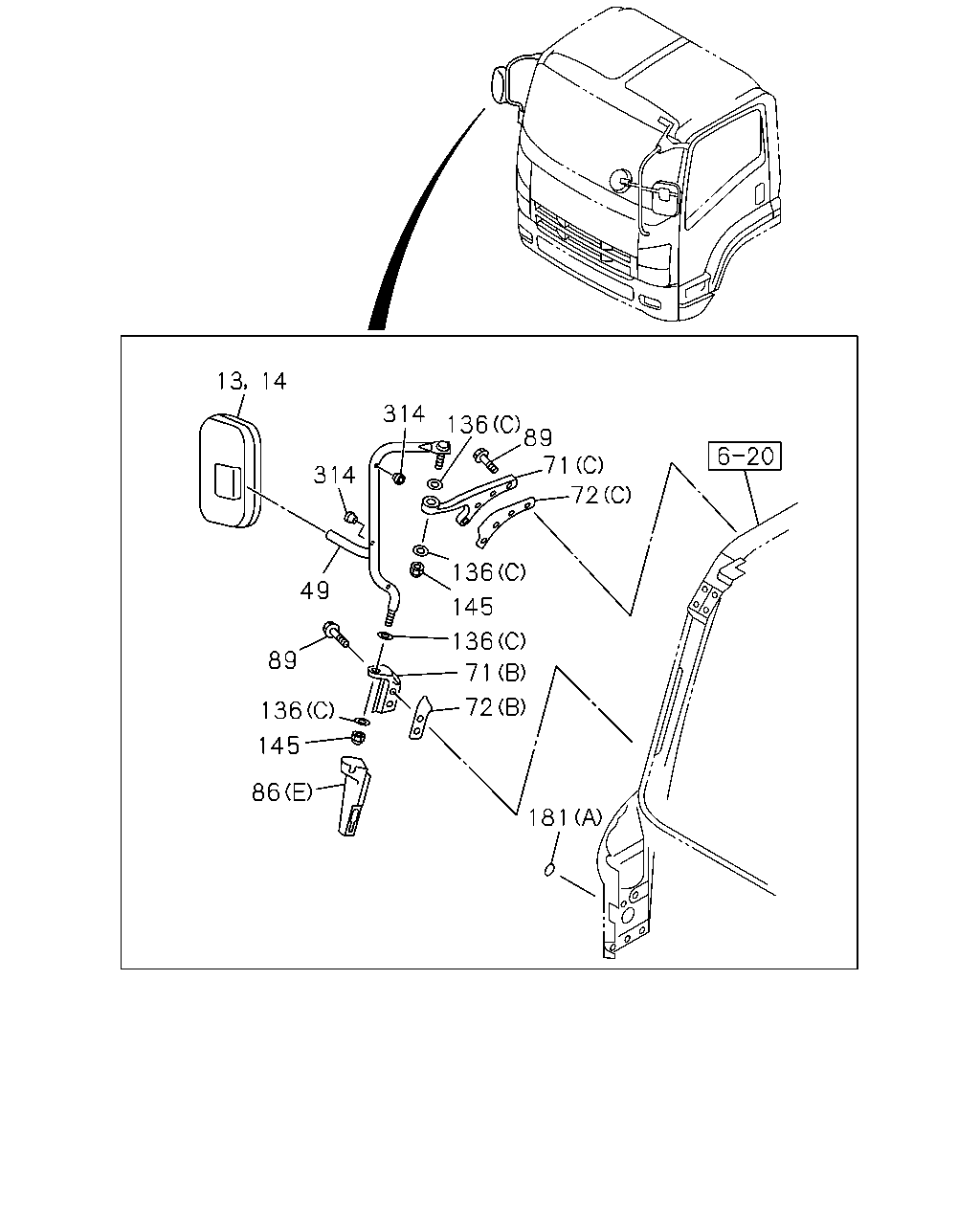

[720A] RH (27 parça)

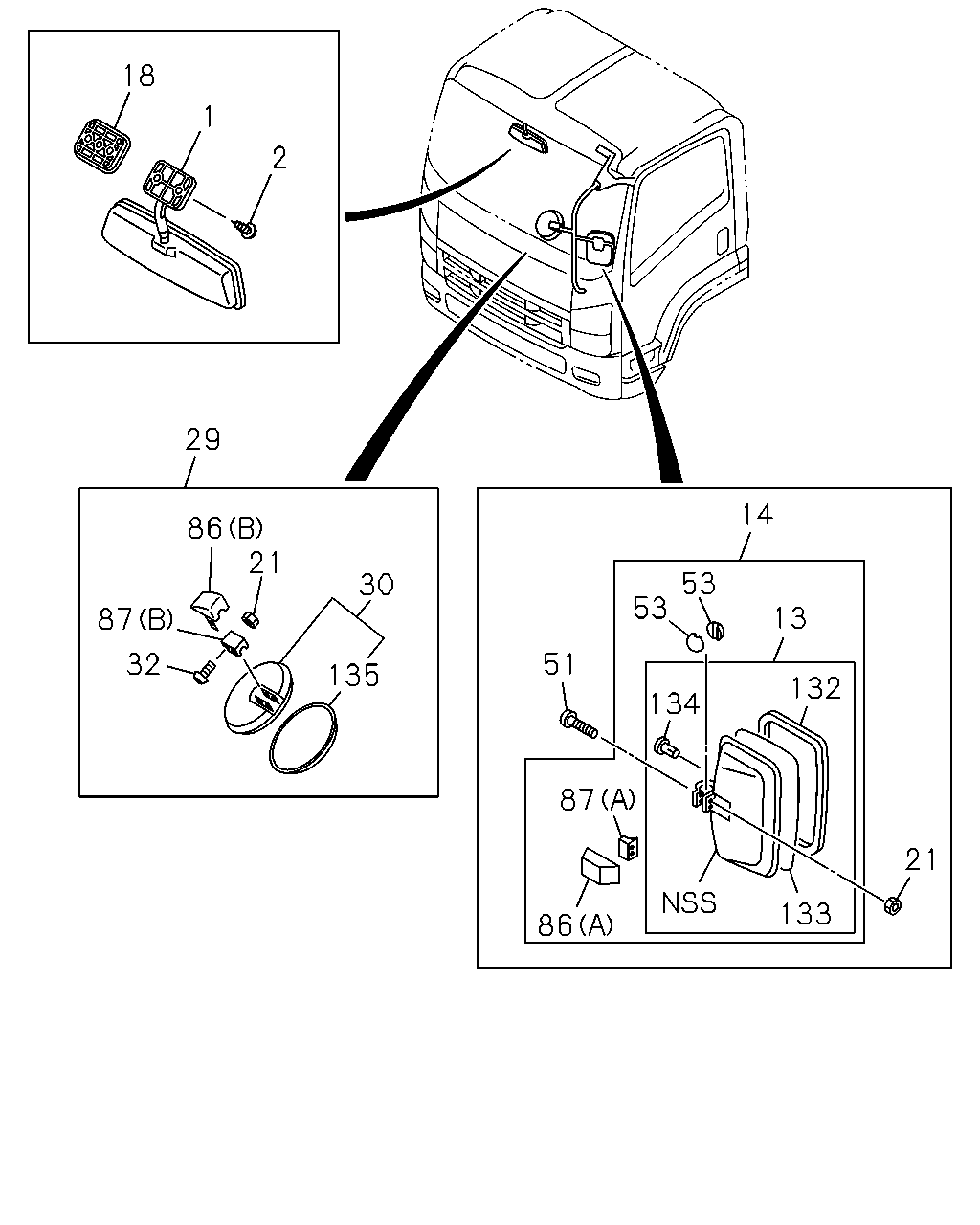

[720A] OUTSIDE,UNDER AND ROOM MIRROR (27 parça)
▶
29
49
58
118
136
136
136
89
71
72
72
13
14
89
86
86
63
66
66
92
92
42
92
61
71
145
181
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
1-71737-917-3
01
1
1304-
13
MIRROR ASM; OUTSIDE RR VIEW
1-71737-918-3
01
1
1304-
14
MIRROR ASM; OUTSIDE
PIVOT ID=22.2
1-71707-152-1
01
1
1304-
14
MIRROR ASM; OUTSIDE
PIVOT ID=22.2
1-71737-922-1
01
1
1304-
29
MIRROR ASM; UNDER
1-71798-422-0
01
1
1304-
42
ATTACHMENT; OUTSIDE MIRROR
8-98070-643-0
01
1
1304-
49
STAY; MIRROR SIDE
8-98170-680-0
01
1
1304-
49
STAY; MIRROR SIDE
8-98170-679-0
01
1
1304-
58
NUT; MIRROR STAY
8-98061-883-0
01
1
1304-
61
NUT; STAY,OUTSIDE MIRROR
M8 FLANGE THA
0-91180-108-0
01
1
1304-
63
NUT; STAY
M14 TOUGH LOCK NUT W/FLANGE
8-98174-339-0
01
1
1304-
66
WASHER; PL
LOWER
0-91610-614-0
01
1
1304-
66
WASHER; PL
UPPER
8-98201-756-0
01
1
1304-
71
BRACKET; OUTSIDE MIRROR
(A)
8-98040-022-1
01
1
1304-
71
BRACKET; OUTSIDE MIRROR
(D)
8-98201-957-0
01
1
1304-
71
BRACKET; OUTSIDE MIRROR
(C)
8-98040-021-0
01
1
1304-
71
BRACKET; OUTSIDE MIRROR
(B)
8-98040-543-1
01
1
1304-
72
SHEET
(D)
8-98040-535-0
01
1
1304-
72
SHEET
(A)
8-98040-537-1
01
1
1304-
72
SHEET
(C)
8-98040-351-0
01
1
1304-
72
SHEET
(B)
8-98040-353-1
01
1
1304-
86
COVER; STAY,OUTSIDE MIRROR
(A) BLACK
1-71737-760-1
02
1
1304-
86
COVER; STAY,OUTSIDE MIRROR
(B) BLACK
1-71737-649-1
01
1
1304-
86
COVER; STAY,OUTSIDE MIRROR
(C)
8-98040-545-1
01
1
1304-
86
COVER; STAY,OUTSIDE MIRROR
(D)
8-98040-546-1
01
1
1304-
86
COVER; STAY,OUTSIDE MIRROR
(E)
8-98040-541-1
01
1
1304-
89
SCREW; BRKT,OUTSIDE MIRROR
M8X26 W/PL WASHER
8-98067-249-2
10
1
1304-
92
BOLT; STAY BRKT,MIRROR
M8X16 FLANGE THA
8-98076-109-0
04
1
1304-1306
92
BOLT; STAY BRKT,MIRROR
M8X16 FLANGE THA
8-97948-261-0
04
1
1307-
118
JOINT ASM; BALL
1-71798-356-2
01
1
1304-
136
WASHER; LK,BRKT,MIRROR STAY
(A) ID=10
1-09985-180-0
01
1
1304-
136
WASHER; LK,BRKT,MIRROR STAY
(B) ID=10.5 OD=26 T=2.6
1-09985-184-0
02
1
1304-
136
WASHER; LK,BRKT,MIRROR STAY
(C) ID=10.5 OD=26 T=2.6
1-09985-204-0
04
1
1304-
145
NUT; CAP,SUB STAY
M10 CAP NUT
1-09984-134-0
03
1
1304-
181
SEAL; BRKT
(B) 25X25
8-94272-533-0
01
1
1304-
181
SEAL; BRKT
(A) OD=25 BLACK THA
1-76798-019-0
01
1
1304-
13
14
314
314
49
89
136
145
86
136
89
71
72
136
145
136
71
72
181
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
1-71737-917-3
01
1
1304-
13
MIRROR ASM; OUTSIDE RR VIEW
1-71737-918-3
01
1
1304-
14
MIRROR ASM; OUTSIDE
PIVOT ID=22.2
1-71707-152-1
01
1
1304-
14
MIRROR ASM; OUTSIDE
PIVOT ID=22.2
1-71737-922-1
01
1
1304-
49
STAY; MIRROR SIDE
8-98170-680-0
01
1
1304-
49
STAY; MIRROR SIDE
8-98170-679-0
01
1
1304-
71
BRACKET; OUTSIDE MIRROR
(A)
8-98040-022-1
01
1
1304-
71
BRACKET; OUTSIDE MIRROR
(D)
8-98201-957-0
01
1
1304-
71
BRACKET; OUTSIDE MIRROR
(C)
8-98040-021-0
01
1
1304-
71
BRACKET; OUTSIDE MIRROR
(B)
8-98040-543-1
01
1
1304-
72
SHEET
(D)
8-98040-535-0
01
1
1304-
72
SHEET
(A)
8-98040-537-1
01
1
1304-
72
SHEET
(C)
8-98040-351-0
01
1
1304-
72
SHEET
(B)
8-98040-353-1
01
1
1304-
86
COVER; STAY,OUTSIDE MIRROR
(A) BLACK
1-71737-760-1
02
1
1304-
86
COVER; STAY,OUTSIDE MIRROR
(B) BLACK
1-71737-649-1
01
1
1304-
86
COVER; STAY,OUTSIDE MIRROR
(C)
8-98040-545-1
01
1
1304-
86
COVER; STAY,OUTSIDE MIRROR
(D)
8-98040-546-1
01
1
1304-
86
COVER; STAY,OUTSIDE MIRROR
(E)
8-98040-541-1
01
1
1304-
89
SCREW; BRKT,OUTSIDE MIRROR
M8X26 W/PL WASHER
8-98067-249-2
10
1
1304-
136
WASHER; LK,BRKT,MIRROR STAY
(A) ID=10
1-09985-180-0
01
1
1304-
136
WASHER; LK,BRKT,MIRROR STAY
(B) ID=10.5 OD=26 T=2.6
1-09985-184-0
02
1
1304-
136
WASHER; LK,BRKT,MIRROR STAY
(C) ID=10.5 OD=26 T=2.6
1-09985-204-0
04
1
1304-
145
NUT; CAP,SUB STAY
M10 CAP NUT
1-09984-134-0
03
1
1304-
181
SEAL; BRKT
(B) 25X25
8-94272-533-0
01
1
1304-
181
SEAL; BRKT
(A) OD=25 BLACK THA
1-76798-019-0
01
1
1304-
314
BUFFER; STOPPER
8-94314-317-0
02
1
1304-
18
2
29
86
21
87
32
135
30
51
134
53
53
14
13
132
87
86
133
21
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MIRROR; ROOM
THA
8-97924-058-2
01
1
1304-
2
SCREW; MIRROR TO BODY
M6X26
8-98033-674-0
02
1
1304-
13
MIRROR ASM; OUTSIDE RR VIEW
1-71737-917-3
01
1
1304-
13
MIRROR ASM; OUTSIDE RR VIEW
1-71737-918-3
01
1
1304-
14
MIRROR ASM; OUTSIDE
PIVOT ID=22.2
1-71707-152-1
01
1
1304-
14
MIRROR ASM; OUTSIDE
PIVOT ID=22.2
1-71737-922-1
01
1
1304-
18
CLIP; MIRROR
DARK GRAY
8-97408-241-0
01
1
1304-
21
NUT; MIRROR
M5
1-09984-124-0
04
1
1304-
21
NUT; MIRROR
M5
1-09984-124-0
02
1
1304-
29
MIRROR ASM; UNDER
1-71798-422-0
01
1
1304-
30
MIRROR; UNDER
1-71798-591-1
01
1
1304-
32
SCREW; UNDER MIRROR
M5X40 W/PL WASHER
1-71737-797-0
02
1
1304-
51
SCREW; MIRROR
1-09981-541-0
04
1
1304-
53
PIVOT; SIDE MIRROR
ID=22.2
1-71736-489-2
04
1
1304-
86
COVER; STAY,OUTSIDE MIRROR
(A) BLACK
1-71737-760-1
02
1
1304-
86
COVER; STAY,OUTSIDE MIRROR
(B) BLACK
1-71737-649-1
01
1
1304-
86
COVER; STAY,OUTSIDE MIRROR
(C)
8-98040-545-1
01
1
1304-
86
COVER; STAY,OUTSIDE MIRROR
(D)
8-98040-546-1
01
1
1304-
86
COVER; STAY,OUTSIDE MIRROR
(E)
8-98040-541-1
01
1
1304-
87
SPACER
(A)
1-71737-704-0
02
1
1304-
87
SPACER
(B)
1-71737-646-2
01
1
1304-
132
RING; MIRROR
1-71737-933-0
01
1
1304-
132
RING; MIRROR
1-71737-934-0
01
1
1304-
133
LENS; MIRROR,OUTSIDE
1-71737-926-0
01
1
1304-
133
LENS; MIRROR,OUTSIDE
1-71737-927-0
01
1
1304-
134
CLIP; MIRROR LENS
1-71737-936-0
02
1
1304-
135
LENS; MIRROR,SIDE UNDER
1-71798-838-0
01
1
1304-
