◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11476 - FRR THAILAND EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#121109) — 84 parça

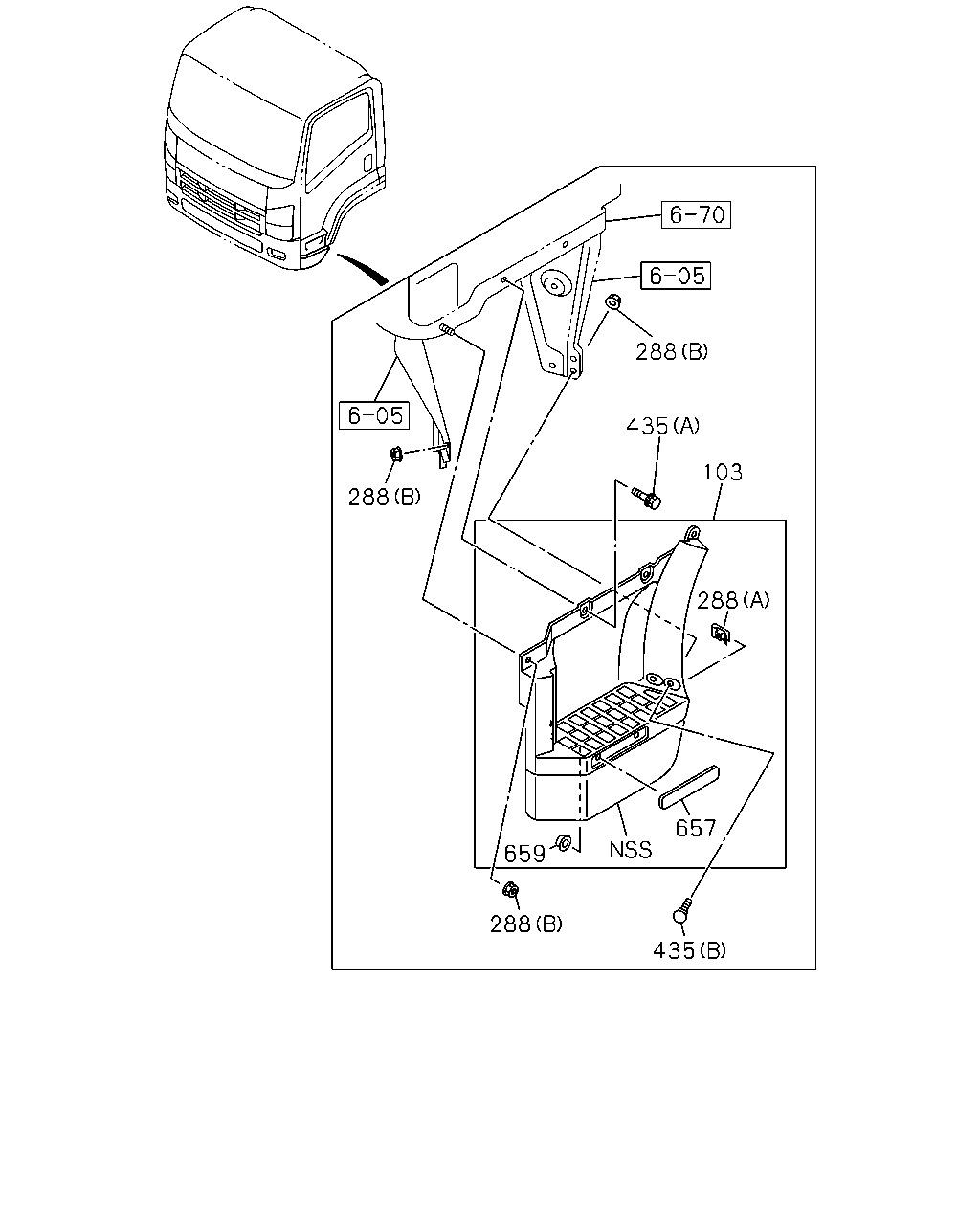

çizim 356688
288 435 103 288 657 288 659 435 288
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-98037-329-3 01 1 1304-
103 PLATE; STEP 8-98037-327-3 01 1 1304-
288 NUT; STEP
(B) M8 FLANGE THA 		0-91180-108-0 10 1 1304-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1304-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1304-
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1304-
657 REFLECTOR; REFLEX 8-97378-910-0 02 1 1304-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1304-

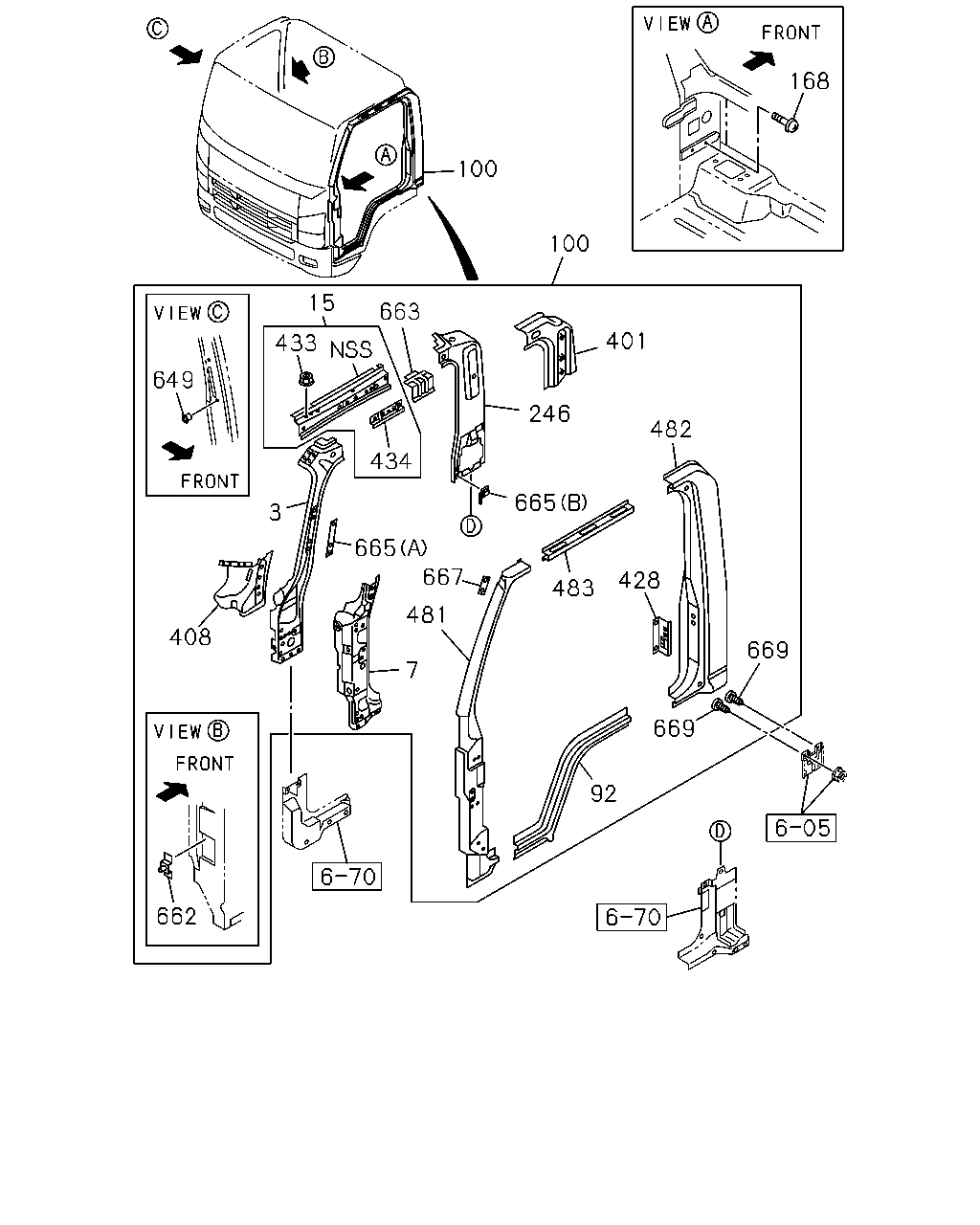

çizim 356979
100 100 168 649 15 663 433 434 3 408 665 667 481 7 662 665 246 401 482 428 483 669 669 92
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1312-
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1312-
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1304-1310
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1304-1310
7 REINFORCEMENT; HINGE
THA 		8-97927-058-0 01 1 1312-
7 REINFORCEMENT; HINGE
THA 		8-97927-059-0 01 1 1312-
7 REINFORCEMENT; HINGE
THA 		8-97585-244-4 01 1 1304-1310
7 REINFORCEMENT; HINGE
THA 		8-97585-240-3 01 1 1304-1310
15 PANEL; CANT RAIL SIDE
THA 		8-97585-292-2 01 1 1312-
15 PANEL; CANT RAIL SIDE
THA 		8-97585-293-2 01 1 1312-
15 PANEL; CANT RAIL SIDE
THA 		8-97585-293-2 01 1 1304-1310
15 PANEL; CANT RAIL SIDE
THA 		8-97585-292-2 01 1 1304-1310
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1304-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1304-
100 PANEL ASM; BODY SIDE 8-97586-046-7 01 1 1304-1306
100 PANEL ASM; BODY SIDE
THA 		8-97948-574-1 01 1 1307-
100 PANEL ASM; BODY SIDE 8-97586-028-6 01 1 1304-1306
100 PANEL ASM; BODY SIDE
THA 		8-97948-560-1 01 1 1307-
168 BOLT; BODY SIDE PANEL
M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 08 1 1304-
246 PANEL; RR PILLAR,INNER
THA 		8-97585-301-3 01 1 1312-
246 PANEL; RR PILLAR,INNER
THA 		8-97586-154-3 01 1 1312-
246 PANEL; RR PILLAR,INNER
THA 		8-97585-301-3 01 1 1304-1310
246 PANEL; RR PILLAR,INNER
THA 		8-97586-154-3 01 1 1304-1310
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97585-303-2 01 1 1312-
401 PATCH; CLOSING,FRT PILLAR
THA 		8-98065-791-0 01 1 1312-
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97585-303-2 01 1 1304-1310
401 PATCH; CLOSING,FRT PILLAR
THA 		8-98065-791-0 01 1 1304-1310
408 GUSSET; PILLAR 8-97586-193-3 01 1 1312-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1312-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1304-1310
408 GUSSET; PILLAR 8-97586-193-3 01 1 1304-1310
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1312-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1312-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1304-1310
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1304-1310
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1312-
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1312-
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1304-1310
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1304-1310
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1312-
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1312-
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1304-1310
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1304-1310
481 PANEL; SIDE FRT PILLAR 8-98055-453-0 01 1 1304-
481 PANEL; SIDE FRT PILLAR 8-98055-471-0 01 1 1304-
482 PANEL; SIDE RR PILLAR 8-98055-467-1 01 1 1304-
482 PANEL; SIDE RR PILLAR 8-98055-466-1 01 1 1304-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1304-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1304-
649 NUT; POP
M5 POP NUT THA 		8-97249-574-0 02 1 1312-
649 NUT; POP
M5 POP NUT THA 		8-97249-574-0 02 1 1304-1310
662 BRACKET; DUCT
THA 		8-97948-248-0 01 1 1312-
662 BRACKET; DUCT 8-97584-611-1 01 1 1304-1306
662 BRACKET; DUCT
THA 		8-97948-248-0 01 1 1307-1310
663 BRACKET; AIR
THA 		8-97948-277-0 01 1 1312-
663 BRACKET; AIR
THA 		8-97948-278-0 01 1 1312-
663 BRACKET; AIR 8-97585-208-2 01 1 1304-1306
663 BRACKET; AIR
THA 		8-97948-278-0 01 1 1307-1310
663 BRACKET; AIR 8-97585-207-2 01 1 1304-1306
663 BRACKET; AIR
THA 		8-97948-277-0 01 1 1307-1310
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1312-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1312-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1312-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1312-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1304-1310
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1304-1310
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1304-1310
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1304-1310
667 BRACKET; MIRROR 8-98109-948-0 01 1 1312-
667 BRACKET; MIRROR 8-98109-948-0 02 1 1312-
667 BRACKET; MIRROR 8-98109-948-0 01 1 1304-1310
667 BRACKET; MIRROR 8-98109-948-0 02 1 1304-1310
669 STUD; FENDER
M6X18 		8-98013-113-1 02 1 1312-
669 STUD; FENDER
M6X18 		8-98013-113-1 02 1 1312-
669 STUD; FENDER
M6X18 		8-98013-113-1 02 1 1304-1310
669 STUD; FENDER
M6X18 		8-98013-113-1 02 1 1304-1310
